Product name: Electrical compact substation

Description:

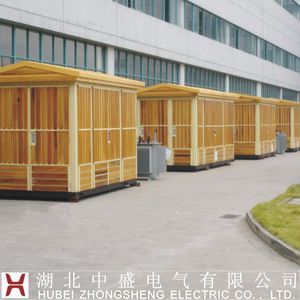

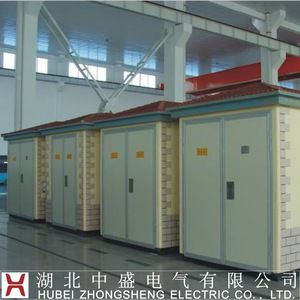

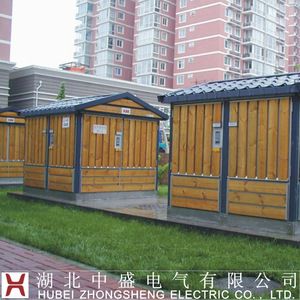

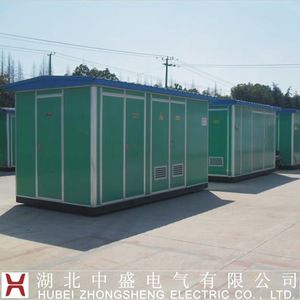

Electrical compact substation is a prefabricated, type tested as per latest IEC standard and arc tested assembly comprising an enclosure containing medium voltage switchgear / ring main unit, distribution transformer, low voltage switchgear / distribution board, connections and auxiliary equipment to receive and distribute electrical power in grid networks. It's supplied from our company as a single unit, and the careful exterior design and reduced dimensions minimize its visual impact in comparison to a conventional built distribution substation.

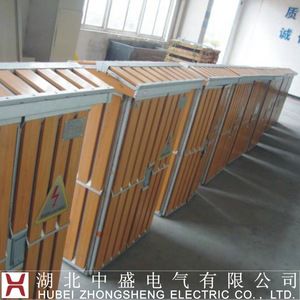

Construction:

Enclosure:

1. Prefabricated, rigid and self-standing on concrete plinth or base.

2. Totally enclosed and maintenance free.

3. The enclosure is constructed with prefabricated mild steel / metal housing.

4. The metal base is made of welded galvanized iron steel channel material to ease transportation / installation and ensure rigidity.

5. Louvers or ventilation opening are provided to allow natural cooling inside enclosure.

6. Weather and vermin proof. Doors are equipped with pad lock along with sealing arrangement.

7. Provide maximum safety in public area.

8. Suitable for any climate and environment change.

Medium voltage switchgear / Ring main unit

Please see detailed parameters from our catalog of medium voltage switchgear / ring main unit.

Distribution transformer

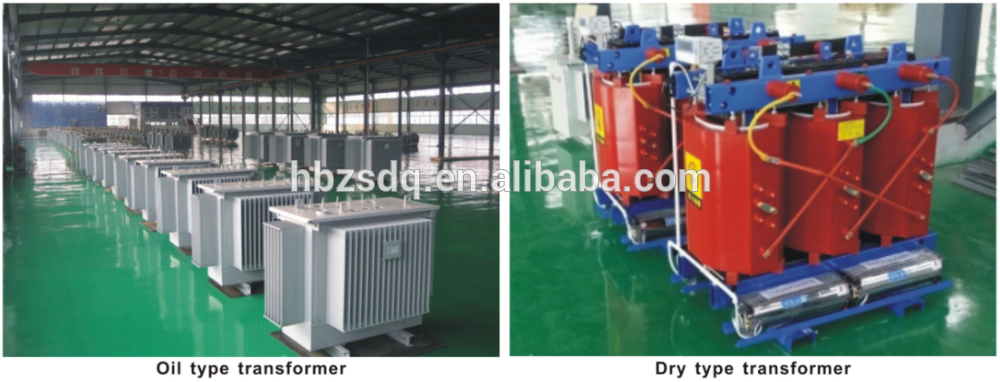

1. Oil type transformer or dry type transformer for option. Provided from qualified brand manufacturers.

2. Distribution transformer is connected with the medium voltage switchgear / ring main unit and low voltage switchgear / distribution board.

Low voltage switchgear / distribution board

Please see detailed parameters from our catalog of low voltage switchgear / distribution board.

Standards applied:

1). IEC 62271-202:2006: High-voltage switchgear and controlgear Part 202: High-voltage / low-voltage prefabricated substation

2). GB 17467-2010: High-voltage / low-voltage prefabricated substation

3). DL/T 537-2002: High-voltage / low-voltage prefabricated cubical substation

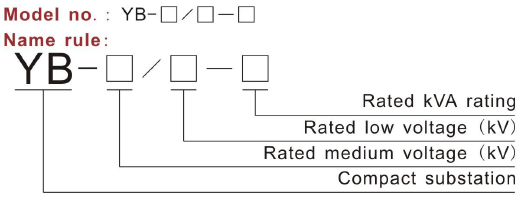

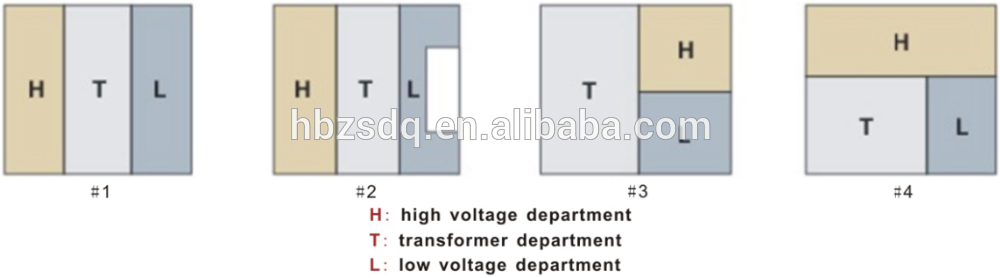

Typical arrangement drawing:

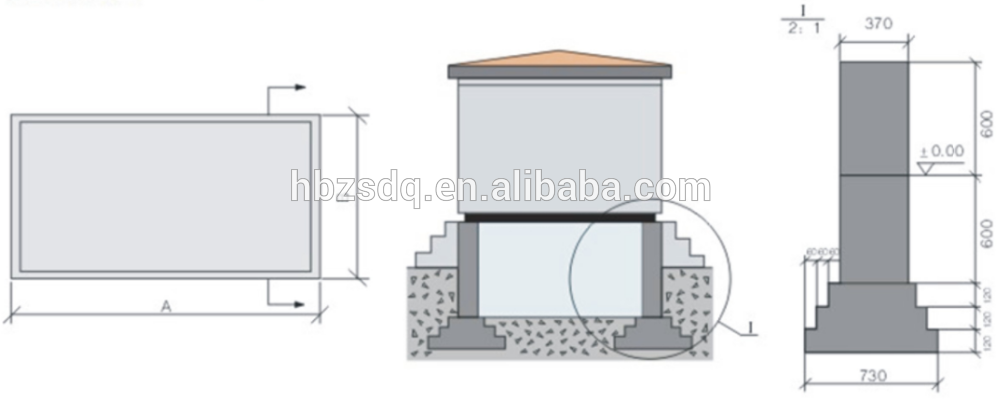

Installation foundation diagram:

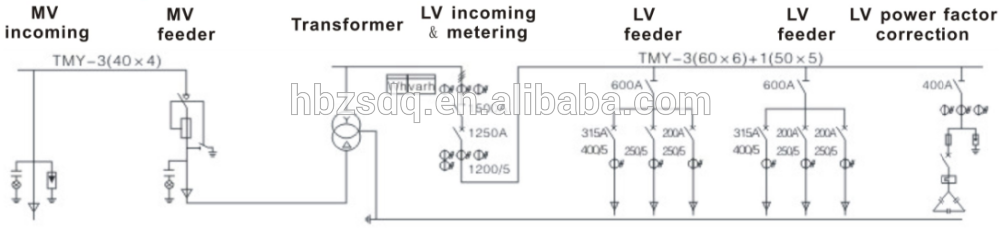

Single line diagram:
