XAX86DB XAX Outdoor power Sub-station electric transformer substation 304 316 ss304 ss316 sus304 sus316 unlock cable tv box
For more information contact
XAX Metal is professional metal manufacturer factory who has provided OEM/ODM service for over 12 years.
armstrongsu.xaxmetal∂gmail.com
Skype:Armstrong.su
Phone:+86-13400620992
Product Description
Material | SPCC, SPHD, SECC, SPHC,SGCC, stainless steel, aluminum all available |
Dimensions | Standard size and Customized |
Optional Surface Treatment | plating, powder coating (with or without texture), anodizing etc. |

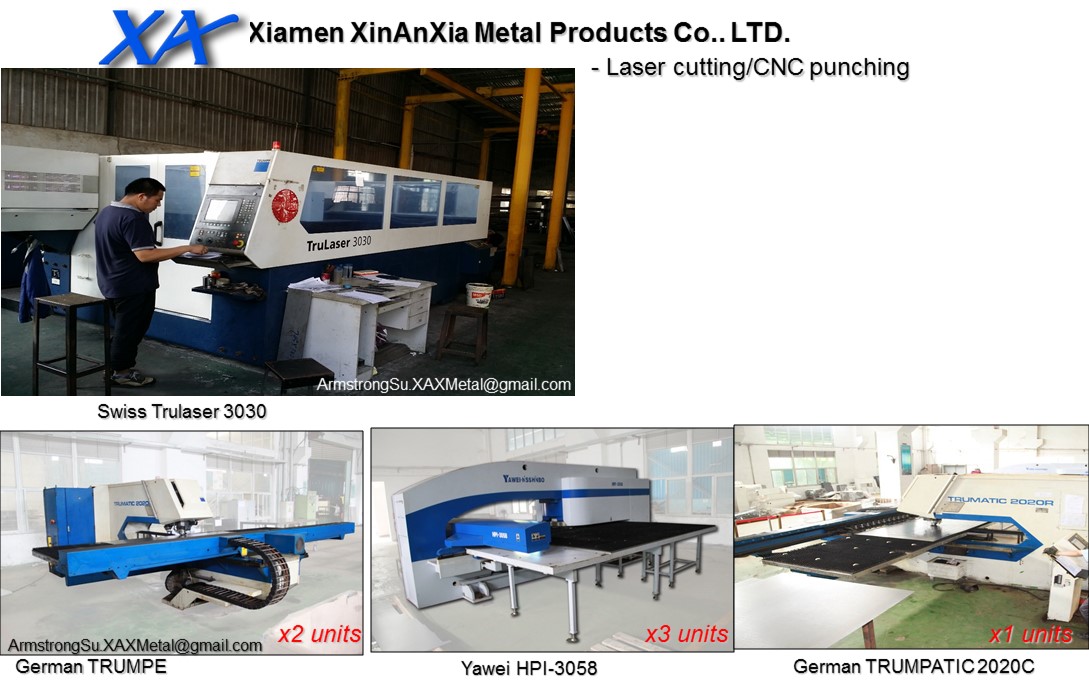

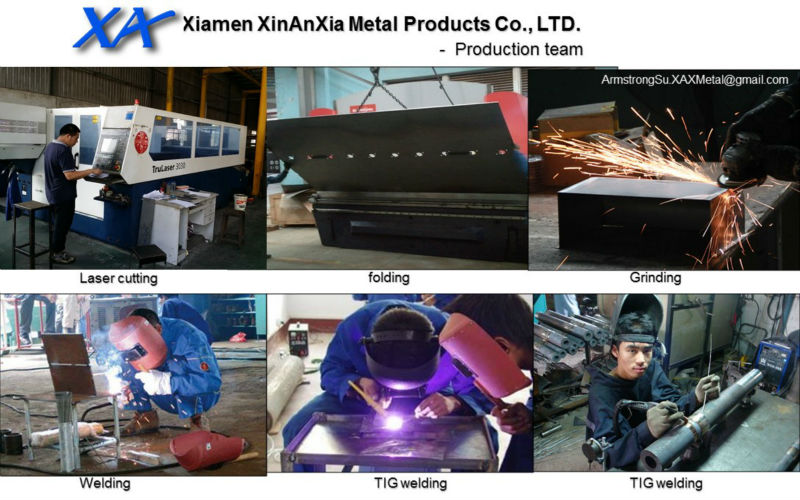

equipment processing | Laser cutting, shearing, punching, bending & welding, ensure high precision |
Rating IP grade | customized, max to IP66 |
Certificate | Certified UL 50, UL 50E, Type 3R Enclosures, Type 4X Enclosures CSA C22.2 No. 94.1, CSA C22.2 No. 94.2 Intertek Type 3R Intertek Type 4X Conforms to Std UL 50, UL 50E NEMA 250 C1D2 ETL US **Not all enclosures carry all certifications. |
Service | OEM, small order and sample order acceptable |
Material:
- 1.5mm galvanize Zinc plating steel with an N4 finish
- Optional material: metal mild iron aluminum steel alloy HRS SPHC SPHD SPHE CRS SPCC SECC SPCD SPCE
- stainless steel, sus201sus 301 SUS304 SUS316 SUS410
Construction:
- Robust Fully welded construction

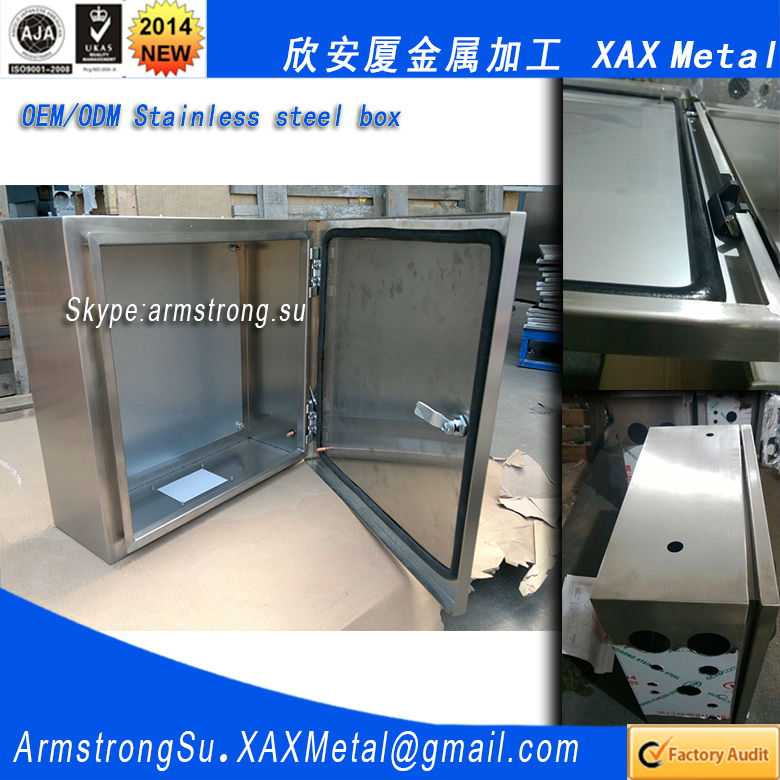

- Formed in place Polyurethane Gasket

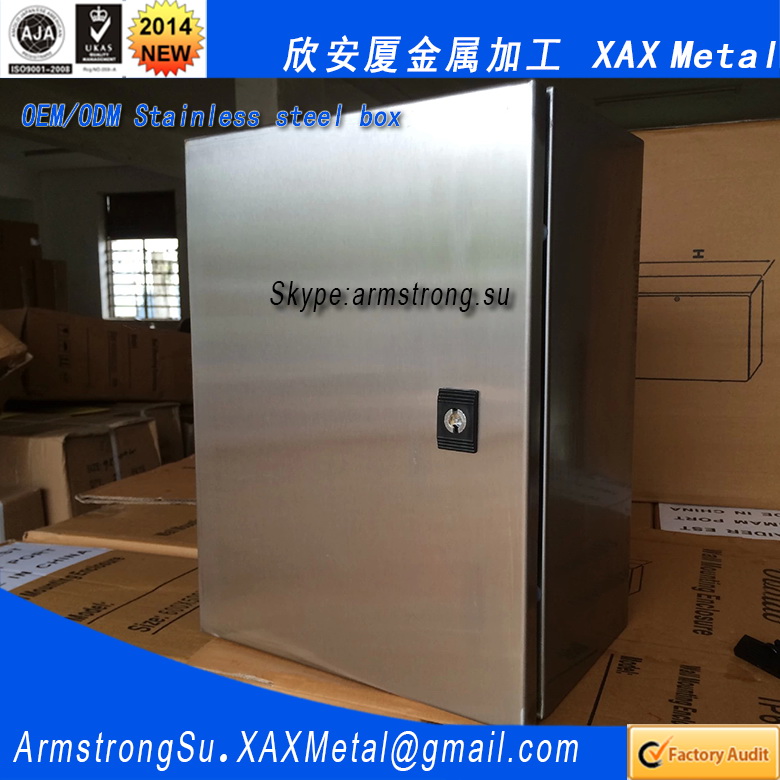

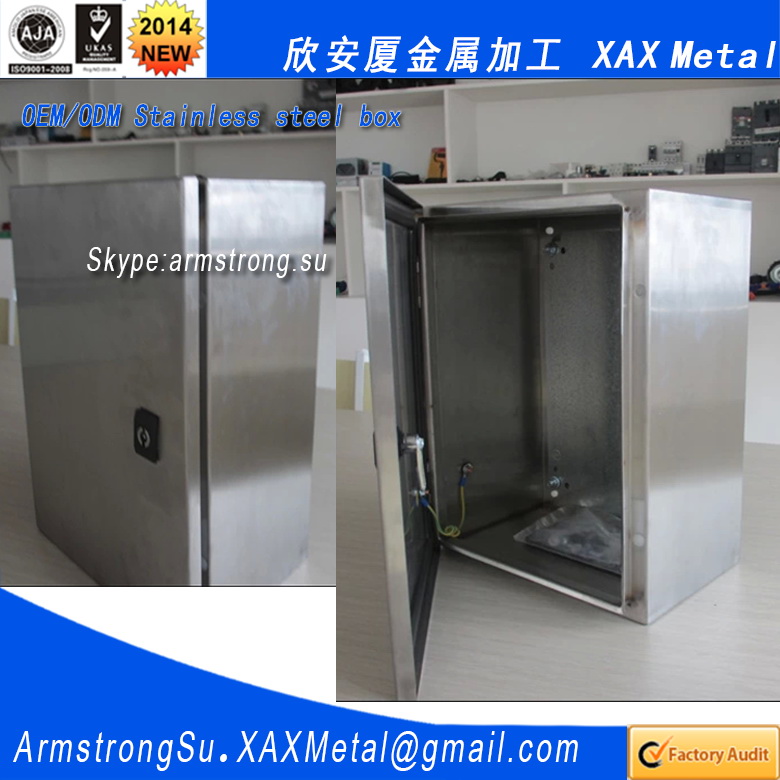

- IP65 Termination Enclosures - Stainless Steel
- Water-proof locks and stainless steel hinges
- Back plate: galvanized steel
- Optional surface treatment: galvanize Zinc plating
- polyester Powder coating epoxy baking paint
Applications:
- Wireless Backhaul, Fiber Optics, Satellite Communication, Cable Television, Navigation & Positioning, Military Installations, Port Security
- The Connector Termination Enclosure range is ideal for applications where a smaller enclosure is required for installing terminations, push buttons or switchgear, and a greater level of protection is required for components in harsh or aggressive environments.
Features:
- IP65 Protection Rating
- Provision for mounting DIN rail (1 or 2) or mounting pan
- Captive 316 Stainless Steel universal head screws indented in lid. These make access to the enclosure contents easy and prevent the loss of fixings
- Complete with earth strap and fixings for internal accessories
- Accessories include mounting pans, DIN rails and external mounting bracket
| Height | Width | Depth | Thickness (mm) | Height | Width | Depth | Thickness (mm) | ||||
| PN | (mm) | (mm) | (mm) | Structure | Door | PN | (mm) | (mm) | (mm) | Structure | Door |
| XAXCB193214 | 190 | 320 | 140 | 1.25 | 1.25 | XAXCB505030 | 500 | 500 | 300 | 1.25 | 1.25 |
| XAXCB203020 | 200 | 300 | 200 | 1.25 | 1.25 | XAXCB604020 | 600 | 400 | 200 | 1.25 | 1.25 |
| XAXCB203515 | 200 | 350 | 150 | 1.25 | 1.25 | XAXCB606025 | 600 | 600 | 250 | 1.25 | 1.25 |
| XAXCB302020 | 300 | 200 | 200 | 1.25 | 1.25 | XAXCB608030 | 600 | 800 | 300 | 1.25 | 1.25 |
| XAXCB303020 | 300 | 300 | 200 | 1.25 | 1.25 | XAXCB764817 | 760 | 480 | 170 | 1.5 | 1.5 |
| XAXCB321914 | 320 | 190 | 140 | 1.25 | 1.25 | XAXCB766022 | 760 | 600 | 220 | 1.5 | 1.5 |
| XAXCB352015 | 350 | 200 | 150 | 1.25 | 1.25 | XAXCB805020 | 800 | 500 | 200 | 1.5 | 1.5 |
| XAXCB383217 | 380 | 320 | 170 | 1.25 | 1.25 | XAXCB805025 | 800 | 500 | 250 | 1.5 | 1.5 |
| XAXCB384817 | 380 | 480 | 170 | 1.25 | 1.25 | XAXCB808020 | 800 | 800 | 200 | 1.5 | 1.5 |
| XAXCB404025 | 400 | 400 | 250 | 1.25 | 1.25 | XAXCB808030 | 800 | 800 | 300 | 1.5 | 1.5 |
| XAXCB405020 | 400 | 500 | 200 | 1.25 | 1.25 | XAXCB956022 | 950 | 600 | 220 | 1.5 | 1.5 |
| XAXCB483817 | 480 | 380 | 170 | 1.25 | 1.25 | XAXCB106020 | 1000 | 600 | 200 | 1.5 | 1.5 |
| XAXCB486017 | 480 | 600 | 170 | 1.25 | 1.25 | XAXCB108030 | 1000 | 800 | 300 | 1.5 | 1.5 |
| XAXCB503020 | 500 | 300 | 200 | 1.25 | 1.25 | XAXCB127635 | 1200 | 760 | 350 | 1.5 | 1.5 |
| XAXCB505025 | 500 | 500 | 250 | 1.25 | 1.25 | XAXCB128025 | 1200 | 800 | 250 | 1.5 | 1.5 |
| XAXCB505030 | 500 | 500 | 300 | 1.25 | 1.25 | XAXCB128035 | 1200 | 800 | 350 | 1.5 | 1.5 |
