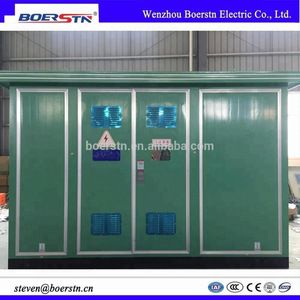

Customized 33KV Outdoor Prefabricated Compact Cubicle Transformer Station / Electrical Package Substation / Kiosk Minisub

HV & LV compartments are with completed function.

Technical Feature

  • Zhejiang, China (Mainland)
  • Boerstn
  • YB
  • IEC72271-200 IEC1330
  • GB3906 IEC298
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$5~60

PRIMARY PARAMETERS

Place of Origin
Zhejiang, China (Mainland)
Brand Name
Boerstn
Model Number
YB
standard
IEC72271-200 IEC1330
China standard
GB3906 IEC298

DETAIL DESCRIPTION

Description

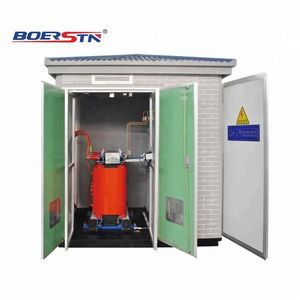

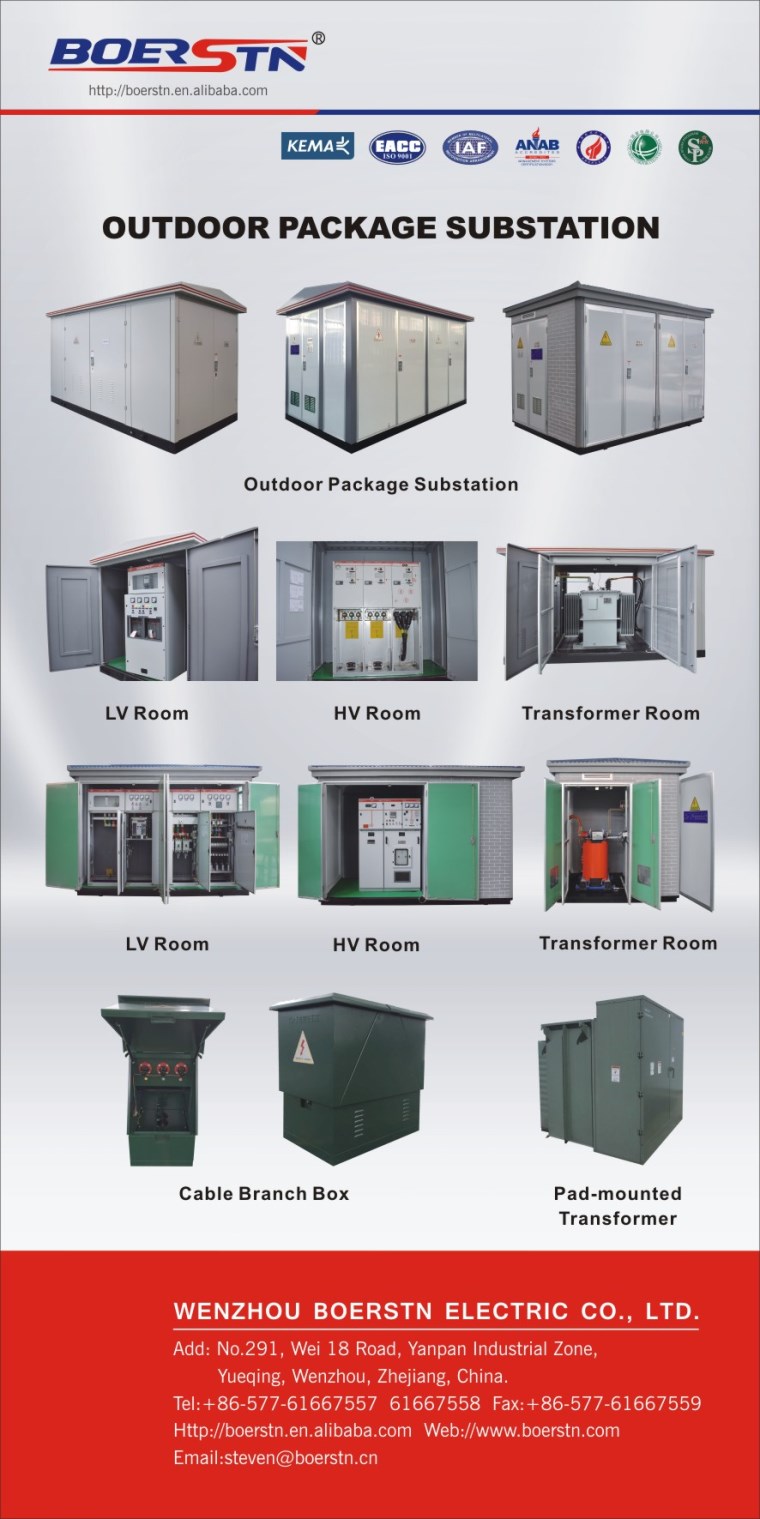

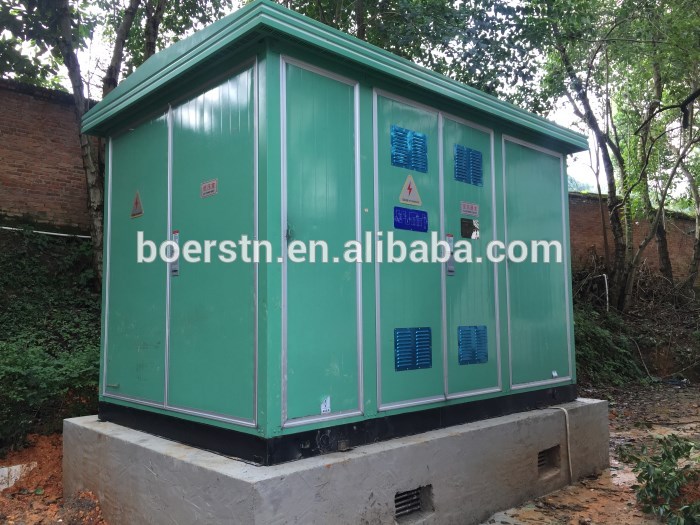

 Outdoor Electrical Transformer Substation ,also named as package substation or Kiosk Substation, It mainly has 3 compartments as following:

1.High voltage compartment

2.Transformer compartment

3.Low voltage compartment



Boerstn electric co.ltd can make this substion as user and customers requirement under their drawing (Single Line Diagram ,SLD ) and need.



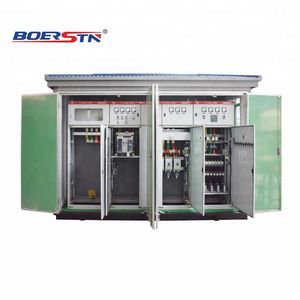

HV & LV compartments are with completed function.

H.V.compartment has various of power supply methods when testing power supply in 1 time, it also can be installed with H.V.testing appliances to reach the demand of H.V.testing.



The transformer compartment  can be choosed S7 ,S9 or other low loss oil immersed transformer and dry type transformer.  The transformer compartment has automatic start wind cooling systems and lighting systems.

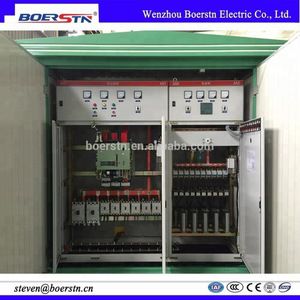

Low voltage compartment can be made according to users' need , it adopts fixed or assembled structure to  be electrical power supply system,it has many function like  light distribution ,power distribution, reactive power ,electrical power testing..etc to improve the power distribution quality and satisfy the user.



This substation body /Enclosure mainly is made in  metal material, stainless steel material , non -metal material ...which can be choosed by user and customers



This substation is a very important power distribution and supply unit in the electrical cable power net.it is a kind of completed set of power supply with H.V.controlling,protection and converting ,distribution.. it used in 3 phase AC 50Hz and rated current max 1600KVA transformer.It is widely used in industrial and mining enterprises, residential quarters, hospital, mall, high-rise buildings and other distribution systems.



For this substation, we mainly produce & export 11KV, 15KV,20KV,24KV,33KV 36KV.....type.

For customized special type, once we get clear technical data or SLD ,we also can make it .

Working Environment

1 Ambient temperature: -25℃~+40℃
2 Altitude: less than1000m
3 Relative humidity
Daily average less than 95% Average value of water vapor pressure less than 2.2kpa
Monthly average less than 90% Average value of water vapor pressure less than 1.8kpa
4 Seismic intensity:less than magnitude 8

5 Outside wind speed less than 35m/s
6 Apply to the places have no fire,no explosion danger and no chemical corrosion

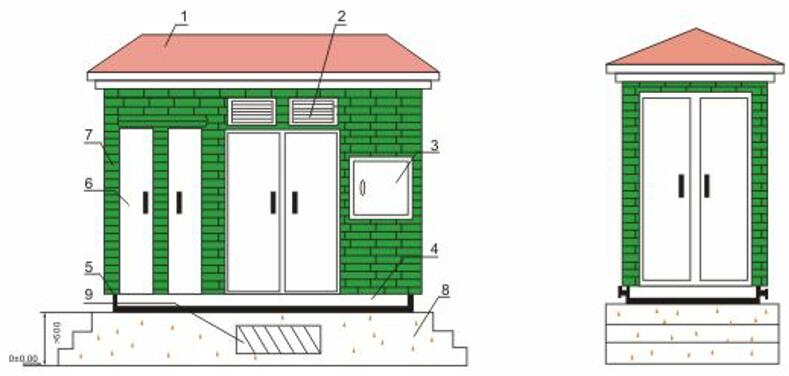

Van drawing




1. roof    2.window-shades   3.External measuring box

4.lifting ring   5.channel underframe     6. Door

7.wall material (it can be stainless steel , iron, ceramic tile or other metal ,non-metal material)

8.earth or concrete foundation  9.vent

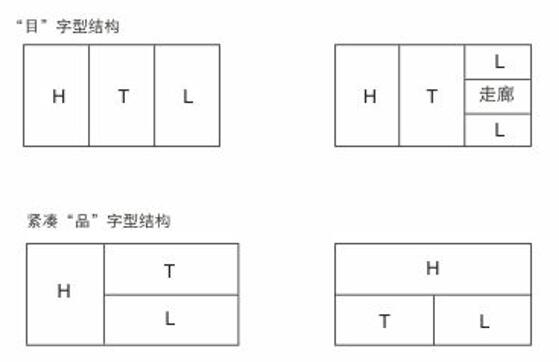

structural style


Other drawing

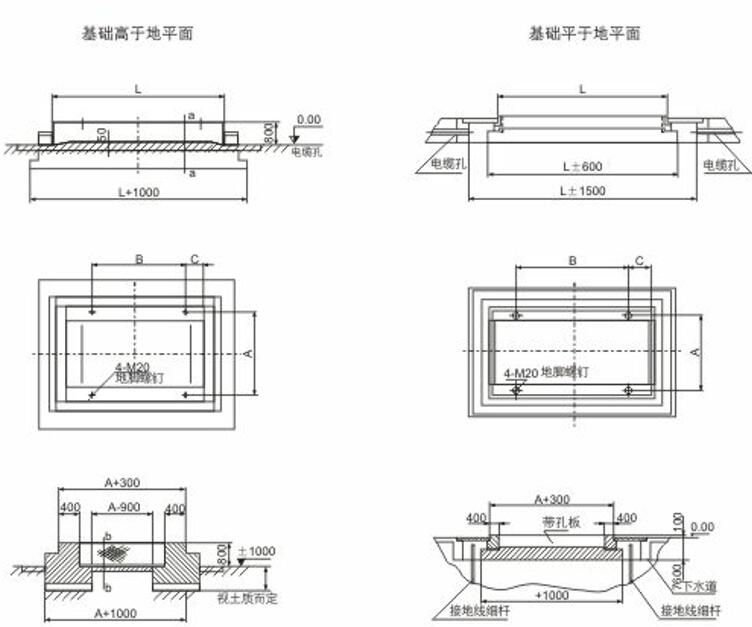

 This drawing is for ground non-metal type substation

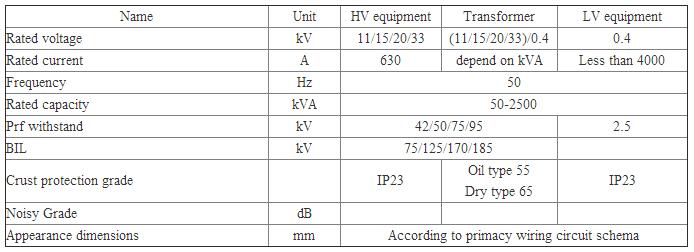

Technical data


If you need more technical data please contact us.Thank you.
