4000kg gas oil fired industrial steam boiler for steam turbine

The gas or oil fired steam boiler is the fire tube boiler with 3 pass.

Technical Feature

  • New
  • Natural Circulation
  • Industrial
  • Fire Tube
  • Low Pressure
  • Horizontal
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$2~60

PRIMARY PARAMETERS

Condition
New
Type
Natural Circulation
Usage
Industrial
Structure
Fire Tube
Pressure
Low Pressure
Style
Horizontal
Fuel
Oil-fired
Place of Origin
Henan, China (Mainland)
Brand Name
Forst
Model Number
WNS
Output
Steam, steam
Dimension(L*W*H)
Depends
Weight
1-20 Ton
Certification
ISO
After-sales Service Provided
Engineers available to service machinery overseas
Product name
4000kg gas oil fired industrial steam boiler for steam turbine
Design fuel
oil/natural gas/LPG
Warranty
2 years
HS code
8402190000
Thermal efficiency
96%--98%
Control system
Remote PLC control
Boiler structure
3 pass fire tube boiler
Pump type
vertical stainless steel
Burner Brand
Riello

DETAIL DESCRIPTION

Product Description

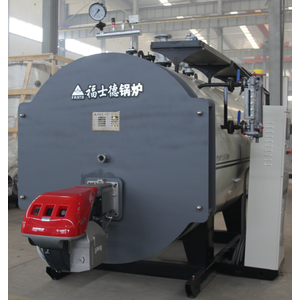

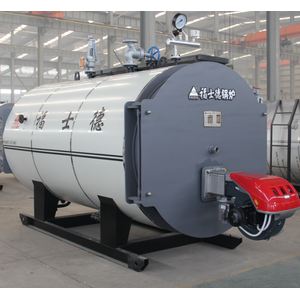

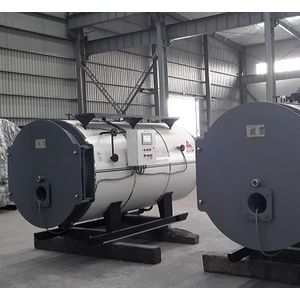

4000kg gas oil fired industrial steam boiler for steam turbine


The gas or oil fired steam boiler is the fire tube boiler with 3 pass. The boiler adopts the bias furnace and wet back structure. The high temperature smoke flows through the first, second and third smoke pipes in turn. And then the smoke can be discharged into the atmosphere through the chimney. The boiler is provided with the movable front and back smoke boxes covers. So that the boiler is easy to overhaul. Also our boiler is equipped with the burner in great performance. The boiler is also with the functions of automatic combustion adjustment, automatic water feeding regulator, automatic program start or stop, automatic operation and other advanced technology. Besides, our boiler has the functions of high and low level alarm and limit low water level protection, over high pressure protection and automatic flameout protection function. The utility model boiler has the advantages of compact structure, safety, simple operation, quick installation, little pollution, low noise and high efficiency.

Technology - Environmental Protection
The boiler is equipped with the high combustion efficiency burner. With the ultra low nitrogen oxide( NOx) emission burner and advanced emission reduction technology, our boiler nitrogen oxides (NOx) emission can reach up to the most strictly Environmental Protection Standard with the emission less than 30mg/m3 .
The big furnace design can not only improve the full combustion of fuel but also can reduce the thermal load of the furnace, which effectively reduce the emissions of nitrogen oxides.

Convenient design
There are the 4 smoke box doors for the front and back smoke boxes, which is convenient for flue cleaning and maintenance;
There is a fire hole at the back of the boiler, which is convenient for observing the situation of flame and combustion. There are the platform, fence and manhole at top of the boiler and there is cleaning hole at the bottom of the boiler. Those detailed designs are convenient for boiler maintenance;
The boiler is equipped with two water level meters ( one colorful water level meter and the other black-white water level gauge ) to avoid reading the wrong water level by color mistakes;

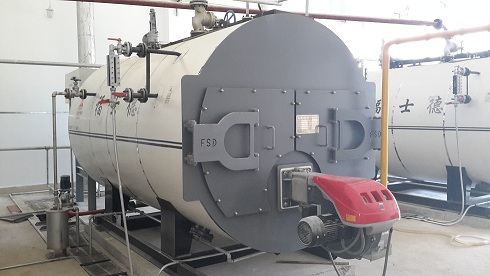

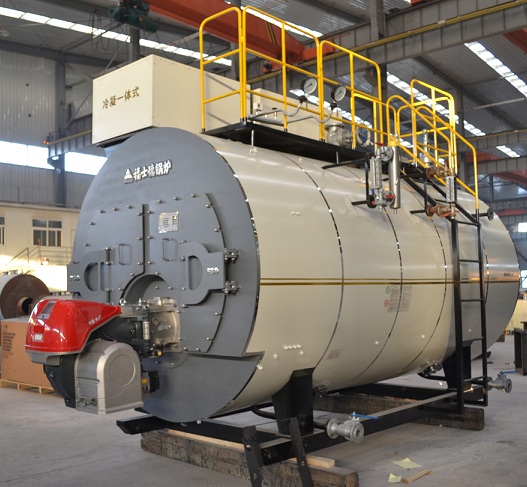

Detailed Images

features of 4000kg gas oil fired industrial steam boiler for steam turbine


1. The flue gas process adopts the 3 pass smoke pipes layout. The boiler is with full butt welding wet back structure and corrugated furnace. The screw thread smoke pipe is arranged in convection area. There is a long flue gas flow process in the boiler. So that the boiler is with a great heat transfer effect;
2, compact structure, simple and easy installation, less infrastructure investment
3, according to user requirements, the boiler can be configured with different fuel burner to adapt to different fuels: natural gas, liquefied petroleum gas, light oil and so on;

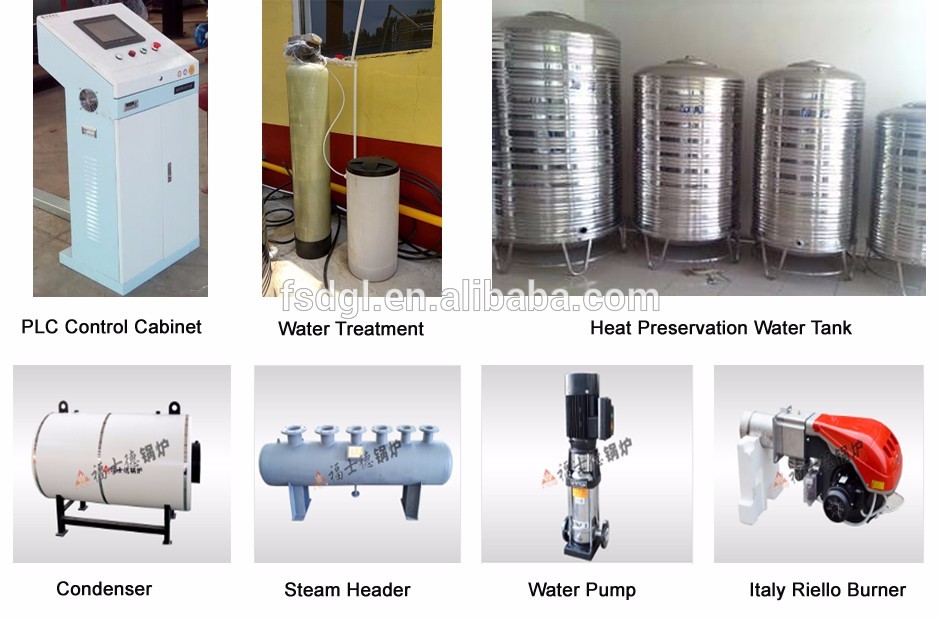

4. Meters and valves are also matched with the boiler. We selected top qualified accessories for the boiler and we can not only ensure our boiler quality but also we can provide all the accessories a 2 years warranty.

Safety--Protection

The gas(oil) fired condensation integrated steam boiler is designed with the excellent safety protection functions: burner ignition protection, steam overpressure protection, water level detection and interlock protection.

High efficiency--Energy saving

The steam boiler with center adjustment wet back three pass structure. The boiler is designed with the large furnace. The large furnace and adequate smoke tube effectively increase the radiation heating surface and improve the thermal efficiency of the boiler

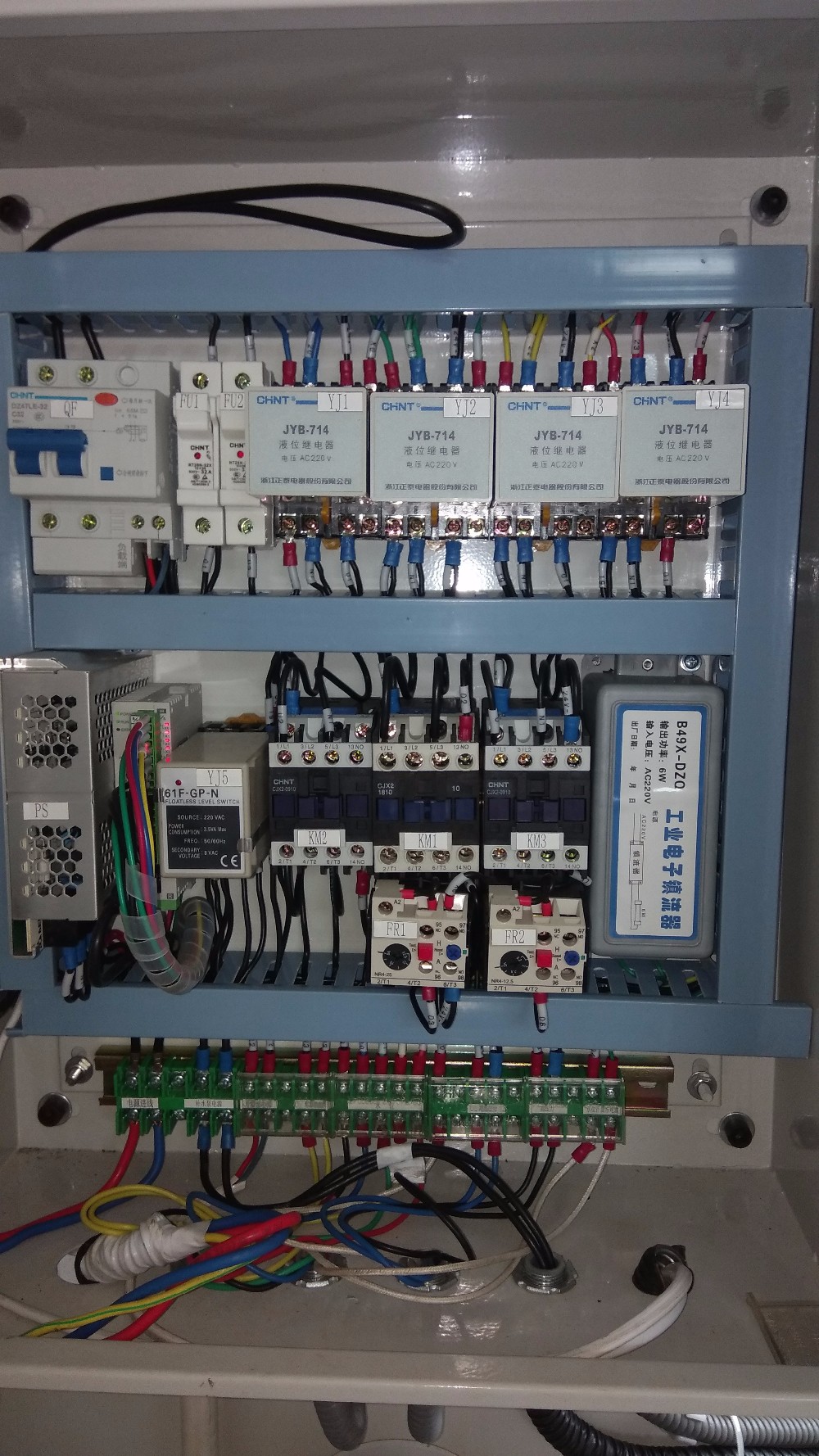

Intelligent control

The boiler is equipped with advanced automatic control system with the control mode of PLC + touch screen. Our company designs our control system in consideration of independent intuitive operation and expansibility.

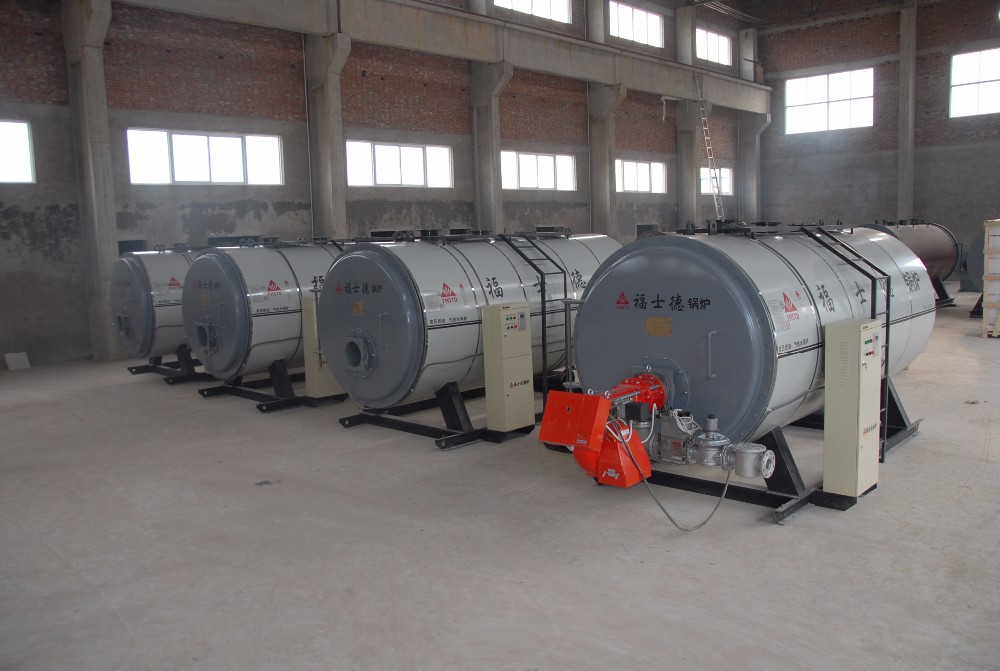

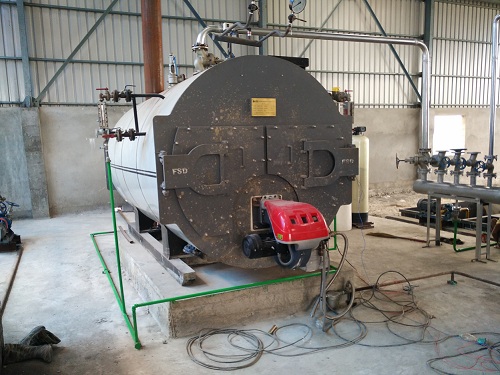

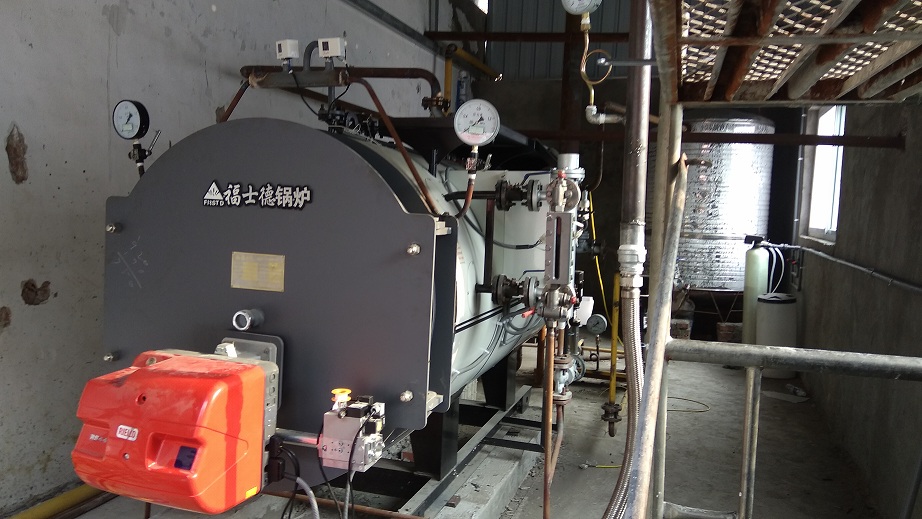

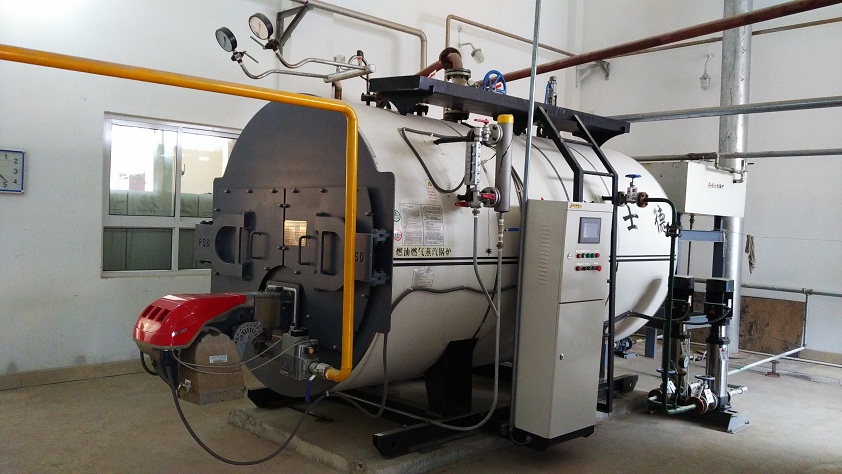

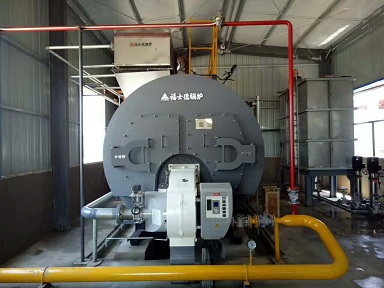

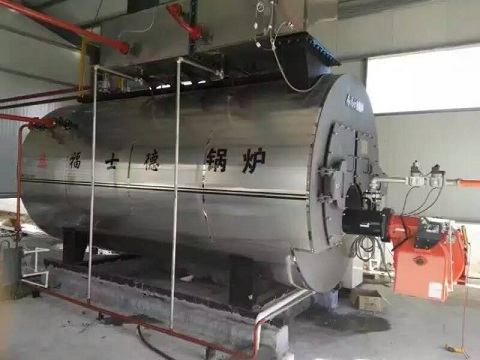

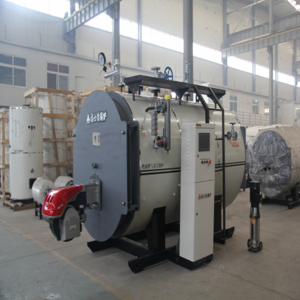

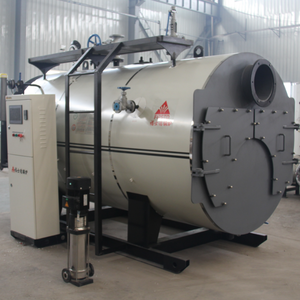

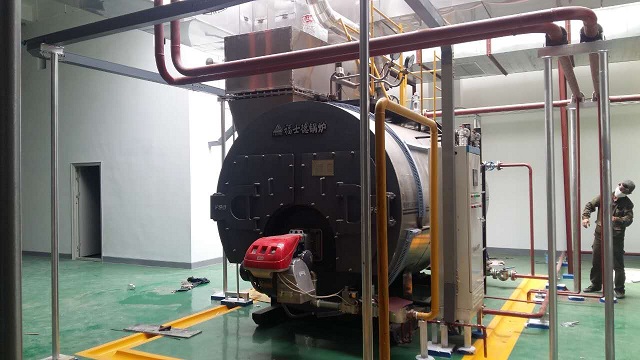

Products Show

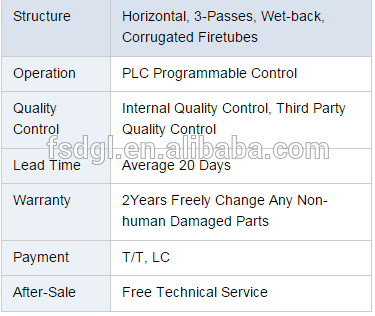

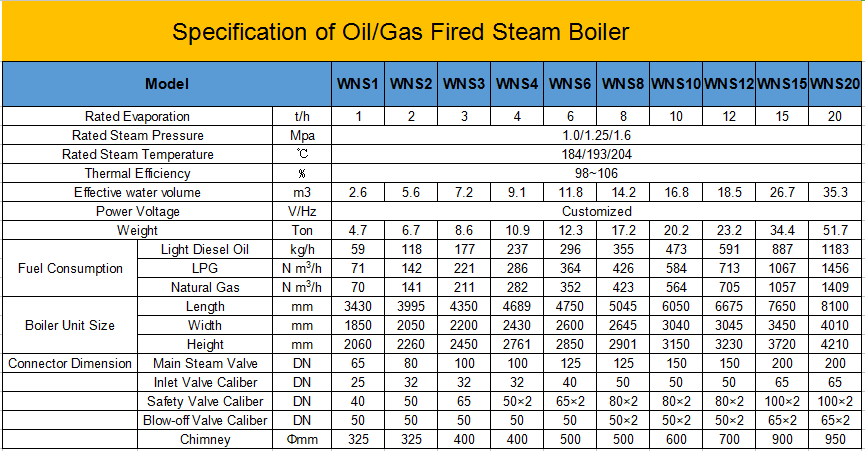

Detailed Parameter

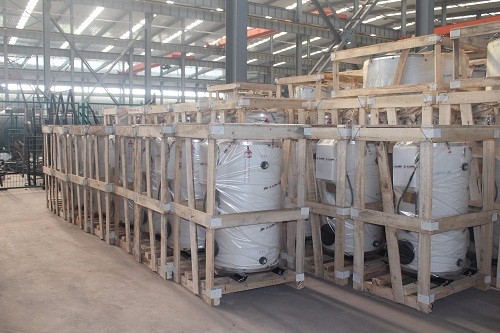

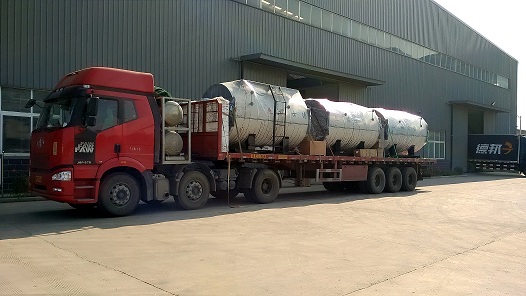

Packing & Delivery

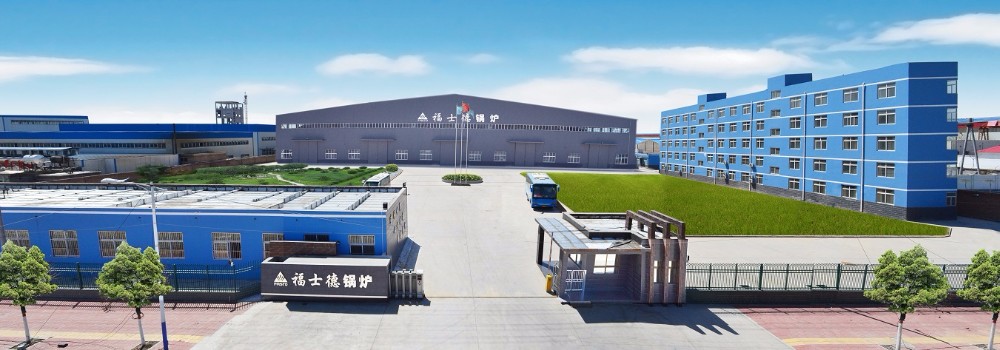

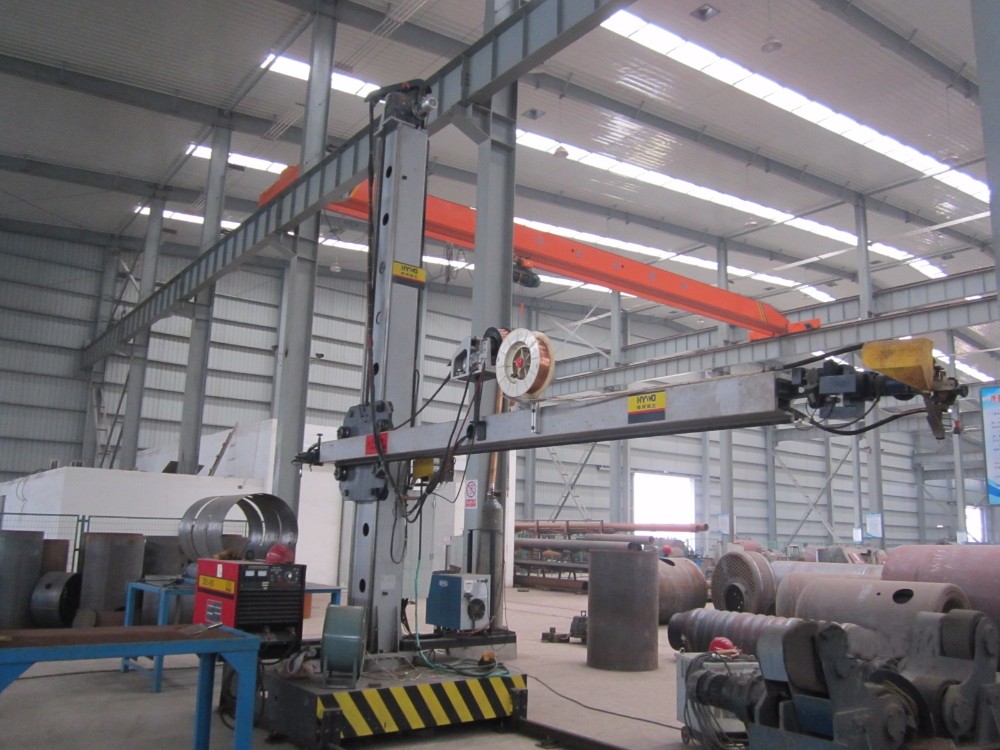

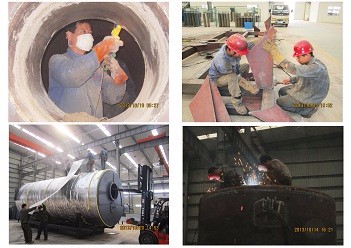

Our Company

Anyang Forst Boiler Manufacture Co., Ltd. is the boiler manufacture located in Anyang city, Henan province, China. With 26 patents and 60 independent intellectual property rights, our boiler is manufactured under the strictly condition and test. We arefire professional manufacturer and supplier for coal fired boiler, gas fired boiler, biomass fired boiler, wood chip fired boiler, oil fired boiler, steam boiler, fire tube boiler, industrial boilers. Our company is one of the leading enterprises which first obtained the national boiler manufacturing license in China. The products series include more than 10 kinds. Our annual production capacity of boilers up to 3000t/h.. So far, we sell to lots of ountries and regions, such as France, Britain, Italy, Russia, Egypt, Morocco and Latin American by cooperate with the trading company.


Our production lines are designed, tested and assembled to ensure that our customers get the very best in various application field. Our gas or oil fired boilers with superior parts are our advantage products. They have earned highly reputation for exceptional quality, performance and dependability since its inception. Our trained and skilled workers and staff ensure products and service best in this industry.

Our Service

We have professional engineers service team. According to the customers’ requirement and site specific condition, they can make the suitable and optimal solution about the after-sales service.

1). 2 4hours service hotline.
2). 24 months warranty after delivery.
3). Spare parts are equipped during shipment.
4). Provide installation, commissioning and maintance service anytime.
