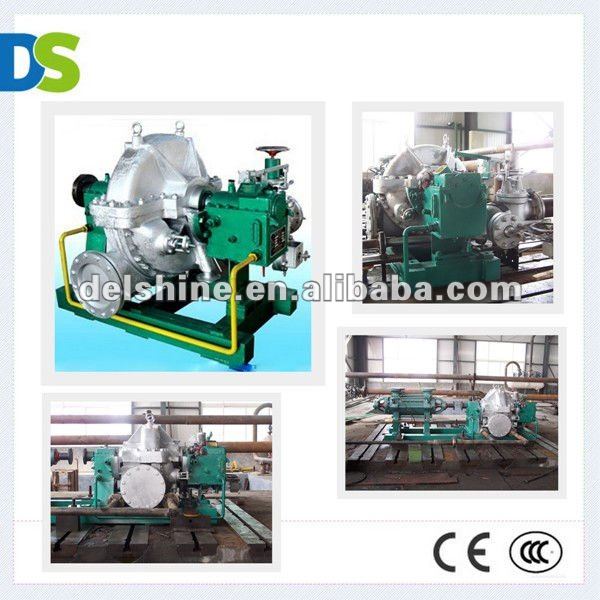

Back Pressure Steam Turbine

eam turbine can be used for heating and power generation.

Technical Feature

  • Zhejiang, China (Mainland)
  • D&S
  • 0.025-50MW
  • 0.5-8.83MPa
  • 347-535degree
  • 7.8-425t/h
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$0~1

PRIMARY PARAMETERS

Place of Origin
Zhejiang, China (Mainland)
Brand Name
D&S
Output power
0.025-50MW
Inlet pressure
0.5-8.83MPa
Inlet temperature
347-535degree
Inlet Admission quantity
7.8-425t/h
Outlet pressure
0.5-4.12MPa
Steam consumption
up to 24.76kg/kw.h
Weight
5.2-60T
Max Speed
up to 6500r/min
Output Power
0.025-50MW

DETAIL DESCRIPTION

Name: Back Pressure Steam Turbine



Performance range:

Power:0.025-50MW
Inlet pressure: 0.5-8.83MPa
Inlet temperature: 347-535degree
Inlet Admission quantity: 7.8-425t/h
Outlet pressure: 0.5-4.12MPa
Steam consumption: up to 24.76kg/kw.h
Weight: 5.2-60T
Max Speed: up to 6500r/min



Summary

    The back pressure steam turbine can be used for heating and power generation. The outlet steam pressure value can be designed according to different purposes of heating. The power of the back pressure is decided by heat load, that is hot set electricity It also can be used to replace motors to drive the water pumps and the fan of mechanical equipments. The outlet contains quantity of heat which is mostly used by hot users. There is no loss in cold source, so from the utilization coefficient of fuel, the thermal efficiency of back pressure turbine device is higher than condensed steam turbine.



 Properties

  1) There are single stage and multi-stage steam turbine for the users to choose. The power from 100 KW to 3000 KW which meets all kinds of industry and all kinds of conditions required.

  2) It has stable performance and it is easy to operate.

  3) The structure of single stage steam turbine is simple, convenient, good adaptability and easy to install, It is mostly used in driving the heating water pump and other machinery equipments

  4) You can choose the full hydraulic pressure regulation or electro-hydraulic regulation.

  5) It has fully functional security system.








 80
