50L-1000L high quality 300L duplex stainless steel multifunction tank electric resistance hot water boiler

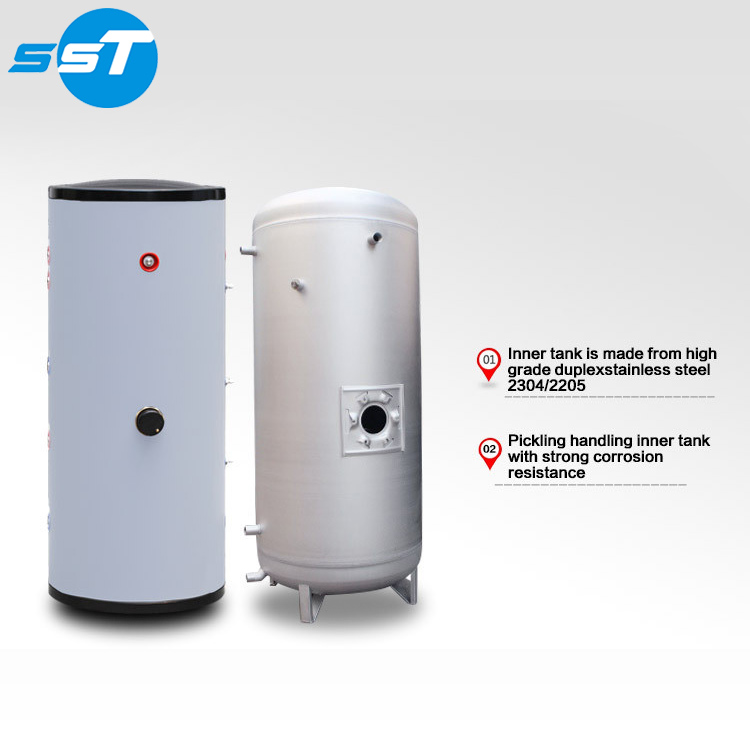

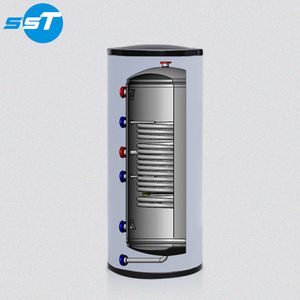

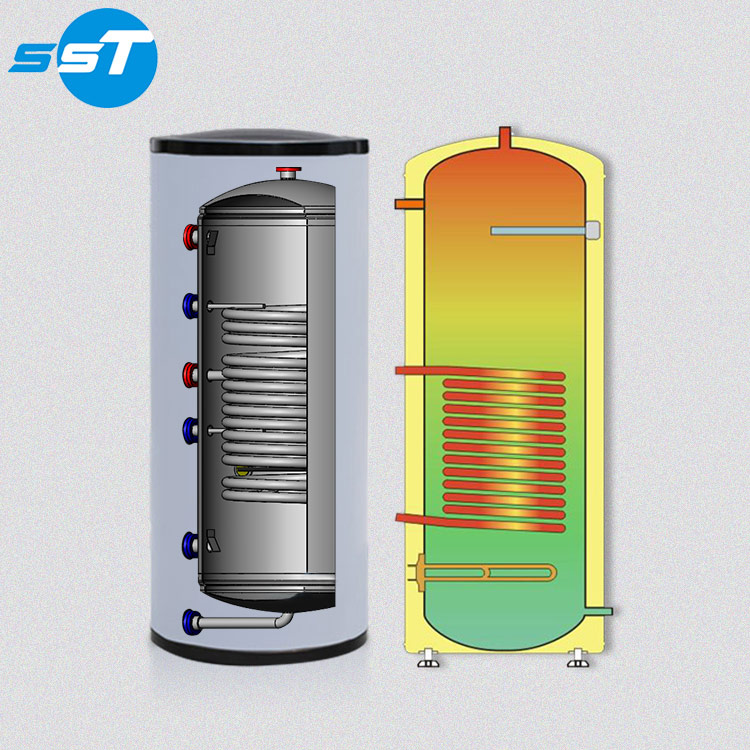

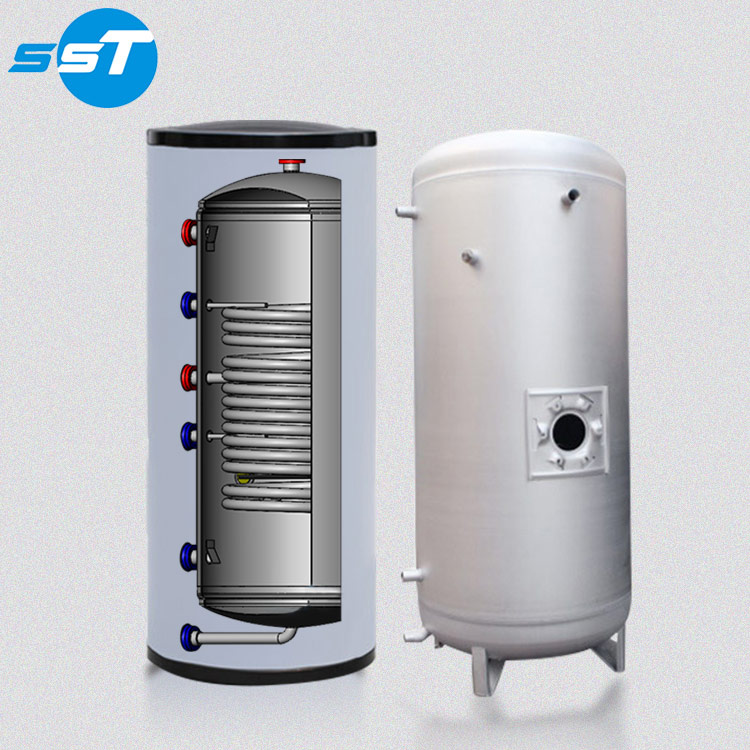

| Product Show | SST www.chinawatertank.com |
| Product Parameters | SST www.chinawatertank.com |
| Capacity | L | 100 | 200 | 300 | 400 | 500 | 600 | 800 | 1000 |
| Inner tank diameter | mm | Φ370 | Φ470 | Φ500 | Φ550 | Φ600 | Φ650 | Φ700 | Φ800 |
| Out shell diameter | mm | Φ470 | Φ560 | Φ600 | Φ650 | Φ700 | Φ760 | Φ800 | Φ900 |
| Inner tank material | mm | SUS304 / SUS316L / Duplex2205 / Duplex2304 | |||||||
| Out shell material | mm | galvanized steel with painting / stainless stell / PU | |||||||
| Out shell color | white / silver-grey / blue /red / golden / stainless stell | ||||||||
| Max.working pressure | bar | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| Max.testing pressure | bar | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
| Max.running temperature | ℃ | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 |
| Heating loss | W/K | 0.65 | 0.72 | 0.89 | 1.02 | 1.15 | 1.26 | —— | —— |
| Standing loss | W | 30 | 33 | 40 | 46 | 52 | 57 | —— | —— |
| ERP Class | A | A | A | A | A | A | A | A | |
| Electrical heater | kw | 1.5 | 1.5 | 1.5 | 1.5 | 3 | 3 | 3 | 3 |
| Mg.Anode | mm | Φ22*300 | |||||||
| Water connection | G / BSP / NPT 3/4" | G / BSP / NPT 1" | |||||||
| Packing size | mm | L:540 W;540 H:117 | L:630 W:630 H:1440 | L:670 W:670 H:163 | L:720 W:720 H:1920 | L:780 W:780 H:1930 | L:850 W:850 H:1940 | Φ900*2200 | Φ980*2420 |

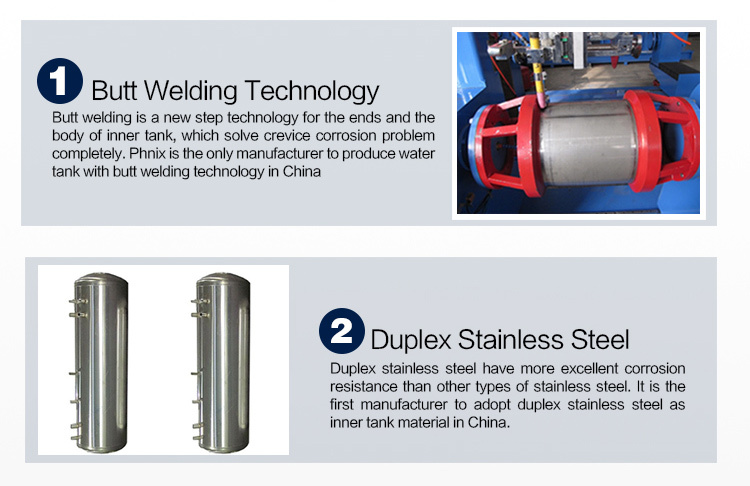

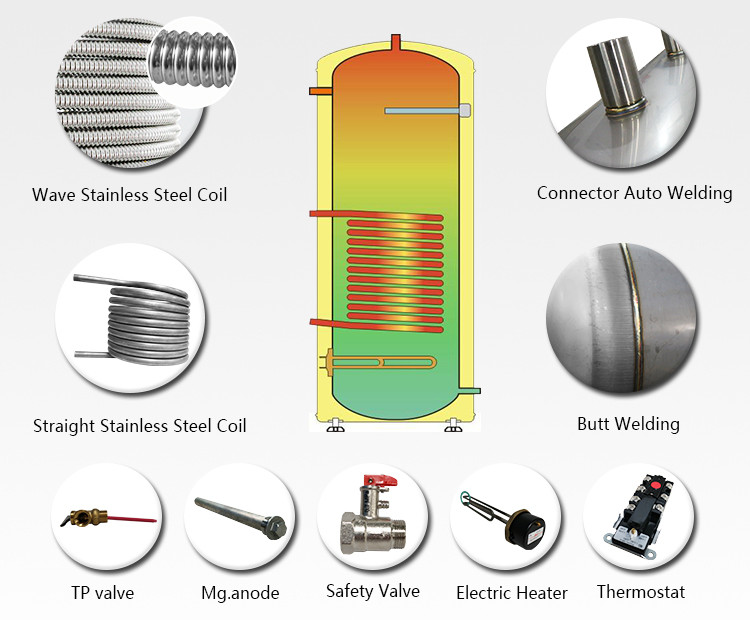

| Unique Technology/advantage | SST www.chinawatertank.com |
