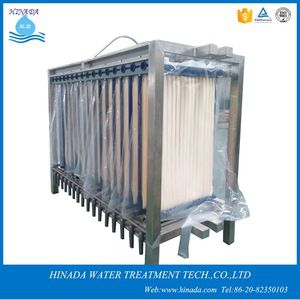

Lined Hollow Fiber Membrane Bioreactor Wastewater Treatment And Recycling System
Membrane Description:

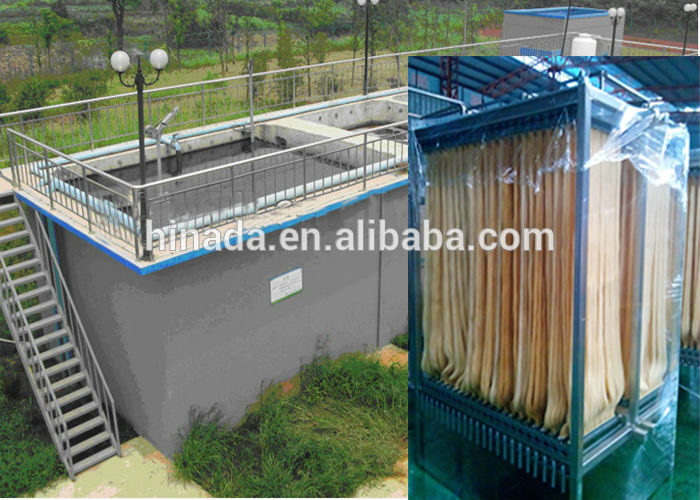

Membrane bioreactor (MBR) is the combination of a membrane process like microfiltration or ultrafiltration with a suspended growth bioreactor, and is now widely used for municipal and industrial wastewater treatment.
Membrane bioreactors can be used to reduce the footprint of an activated sludge sewage treatment system by removing some of the liquid component of the mixed liquor. This leaves a concentrated waste product that is then treated using the activated sludge process.
PVDF MBR Membrane NM-1010 Specification:
| NM-MBR-1010 | Module |
| PVDF | Membrane materials |
| Hollow fiber | Membrane fiber shape |
| ABS Resin | Permeate |
| Polyurethane resin | Seal material |
| 571×815x45 mm | Element dimensions |
| 10.0m2 | Effective Membrane area |
| 0.01-0.1um | Pore size |
| 0.1um | Microporous average aperture |
| 2-12 | PH range |
| 5-45℃ | Suited temperature |
| 0.02-0.04MPa | Work pressure |
| 10-20L/m2.h | Flow rate |
| 0.6mm/1.2mm | Dia I/O (mm ) |
| Outside-in | Filtration methods |
| UPVC pipe | Supports |
Application:
PVDF material MBR Membrane is widely use for industrial wastewater and sewage waste water treatment .
Service & Packaging:
The professional solution designation, sophisticated installation, good training and efficient after-sales service according to customer's requirement.
Packaging: Paper Carton or Wooden Case
Hinada Water Treatment Tech CO.,LTD:
Hinada is the professional MBR Membrane &MBR System manufacturer, we can offer according to client requirement .

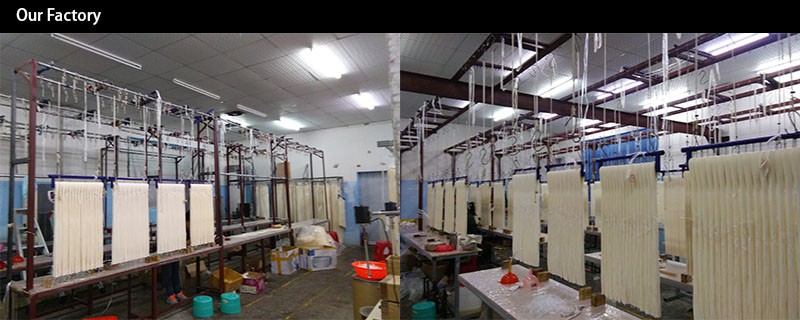

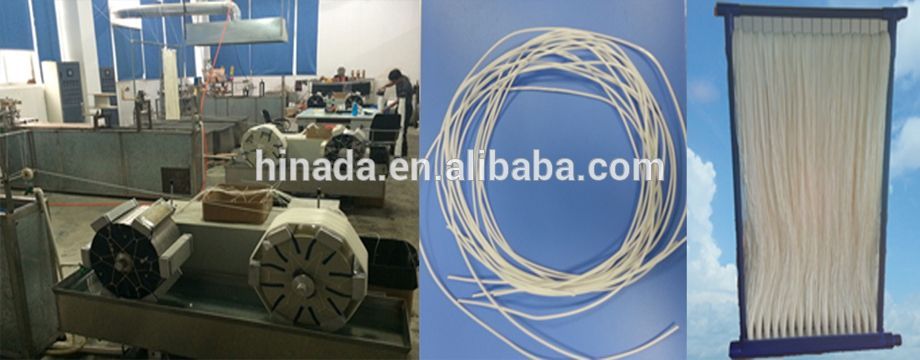

And we have a very strong and professional engineers team and sophisticated workers for Hollow fiber manufacturing and water treatment machine designation, assembly, installation, test, commissioning and aftersales service .
