Domestic sewage water treatment plant,wastewater treatment

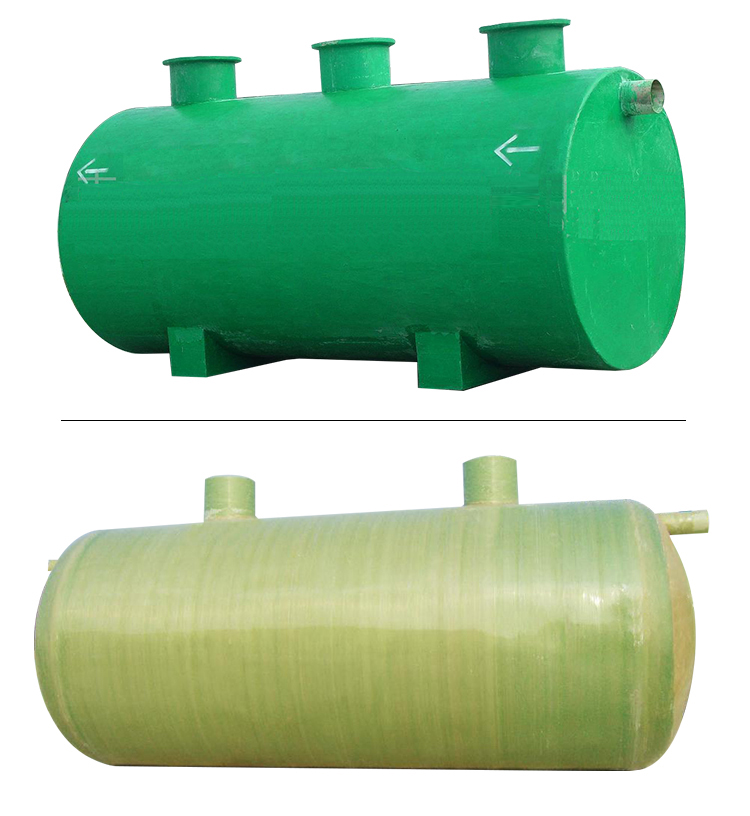

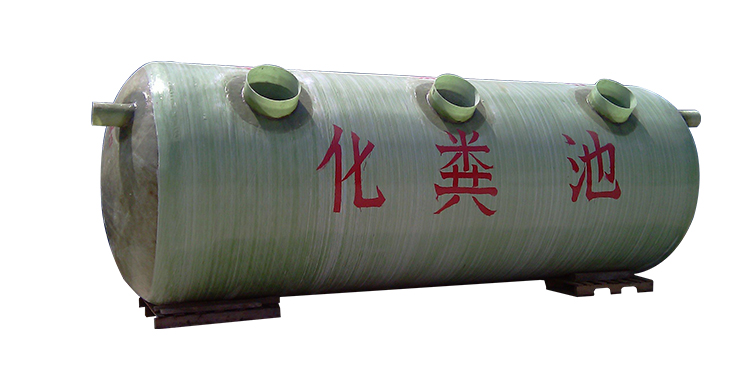

FRP Septic Tank is the equipment which use in Sediment & anaerobic digestion to remove the suspended solid such as feces , paper scrap , Protozoon etc in the domestic sewage . has excellent cleaning ability, high compressive strength, environmental protection, energy saving, low carbon, no leakage, corrosion resistance, low construction cost, short construction period, service life is as long as the buildings.

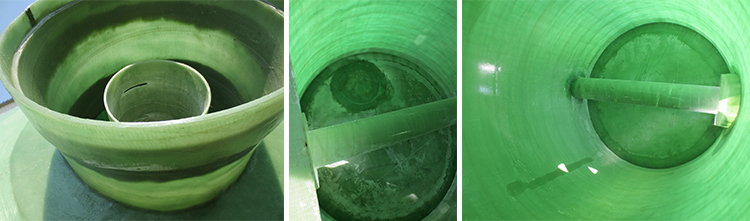

Product show |
Product detail |
Working principle |
Septic tank is a principle of using anaerobic digestion to remove sediment and suspended organic matter sewage primary treatment of the structures of the most sewage contains large amounts of manure, litter, insect pathogens and other impurities, suspended solids concentration of 100-350mg of solid / L. Sewage into the septic tank after 12-24h of precipitation 50% -60% removal of suspended solids. Sludge settling down more than 3 months after anaerobic digestion, decomposition of organic matter in the sludge into a stable inorganic, perishable raw sludge into a stable mature sludge, changed the structure of the sludge, reducing the moisture content of sludge, regular Qingtao Sinotrans, landfill or used as fertilizer.
Parameter |
| Volume (cubic) | Diameter(mm) | Length(mm) |
| 5 | 1600 | 2800 |
| 10 | 1600 | 5300 |
| 15 | 2000 | 5000 |
| 20 | 2200 | 5700 |
| 25 | 2400 | 5800 |
| 30 | 2600 | 6200 |
| 40 | 2600 | 8100 |
| 50 | 3000 | 7500 |
| 60 | 3000 | 8900 |
| 80 | 3600 | 8400 |
| 100 | 3600 | 10300 |
Large integrated FRP purification tank |
Product name:Large integrated FRP purification tank / Domestic sewage water treatment plant / sewer septic tank

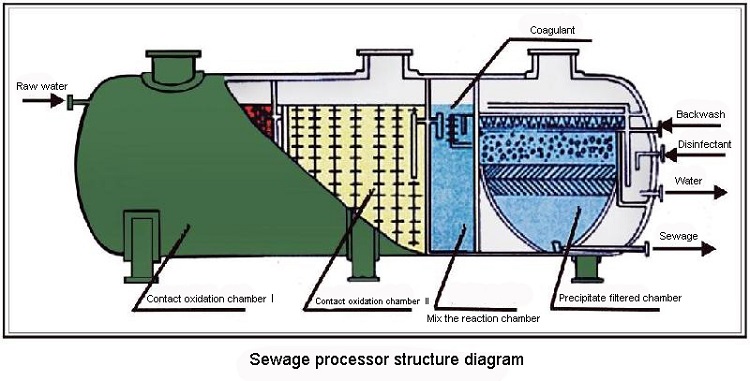

Technical principle
FRP purification tank is equivalent to a small sewage treatment plant. The principle is the application of FRP material corrosion resistance, long service life and good designability. It requires oxygen deficit and contact oxidation process as biochemical treatment unit and create suitable environment for microbial growth in the unit. It simulates the process of soil purification and water self-purification to complete sewage purification.
Equipment Features
The equipment adopts the biological contact oxidation treatment process, It effectively remove BOD, COD, SS, NH3 and other organic matter in the wastewater by the microbial activity within equipment. The treated sewage quality meet the level 1 A or B standards from
(1) Integration Technology: this equipment integrate all the process parts into one tank or some.it can achieve discharge standards without other support equipment.
(2) Low investment and energy consumption: it takes no more 3000RMB to treat 1 ton sewage. The treatment cost is about 0.2 RMB per ton.On the site we only lift to place it. Connection pipe, cover the soil back on the tank, installation work complete in a few days.
(3) Fast installation and simple operation: listen FRP purification tank is finished in factory. full automatic operation without person control.
(4) Maintenance free and long service life: glass fiber reinforced plastic material has good corrosion resistance, it can keep good performance in various soil properties. According to the traceability of the purification tank use in Japan, it has been operating for 35 years.
Small septic tank |
(1) Septic tank installed small investment, low cost
Household septic tank in the industrialized mass production of small, low price, small investment.
(2) Almost independent of the installation site topography, and installation time is short, quick.
As the family compact with a small septic tank, so the area is small, the installation of a septic tank on average only 1-2 days, and once immediately after installation to run, the ground may continue to use the site.
(3) On the maintenance of living quarters and other water bodies around the small streams of water adequacy has a significant role .
1. Industrial Water Treatment with multi-layer media
2. Water Softening
3. Centralized Filtration System for high rise residential and commercial buildings such as residence, high rise office building, hotels and resorts.
4. Aquaculture, fish farming filtration system
5. Many other water filtration and treatment applications.
HEBEI DONGDING CHEMICAL TRADE CO.,LTD is made up of several manufacturing enterprises, is a high tech enterprises that collection of sale for project consulting, designed and developed, engineering design, materials purchasing, transport of goods, equipment installation and training debugging, and has passed ISO 9001:2015 international quality management system certification, our company is the national foreign trade, the general administration of customs approved the company has import and export right.
We mainly produce potassium sulfate production equipment,FRP tank production equipment,FRP pultruded products(include FRP Square tube/Rectangular tube /Round tube /Rod / U channel / I beam / Flat / Angle /Decking panel /Plum blossom tube /Ladder carling /Ladder crossgirder ),FRP pipe, FRP tank,FRP septic tank,FRP water tank,FRP grating,Cooling tower,FRP scrubber,Cable tray,FRP cover,FRP flange,FRP rock bolt,FRP handrail and so on,Looking forward to your visit and communication!
>> Packing: According to the order
>> Delivery: Within 30 days after the payment was received.
>> Shipping Way: By sea/land.
1. Q: Are you Trading Company or Manufacturing Factory?
A: We are both manufacturer and trading company. We have our own factory for almost seven years, and we have better service of overseas customers. Welcome to send your inquiry!
2. Q: How about the Delivery time?
A: 60days after receiving the deposit based on the MOQ. Normally, 30-35days to finish the order for a 20ft
container. Welcome to ask for the detailed delivery time according to your order quantity!
3. Q: How can you guarantee the product quality?
A: We have the quality control system ISO9001:2015, and it's been followed strictly. We also have the professional QC team, and each our package worker will be in charge of the final inspection according to the QC instruction before packing.
4. Q: What is about the payment terms.
A: Basically, the payment terms are T/T, L/C at sight. Western Union, Alipay.
5. Q: Can you do OEM for me?
A: We accept all OEM orders,just contact us and give me your design,we will offer you a reasonable price ASAP.
