Product Application
Oil water separator with a purely physical method is safe, reliable, convenient, and effective removal and recovery of the dispersed oil and emulsified oil in the oily wastewater, so that the treated discharge water to or more than "GB8978-96 Integrated wastewater discharge standard" an emission requirements (the oil content less than 5mg / L).
| SPECIFICATIONS FOR OIL WATER SEPARATOR | |||||
| Model | Treatment capacity m3/h | Size L*W*H mm | Nozzle | Oil Discharge Mode | Power |
| SYF-1 | 1 | 1350×700×1650 | DN25 | Automatic and manual | 0.75KW |
| SYF-2 | 2 | 1200×1100×1750 | DN25 | 1.5KW | |
| SYF-3 | 3 | 1550×1300×1750 | DN32 | 2.2 KW | |
| SYF-5 | 5 | 2000×1700×1750 | DN40 | 3 KW | |
| SYF-10 | 10 | 2000×1700×2260 | DN65 | 5.5 KW |
Performance and technical parameters
1. Handling capacity: 1 ~ 10m3 / h
2. Operating Temperature: 0 ~ 50 ℃
3. Working pressure: 0.1Mpa

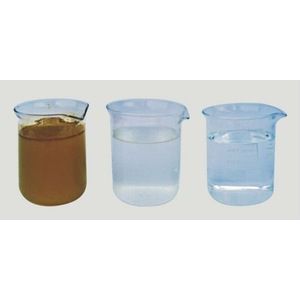

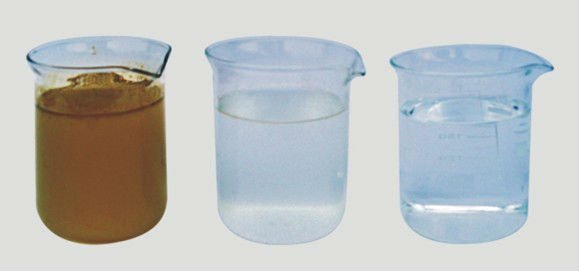

4. Water indicators:
Enter: PH: 6 ~9 Oil content:<600mg/L Suspended solids: <200mg / L
Exit: Effluent indicators have reached the "GB8978-96 Integrated Wastewater Discharge Standard" a discharge requirements, including:
PH: 6 ~ 9
Oil content: ≤ 5mg / L
Suspended matter: ≤ 70mg / L
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.

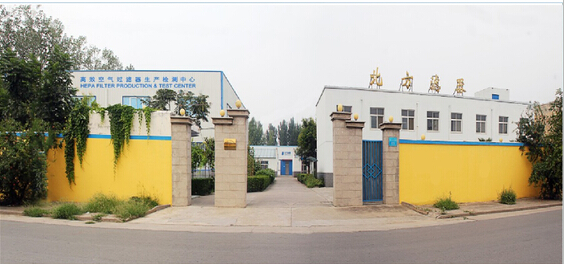

* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
| Packaging | |
| Size | 123 (L) * 456 (W) * 789 (D) |
| Weight | 1.2 T |

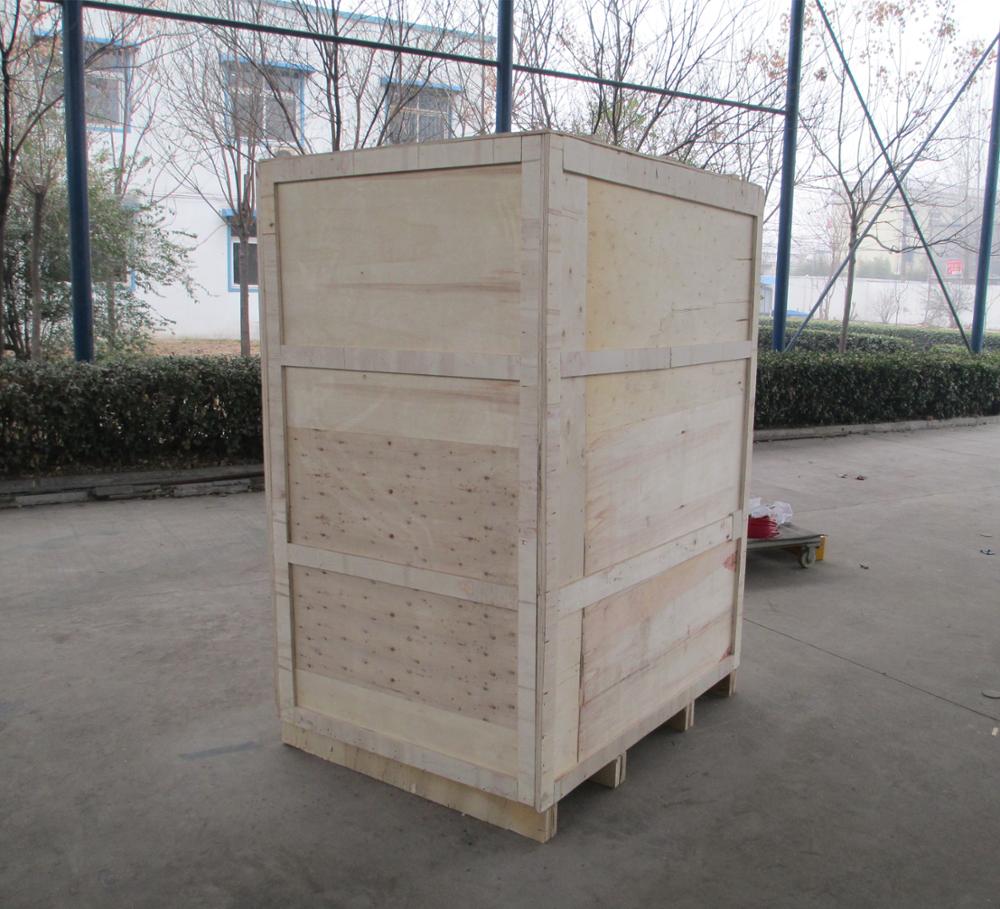

| Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
