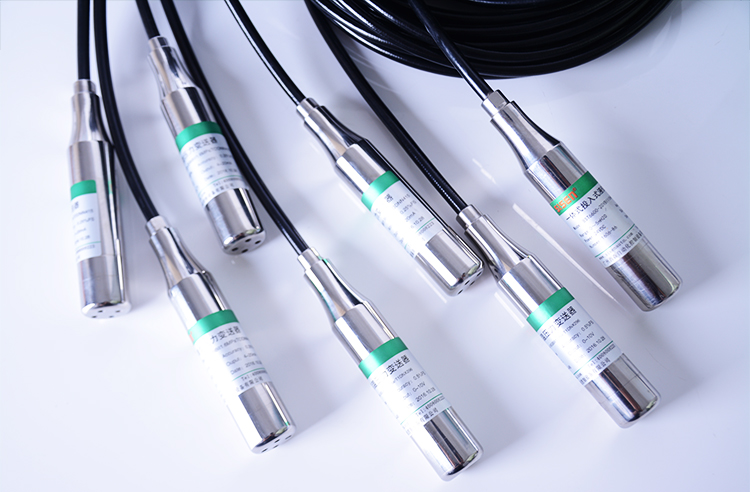

BST6600 series submersible liquid level transmitters choose internationally renowned pressure sensor element with high accuracy and stability. It uses high stable amplifying circuit and accurate temperature compensation, and transform absolute pressure or gauge pressure to 4~20mA, 0~5VDC, 0~10VDC and 1~5VDC electrical signals. Its excellent quality and high performance are ensured by its high quality sensor, hermetic encapsulation and perfect manufacturing technique. It is divided into integrative type and split type, also has cable type and anti-corrosion type. Anti-corrosion product can prevent corrosion by various liquid and anti-explosive types are provided.
· Measure medium: water and general liquid without corrosiveness (anti-corrosive type
for option)
· Measure range: 0~0.5m and 0~100m
· Limited pressure: double than max range
· Output: 4~20mA (two-wire system) 1~5VDC (three-wire system)
· supply voltage: 17~36VDC(two-wire system)24±5VDC (three-wire system)
· Medium temperature: -30~+85℃
· Environment temperature: -20~+85℃
· Storage temperature: -40~+90℃
· Accuracy 1%, 0.5%, 0.25%
· Zero adjustment: 8% of output range
· Range adjustment: 20% of output range
· Temperature compensation: ≤±0.05FS/℃ ( temperature range:-20~85℃ )
· Stability Normal : ±0.1%FS Max: ±0.2%FS
· Material: SS316, Ceramic Piezoresistive ( Anti-corrosive type)
· Body material: SS316, PTFE(Anti-corrosive type)
· Sensor material: SS316, PTFE(Anti-corrosive type)
· Wire system: Φ8 waterproof ventilation cable
- Pressure measure on site
- Pressure calibration in laboratory
- Shipbuilding
- Aircraft manufacturing
- Piezoelectricity
- Energy management
- Hydraulic pneumatic measurement and control system
- 0~-0.5MPa to 0~100MPa

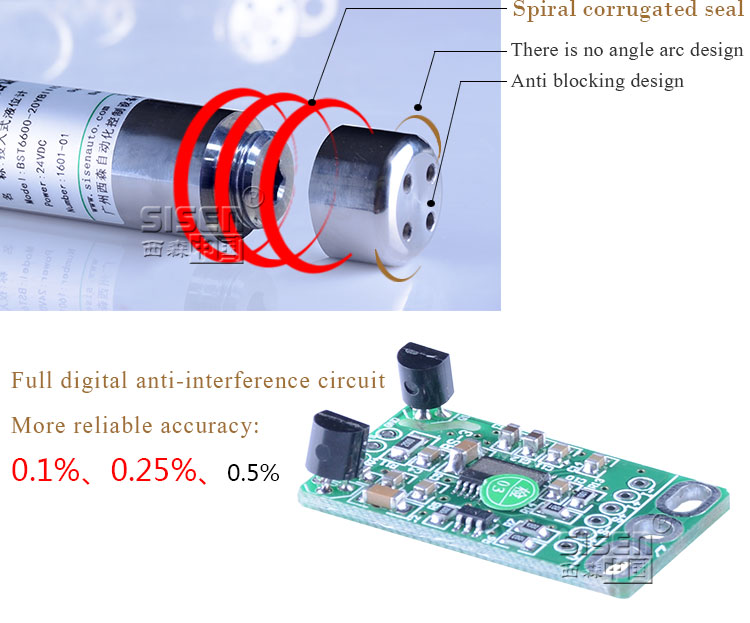

- seal welding
- multi range
- thunder protection
- option:LCD display

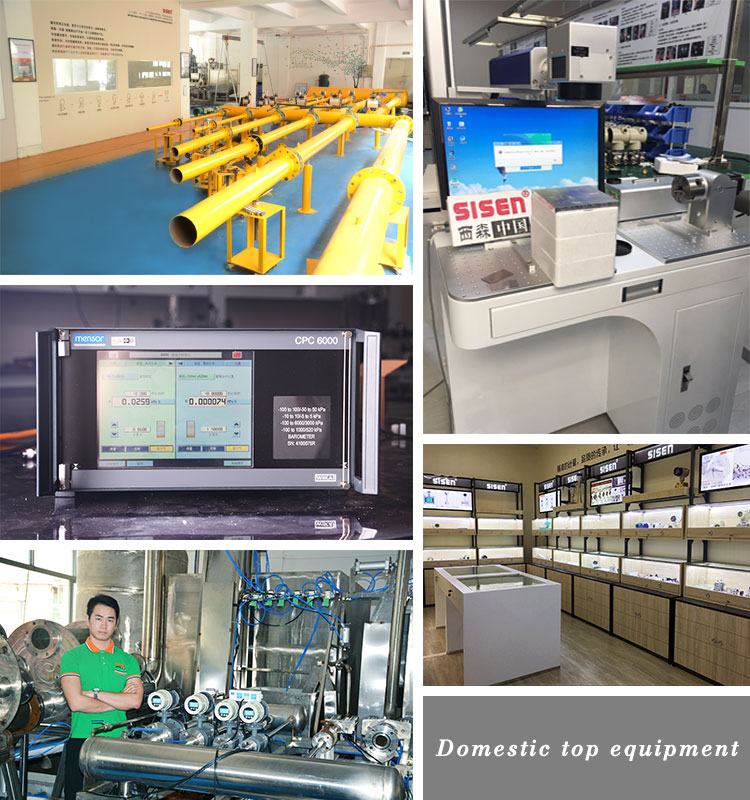

Guangzhou SISEN Process Control Equipment Co., Ltd is a professional equipment manufacturer in automation process control field. Our company located in Guangzhou where is the capital of Guangdong province and offices were established in several cities. Presently has the standard factory with overhead travelling crane about 1800 square meters, standard workshop about 800 square meters and modernized office about 400 square meters. Introducing automatic calibration equipment and advanced mechanical manufacturing equipment to produce BST series intelligent pressure transmitter, FLVJ vortex flowmeter, FLDC electromagnetic flowmeter, AD3800 series ultrasonic liquid level meter, etc.
