Smart hart differential pressure transmitters with ATEX

Product Name Smart hart differential pressure transmitters with ATEXProduct Description Qualified Chinese original manufacturer that exported  pressure transmitters to overseas markets (EURO,America,ASIA)    more than 200,000+ sets.   Feature

Technical Feature

  • Shanghai, China (Mainland)
  • RKS
  • RP1000
  • 0.05%/0.075%
  • ±0.1%,3 years
  • Two-wired 4~20mA
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$99~999

PRIMARY PARAMETERS

Place of Origin
Shanghai, China (Mainland)
Brand Name
RKS
Model Number
RP1000
Accuracy
0.05%/0.075%
Stablity
u00b10.1%,3 years
Output signal
Two-wired 4~20mA
Certificates
ATEX,IECeX,GOST
Measuring range
0~30kPa...10MPa
Pressure type
Differential,Gage,Absolute,Level,Flow
Measurement medium
Gas,steam,liquid
Isolating diaphragm
316L/Hastelloy C/Gold plated on 316L
Fill fluid
Silicone oil
Process connector gasket
NBR/FKM/PTFE

DETAIL DESCRIPTION

Product Name

 Smart hart differential pressure transmitters with ATEX

Product Description



Qualified Chinese original manufacturer that exported  pressure transmitters to overseas markets (EURO,America,ASIA)    more than 200,000+ sets.

 RP1001





Features:



Enough Experience on local applications for overseas markets

Meet your toughest environmental conditions with -45℃ working LED display (Option), Customerized color of Housing,  Special manual with local language, technical support for OEM,ODM coopertion,etc.









Specifications:



RP1000 Pressure transmitter
Measurement TypeDifferential, Gage, Absolute, Level, Flow
Output4-20mA,HART,Profibus/DP
Reference Accuracy

±0.075% of span (0.04% Option)

Long Term Stability+ 0.1% of URL for 3 years
Processing Temperature -40 to 85℃
Rangedown

100:1







Measuring

range



B

0-200Pa~6kPa(0-20~600 mmH2O)/(0-2~60mbar)



C

0-400Pa~40kPa(0-40~4000 mmH2O)/(0-20~400mbar)



D

0-2.5kPa~250kPa(0-0.25~25 mH2O)/(0-25~2500mbar)



F

0-30kPa~3MPa(0-3~300 mH2O)/ (0-0.3~30bar)





Dimensions:



                             1.png                               2.png

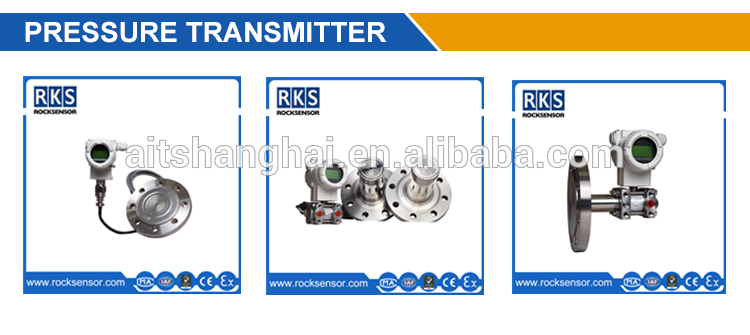

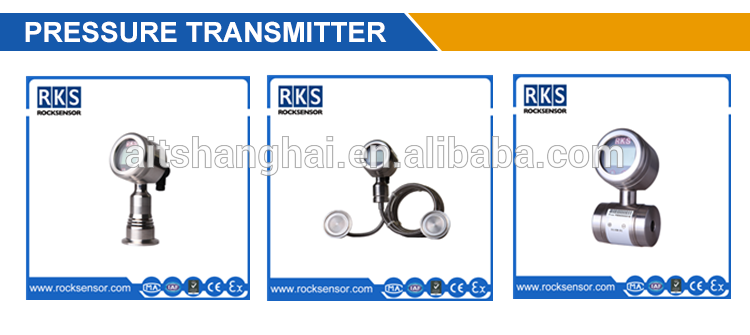

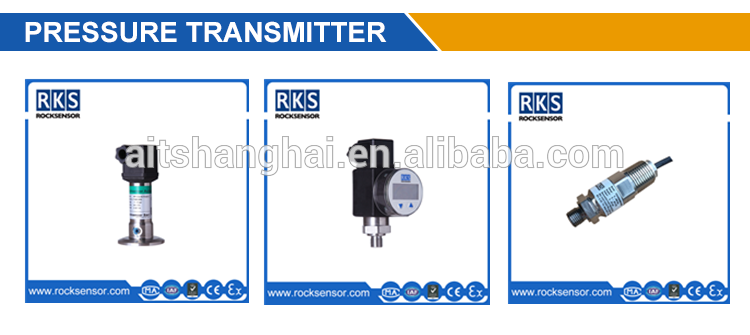

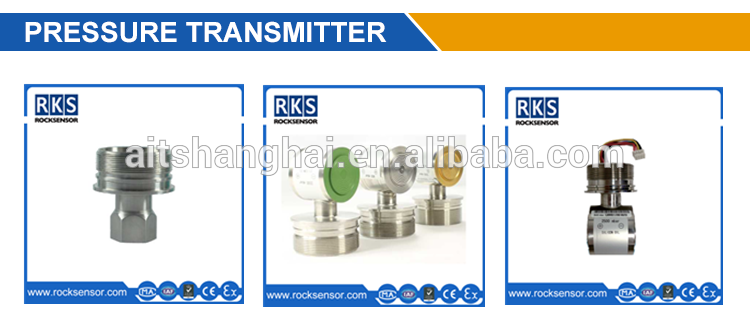

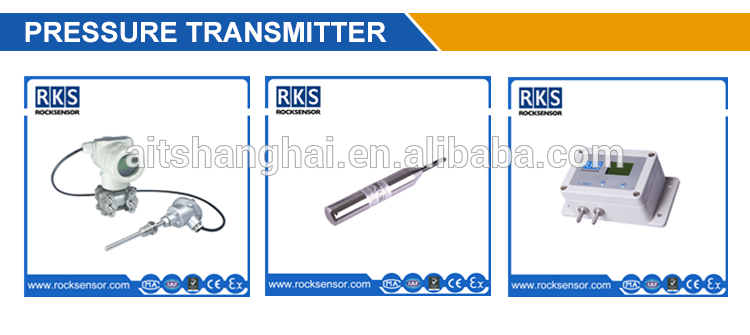

Product Equipments:

Company information

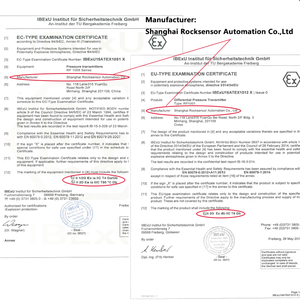

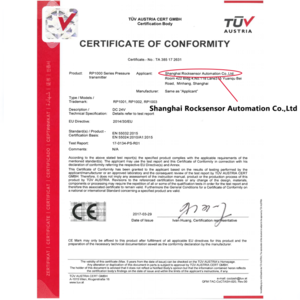

Certificates
