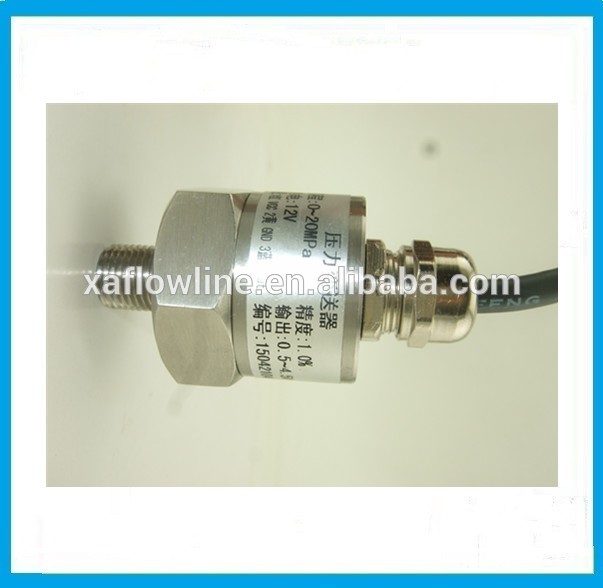

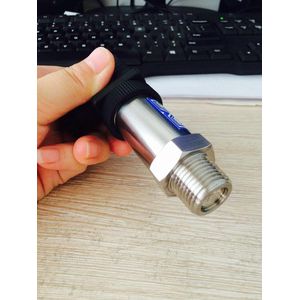

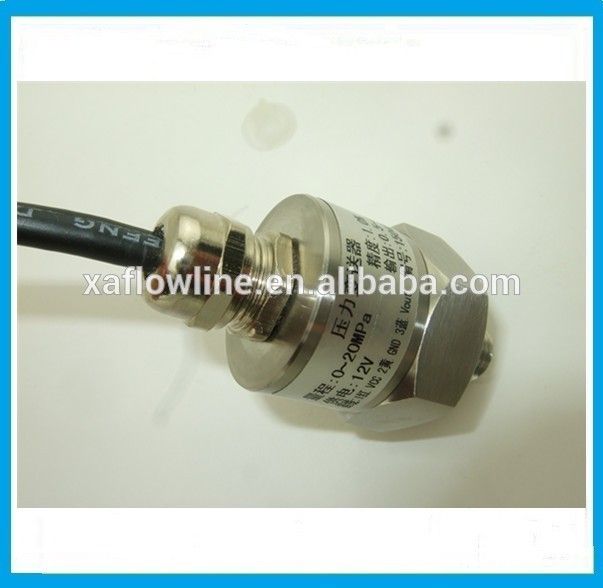

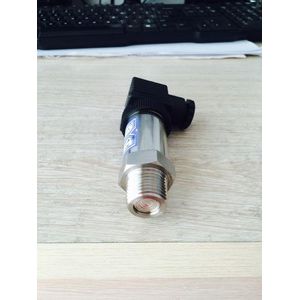

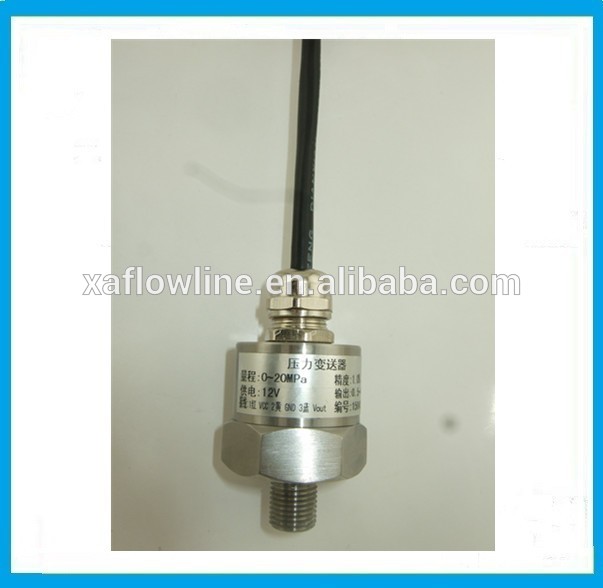

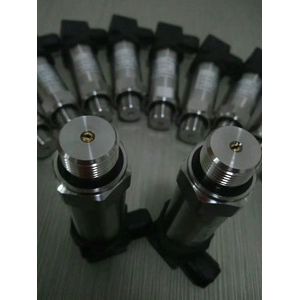

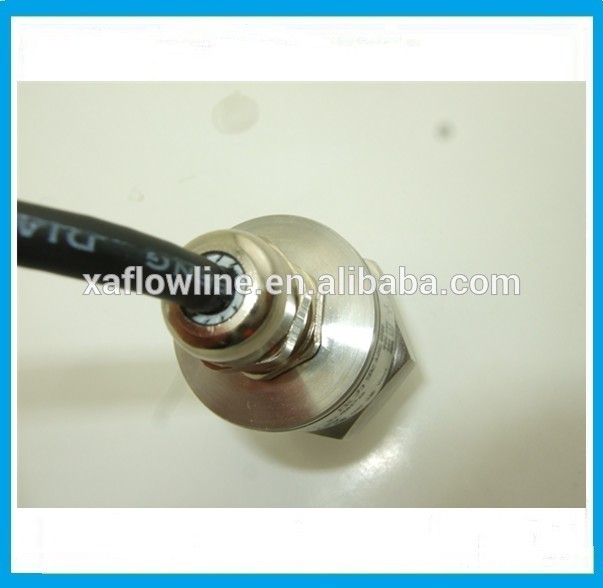

Silicon Pressure Transmitter
silicon pressure transmitter is designed for use in applications which deal with corrosive pressure media and
require high accuracy. The pressure diaphragm of this
transmitter is made from silicon material, while its wetted
parts are made from 316L stainless steel which possesses a
higher degree of resistance against chemical corrosion.
The output signals of pressure transmitters are
configured to meet the need of different controllers used in industrial automation processes, including 4~20mA, 0~5V
and 0~10V. With one can obtain 0.25 %fso
accuracy in measurement with long-term stability better
than 0.15 %fso/year. The zero thermal drift is less than 0.04 %fso/°C, while the sensitivity thermal drift is
0.02 %fso/°C over the whole operating temperature range.
Specification:
measuring media | liquids compatible with 316LSS | |
measuring range | MPa | -0.01~100 |
overload pressure | %FS | 200 |
burst pressure | %FS | 250 |
power supply | VDC | 24 |
output signal |
| 4~20 mA |
zero offset | %FSO | 1 maximum |
accuracy | %FSO | 0.5 |
long-term stability of zero | %FSO/year | 0.15 |
Load resistance | Ω | 250~1150Ω (for 4~20 mA current loop) |
storage temperature range | °C | -30~+80 |
operating temperature range | °C | -40~+120 |
process connection | thread | M20*1.5”, male |

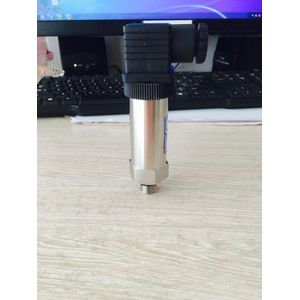

electrical connection | DIN 43650 connector | |
environment protection | IP rating | IP 65 |
pressure membrane material | Silicon | |
material of wetted parts | 316L SS | |
housing material | 304 SS |
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* Quick delivery.
* OEM support.
After-Sales Service
* Teaching how to use our products.
* 1 year warranty.
