Technical Information

STG800 SmartLine Gauge Pressure Specification 34-ST-03-83

STG840/STG84L/STG870/STG87L/STG88L/STG89L

Introduction

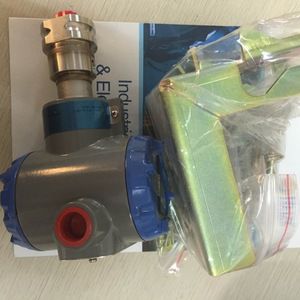

Part of the SmartLine® family of products, the STG800 and
STG80L are high performance gauge pressure transmitter
featuring piezoresistive sensor technology combining
pressure sensing with on chip temperature compensation
capabilities providing high accuracy, stability and
performance over a wide range of application pressures
and temperatures. The SmartLine family is also fully tested
and compliant with Experion ® PKS providing the highest
level of compatibility assurance and integration capabilities.
SmartLine easily meets the most demanding application
needs for pressure measurement applications.

Best in Class Features:

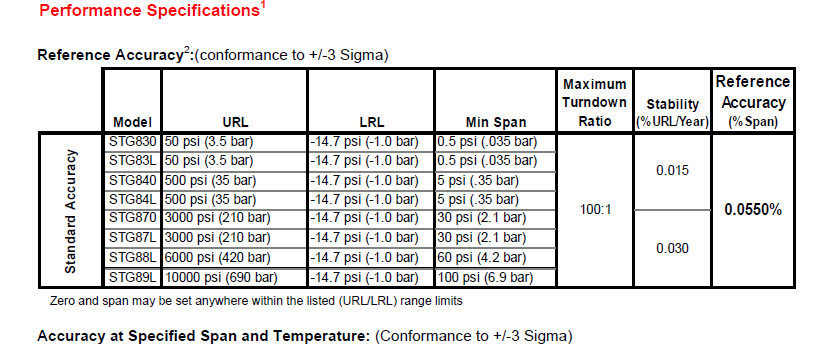

o Accuracy up to 0.055 % of calibrated span
o Stability up to 0.015% of URL per year for ten years
o Automatic temperature compensation
o Rangeability up to 100:1

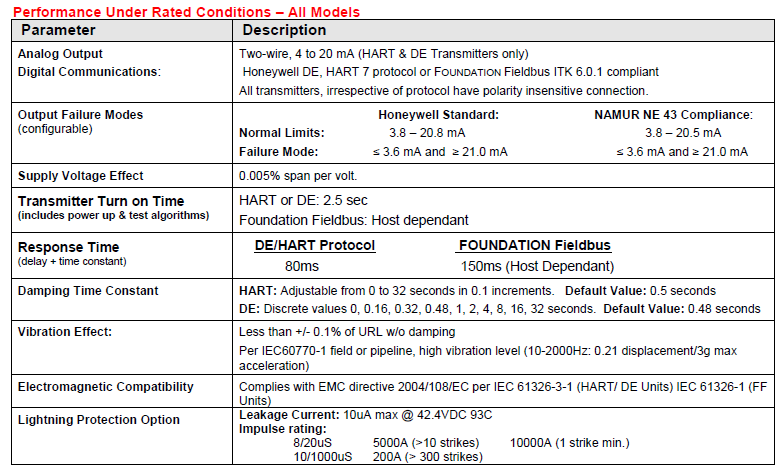

o Response times as fast as 80ms
o Multiple local display capabilities
o External zero, span, & configuration capability
o Polarity insensitive electrical connections
o Comprehensive on-board diagnostic capabilities
o Integral Dual Seal design for safety based on
ANSI/NFPA 70-202 and ANSI/ISA 12.27.0
o Full compliance to SIL 2/3 requirements as a standard.
o Modular design characteristics
o Available with 15 year warranty

Description

The SmartLine family of gauge pressure, differential
pressure, and absolute pressure transmitters is designed
around a high performance piezo-resistive sensor. This one
sensor actually integrates multiple sensors linking process
pressure measurement with on-board static pressure (DP
Models) and temperature compensation measurements
resulting in the best total performance available. This level
of performance allows the ST 800 to replace virtually any
competitive transmitter available today.

Unique Indication/Display Options

The ST 800 modular design accommodates a basic
alphanumeric LCD display or a unique advanced graphics
LCD display with many unparalleled features.

STG800 SmartLine Gauge Pressure

STG800 SmartLine Gauge Pressure

STG800 SmartLine Gauge Pressure

STG800 SmartLine Gauge Pressure

Ordering Example

STG840-E1GS2A-1-A-AD0-12S-A-10A0-00-0000

STF724-E1HC4A-H1F-0-AHC-11S-A-00A0-00-0000

STA72L-E1H000-1-0-AHC-11S-A-A0-00-0000

STG77L-E1G000-1-0-AHC-11S-A-10A0-00-0000

STG77L-E1G000-1-0-AHB-11S

STG74L-E1G000-1-0-AHB-11S

STG74L-E1G000-1-0-AH0-11S-A-10A0-00-0000

STG73L-E1G000-1-0-AH0-11S-A-10A0-00-0000

STG74L-E1G000-1-0-AHC-11S-A-10A0-00-0000

STG78L-E1G000-1-0-AHC-11S-A-10A0-00-0000

STF724-F1AC2A-11F-0-AHB-11S-A-00A0-00-0000

STR82D021CC1K0-AFAAA21BJ-A-AHB-11S-A-10A0

STD720-E1HC4AS-1-0-AHC-11S-A-10A0-00-0000

STD730-E1AC4AS-1-0-AH0-11S-A-00A0-0000

STD770-E1AC4AS-1-0-AHC-11S-A-00A0-0000
