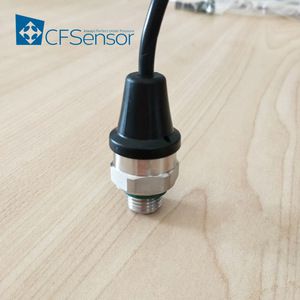

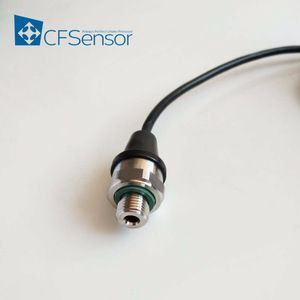

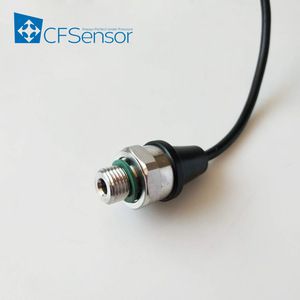

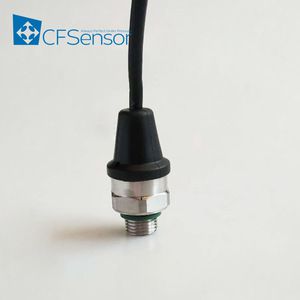

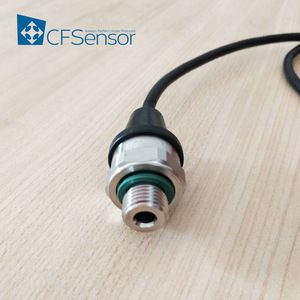

Wireless Pressure Transmitter 304 Stainless Steel Housing
Pls click below to find more products
XGZP4501 Pressure Transducer is structured by silicon pressure sensor as signal sensing element, adopt the special ASCI amplifier circuit and stainless steel housing.
XGZP4501 Transducer is integrally temperature compensated and linearity corrected,which effectively resist water hammer effect and transient over-voltage,etc.
It can meet the requirement of measure and control under complex environment.
XGZP4501 Transducer provide various output mode and pressure interface, the OEM service can meet extremely clients application requirement.
| Product item | Wireless Pressure Transmitter 304 Stainless Steel Housing |
| Advantages | Silicon micro melting technology, dry-type structure |
| Electrical Connection | Packard & Cable |
| ressure RangeP | 0-1mPa, 0-1.6mPa,0-2mPa |
| Output Signal | 0.5-4.5V |
| Power Supply | 5V DC |
| Accuracy | ±1%Span |
| Materials | 304 Stainless Steel housing & Plastic connector |
Long Term Stability(1 Year) | ±1%Span |
| Pressure Type | Sealed Gauge |
| Temp.Compensation | 0 to 70C /32 to 158F |
Applications
Variable frequency water pump, frequency-alterable constant voltage water supply,building automatic control, water treatment system,hydraulic pressure monitoring etc,.
HVAC controlling(Heating, Ventilation and Air Conditioning),air conditioner,refrigeration, process controlling,hydraulic pressure monitoring ,etc.
Other pressure measure and control of petroleum,Energy and water treatment systems .etc,.

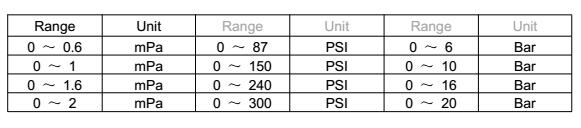

Pressure Range(100kPa=0.1MKp=1bar≈14.5PSI)

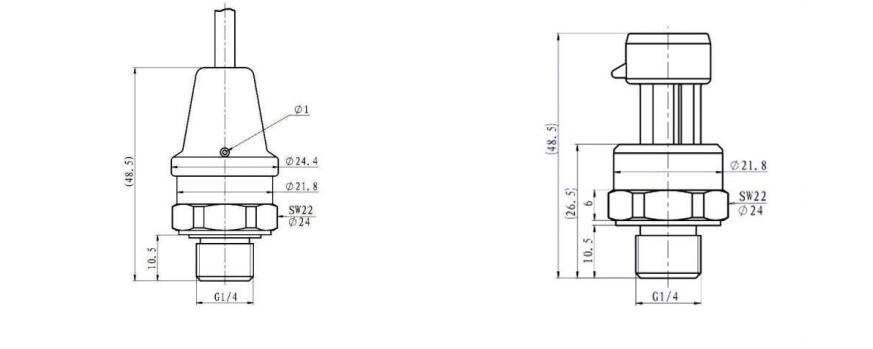

Dimension (Unit:mm/Inch)

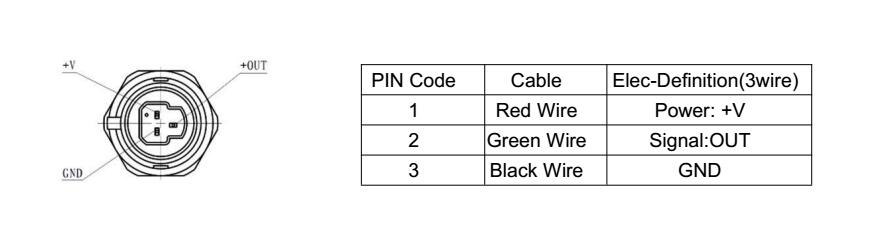

Electric Connection&Definition

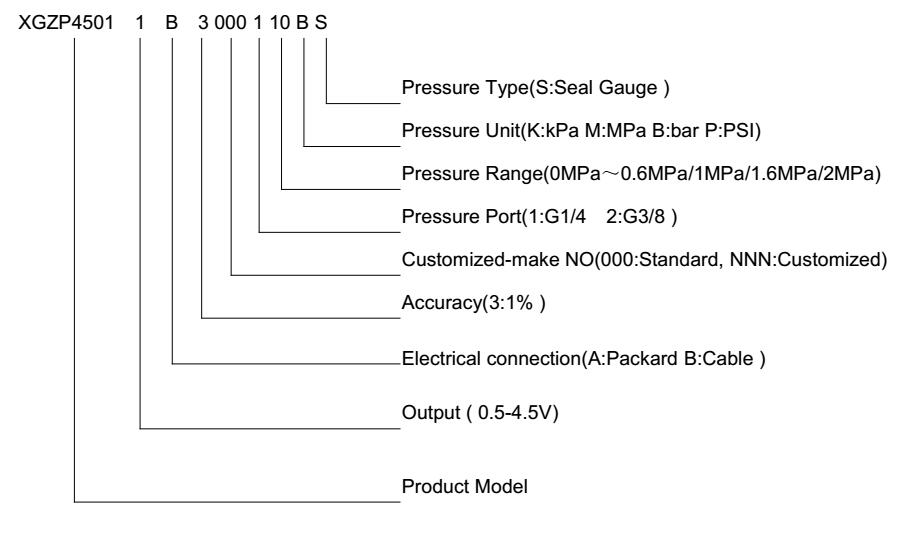

Order Guide
Notes:
1.Attention that the medium should be compatible with the pressure parts.
2.Please contact us if special request on parameter and application. .
Welcome to CFSensor,as one of the few companies that only focus on MEMS Piezoresistive Pressure Sensor Solutions,we specialize in design, engineer, fabricate and manufacture of Pressure Sensor chips, Pressure Sensor and Pressure Transducer .
