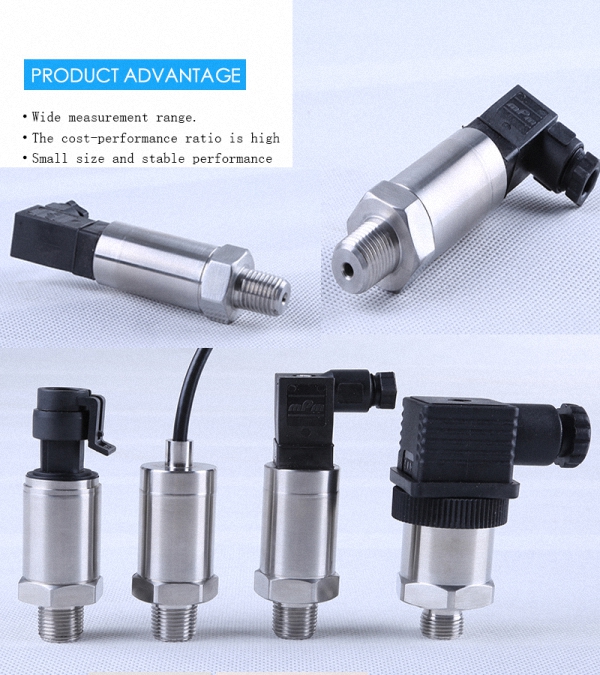

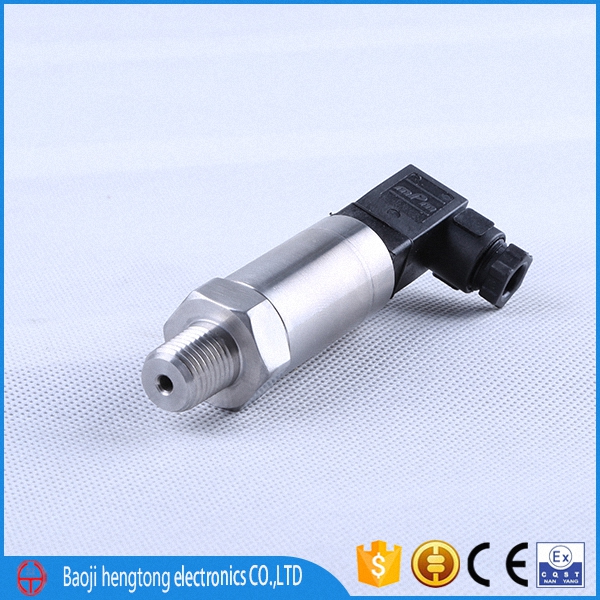

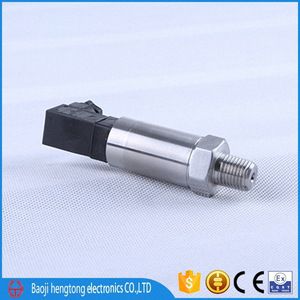

Description
The cost-Performance ratio is high, utilize newest technology, assemble high performance circuit. Small profile, have strong capability of dampproof and anti-electromagnetic interference. Mainly apply in fields: air compressor, vacuum equipment, oil pressure equipment.

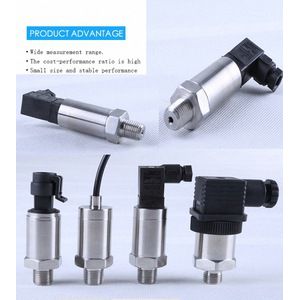

Features
Wide measurement range,
Multiple thread
Protection: IP65
Marking :ExiaIICT6;
CE,CMC certification
Application
air compressor, vacuum equipment,
oil pressure equipment
Specification
Measurement Range | 0~0.1...~20MPa |
Proof pressure | ≤1.5X rated pressure |
Pressure type | Gauge, absolute ,sealed gauge |
Accuracy | ±0.25%(typical) ±0.5%(Max.) |
Long stability | ±0.1%F.S/year(typical) ±0.2%F.S/year(Max.) |
Temperature Error- Zero | ±0.03%F.S/°C(≤100KPa) ±0.02%F.S/°C(>100KPa) |
Temperature Error -Span | ±0.03%F.S/°C(≤100KPa) ±0.02%F.S/°C(>100KPa) |
Operating Temperature Range | -20°C~80°C |
Storage Temperature Range | -40°C~120°C |
Power supply | 12~36VDC,5VDC |
Output signal | 4~20mA 0.5~4.5VDC,1~5V |
Pressure port | M20×1.5,G1/4 or customize |
Housing material | 1Cr18Ni9Ti stainless steel |
Diaphragm material | 316L |
O-ring | Fluororubber |
Cable | Polyethylene |
Insulation resistance | 100MΩ,100VDC |

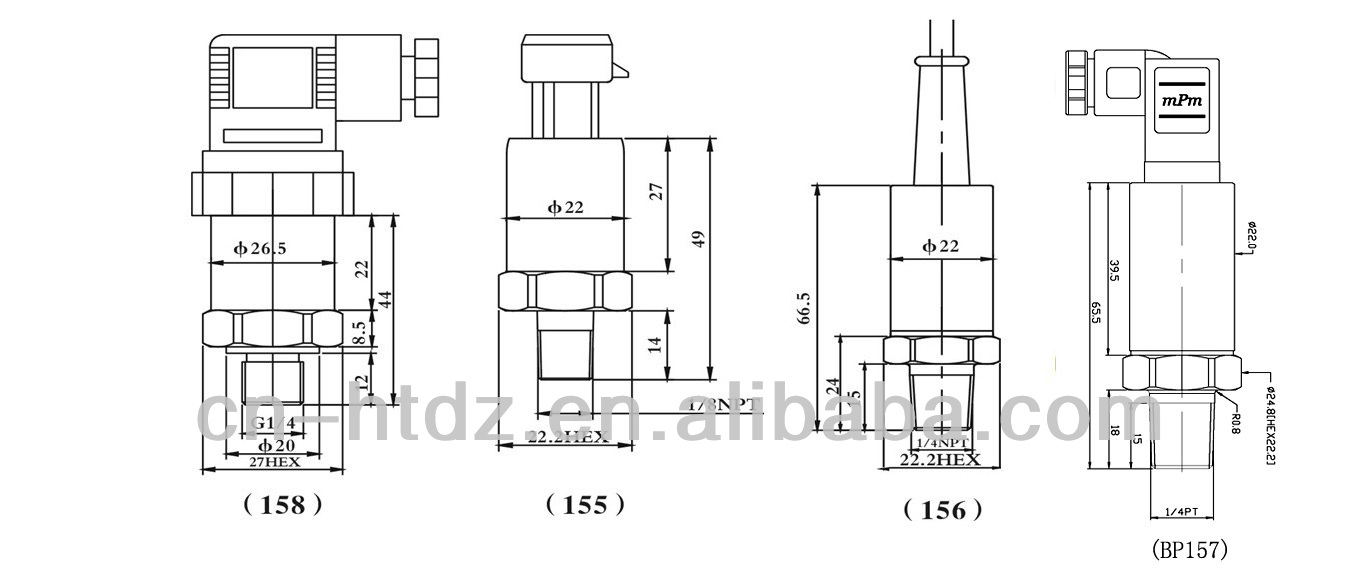

Dimension
Ordering Information

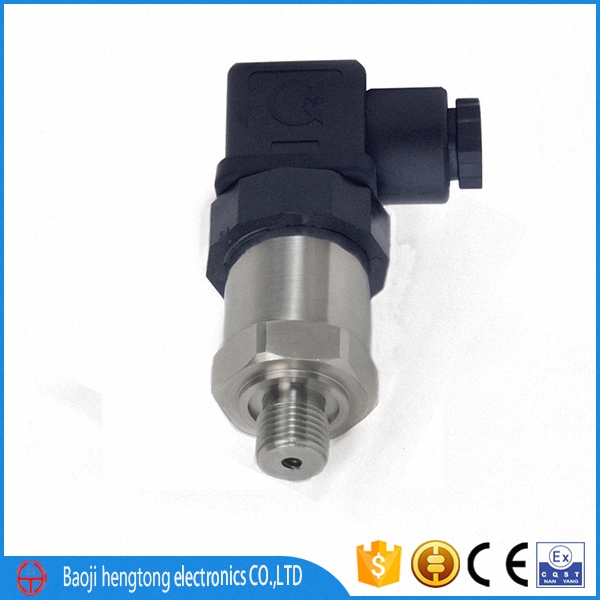

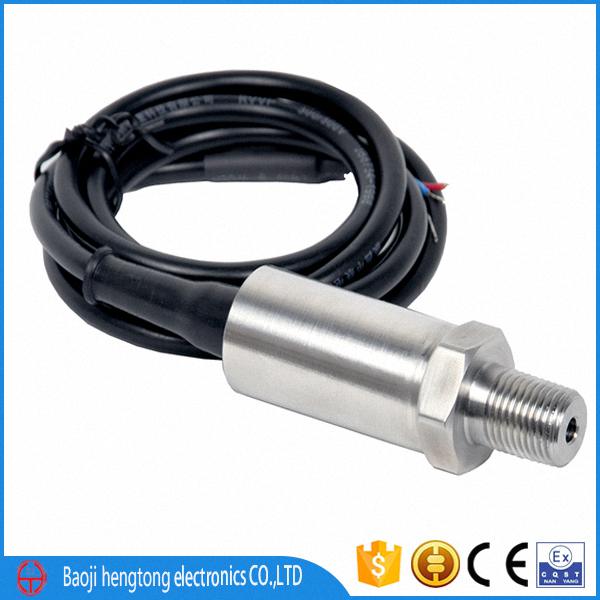

BP15X | Code | Dimension | |
| 5 | Packard | |
6 | Cable with 1.5 meter | ||
7 | Mini DIN | ||
8 | Big Din | ||
| Pressure range | -0.1. . .0~0.01...20MPa | |
(0-X)KPa or MPa | X: measurement range | ||
| Code | Power supply | |
D1 | 24VDC | ||
D2 | 5VDC | ||
D3 | Others | ||
| Code | Output signal | |
S1 | 4~20mADC | S5 | 0~20mADC |
S2 | 1~5VDC | S6 | 0~10VDC |
S3 | 0~5VDC | S7 | 0.5~4.5VDC |
S4 | 0~10mADC |
|
|
| Code | Pressure port | |
J1 | M20×1.5 male | ||
J2 | G1/2 male | ||
J3 | G1/4 male | ||
J4 | 7/16-20UNF female | ||
J5 | Others | ||
|
| Code | Pressure type |
G | Gauge | ||
A | Absolute pressure | ||
S | Sealed pressure |
