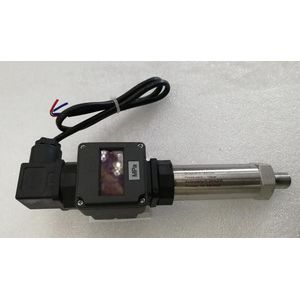

4-20(mA) LED pressure transmitter

Products can be cuatomizedPayment:paypal is OKFeatureAccuracy ±0.1%F.S ±0.25%F.S ±0.5%F.S ±1.0%F.SVarious measuring range and signal outputHigh stability and high quality Technical data Supply voltage24V (18...33)VDCoutput si

Technical Feature

Zhejiang, China (Mainland)

SONOR

PT-2 pressure transmitter

YES

4...20mA(2-wires);0...10VDC(3-wires)

18...33VDC

Send Standard Inquiry

Add Inquiry List

$19~22

PRIMARY PARAMETERS

Place of Origin

Zhejiang, China (Mainland)

Brand Name

SONOR

Model Number

PT-2 pressure transmitter

Cuotomized

YES

output signal

4...20mA(2-wires);0...10VDC(3-wires)

Supply voltage

18...33VDC

pressure transmitter

4-20ma pressure transmitter

PAYPAL

DETAIL DESCRIPTION

Products can be cuatomized

Payment:paypal is OK

Feature

Accuracy ±0.1%F.S ±0.25%F.S ±0.5%F.S ±1.0%F.S

Various measuring range and signal output

High stability and high quality

Technical data
Supply voltage	24V (18...33)	VDC
output signal	4~20mA O~10mA 1~5V O~5V 0~1OV	mA;VDC
Pressure range	0~2MPa……60MPa customized	Mpa
sensor	Ceramic material,diffused silicon
over load pressure	1.5RP
Accuracy	±0.1,±0.25,±0.5	%
Pressure type	Gauge pressure(G), Absolute pressure(A), Sealed pressure(S), Minus pressure (N).
Connection	1/2'' /1 /4''/M20*1.5 customized	G,NPT
operating temperature range	-10~85;	℃
load resistance	RL = (U-12V)/0.02A (4~20mA current output) U-loop voltage (V)	ohm
Long term Stability	≤-0.2	%FSO/year
Media	gas, air, liquids,
