Main Features
±0.5%~±1%F.S Accuracy
High Stability, High Reliability
Ceramic Sensor from Germany
Digital Calibration
Packard, Hirschmann Connector, Direct Lead
Multiple connectors and ports(G1/4, NPT1/4, 7/16-20UNF)
Zero point can be shifted freely
Measure range shifted 50~100%
CE and RoHS approved
Technical Parameters
| Item | China supplier 4-20mA pressure transmitter price CS-PT1200 | |
| Model No. | CS-PT1200 | |
| Pressure Range | 0~2bar...600bar | |
| Overload Pressure | 1.5X Rated Pressure | |
| Broken Pressure | 3X Rated Pressure | |
| Accuracy | ±0.25, 0.5, 1%F.S | |
| Stability | Typical ±0.5%F.S | Max ±1%F.S |
| Working Temperature | -40℃~100℃ | |
| Compensation Temperature | -10℃~80℃ | |
| Eletronic Wire | Two-Wire | Tree-Wire |
| Output Singnal | 4~20mA | 0.5~4.5V |
| Power Supply | 12~30Vdc | 5Vdc/10~30Vdc |
| Load Resistance | (U-10)/0.02(Ω) | >100kΩ |
| Insulation | >100MΩ@50V | |
| Electrical Connector | Packard, DIN43650C, DIN72585, M12Seial, Cable | |
| Protection | IP67 | |
| Pressure Form | Gauge G | |
| Response Time | 10ms | |

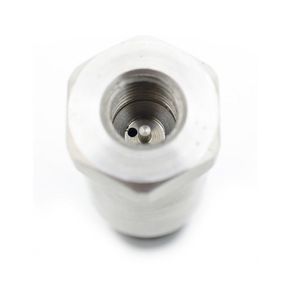

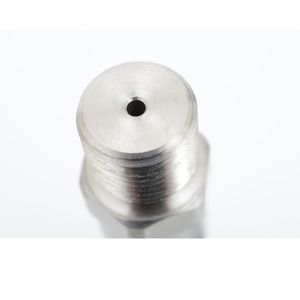

| Pressure Port | 7/16-20UNF,G1/4, NPT1/4 | |
| Applicable Medium | R404A,R407C,R410A,R134a,R12,R142b,R600a,R22,Oil,Gas | |
| Certificate | RoHS, CE |

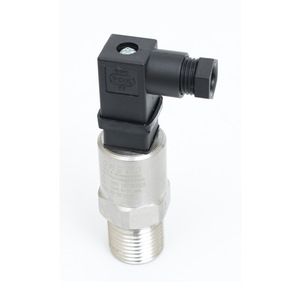

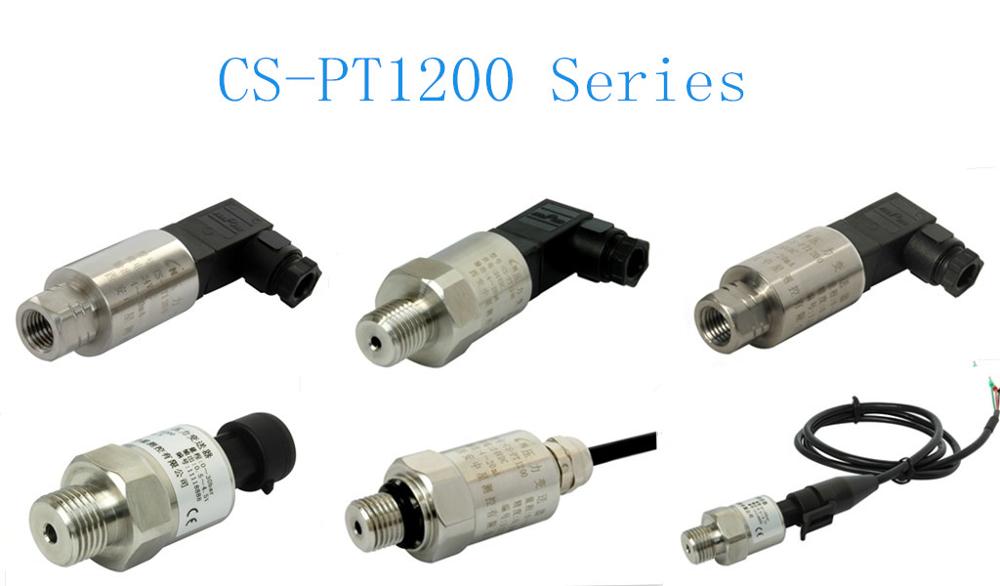

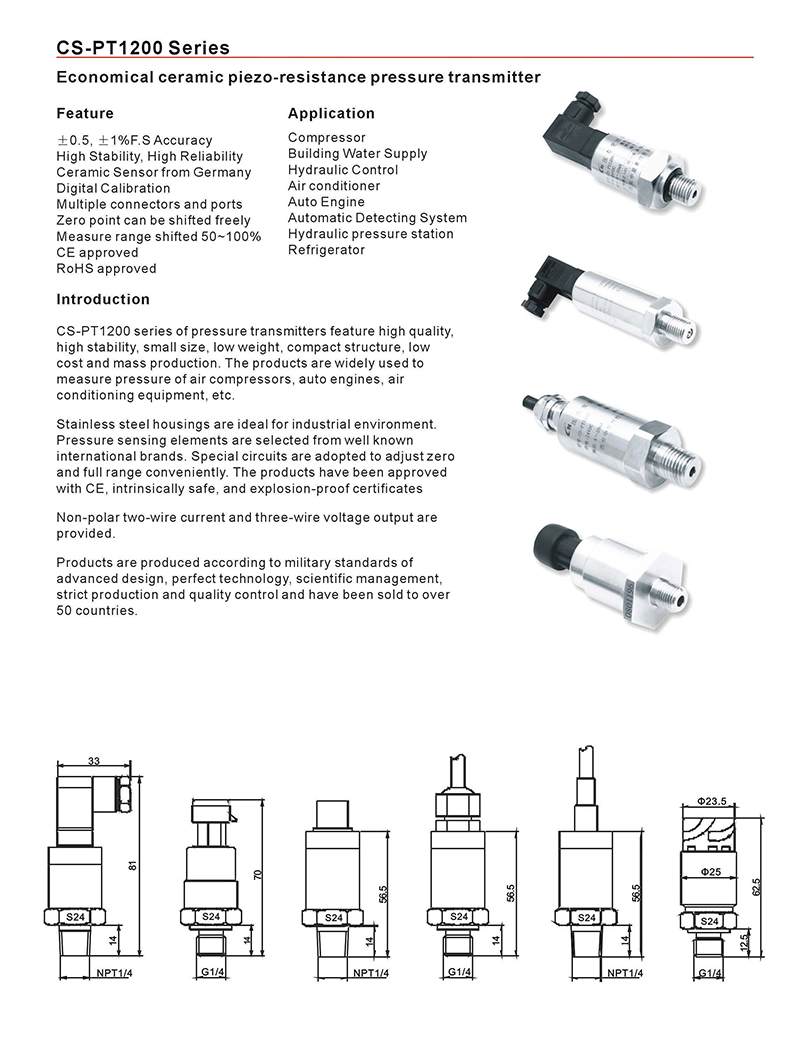

CS-PT1200 series of Pressure Transducer features high accuracy and reliability. The pressure transducer can be widely used on Water Cooled Centrifugal Chiller, etc. The pressure transducer can measure the pressure of cool medium during the process of energy exchange. The control the working status according to the differential pressure.

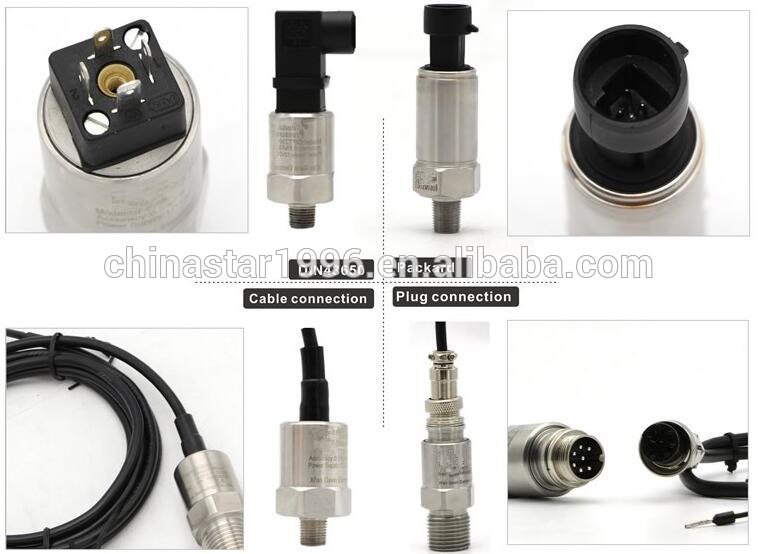

Electric Connector
Other Recommendations

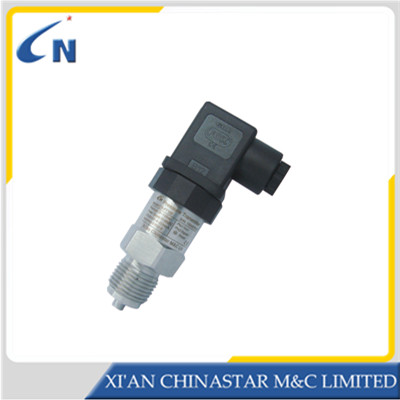

Except PT1200 series, we also have PT100 and PT300 Diffused-silicon Pressure Sensor, PT800 Sputtering
Thin Film Pressure Sensor, pls check the following links
If any other requirements, we also can accept OEM services, pls send me an inquiry or contact me by email viki@websensordotcom, we can talk more.

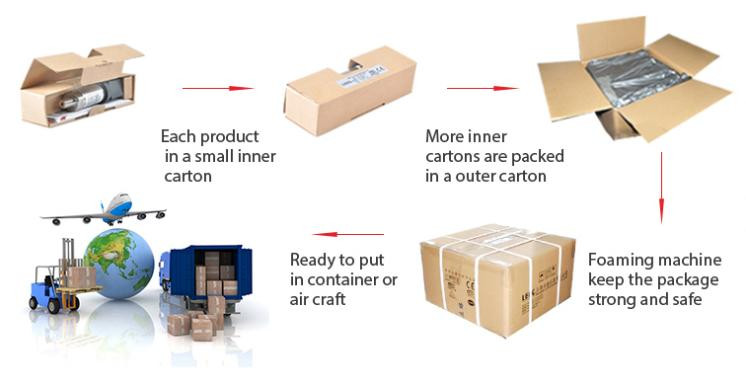

Various shipping methods for your optional
Brief Introduction
1. Established in 1996, Xi'an, Shaanxi Province, now became the leading manufacturer of sensor products in China
2. More than 20 years experience in R&D, manufacture and sales of pressure sensor and transmitter, inertial sensor, IOT sensor and system.
3. Has been certified with ISO9001, GJB9001, CE, RoHS, DNV and Explosion proof.
4. Our products have been exported to more than 60 countries, exporting value covers 40% of annual sales revenue.
Production Process
Certifications
Exhibition
We are here at your service 7×24 hours.
Any interesting,pls contact me, we can talk more details.
