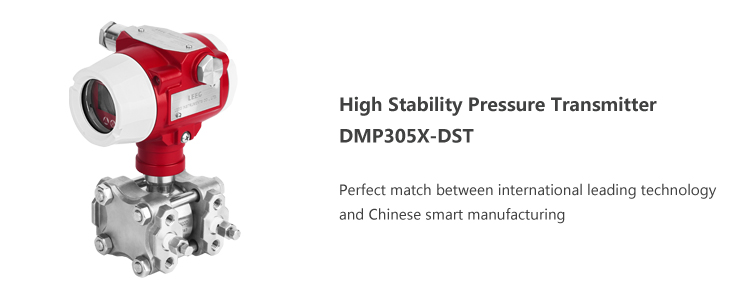

4 20mA HART smart differential pressure level transmitter with LCD
| Specifications | |
| Measuring range | 200Pa-10MPa |
| Output signal | 4-20mA, 4~20mA/HART, customer |
| Accuracy | 0.075% URL, optional 0.05% URL |
| Media temperature | -40-120℃ |
| Diaphragm material | SS316L, Hastelloy C |
| Stability | ±0.2% URL/60 months |
| Process connection | M20*1.5(M), 1/2-14NPT(F), 1/4-18NPT(F) |
| Proction class | IP67 |
| Approvals | EX-proof, CE certificate |
| Application | Process control system, petroleum industry, chemical industry |
Product selection instruction
- Over 15 years’ experience in measure and control instruments in industrial automation.
- We have two core technologies of sensor technics and circuit board technics.
- Strong technical background and professional sales team.

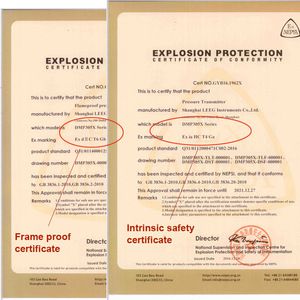

- Product certificates: Ex-proof, CE, 3-A
LEEG passed ISO9001 quality management system and using ERP , PDM, MES information administration system. Advanced management system ensures that each segment of quality control in the manufacturing process. QUALITY IS OUR SOUL.

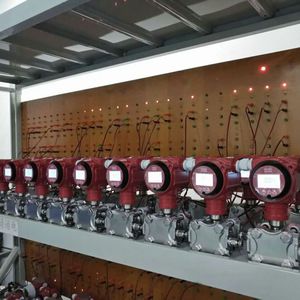

Each of our products is subject to below testing process:
1.Automatic temperature compensation to ensure the temperature influence effects.
2.Automatic linear calibration to ensure linear precision.
3.Real-time online aging system to ensure the time drift performance.
4.Pressure cycling impact tests to ensure long-term stability.
 | And all products you receive have a unique SN code to record material batches and production information in details. |
Just provide us the SN code, we can trace to ALL the manufacturing data, which achieve timely follow-up and feedback on product quality |  |
LEEG is a professional manufacturer in the field of electronic pressure measurement technique. We both have two core technologies of sensor technics and circuit board technics.
Our profound understanding to the product application and strong technical background ensure you the best products solutions and help you achieve a greater success. |  |
