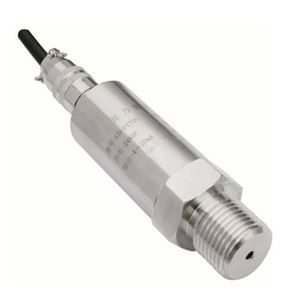

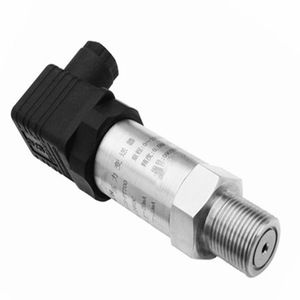

Ceramic Capacitive Pressure Transmitter
1.KC-PT1100 series of pressure transmitters feature hihg quality,high stability,small size weight,compact structure,low cost and mass production.the products are widely used to measure pressure of air compressors,auto engines,air conditioning equipment,etc.
2.Stainless steel housings are ideal for industrial environment.Pressure sensing elements are selected from well known international brands,Special circuits are adopted to adjust zero and full range conveniently.the products have beenapproved with CE,intrinsically safe,and explosion-proof certificates Non-polar two-wire current and three-wire voltage output are provided.
3.Products are produced according to military standards of advanced design,perfect technology,scientific management,strict production and quality control and have been sold to over 50 countries.
Technical parameters
Specification | Numer | |
Pressure range | 0~5bar......50bar | |
Overload pressure | 1.5 times rated pressure(1.5X) | |
Breakdown pressure | 3 times rated pressure(3X) | |
Accuracy | ±0.5,1,2F.S(Higher accuracy please select PT100 or PT300 series) | |
Stability | Typical value 0.5%F.S, | |
Use temperature | -40℃~120℃ | |
Compensating temperature | -10℃~80℃ | |
Compatible medium | All corrosive media compatible with 1Cr18Ni9Ti | |
Electrical properties | Two-wire system | Three-wire system |
Ooutput signal | 4~20mA | 0.5~4.5V |
Power supply | 10~30Vdc | 10~30Vdc |
Electrical appliance strength | 500V@60 second | |
Vibration / shock | 10g/5~2000Hz,axesX/Y/Z20g sine 11 ms | |
Electrical appliance connection |
Packard, Enclosure protection | |

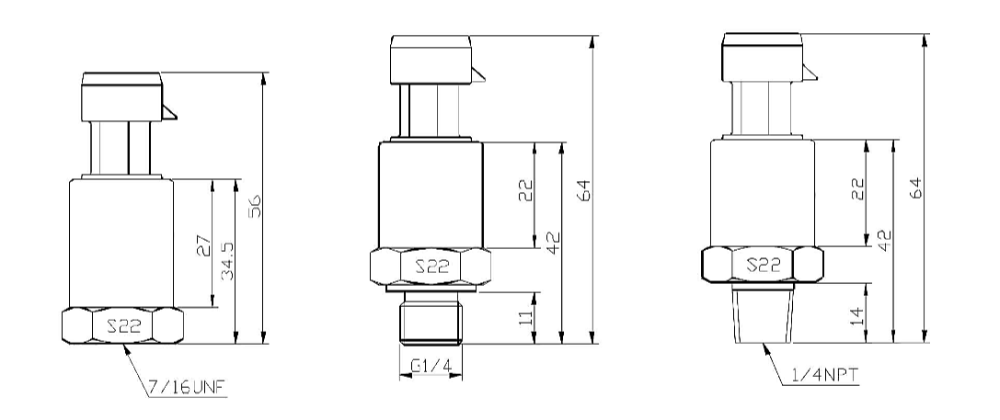

Pressure connector | G1/4,NPT1/4,7/16-20UNF | |
Pressure form | GaugeG | Response time:10ms |
Certification program | Safety explosion-proof typeE,RoHS | |
EU safety standards for electrical appliances CE | ||
electromagnetic compatibility |
Electromagnetic radiation:EN50081-1/-2; |

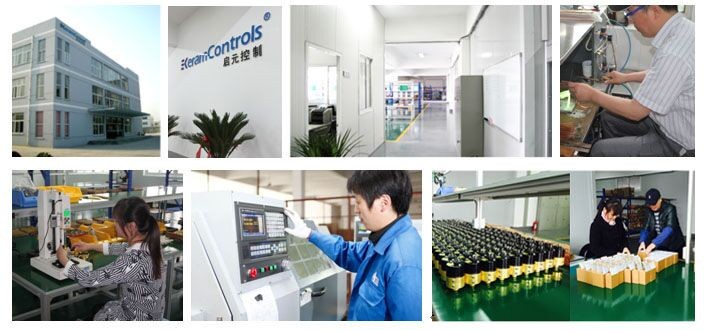

Keram (Nanjing) Science & Tech Co., Ltd., founded in 1998. is becoming one of the important subsidiary company in KERAM group. is a professional manufacturer and supplier of controls equipment and products design. Our products are related to gas safety control,temperature control,time control,over-heating control, pressure and temperature controls used on
refridgeration and compressor,water pressure switch and all kinds of solenoid valves and safety valves.
1. Delivery time is 7 days for sample order and 10 working days for bulk order
2. Strong production capacity and strict quality control system
3. Your inquiry and problems related to our products or prices will be replied in 24 hours
4. Well-trained and experienced staffs to answer all your inquires
5. After-sale tracking service for all of our clients
6. OEM is available,small quantities, mixed bulk orders are also welcome
7. Payment: L/C, D/A, D/P, T/T, Paypal , Western Union, MoneyGram
8. Delivery way: UPS, DHL, TNT, FEDEX, EMS, CHINA POST
1 Q: What's the delivery time?
A: According to the specification and quantity of your order, generally 4 days for normal standard products within 10pcs.
2 Q:Are you manufacturer or trading company?
A: We are manufacturer with many years of experience.We have our own factory.Welcome to visit our factory.
3 Q: Can we use our logo on the products?
A: Yes.We can provide OEM service.
4 Q: Do you have products with ex-proof certificate?
A: Yes,we can offer intrinsic-safety and flame proof certificates.
5 Q: What is the warranty of your products?
A: Normal is 12 months.
6 Q: What's the means of transport?
A: Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
