The company's main pressure transmitters, level gauge, ultrasonic sensors, load cells, torque sensors, temperature sensors, flow meters, photoelectric sensors, proximity sensors, smart display controller and a variety of accessories and other products.
Product Features
Imported diffused silicon pressure sensor and advanced membrane isolation technology.
US imports of BB amplifier integrated chip, wide voltage supply.
Compact, easy to install.
Cutoff frequency interference design, look strong interference, lightning.
Wiring reverse and overvoltage protection, current limiting protection.
High accuracy, good stability, fast response, impact resistance.
rest assured
Promise: no reason to return within 7 days
Relieved
Promise: maintenance package within one year
Feel relieved
Our commitment: all conventional products shipped within 3 working days.
| ESMPS Small type pressure transmitter Technical Data | |||
| Measuring range | -0.1-0~0.001-100MPa | Measuring media | Gas,liquid capable with 316L |
| Pressure type | Negative pressure, absolute pressure, gauge pressure ,sealing pressure | Output signal | 4~20mA/0-10V/0-5V/1-5V |
| Longterm stability | ±0.1% F.S | Temperature drift | ±0.01%FS/c |
| Power supply | 24VDC(standard type) | accuracy | 0.1/0.2/0.5 |
| Environment Humidity | 0~95%Relative Humidity | Ambient temperature | -40~85C |
| Protection class | IP65 | material | Stainless steel 304 |
| Load ability | (current)250~1425Ω(voltage)≥2KΩ | Media temperature | -40~85C,-40~300C (custom) |
My company's pressure transmitter can OEM custom, the factory price, quantity is with preferential treatment, high quality low price, quantity is with preferential treatment.

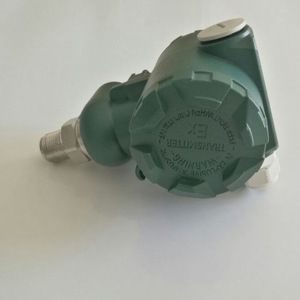

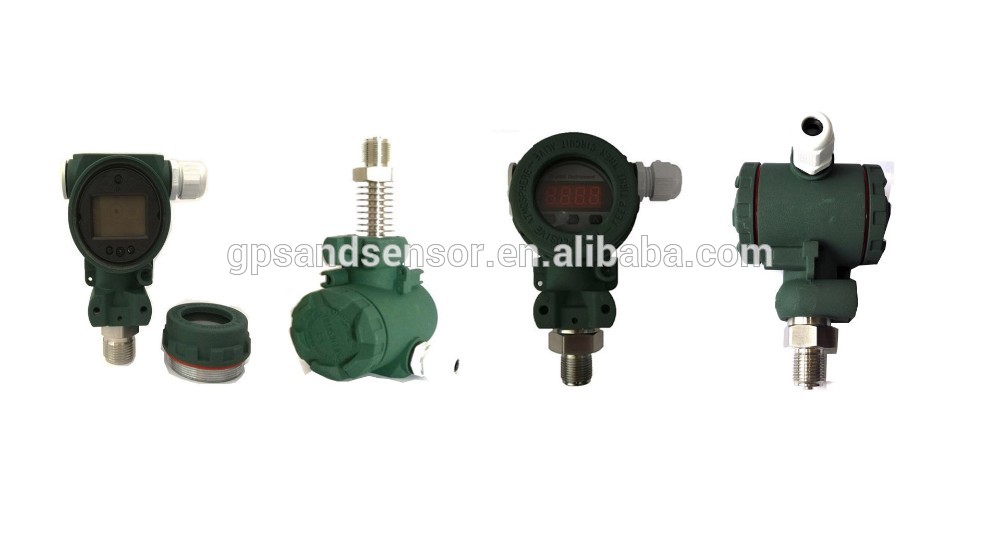

| ESM2088PS explosion-proof pressure transmitter technology parameters | |||
| Measuring range | -0.1-0~0.001-100MPa | Measuring media | Gas,liquid capable with 316L |
| Pressure type | Negative pressure, absolute pressure, gauge pressure ,sealing pressure | Output signal | 4~20mA/0-10V/0-5V/1-5V |
| Longterm stability | ±0.1% F.S | Temperature drift | ±0.01%FS/c |
| Power supply | 24VDC(standard type) | accuracy | 0.1/0.2/0.5 |
| Environment Humidity | 0~95%Relative Humidity | Ambient temperature | -40~85C |
| Protection class | IP65 | material | Stainless steel 304 |
| Load ability | (current)250~1425Ω(voltage)≥2KΩ | Media temperature | -40~85C,-40~300C (custom) |
My company's pressure transmitter can OEM custom, the factory price, quantity is with preferential treatment, high quality low price, quantity is with preferential treatment.

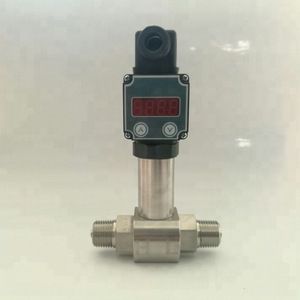

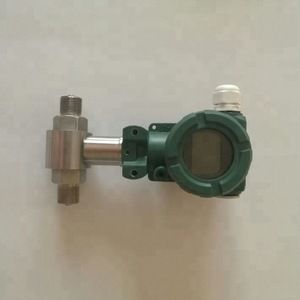

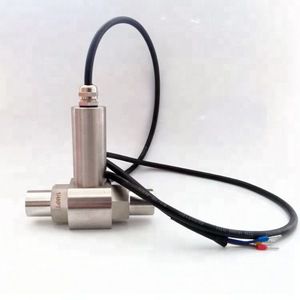

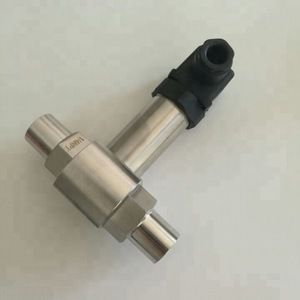

| ESMDPS differential pressure transmitter technology parameters | |||
| Measuring range | 0-3.5MPA | Measuring media | Gas,liquid capable with 316L |
| Pressure type | Differential pressure | Output signal | 4~20mA/0-10V/0-5V/1-5V/rs485 |
| Longterm stability | ±0.1% F.S | Temperature drift | ±0.01%FS/c |
| Power supply | 24VDC(12-36vdc) | accuracy | 0.2%fs /0.5%fs |
| Environment Humidity | 0~95%Relative Humidity | Ambient temperature | -40~85C |
| Protection class | IP65 | material | Stainless steel 304 |
| Load ability | (current)250~1425Ω(voltage)≥2KΩ | Media temperature | -40~85C, (high temperature can custom) |

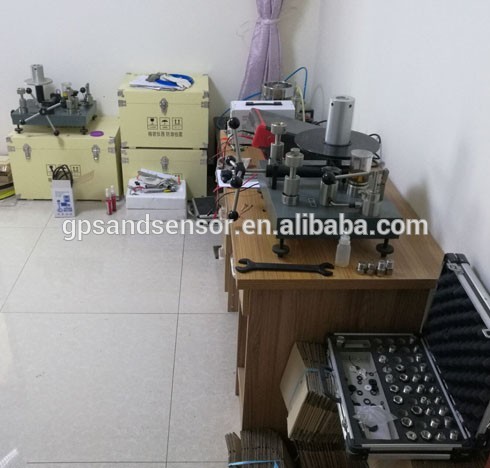

Calibration Verification
1. millionths piston pressure calibrator
2.6 semi-digital multimeter
3. The national metrology institute issued Verification Certificate
24 hours of high temperature aging
GB10589: low temperature test chambers
GB10592: high and low temperature test chambers
No damage laser marking
20W fiber laser marking.
Qualification
Our products are a nationally recognized instruments produce high-tech enterprises, with MC, CE, ROHS, and test certificate Testing Technology Research Institute of China approaches.
Favorable Comment
May 2015 French customers in the Canton Fair and we have reached a cooperation agreement, while my company's products for testing, said he was very satisfied.
Favorable Comment
June 2015 South African customers to visit my company, my company's field test input type level sensor satisfaction and to achieve cooperation.
Favorable Comment
August 2015 German customers to visit my company, my company's field testing differential pressure transmitter satisfaction and to achieve cooperation.
Are you trading company or manufacturer ?
A: We are factory.
How long is your delivery time?
A: Generally it is 5-7 days if the goods are in stock. otherwise 7-15 days, it is according to order quantity.
Do you provide samples ? is it free or extra ?
A: The sample need payment.after test sample,if you order bulk Qty,we will return the sample value.
What is your terms of payment ?
A: 100% PayPal,western Union,Money Gram,T/T,in advance. ,balance before shippment.
