level transmitter anti-interference ability pressure/level/temperature transmitter
Product Description:
Piezoresistive silicon chip employed
MEMS technology
CE certificate
IP68
Pressure range | |
Pressure range | Pressure measurement: -100Kpa, 10kPa, 35kPa, 70kPa, 100kPa, 250kPa, 400kPa, 600kPa, 1MPa, 1.6MPa, 2.5MPa, 4MPa, 6MPa, 10MPa, 16MPa, 25MPa, 40MPa, 60MPa, 100MPa Level measurement: 0.5m, 1m, 2m, 5m, 10m, 20m, 50m, 100m, 200m H2O |
Pressure reference | Gauge pressure |
Output signal | |
Output | 4 to 20mA | 1 to 5V | 0 to 5V |
Specification | |
Accuracy (linearity, repeatability and hysteresis) | ±0.5%F.S. (Typical) |
Excitation | 24VDC | 5VDC |
Compensated temp. | -20-80℃(typical) |
Operating temp. | -20-85℃ |
Storage temp. | -40-125℃ |
Zero temp. coefficient | ±0.03%F.S./℃ |
Span temp. coefficient | ±0.03%F.S./℃ |
Pressure connection | see last page ”how to order” |
Protection | IP68 |
Housing material | Stainless steel 304 (SS316 for sensor inside) |
Long-term Stability | ≤0.2%F.S./year |
Weight | 260g(approx) |

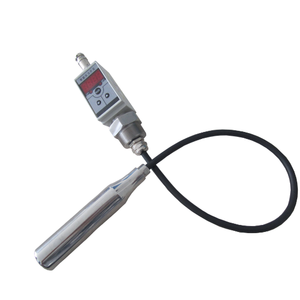

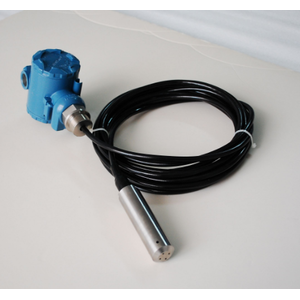

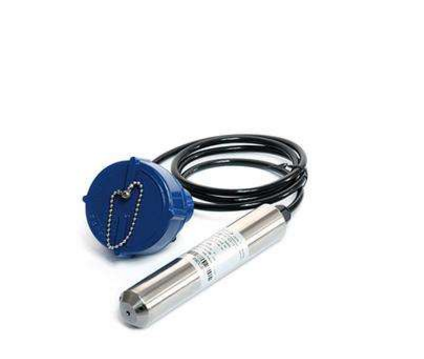

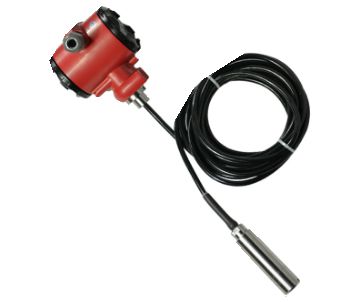

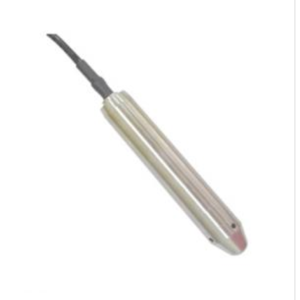

Detailed Images
Packaging & Shipping:
Our Services:

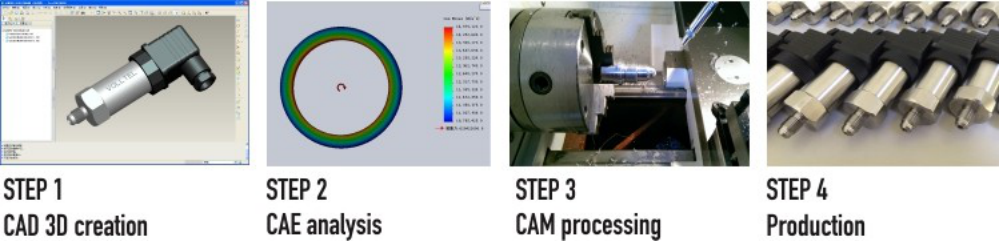

OEM Custom Sensors
Ordering guide of pressure sensor
In order to recommend the suitable sensor, please kindly advise us the following information
1..What is your testing medium ? oil, water, gas, waster water, or others.
2.Working temperature of the sensor ? -40°C~100°C or others
3.Pressure range ? -1-0bar,0-1bar,0-16bar,0-40bar,0-100bar,0-600bar or others
4.Output signal? 4-20mA, 0-5V ,0.5-4.5V,0-10V,RS485 or other
5.Electronic connection ? DIN43650 ,Packard, Aerial plug, direct cable or others.
6.Screw ? M20×1.5,G1/4,G1/2,R1/2,NPT1/2
