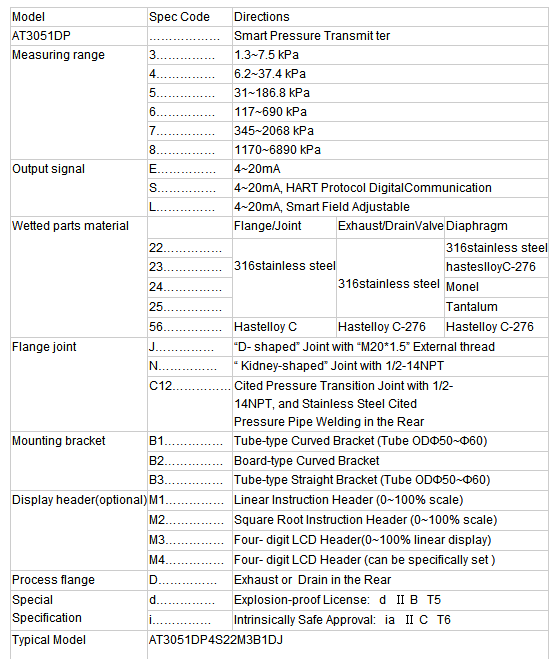

1 Specifications & Order Sheet :
| Process fluid: liquid,gas,vapor |
| Display:4 digits programmable&0-100%bargraph |
| Application:differential pressure,gauge pressure, absolute pressure |
| Measuring range:0~0.125kPa~1.5kPa(minimum),0~4.0kPa~25.0kPa(maximum) |
| Turn down ration:1:100 |
| Accuracy:±0.075% of span |
| Stability:±0.15% of URL 2 years |
| Working temperature:-25 to 950C |
| Display unit:standard 22 engineer unit,4 digits programmable for special unit |
| Keyboard:3 keys from internal for programming and outout setting |
| Current output:4-20mA 2 wires Hart Protocol ,Rohm=(Vdc-9)*50 |
| Power supply:9-36VDC |
| Damping adjustment:0-32 second |
| Max pressure:40MPa |
| Respond time:200ms |
| Mounting:bracket on 2” pipe |
| Humidity limits:0 to 100% relative humidity |
| Turn on time:2 seconds with minmum damping |
| Zero calibration:automatic zero calibration by press button |
| Electrical connections:1/4”NPT (M20 Conduit threads) |
| Temperature effect:±0.18% of span per 200C |
| Vibration effect:±0.05% of URL per g to 200 Hz in any axis |
| EMI/RFI effect:follow SAMA PMC 33.1 from 20 to 1000MHz and for field strengths up to 30V/m |
| Process connections:1/4-18NPT, 1/2-14NPT(with adapter) |
| Ambient temperature:-25 to 800C |
| Dimension:102mm(W)*188mm(H)*130mm(D) |
| Weight:5.5kg |

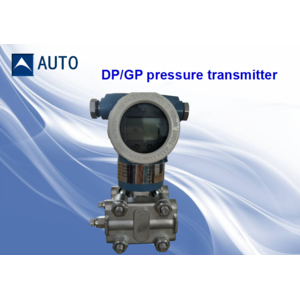

2 .Introduction:
AT3051 series intelligent pressure transmitters adopt the capacitive sensor chipwith the most mature technology, which is the most widely used by foreigners,bring in the advanced production process and technology, use modular design and all-patch-packaging components to make pressure transmitter compact and perfect.
HB3351 series intelligent differential pressure transmitters have 3 models: normal analog model, conventional smart model and standard model. It can be read at night with LCD backlight. The smart series can be adjusted at site through the spot button. The maximum measuring range ratio is 50:1.

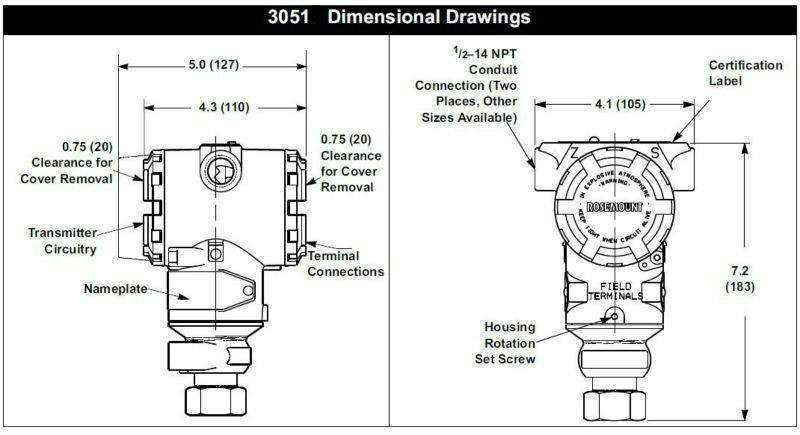

3. Product Dimension :
3

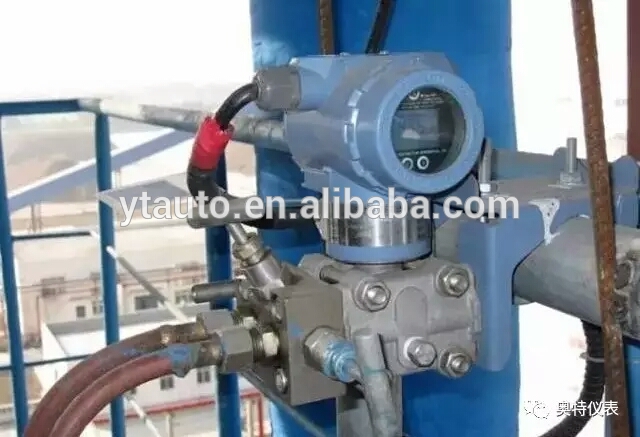

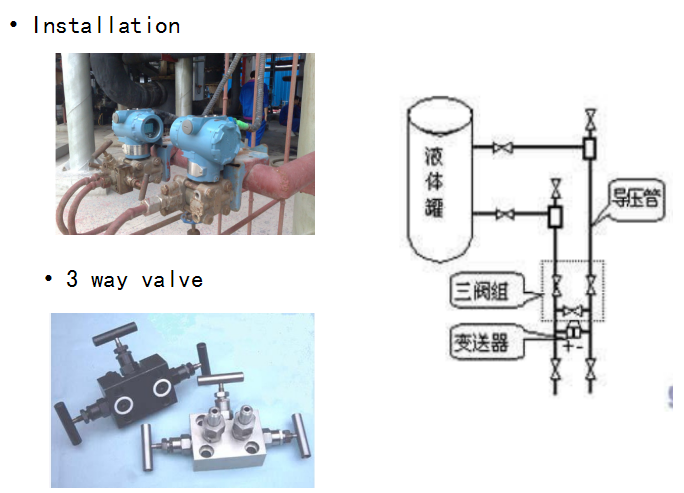

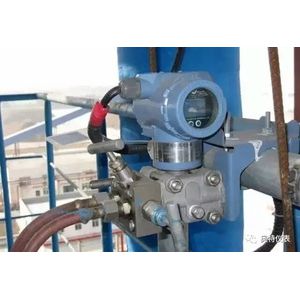

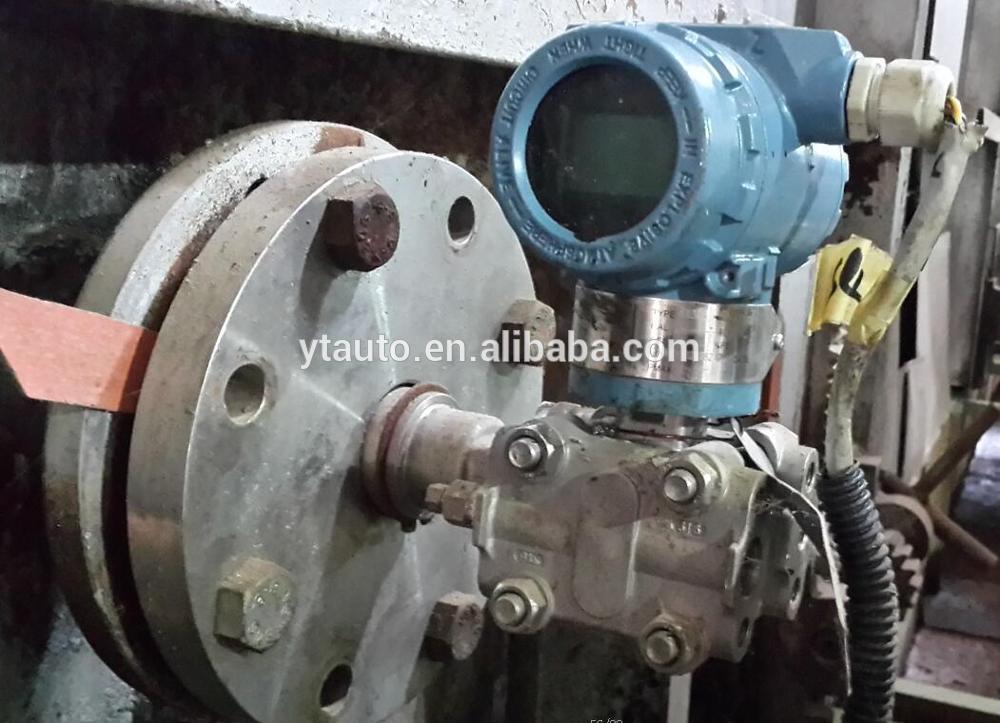

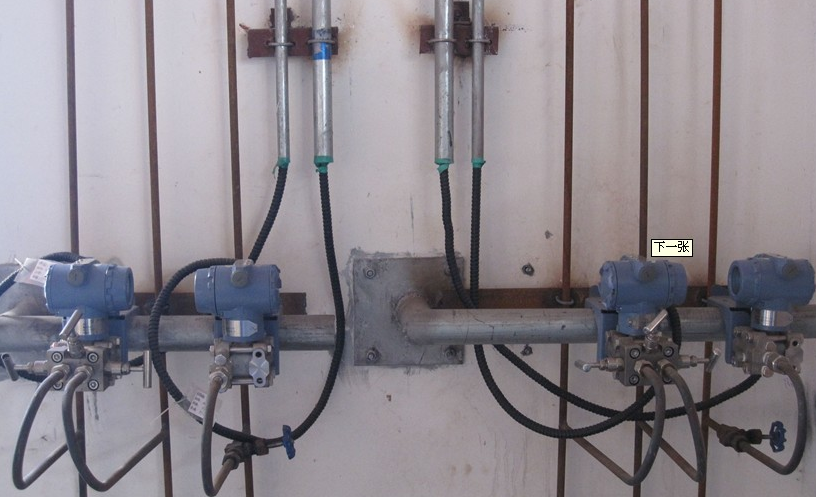

5. Application Show :
6. Our Customer :
7. Certification :
8 Our Team :
Welcome your inquiry and visiting all the time !
