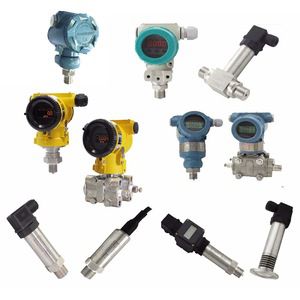

Related Products

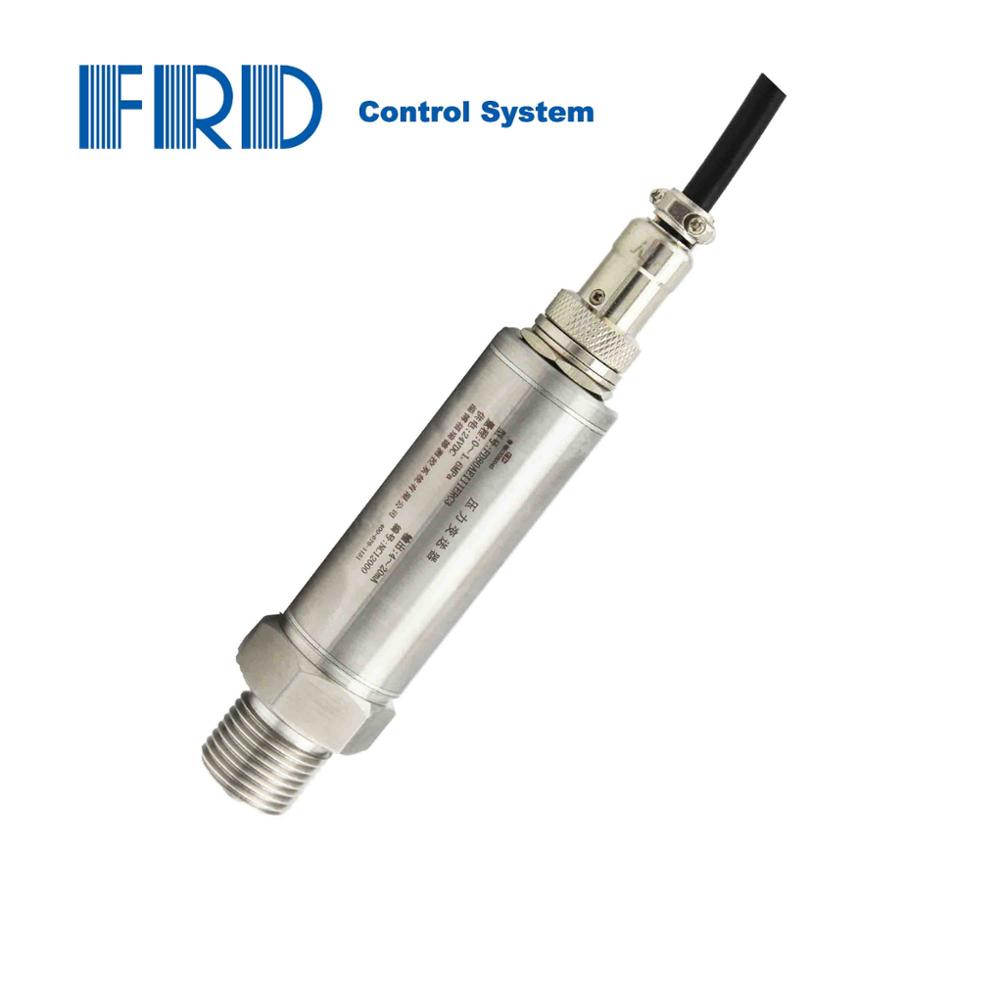

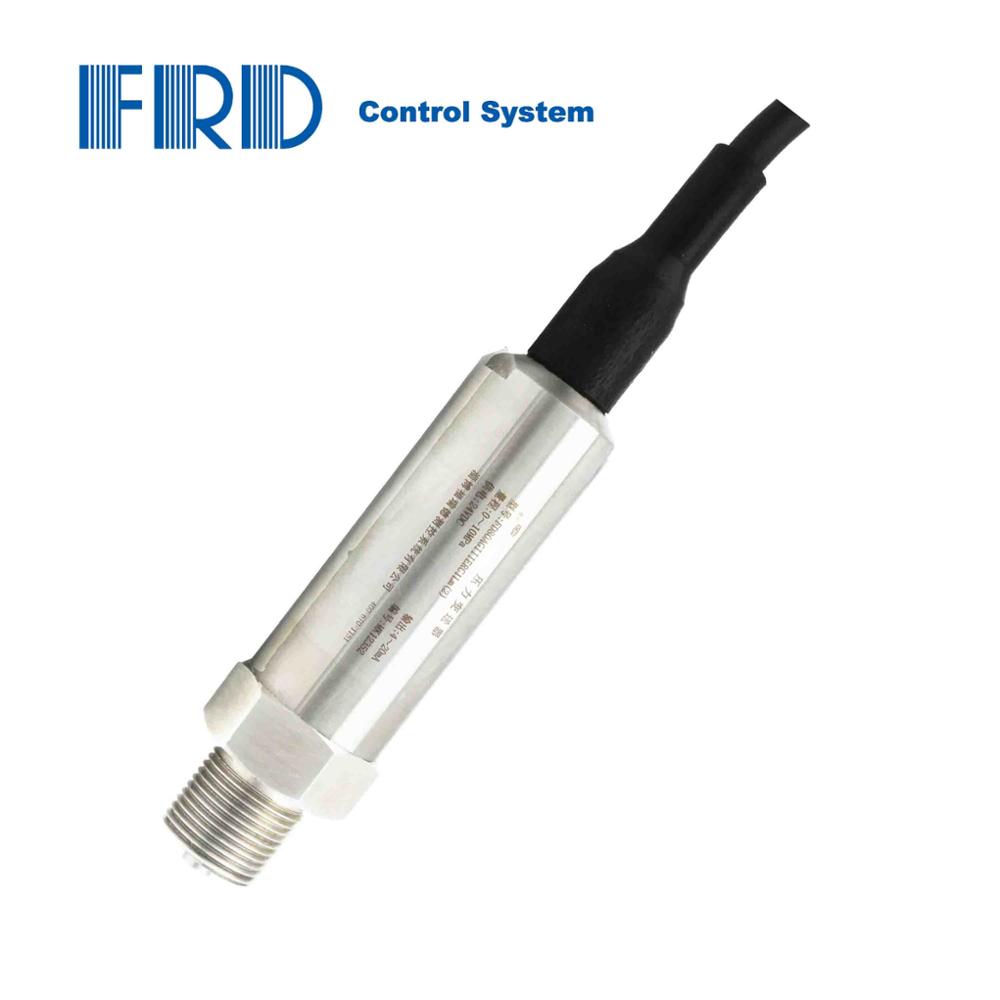

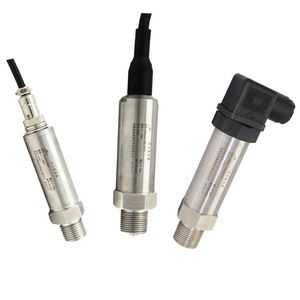

FD80A Diffused silicon pressure transmitter SS316L Diaphragm Pressure Transmitter.
FD80A series Universal compact pressure transmitter has excellent reliability,practicability,flexibility and diversity,widely applied in aerospace,petroleum,chemical industry,electricity and water conservancy, industrial process, pressure measurement and control.

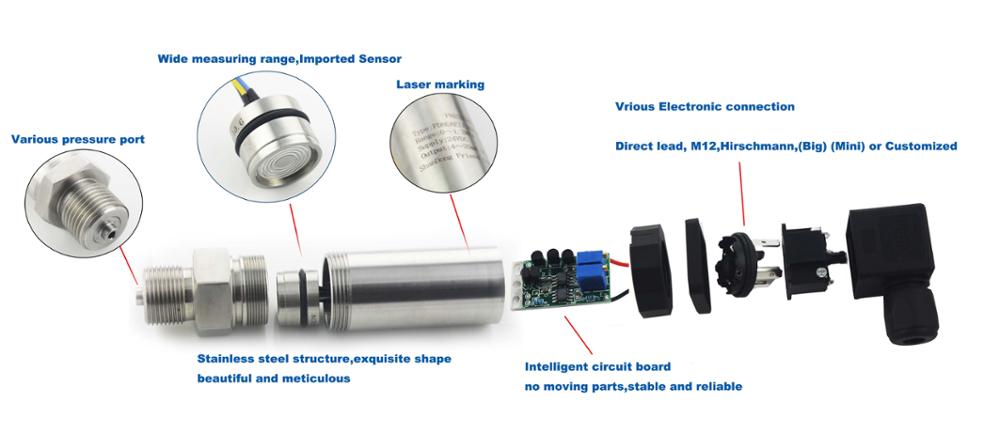

Product Feature
Wide measuring range
Stainless steel structure,various pressure port
Laser marking,exquisite shape,beautiful and meticulous
Intelligent circuit board,no moving parts,stable and reliable
Efficient lightning protection and strong anti RFI&EMI protection
Explosion proof NEPSI : Ex dⅡC T6 NEPSI : Ex iaⅡC T4
Typical Applications
- Industrial testing and application
- Hydraulic and pneumatic control system
- Pumping station and water treatment
- Aviation field and navigation field
- industrial manufacturing
- And so on
Technical Parameter
| Model | FD80A Pressure Transmitter |
| Pressure Range | 0-0.04Bar...0.2Bar...0.7Bar....1000Bar(optional) |
| Pressure Type | Gauge pressure; Absolute pressure; Negative pressure |
| Pressure Sensor | Diffused Silicon Pressure Sensor |
| Diaphragm | 316L Stainless Steel,Tantalum,Hastelloy C |
| Output Signal | Two Wire 4~20mA |
| Power Supply | 24VDC 10~30VDC |
| Accuracy | ≤ 0.1%,0.25%,0.5% |
| Working Temperature | -20℃ ~85℃ ,-30℃~120℃ Optional |
| Compensated Temperature | -20℃ ~70℃ |
| Storage Temperature | -20℃ ~85℃ |
| Overload pressure | 150% FS |
| Burst Pressure | 200% FS |
| Long Stability | Standard: 0.2%/year |
| Zero Temp. Drift | 0.003%FS/℃(≤100kPa), 0.002%FS/℃(>100kPa) |
| Insulation Resistance | >100M Ω @50V |
| Electrical Connection | Direct lead,Hirschmann,Ex-Proof or Customization |
| Pressure Connection | M20*1.5,G1/2’’; G1/4’’, 1/4’‘NPT,1/2’‘NPT or Customization |
| Display | With display or not (optional) |
| Housing Material | 316 Stainless Steel or 1Cr18Ni9Ti |
| Process Material | 316 Stainless Steel; 1Cr18Ni9Ti stainless steel |
| Response Time | ≤10ms |
| Protection Level | IP65,IP67,IP68 |
| Explosion Protected Type | NEPSI : Ex dⅡC T6 NEPSI : Ex iaⅡC T4 |
| Cable length | Cable Length Customization |
| Remarks | Special applications request by Customization |

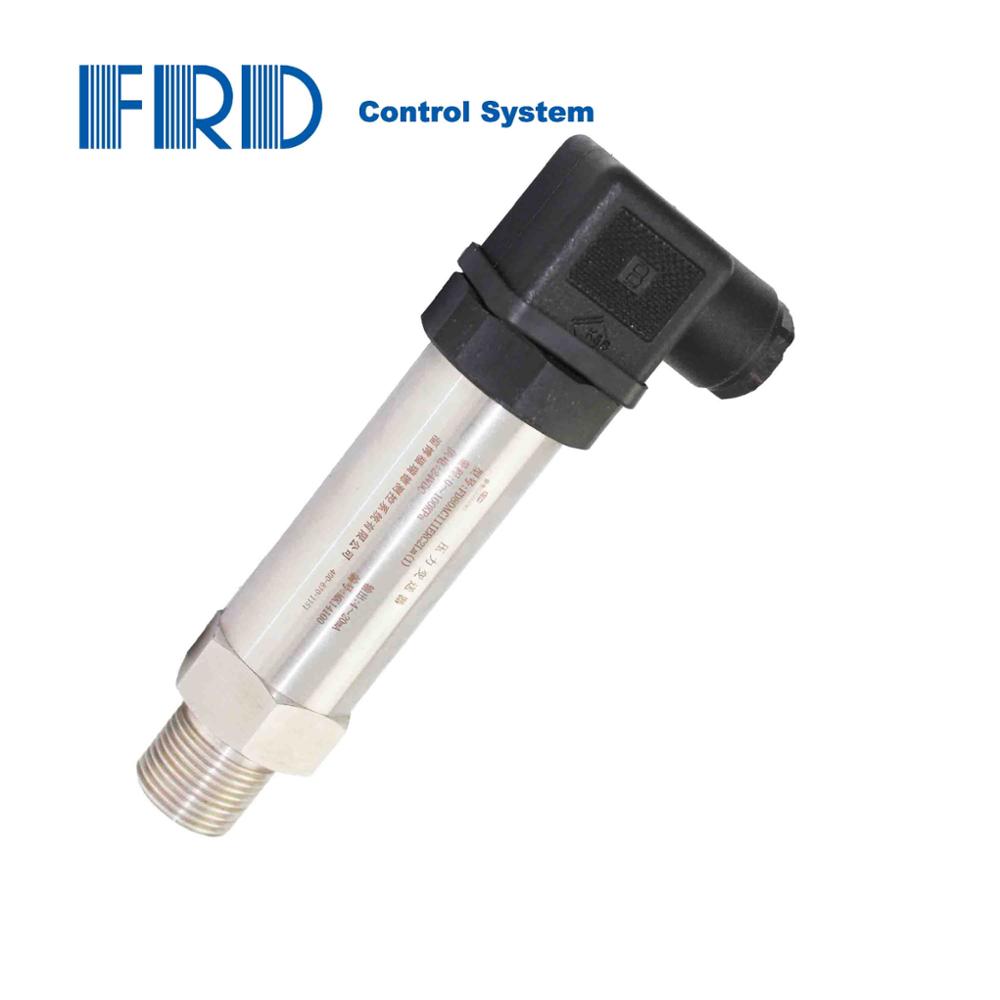

Products Details

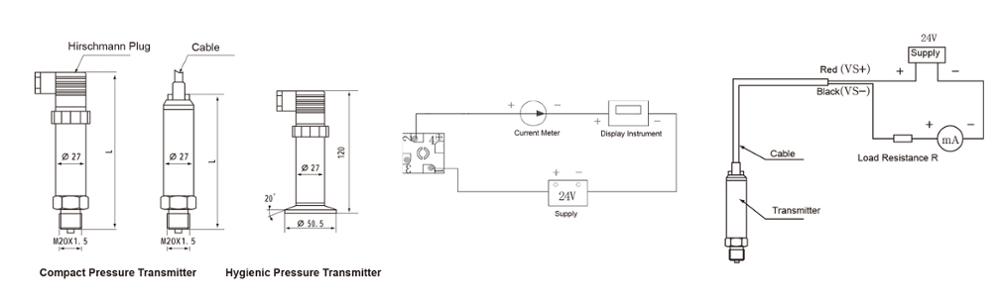

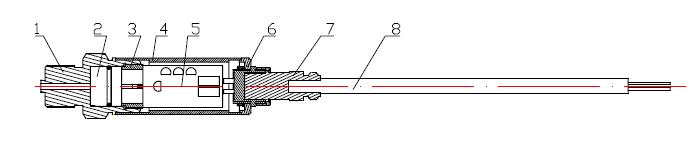

Dimensions and Electrical Connection Wires for reference

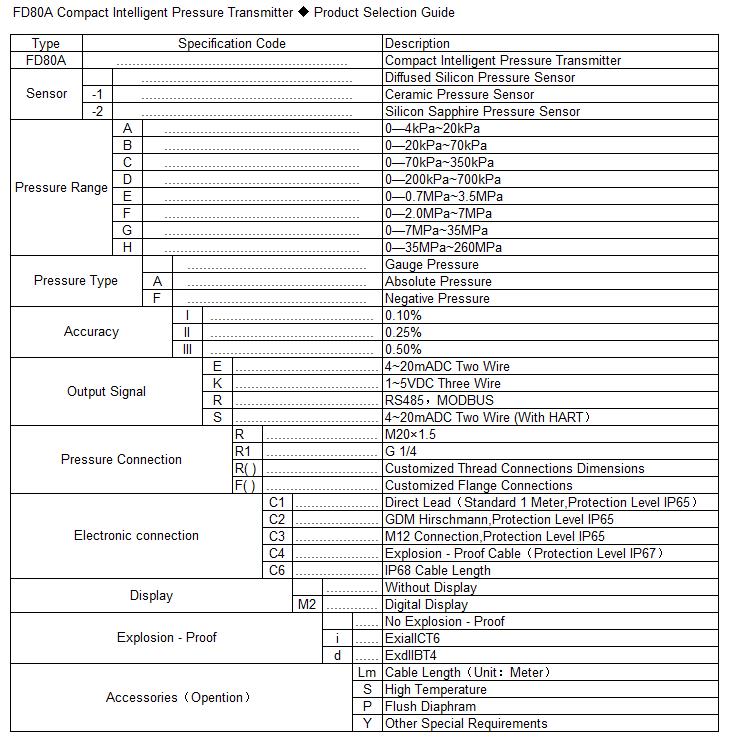

We will recommend you suitable products and offer you,product selection should be noted that the parameters:
Door to Door Services
ABOUT Shandong Friend Control System Co., Ltd.
Q:Are you factory or trading company?
A:We are manifacturer,with more than 15 years experience,factory located in Zibo, Shandong Province,China.
Q:What is your MOQ,and do you accept sample order?
A:Yes MOQ is 1 pcs sample order.
Q:What is the delivery time?
A:Usually 5-10 days production.
Q:How long will you get our reply?
A:We will reply you as soon as possible within 12 hours.
Q:Is OEM available?
A:Yes.We accept OEM and ODM.
