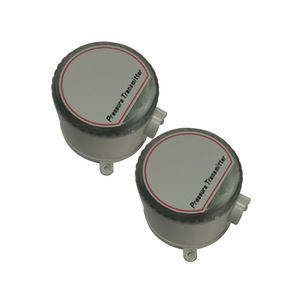

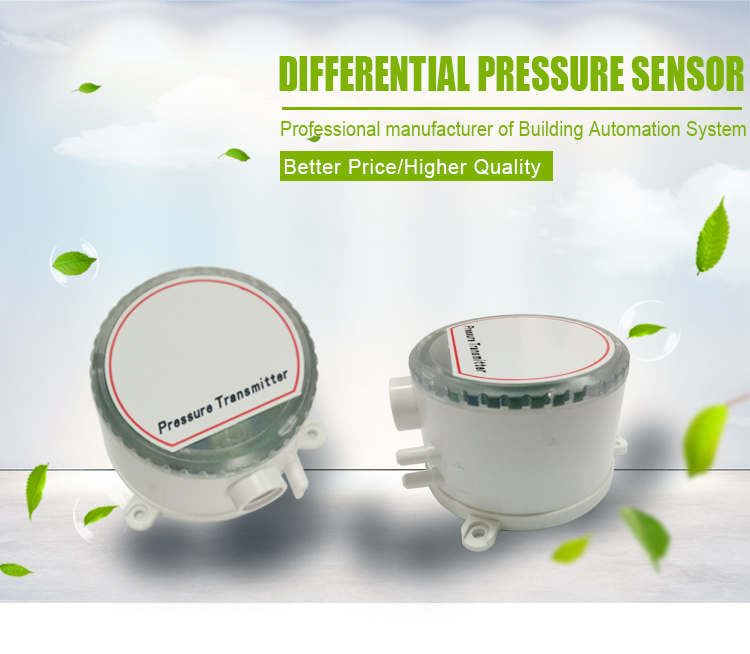

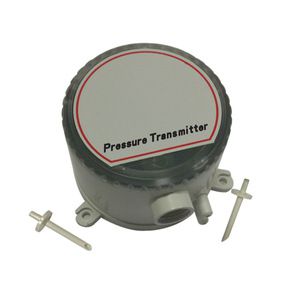

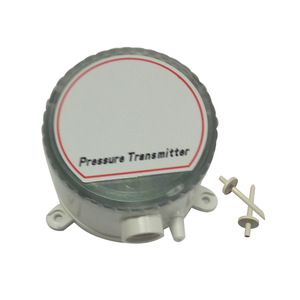

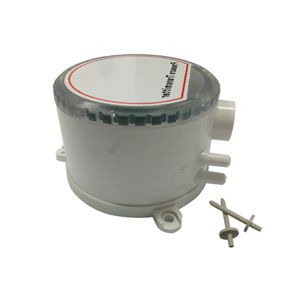

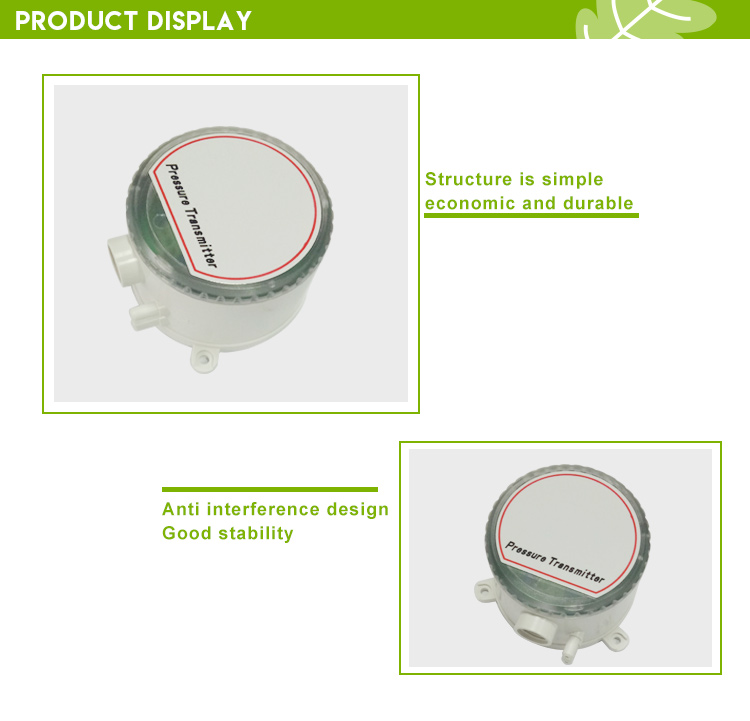

0 - 10V 2 - Wire Differential Pressure Transmitter
Power supply | 18~24~30 V/DC; 50/60 Hz |
Output signal | 0~10 Vdc/4-20mA |
Pressure media | Air, non-aggressive gases |
Working temperature | -10~50 degree C |
Linearity and hysteresis error | 1.0% of FS |
Storage temperature | -10~70 degree C |
Humidity | 0~95% rh, non-condensing |
MP-TX | 1.0% of FS per year |
Repetition | 0.2% of FS Position dependence |
Accurracy | 0.02% of FS |
Response time | 1 s (switchable to 100 ms) |
Process connection | 6 mm hose pipe |
Electrical connection | Screw terminal block for wire up to 1.5 mm² |
Housing Matial | ABS and POM |
Cable entry | M20x1.5 |
Protection Class | IP67 |
Weight | about130 g |

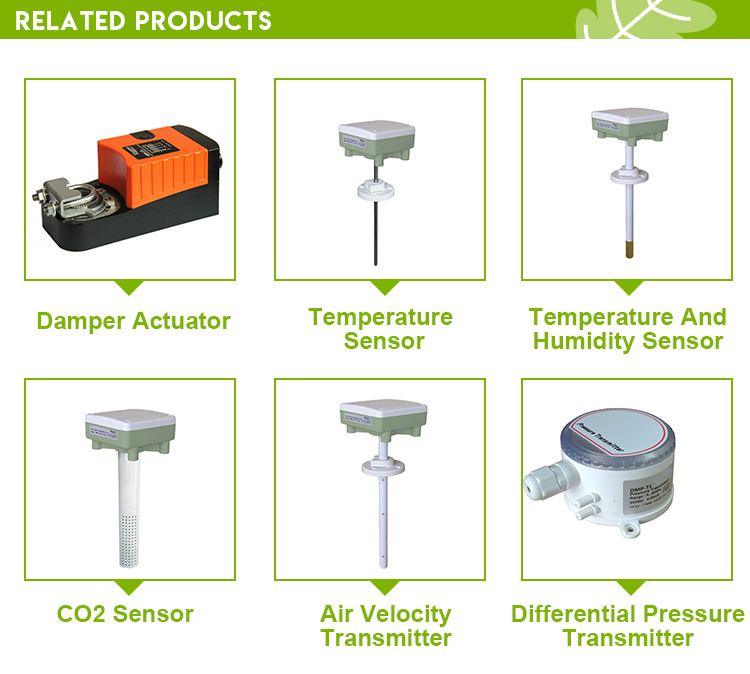

Shanghai Huikong Energy was founded in 2004, which specialized in Building Automation System. Products including non-spring return damper actuators, temperature and humidity sensors, air velocity transmitters, co2 sensors, differential pressure transmitters, pressure switches.
Most of our products have been certified to CE and some other Chinese quality certifications. In many museums, hospitals, hotels you can find our sensors and actuators.
We pursue high quality products, provide exceptional and professional after-sales service.
Looking forward to serve and establish business relationship with you.
Q1: How to get the latest price?
Tell me the models, quantity, and other special requirement.
Q2: Can I have a sample order?
Yes, welcome to test and check the quality. More details, please contact with us directly.
Q3: Payment terms?
100% T/T in advance.
Q4: Delivery time?
About one week.
Q5: Shippment?
DHL, UPS, TNT, FedEx etc.
Q6: Is OEM/ODM available?
Yes, it's available.
Q7:If the products can’t work after receiving it,what should I do?
We will replace new items for you at once, and respect your final decision for wrong goods.
Please feel free to contact the supplier if you need more information or help.
