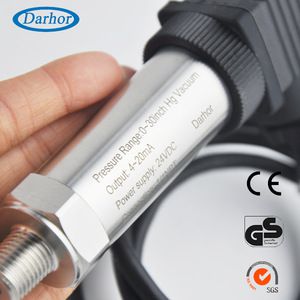

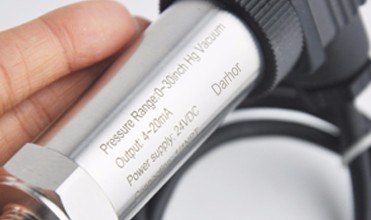

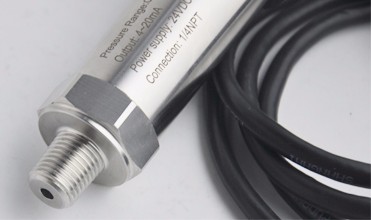

fm transmitter pressure transmitter for compressed air system

PRIMARY PARAMETERS

Place of Origin

Zhejiang, China (Mainland)

Brand Name

Darhor

Model Number

DH-P300, DH-P300

Type

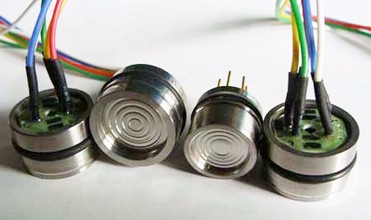

Diffusion silicon pressure transmitter

Pressure range

Medium

liquid or gas ,oil

Material

stainless steel

Output signal

4-20mA, 0-5V,0-10V

Power supply

12-36VDC/24VDC

Working temperature

-20u2103--80 u2103

Accuracy

0.25%FS/0.5%FS

Connection

1/2 '' , 1/4 '', 1/8''

DETAIL DESCRIPTION

Product Description

Product Application

The standard pressure transmitters DH-P300 designed for use in almost all industrial applications, and offer reliable pressure measurements, even under harsh environmental conditions.
The flexible pressure transmitter programme covers different output signals, absolute or gauge (relative) versions, measuring ranges from 0-1 to 0-600 bar and a wide range of pressure and electrical connections.
Excellent vibration stability, robust construction, and a high degree of EMC / EMI protection equip the pressure transmitter to meet the most stringent industrial requirements.

Features.

• Designed for use in severe industrial
environments
• CE-marked: EMC protected in accordance
with EU EMC Directive
• Enclosure and wetted parts of acid-resistant
stainless steel (AISI 316L)
• Temperature compensated, linearized and
laser adjusted

Output signals:

– MBS 32: 0 – 5 V, 1 – 5 V, 1 – 6 V or 0 – 10 V DC
– MBS 33: 4 – 20 mA
• A wide range of pressure connections
• Electrical connection: plug or cable
• For use in Zone 2 explosive atmospheres

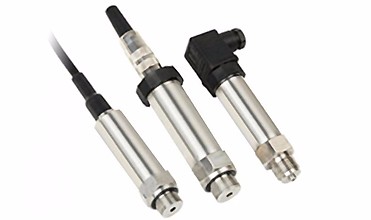

□1.Derect leader connector

□2.Aviation connector

□3.Hirschmann connector

Pressure range	Pressure type	gauge pressure absolute pressure sealed pressure
Pressure range	-1-1000Bar (optional)/ vacuum
Technical Index	Power supply	24VDC 12VDC 5VDC 12-36VDC
Signal output	4-20mA 0-20mA 1-5V 0-5V

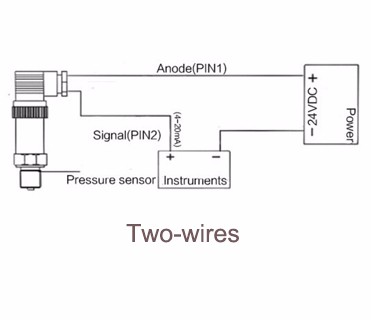

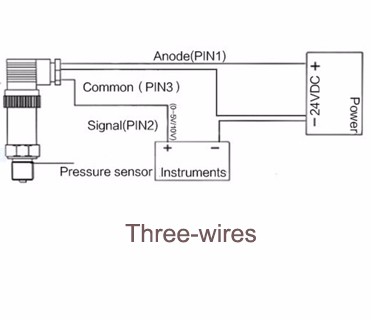

Signal line specification	2wire 2wire 3wire 3wire
Zero Drift	±0.03%FS/°C
Accuracy	±0.1%FS ±0.3%FS ±0.5%FS
Thermal Sensitivity Shift	±0.03%FS/°C
Longterm Stability (1 Year)	<=0.21%FS
Frequency Response (-3dB)	5kHz~650kHz
Compensated Temperature	-10~70℃
Working Temperature	-40~85℃
Storage Temperature	-40~125℃
Overload pressure	200%FS
Protection Classification	IP65
Body materials	316 stainless steel (standard)
Transmission distance	<= 100m (No electromagnetic interference)

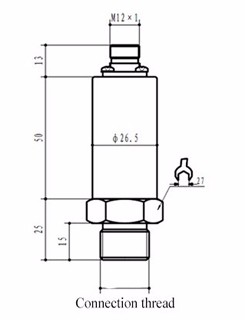

Pressure connection	G1/4, G1/2, 1/2NPT, 1/4NPT, M121.5, M201.5 etc. (optional)
Measure media	Gas, water, oil or other media can be compated with stainless
Accuracy	±0.1%FS ±0.3%FS ±0.5%FS
Specifications	Hirschmann connector, aviation conncetor, direct lead connector
