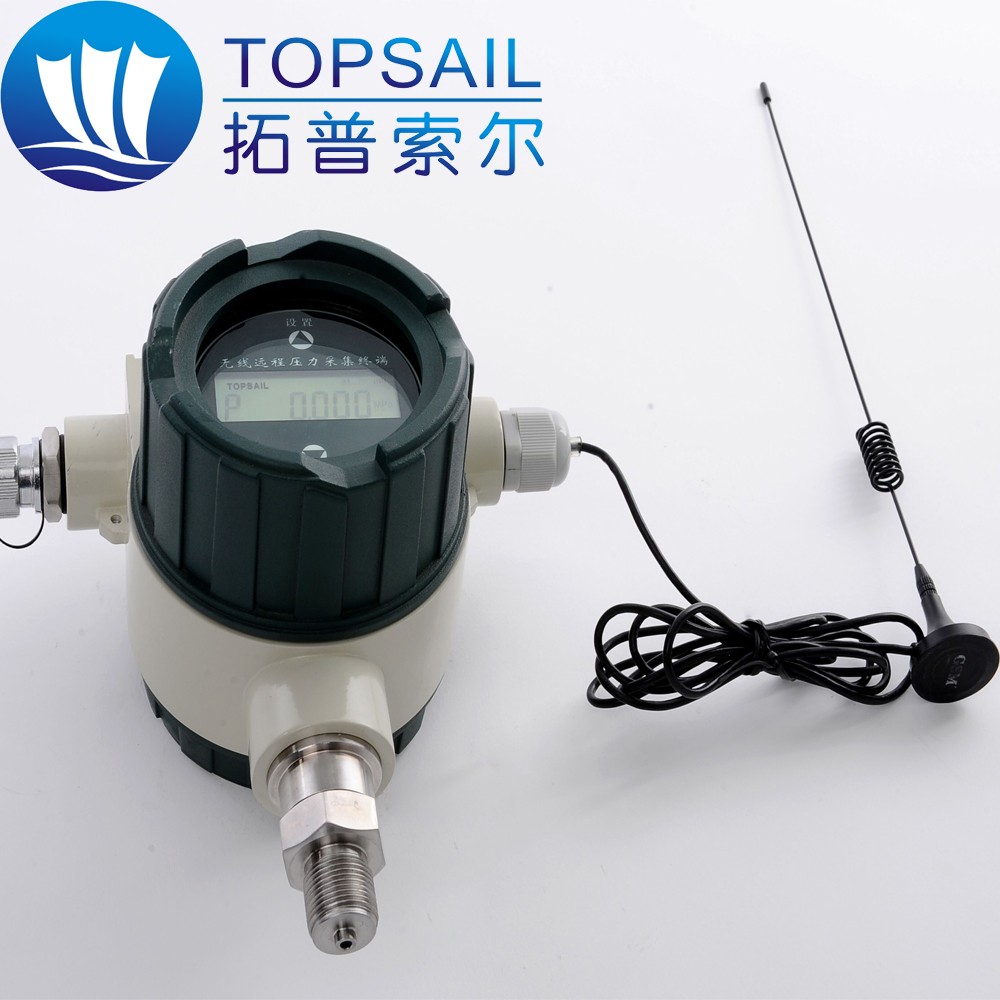

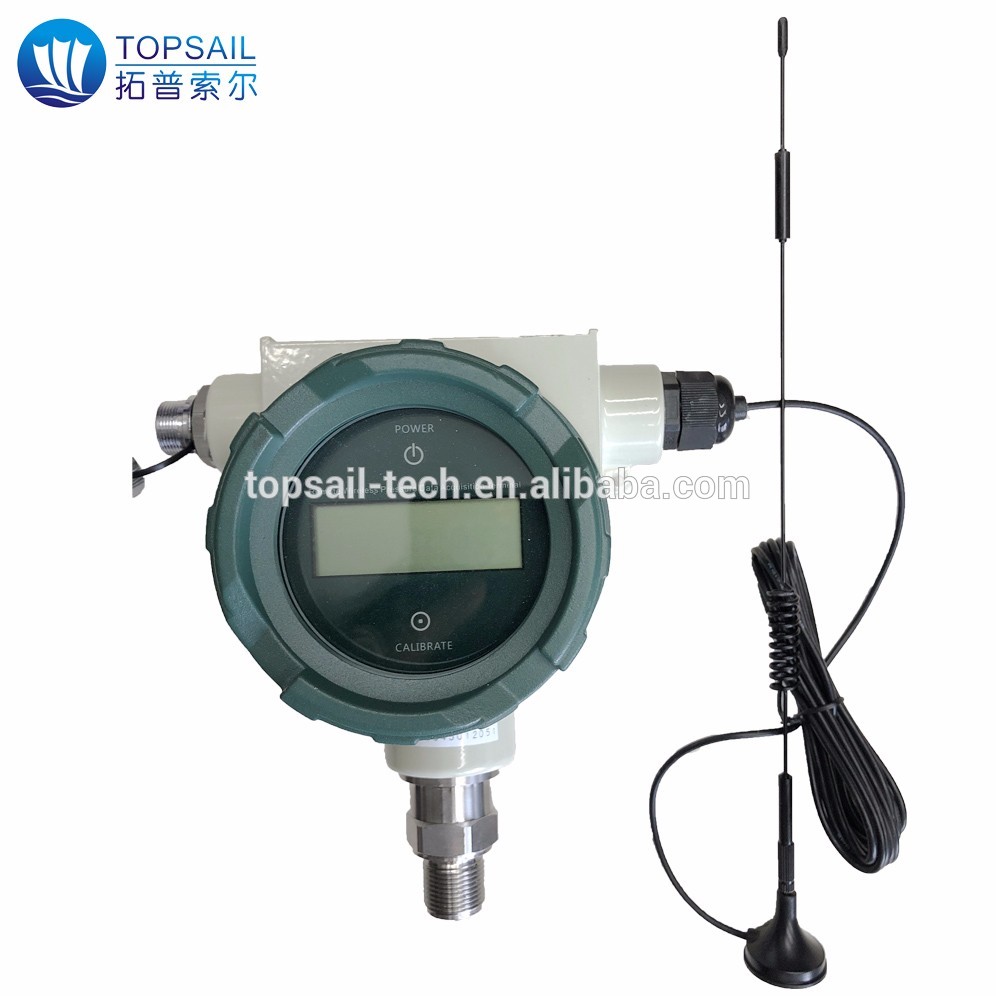

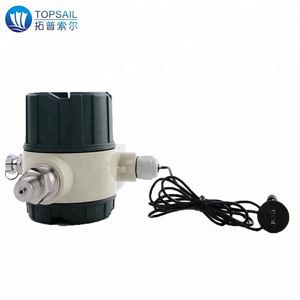

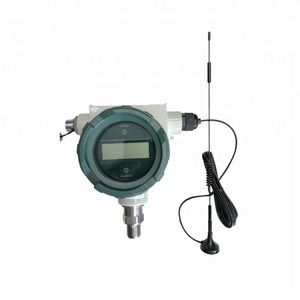

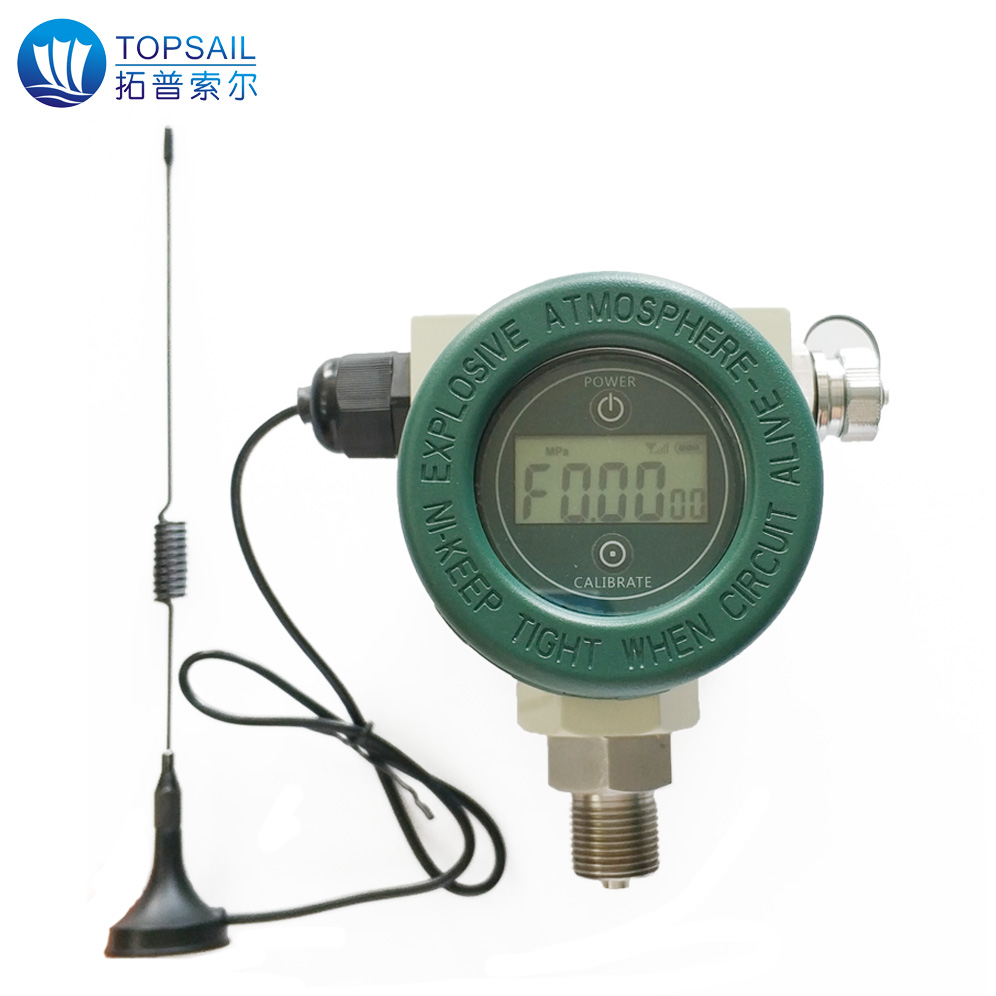

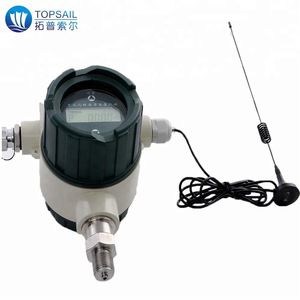

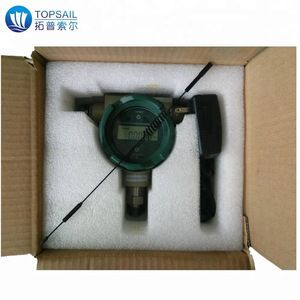

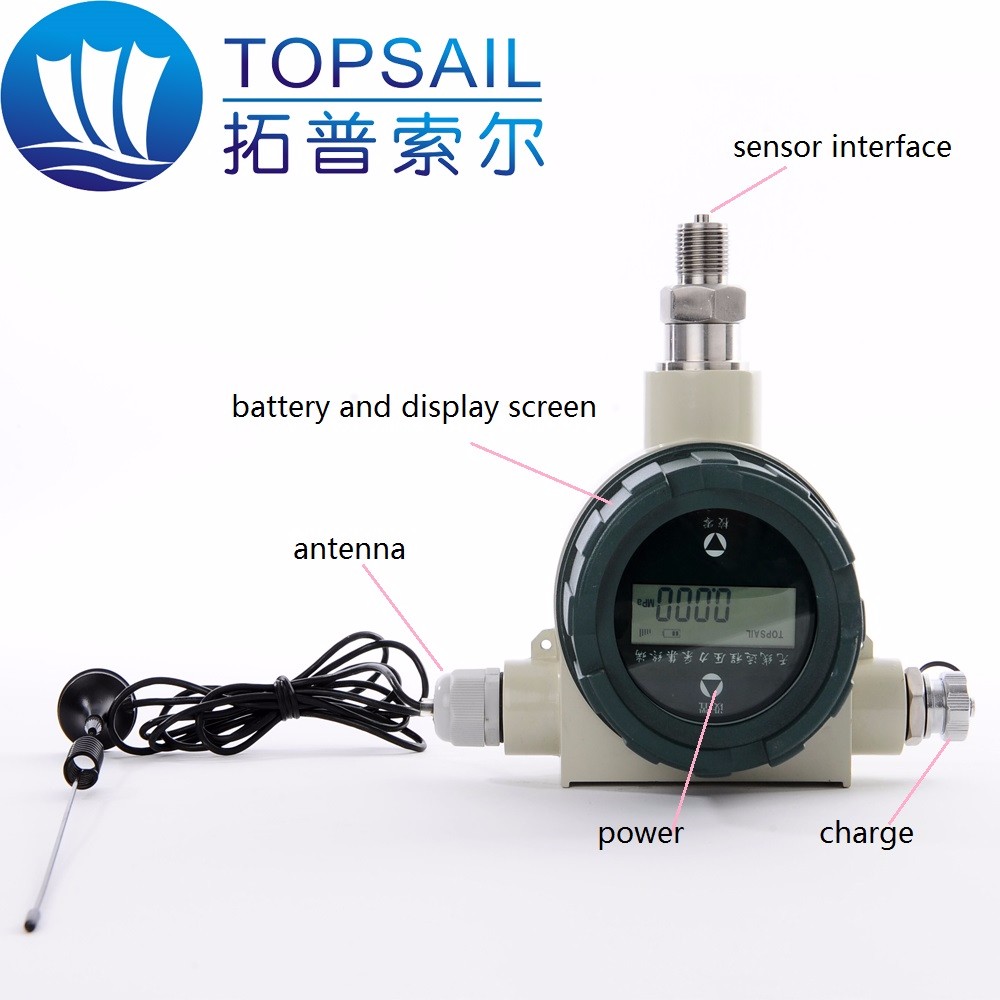

Wireless smart pressure transmitters for water pipeline network
Model: TD-P05
This IoT hardware device of wireless pressure transmitter will
1) wake up and measure the pressure of pipeline (water, liquid, air, gas pipeline) at set collection interval;
then save those measured data to own memory;
sleep when no working is needed to save power;
2) wake up and report all saved data to cloud server with the help of GPRS embedded module
3) when all saved data had been reported to server succesfully, delete them automatically
So that
1) users could know real-time pressure data from internet, no matter when time is and where they stay,
either home or office, or in tourist or business trip
2) users could receive SMS alarm, when the measure pressure is too low or too high, compared the pre-set threshold range
Data could be shown in different types on software platform, the trends curves & sheets so that users can see the changing trends more clearly., any abnormal changing of pipe pressure could be found as earlier as possible and be solved asap.
Demo platform could be supported.
While for more professional analysis, you'd better have your own software solution.
Features:
1. GSM quad-band for global market
2. Super low power consumption design, Battery powered for 2~3 years
3. Customized configuration
4. Free platform for demo,
Client's own software solution integration could be supported
| Specification of GSM wireless pressure sensor TD-P05 | |
| Power | battery powered, 20000mAh |
| Wireless Communication | GPRS output signal (GSM 850/900/1800/1900MHz) |
| Customized settings | server IP/domain & port detecting & reporting interval; threshold value; mobile No. to receive SMS alert etc. (for cellular mode only) |
| Specification in details | |
| Pressure range | 0~10Kpa....100Mpa Customized |
| Accuracy | ±0.1% ±0.2% ±0.5% Customized |
| Long-term stability | 0.1%FS/year |
| Overpressure | 150%~300%FS (full scale) |
| Working current | Super low power consumption design sleep mode ＜6uA reporting mode ＜50mA detecting mode ＜1mA |
| Display | 5 digit readings |
| Protection | IP65, waterproof, dust-resistance |
| Working environment | |
| Temperature | -20℃~70℃ |
| Humidity | <90% |
| Storage temperature | -40℃~120℃ |
| Physical materials | |
| Pressure interface | G1/2, M20*1.5, etc. Customized |
| Material of pressure membrane | 316L stainless steel diffused silicon membrane |
| Material of housing | Aluminum alloy |

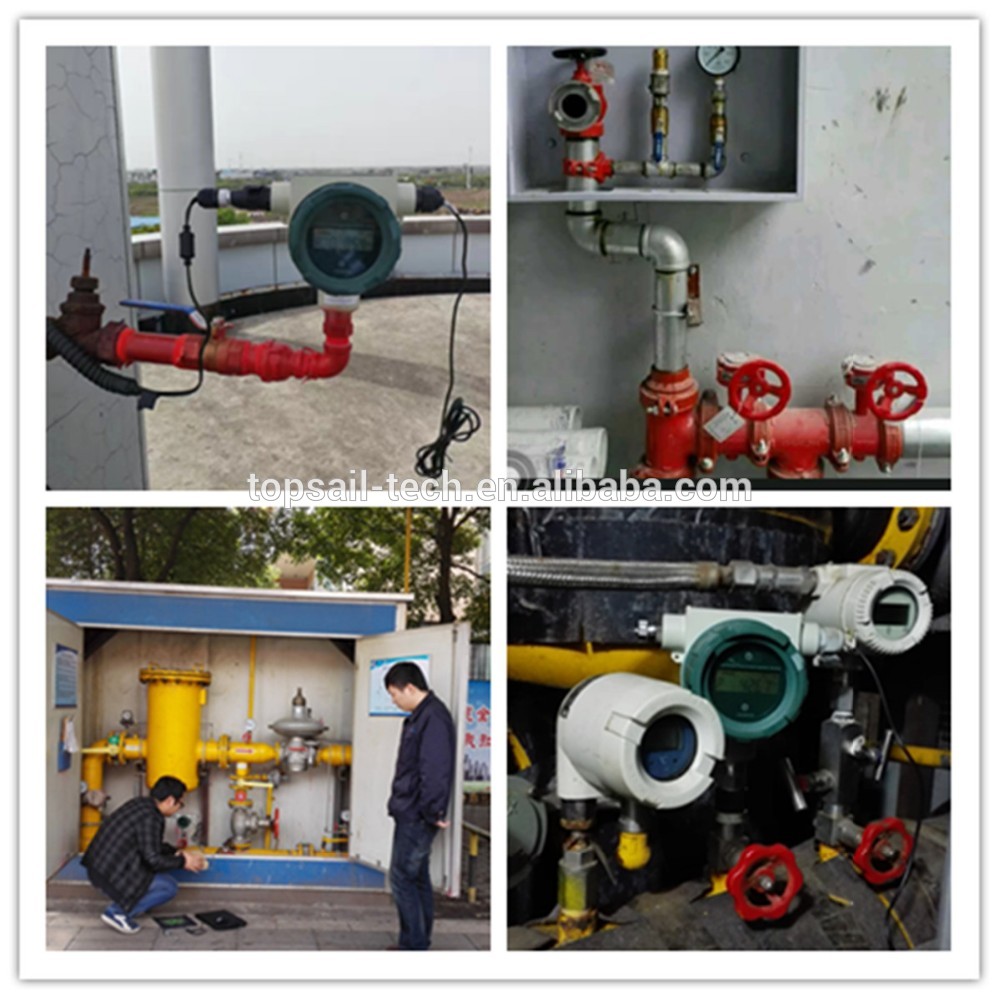

Applications:
Based on widely coverage of GPRS network in global market, the TD-P05 GSM wireless smart pressure transmitter could detect and report real-time pressure in many more monitoring sites INDEPENDENTLY within a large areas like:

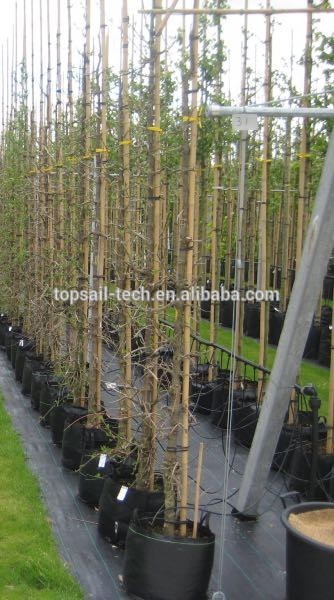

Agriculture smart irrigation,
Urban water supply system,
Smart city fire hydrant system,

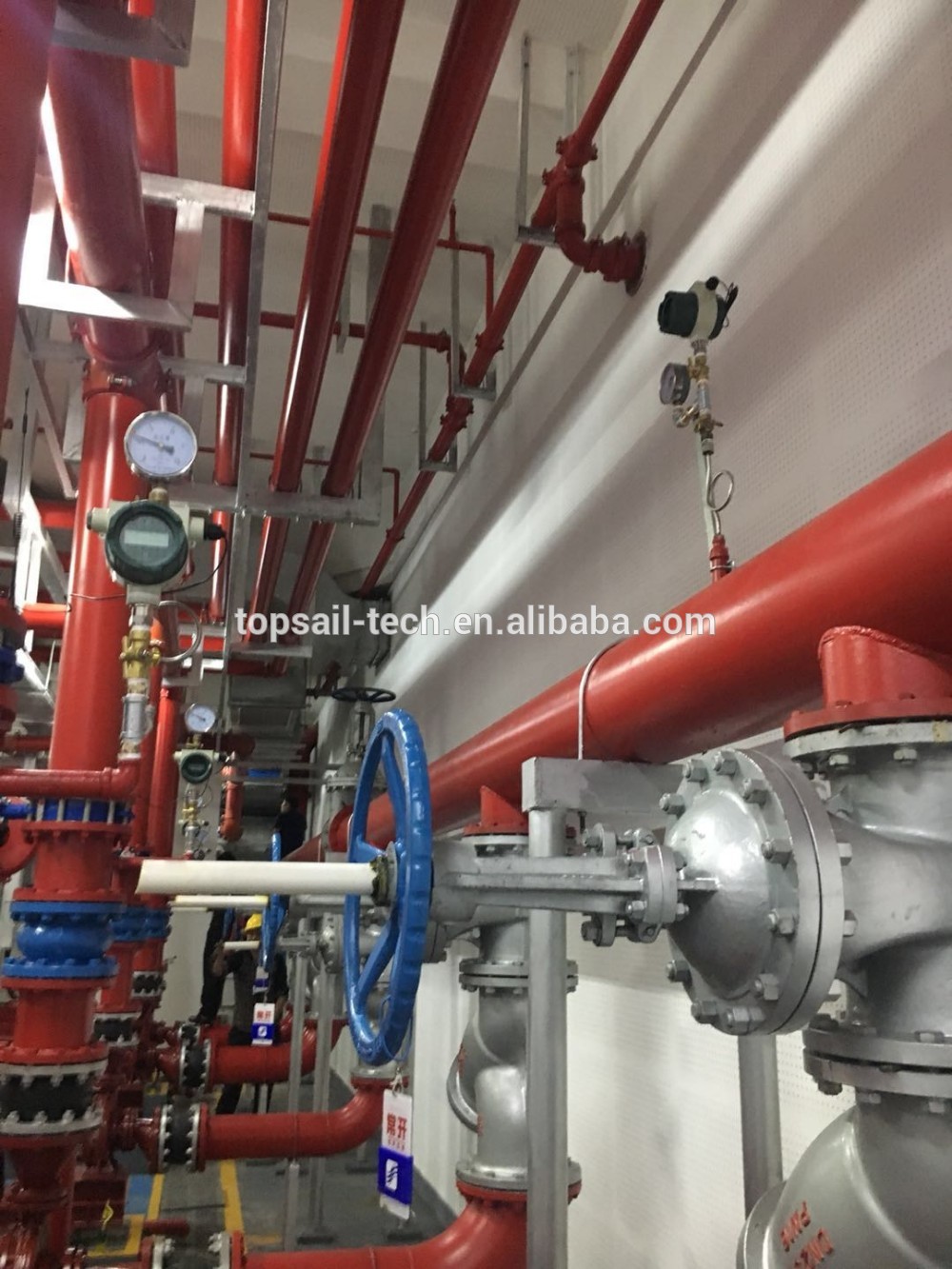

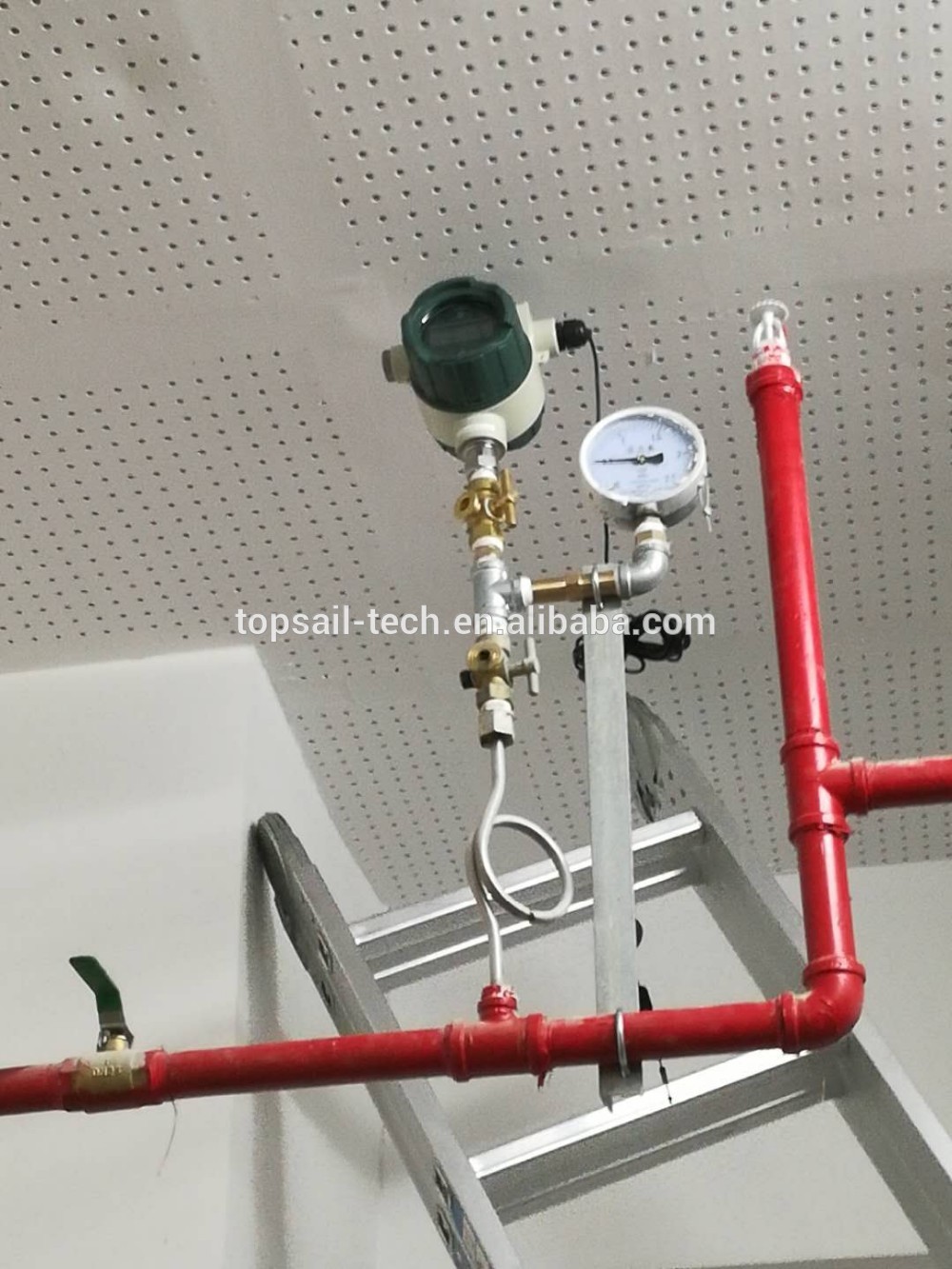

Smart building tap-water pipe network pressure monitoring (pump booster, spray ends, second pump bosster, fire hydrant case etc.)

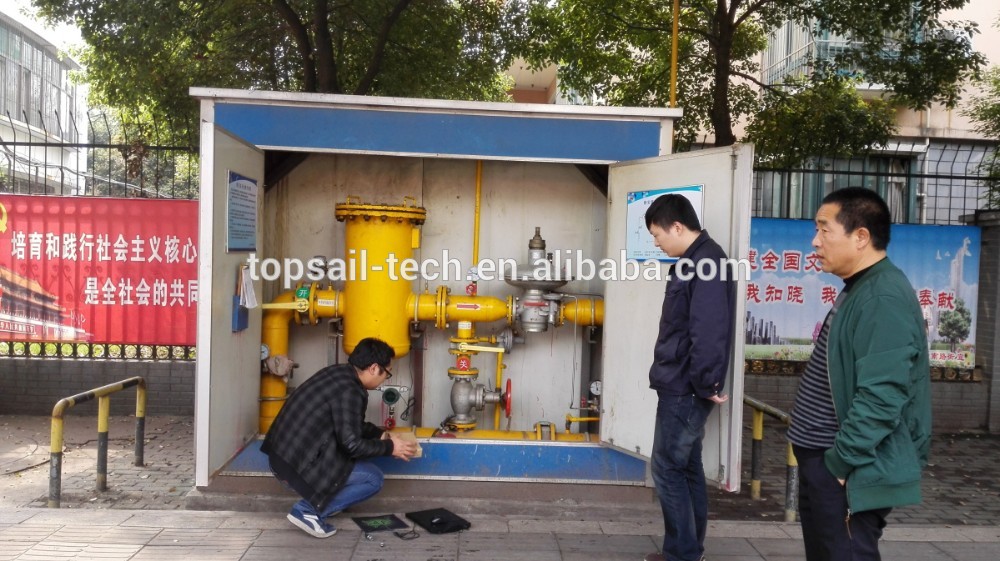

Gas & oil pipeline system pressure monitoring & leakage alarm,
Industrial automation etc.
Pump Station (pressure pump, and pump booster)
Spray pressure monitoring

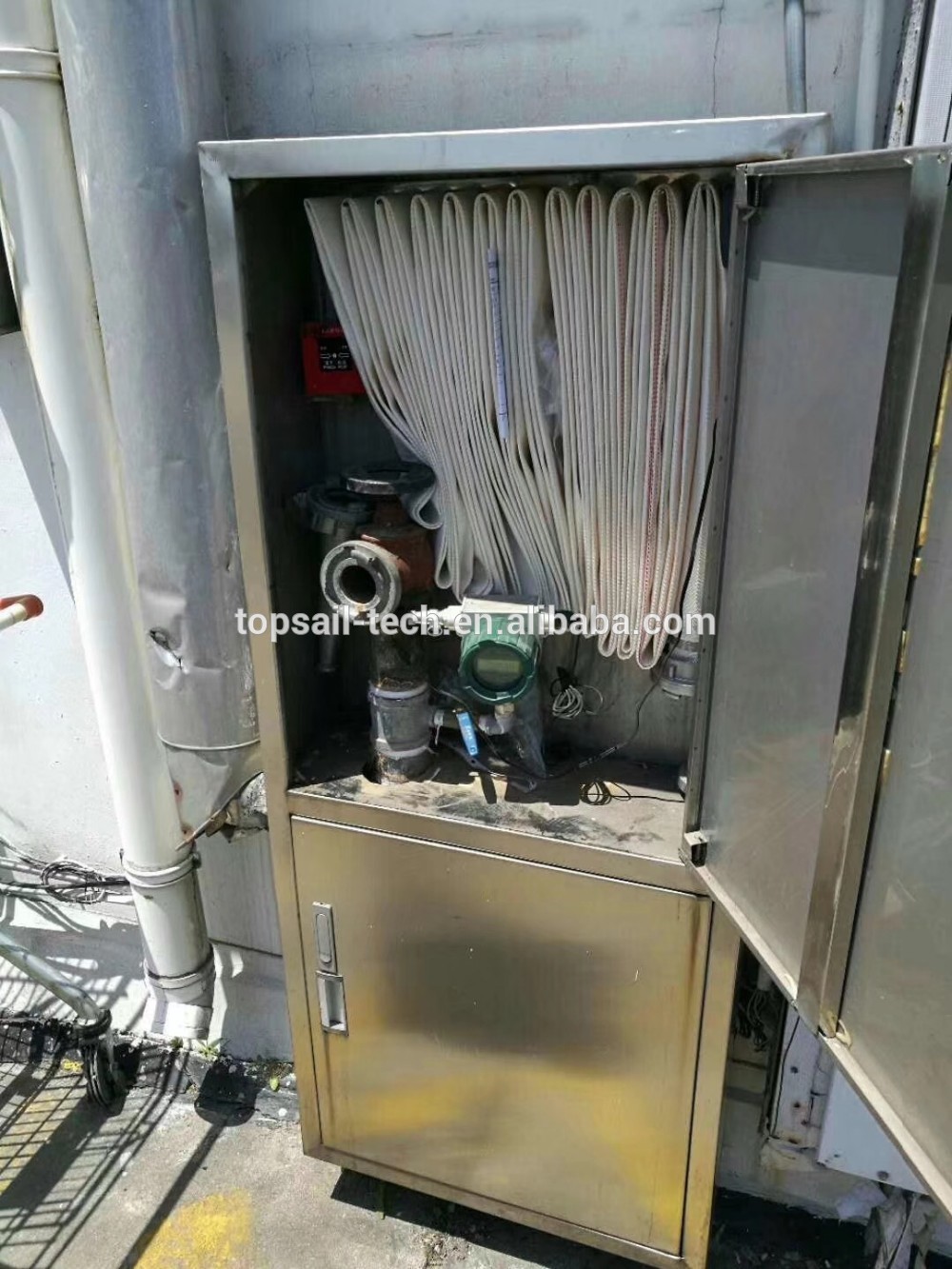

Fire hydrant chamber
Urban water supply system
Gas & oil pipeline system
Agriculture smart irrigation
and more applications
TD-P04
low cost GPRS pressure sensor
0~20KPa....70MPa
±0.1~0.5%FS
TD-P05 battery only
GPRS remote pressure monitor
0~20KPa....70MPa
±0.1~0.5%FS
TD-P06 battery only
NB-IoT wireless pressure transmitter
0~20KPa....70MPa
±0.1~0.5%FS
TD-P07 battery only
LoraWAN smart pressure transmitter
0~20KPa....70MPa
±0.1~0.5%FS

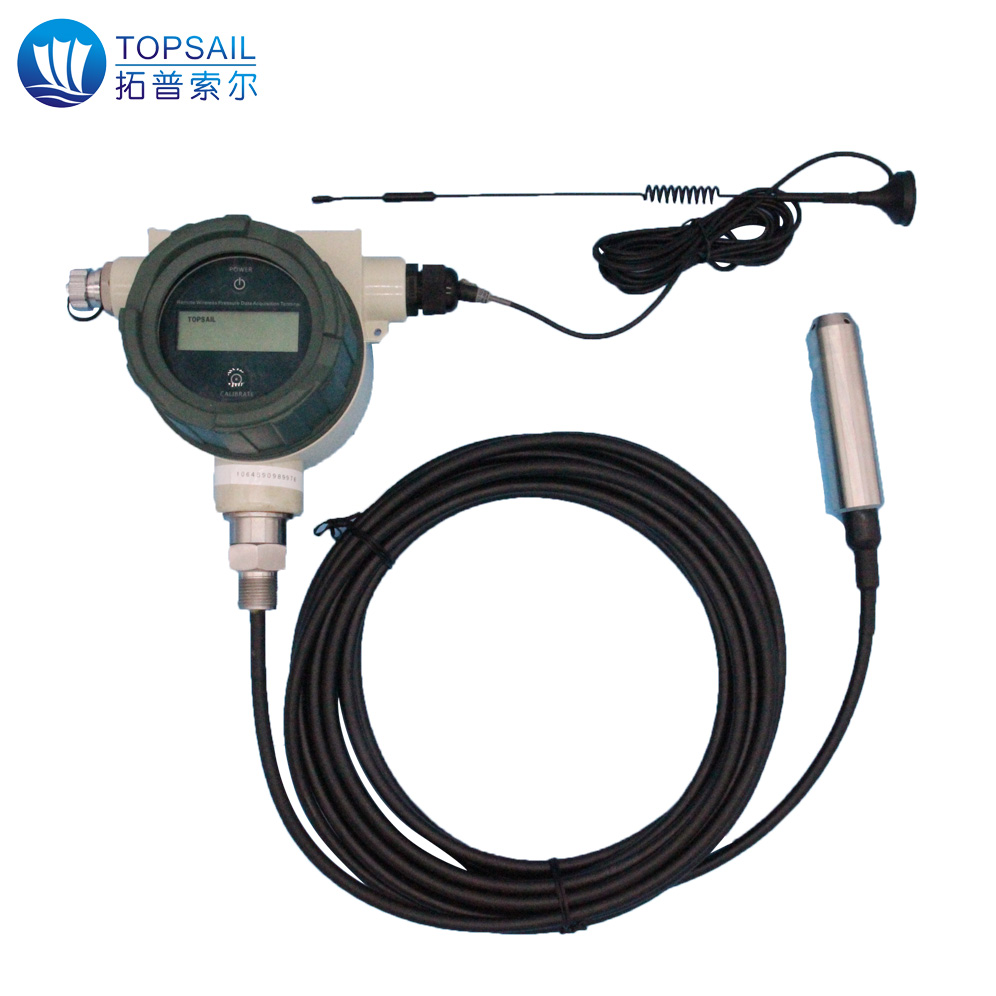

TD-L05 battery only
GPRS submersible water tank level transmitter
0~1M....200M H2O
±0.5%FS

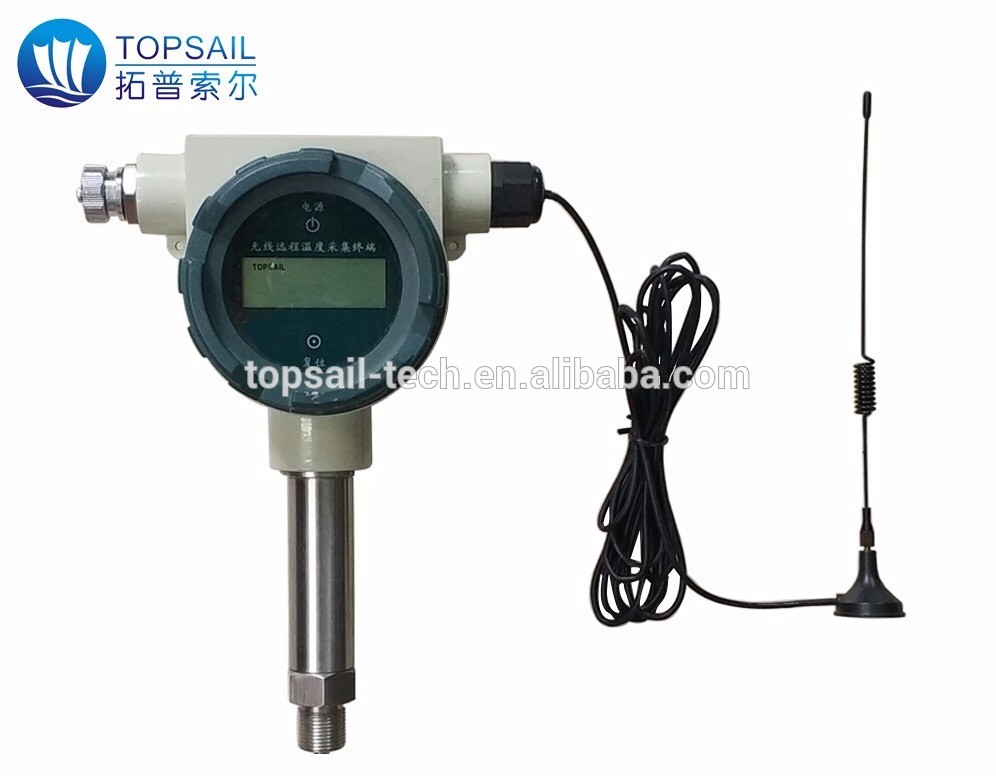

TD-T05 battery only
GPRS pipeline pressure transmitter
-50~150C with PT1000 sensor
±0.5%FS
Customization service is ok
such as:
Pressure transmitter 2 in 1 wireless sensor
melt pressure wireless transmitter etc.
Welcome to talk with us.
A manufacturer & supplier focused in data loggers and IoT monitoring devices:
1. Pressure (data recorder, wireless smart pressure sensor / transmitter)
2. Temperature, humidity (disposable/reusable data recorder, wireless smart sensor - GPRS 4G WIFI ZIGBEE NFC NBIOT LORAWAN etc.)
3. Level (recorder, submersible wireless smart sensor/ monitor /transmitter - GPRS, NBIOT, LORAWAN etc.)
4. Multi-way ( data recorder, data transfer unit etc.)
Answers to the Questions you may have:
1. MOQ?
1 unit.
2. Could i have my own LOGO?
Yes, with extra cost.
3. Is there FREE SAMPLES?
No.
4. How long QUALITY GUARANTEE will be?
1 year.
5. Which PAYMENT do you support?
T/T, Credit Card, WestUnion, MoneyGram, Paypal.
6. What about SHIPMENT & LEAD TIME?
Preparation time for goods: 7~15 working days.
Shipment days: about 7~15 days up to courier service.
7. Do you offer any DISCOUNT?
1) If you have bigger quantity order, pls. mail us details for discount offer.
2) COUPON valid always:
Any clients who ordered from us can share us at-scene Application photos of our devices ( 5 shots at least), and enjoy 5% discount off (max no more than 20$) in their next order. * one buyer enjoy once only.8. Difference between your wireless Pressure transmitters and others?
Installation is very easy, could be done in a few minutes. saving time cost!
work standalone, no need external AC power or signal cable. saving wiring cost!
work and sleep smart, report automatically, alert wisely.
remote monitor, user can know real-time data wherever they stays, saving labor cost!
Your inquiries would be responded in 1~2 hours during March Expo!
1. What this Smart pressure transmitter will be used to do?
2. Working environment? and the temperature in pipe?
3. Range of pressure?
4. Accuracy ?
5. Process interface M20*1.5?
6. Does your company have own platform software?
7. How many units will be needed?
8. Your company name, address & post code, recipient name & mobile.
CNF cost would be checked for your plan.
