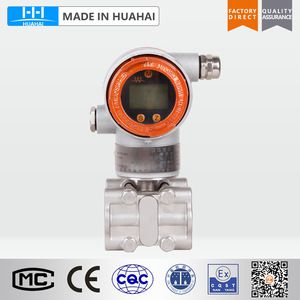

4-20mA differential pressure transmitter China



Technical Feature

  • Jiangsu, China (Mainland)
  • HUAHAI
  • SHHDP
  • 4-20 mA & HART
  • 0.5%, 0.1% ,0.075%
  • LCD or without display
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$120~320

PRIMARY PARAMETERS

Place of Origin
Jiangsu, China (Mainland)
Brand Name
HUAHAI
Model Number
SHHDP
Output
4-20 mA & HART
Accuracy
0.5%, 0.1% ,0.075%
Display
LCD or without display
Measuring Object
Gas, liquid or steam
Power supply
24V DC
Transmitter type
smart or simulate
measurement range ratio
40
Process connection

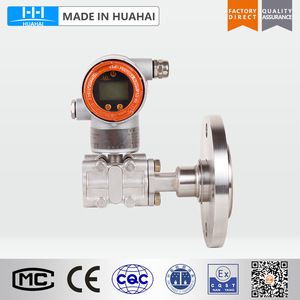

Waist flange type or welded fitting
structural material

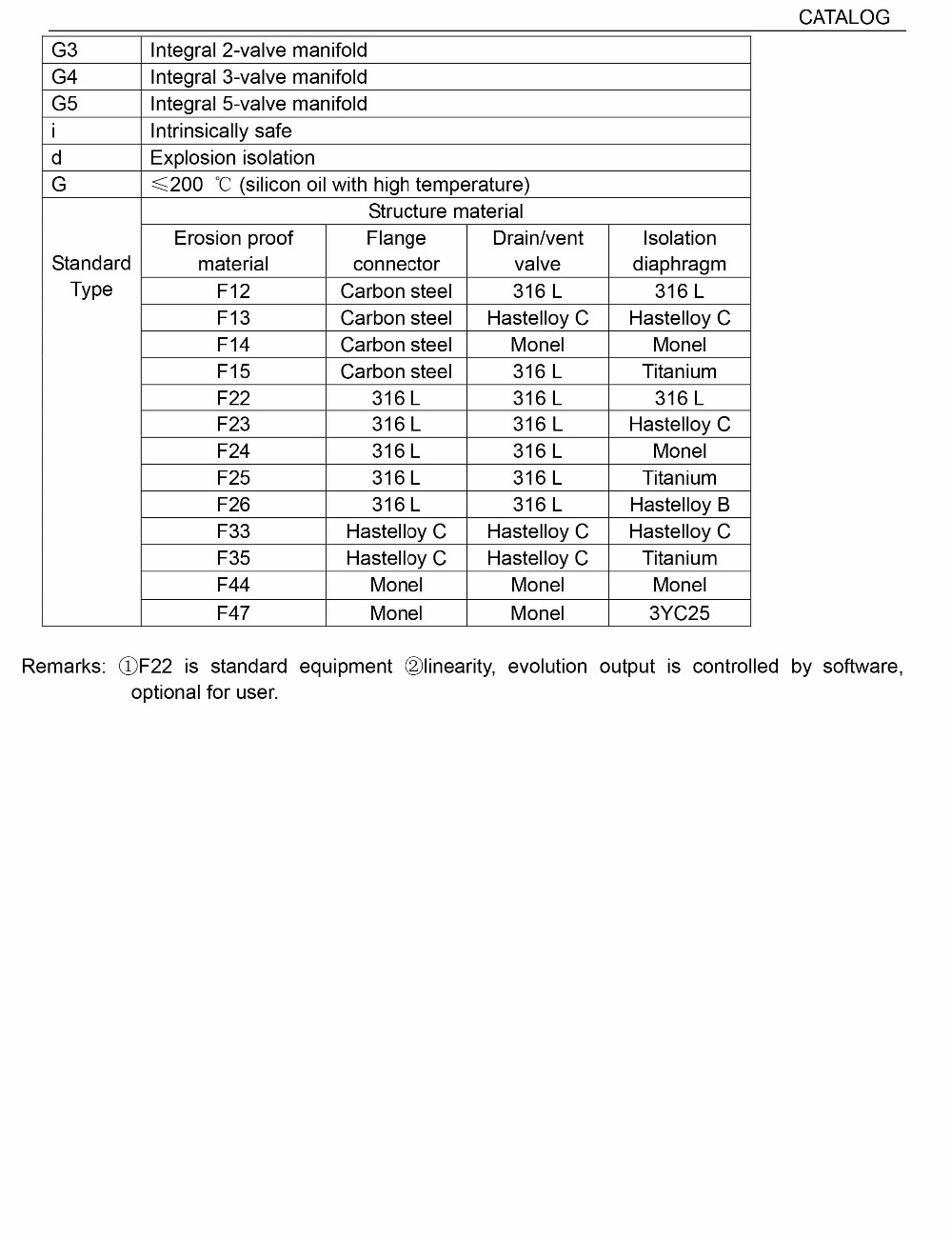

316L or as request
holder
side bend bracket or strickle bracket

DETAIL DESCRIPTION









Send Consultations Sending PUBLIC question and getting response from the supplier

Send Only your public informations will be shown

All Consultations

See More
Send Standard Inquiry

Jiangsu Huahai M & C Technology Co., Ltd.

Electromagnetic Flow Meter,Vortex Flow Meter,Magnetic Level Gauge,Gauge Pressure Transmitter,Radar Level Transmitter

China
Supplier Page Contact Supplier

Products From Supplier

Pressure transmitter differential 4-20mA

It cosist of  digital Indicator and pressure transducer/sensor, which is  widely used in petroleum chemical, metallurgy, light industry building materials such as electric power enterprises and institutions of scientific research, cooperate with the throt
