Polypropylene case safety pattern pressure gauge

*Accuracy:1%; 1.5%

*Range:-0.1~60 Mpa

*Copper alloy internal standard, optional stainless steel     internals corrosion-proof

*Rugged built case with solid baffle and       backwards blow out

All stainless steel liquid filled vibration-proof pressure gauges " YTN " series

*Outside diameter :40; 50; 63; 100; 150; 160 mm
*Accuracy: 1.0%; 1.5%; 2.5% .
*Range; -0.1/160 Mpa
*Case SUS 304, internals SUS316
*Back connection flush mounting

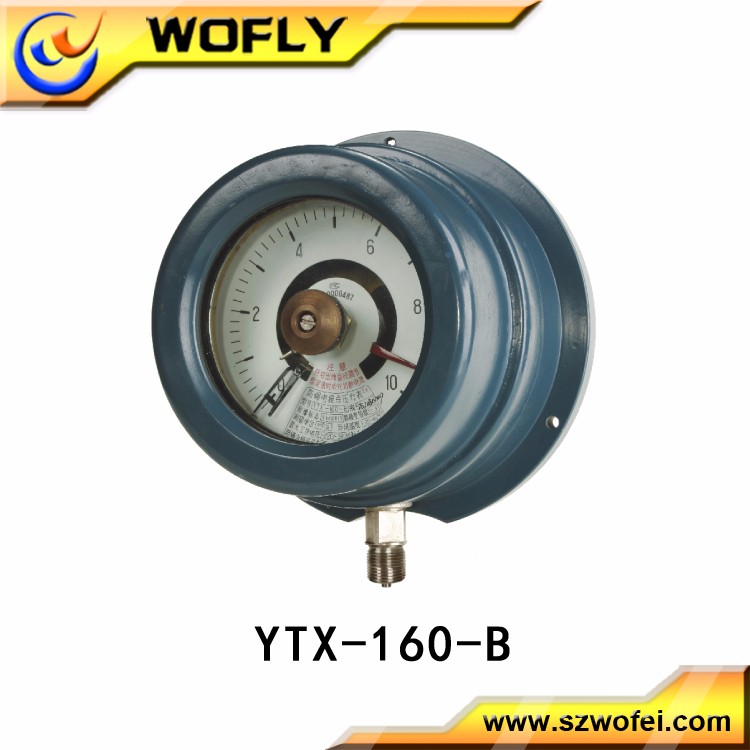

Explosion-proof electric contact pressure gauges

*Accuracy :1.6(1.5) 2.5
*Nominal diameter : 160 mm
*Measuring range : -0.1~0/40 Mpa

*Contact capacity : 10VA (10W)
*Maximum working voltage : 380V AC
*Maximum working current : 0.7A
*Environment temperature: -20~80℃
*Explosion-proof mark : Exd II BT5

Sanitary Diaphragm Pressure Gauge

*Diameter :￠63 mm, ￠98 mm

*Stainless steel case and internals

*Accuracy:1%, 1.5%, 2.5%

*Liquid-filled as option with Type plus " N"
