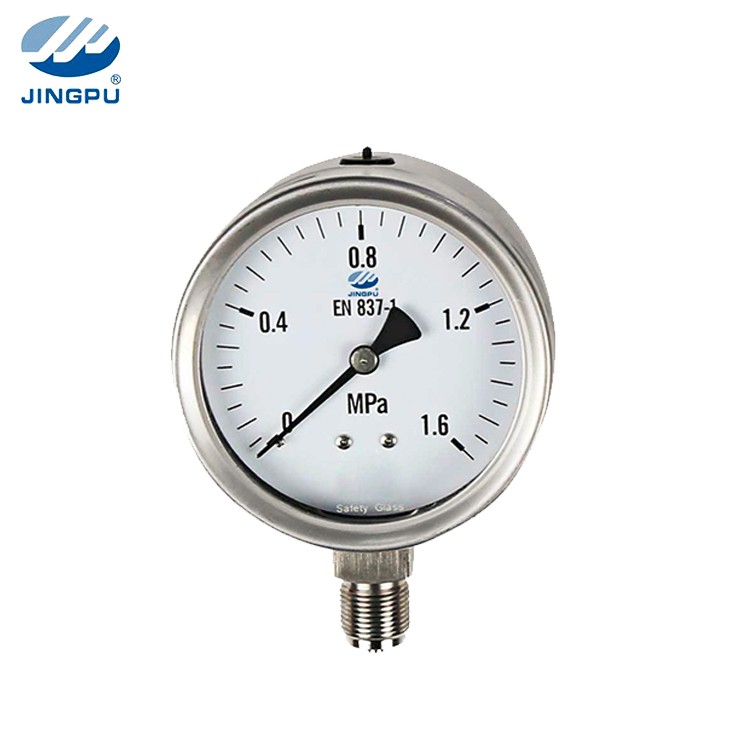

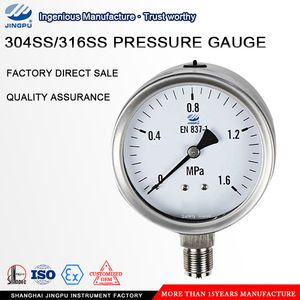

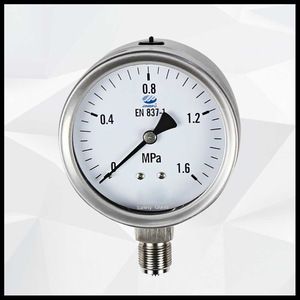

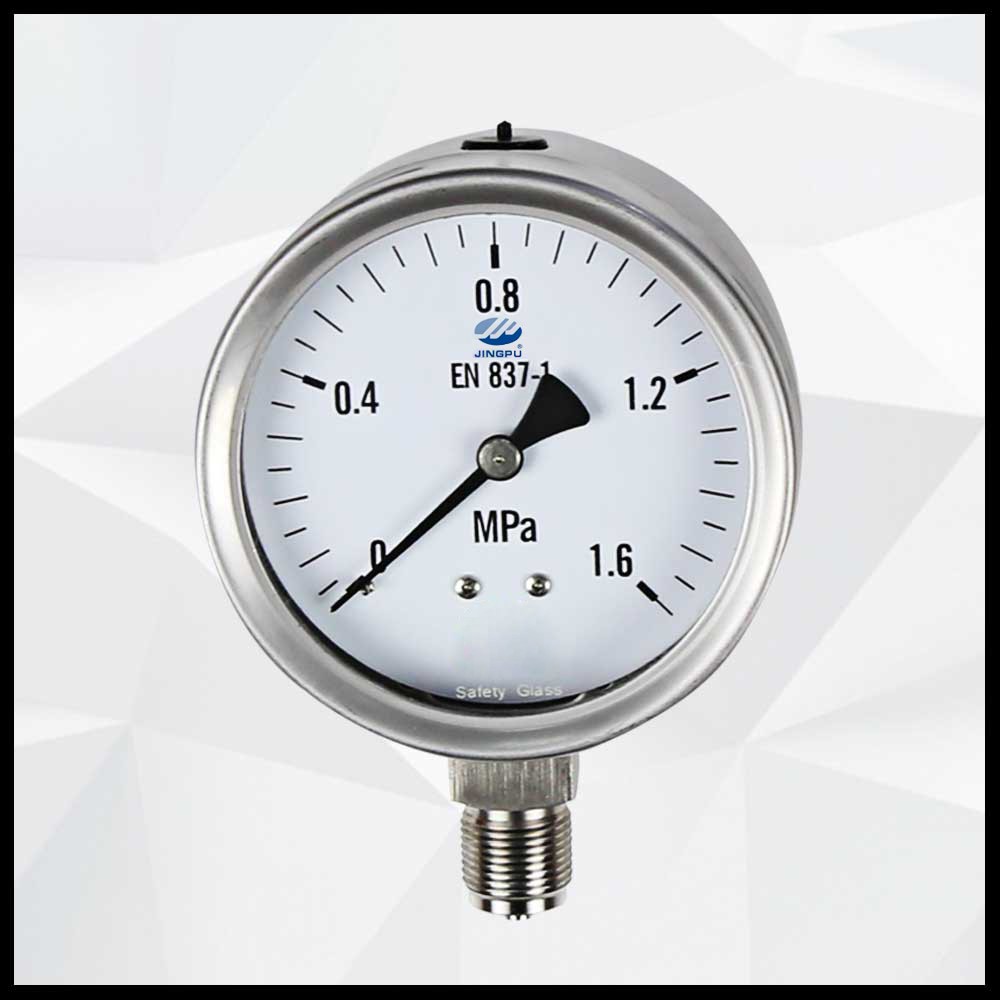

YTF Series Stainless Steel Pressure Gauge
2.5" (60mm),4”(100mm) ,6"(150mm) Premium Stainless Steel Glycerin or Silicone Oil Filled Pressure
Gauge(manometer)
Product Application
These series of stainless steel gauges are widely used in industries,petrol,chemistry,metallurgy,gas station and pump. Series YTF are designed for harsh and corrosive environments.The filled gauges can reduce the
internal gauge damage when the working condition full of vibration and shaking.
*Out door and severe ambient and process conditions.
*Use where harmful vibration and pulsation are present
*Hydraulic equipment,pressure equipment,oil field equipment,pumps,compressors and process systems.
| Model Denotation | |
| Model: Y T 1 -------- 2 H 3 | |
| Code | Explanation |
| Y | Pressure Gauge |
| T | Bourden Tube |
|
1 | F------Anti-corrosion |
| FN------Anti-corrosion and Vibration-proof | |
|
2 | Dial Size |
| 40(1.5") 60(2.5") 100(4") 150(6") 250(10") stands for the dial size of gauge | |
| H | Stainless steel |
| 3 | Connection Mounting |
| Lacuna stands for bottom connection | |
| Z------Back connection | |
| T------Back flange on bottom connection | |
| ZT------Front flange on back connection |
Main Features
1)Liquid filled stainless steel case protects against vibration and pulsation.
2) High accurate.
3)Back,bottom,flange panel mounted. 4) Various range scale unit KPA,PSI,BAR,KG/CM2....... 5)Stainless steel or brass wetted parts
6)One year warranty.
ONE
Case:AISI 304SS
Lens:Safety Glass/Polycarbonate
Ring:AISI 304SS
Pointer:316SS,Welded one-piece socket
Connection:1/4"NPT or 1/2"NPT standard,M20*1,5
Bourdon Tube:316SS,drawn seamless
Movement:304SS,4"(100mm):
over/under stops(optional)
1.Sample supplied for evaluation. 2.Small trial order . 3.Custom dial and logo design.
4.Professional service before sales and after sales.
5.12 months guarantee.
6.Within 24 hours reply.
| Q1.How can I contact with your sales dept? | ||
| 1. | Tel NO:(+86) 21 36550506 (Ext 812) | Mobile:+86 18512172424 |
| 2. | Wechat：warmsnow1125 | |
| 3. | Whatsapp:+86 18512172424 Website:www.jingpu.com |
Q2.Are you manufacturer or trade company?
We are directly factory with 18 years experience.
Q3.What's the order process?
a.Inquiry---provide us all requirements.
b. Quotation---official quotation form with all clear specifications.
c. Order confirmation--- Send you order confimation sheet,signed contract.
d. Payment terms--- T/T 30% in advanced, balanced before shipment.
e. Shipping--- by sea, air or courier. Shipping detail will be provided.
Q4 .What terms of payment you use?
T/T, L/C(large order),D/P,Western Union.
Q5: How much is our minimum order quantity?
Our minimun quantity is 1 Piece.
Q6.What's your delivery date?
It depends on the number of orders.Sample needs 3-5days,mass production times 14-28 working days.
Q7: How long is the warranty?
12 months warranty.
