Name: High quality brass internal pressure gauges
Types of brass internal pressure gauges
♦ Normal pressure manometer
♦ Pressure Vacuum Gauge
♦ Stainless Steel pressure manometer
♦ Vibration-resisting pressure manometer
♦ Diaphragm pressure manometer
♦ Gauges with Capsule Elements
♦ Stainless Steel capsule gauge
♦ Sanitary pressure manometer
Application of brass internal pressure gauges
YN series have good vibration-resisting performance,suitable for the working circumstance with mechanical vibration and medium pulse.They can be used to measure the liquid,gas and steam mediums without explosion danger and crystallization.
Advantages of brass internal pressure gauges
1) The main parts,sheath,connection header,core,spring elements ect.are made up of stainless steel material. So they are not only handsome,but cauterization-resisting.
2) By using bayonet to connect the cover and the case,the YN series have reliable seal performance.
3) Yn series have reasonable design and reliable production process,so have ascendant vibration-resisting performance.
Main technic Indicator brass internal pressure gauges
Model# | YN-60 | YN-100 | YN-150 | YN-200 |
Norminal Diameter | Φ60 | Φ100 | Φ150 | Φ200 |
Connection Thread | M14*1.5 | M20*1.5 | ||
Accuracy Class | 2.5 | 1.6 | 1.0;1.6 | |
Measuring Range Mpa |
| 0~0.1;0~0.16;0~0.25;0~0.4;0~0.6; 0~1;0~1.6;0~2.5;0~4;0~6; 0~10;0~16;0~25;0~40;0~60; | ||
Vibration-resisting Class | V.H.4 | |||
Operation Circumstance | Temperature:-40~70°C,Relative Humidity:85% or smaaler |

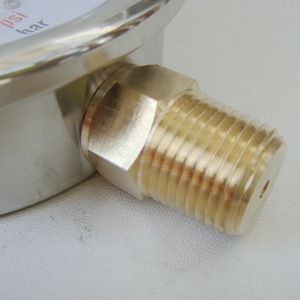

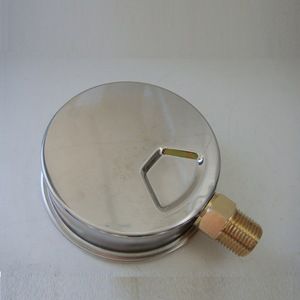

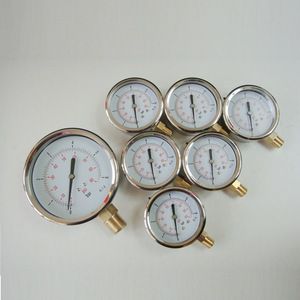

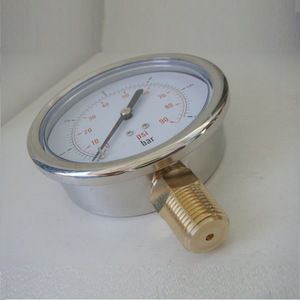

Picture of brass internal pressure gauges
.
