Multicolor dail air manometer differential pressure gauge
INTRODUCTION About TE2000 Differential pressure gauges
Series TE2000 MAGRFHELIC® Differential Pressure Gauges are widely utilized for measuring pressure of fan and blowing machine, resistance of filter, wind speed, furnace pressure, differential pressure of pore plate, the pressure of drum water level, liquid amplifier and hydraulic pressure system. Meantime, they are used to control the automatic valve and specific value of air-producer gas in combustion and they are used to test blood pressure and respiratory pressure in medical health care equipment. There are more than 81 models to suit your needs precisely. The key components adopt import materials.
SPECIFICATION
Pressure Rating | 15 PSI (1.03 bar) |
|
Ambient Temperature | 20° to 140° F (-7 to 60 ℃) | |
Overpressure | Protective rubber stopper will be blown out if rated pressure is up to about 172KPa. | |
Process Connections | Die cast aluminum case and bezel, with acrylic cover, Exterior finish is coated gray to withstand 168 hour salt spray corrosion test | |
Accuracy | ±2% of FS (±3% on -0, and ±4% on -00,) | |
Range | 30Pa~80KPa (Special Specification also can be ordered.) | |
Weight | 0.55 kg | |
Dimensions | 4-3/4 "dia. x 2-3/16"deep | |
Housing Color | Gray, golden | |

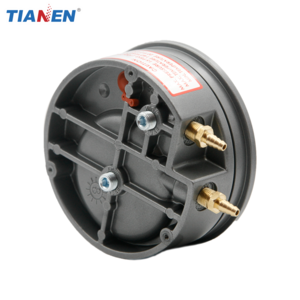

Connections | 1/8"female NTP high and low pressure taps, duplicated, one pair side and one pair back. |

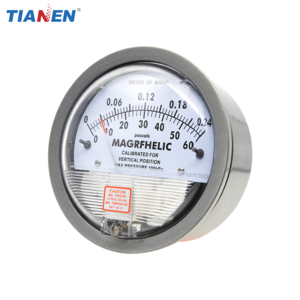

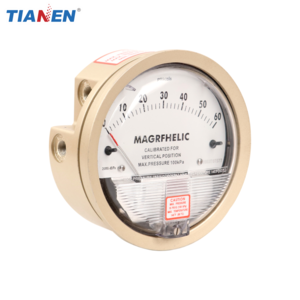

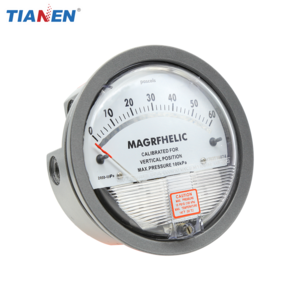

PRODUCT SHOW Two colors options— Grey, Golden

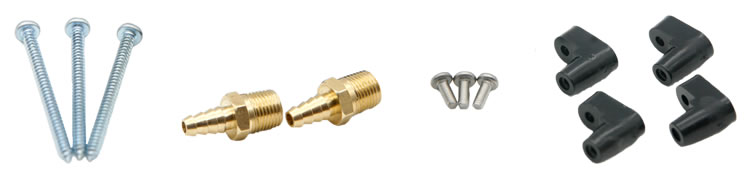

ACCESSORIES Of TE2000 Differential pressure gauges
RANGES various ranges can be ordered
| RANGES FOR REFERENCE | Pa | Kpa | Inches of Water | MM of Water | Dual Scale |
| 0-30 | 0-0.5 | 0-.25 | 0-6 | in w.cc | Pa or Kpa |
| 0-60 | 0-1 | 0-.50 | 0-10 | 0-.25 | 0-62 Pa |
| 0-100 | 0-1.5 | 0-1.0 | 0-15 | 0-0.5 | 0-125 Pa |
| 0-125 | 0-2 | 0-2.0 | 0-25 | 0-1.0 | 0-250 Pa |
| 0-300 | 0-5 | 0-8.0 | 0-30 | 0-2.0 | 0-500 Pa |
| 0-500 | 0-8 | 0-10 | 0-50 | 0-3.0 | 0-750Pa |
| -30-0-30 | 0-10 | 0-20 | 0-80 | 0-4.0 | 0-1.0kPa |
| -60-0-60 | 0-20 | 0-50 | 0-100 | 0-5.0 | 0-1.25kPa |
| -100-0-100 | 0-30 | 0-100 | 0-125 | 0-6.0 | 0-1.5kPa |
| -250-0-250 | 0-50 | 0-180 | 0-200 | 0-8.0 | 0-2.0kPa |
| -500-0-500 | 0-60 | 0-250 | 0-300 | 0-0.5 | 0-2.5kPa |
| Bold Ranges Are Hot Sale | |||||
| VARIOUS RANGES CAN BE CUSTOMIZED FOR YOU | |||||
|
DIMENSIONAL DRAWING
MOUNTING DRAWING
PRODUCTION PROCESS we are professional and concentrative
PACKAGE Packing is well suited for long distance shipments
CARTON SIZE: 46.5*34.5*36.5 (CM)
NET WEIGHT: 446.5 G/PCS GROSS WEIGHT: 446.5 G/PCS
WEIGHT OF ACCESSORIES: 38.9 G/SET
PACKAGE: 24PCS/CTN
SHIPPMENT
You can transport goods by sea, by air, by express or another shiping ways.
We will do our best to help you find an optimal way.
 | Yueqing Tianen Meter Factory, established in 2000 and located in Zhejiang Province, Wenzhou City. Tianen is a leading manufacturer of differential pressure gauge, differential Pressure Manometer, differential pressure switch, float control switch, water level controller, capsule pressure gauge, etc. With 18 years of experience in this industry market. Tianen has professional team of R&D and production, management, technical equipment and hardworking and experienced employees. We sincerely believe “Quality is business life ” which makes us developed rapidly in past few years. We’re professional enough and deserve your choice! |
OUR CERTIFICATES We have letter of patent, CE certificates and explosion proof certificates
WHY CHOOSE US?
1) PROFESSIONAL: We're professional manufacturer with technical equipment and trained employees
2) STRICK QUALITY CONTROL: We have strict Quality Control System to ensure quality of goods
3) COMPETITIVE PRICE: High quality level with competitive price to help you gain competitive advantage
4) GOOD SERVICE: Provide good service in all process
5) OEM ARE WELCOMED: We accept any kinds of OEM design, and try our best to meet the request
6) VIP FAST PRODUCTION: Goods will be done at the time of delivery and be shipped safely to make customers at ease.
Q1) Can you make the goods based on our requirement?
Yes, any kind of OEM design is warmly welcomed, and send me your deatiled request and we will try our best to meet.
Q2) How can I get the samples?
We can provide samples according to your request. However, pls be kind in pay the sample cost and freight, and sample cost will be fully returned when mass order confirmed. For some range, we can provide you free samples (Within 2pcs), you juest need to pay the postage.
Q3) What's the delivery time ?
For common ranges, we have a number of inventory, we could dispatch them immediately. For small order, it needs about 3 days. For large order, it needs 1-3 weeks depending on quantity.
Q4) How can I trust you?
We're engaged in this field for about 18 years. As the sole representative in the industry, Tianen was invited by Beijing Institute of Metrology to draft the calibration regulation of differential pressure gauge in 2017. we have good experience in domestic trade and export trading. We have our own factory, always welcome your visit.
