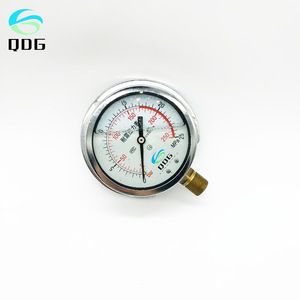

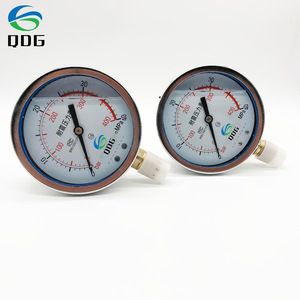

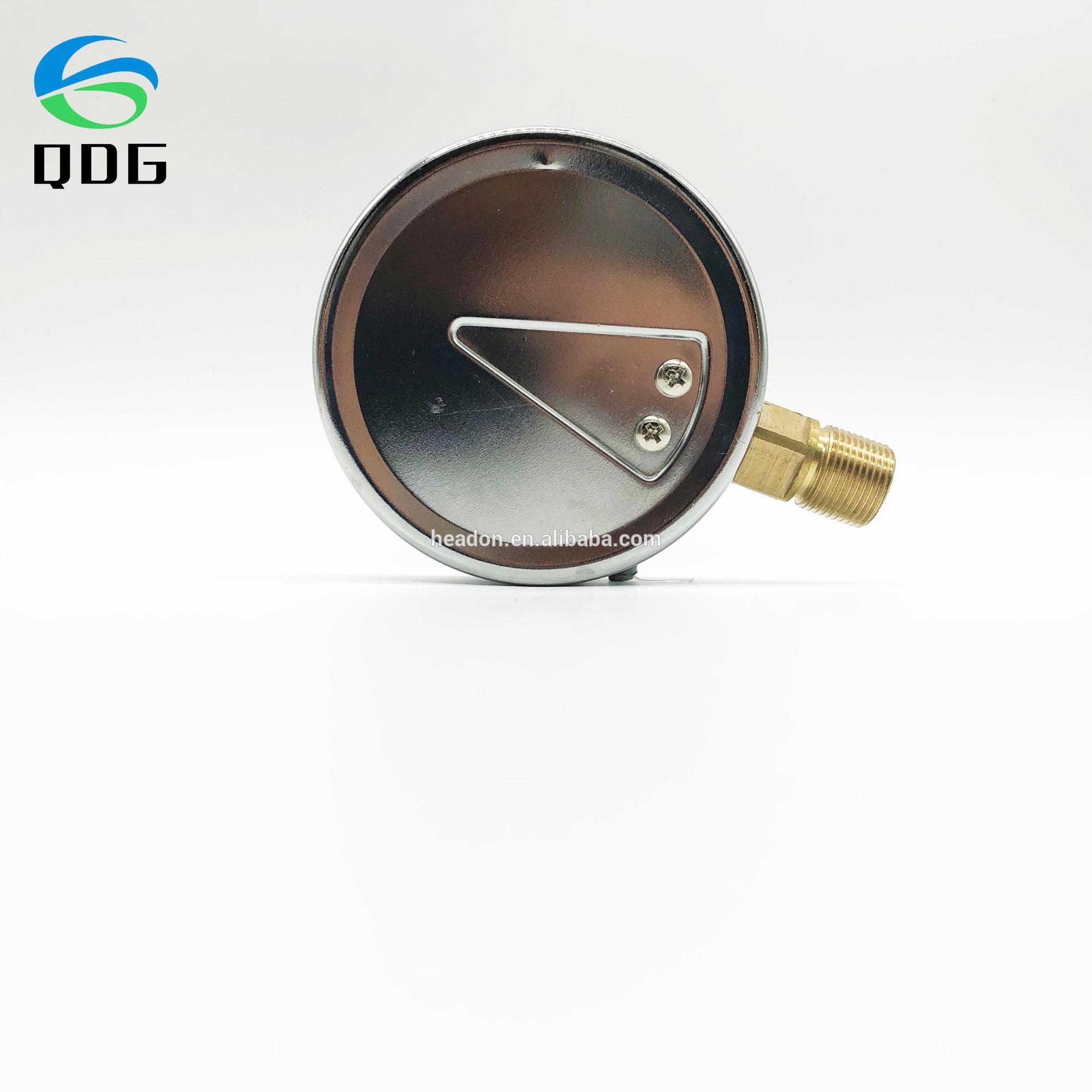

| Product Name: | Stainless Steel Glycerine or Silicone Oil Filled Pressure Gauge |
| Normal Size: | 1.5"(40mm),2.0"(50mm),2.5"(63mm), 3"(75mm),4"(100mm),6"(150mm). |
| Pressure Range: | -1Bar(-30"Hg)-0-1000Bar(15000Psi) |
| Accuracy: | ±1%,±1.6% |
| Operating temperature: | -20°C to +60°C |
| Case: | Stainless steel |
| Bezel: | Stainless steel |
| Bourdon tube: | Copper alloy or Stainless steel <100Bar: C-Type ≥100Bar: Helical Type |
| Connection: | Brass |
| Movement: | Brass |
| Dial: | Aluminum |
| Pointer: | Aluminum |
| Window: | Polycarbonate or Glass |
| Thread: | 1/8",1/4", 3/8",1/2"; PT(BSPT,ZG),BSP(G,PF),NPT etc. |
| Liquid: | Glycerin or Silicone |
| Gaskets Filling cap: | Nitrile or Silica gel |

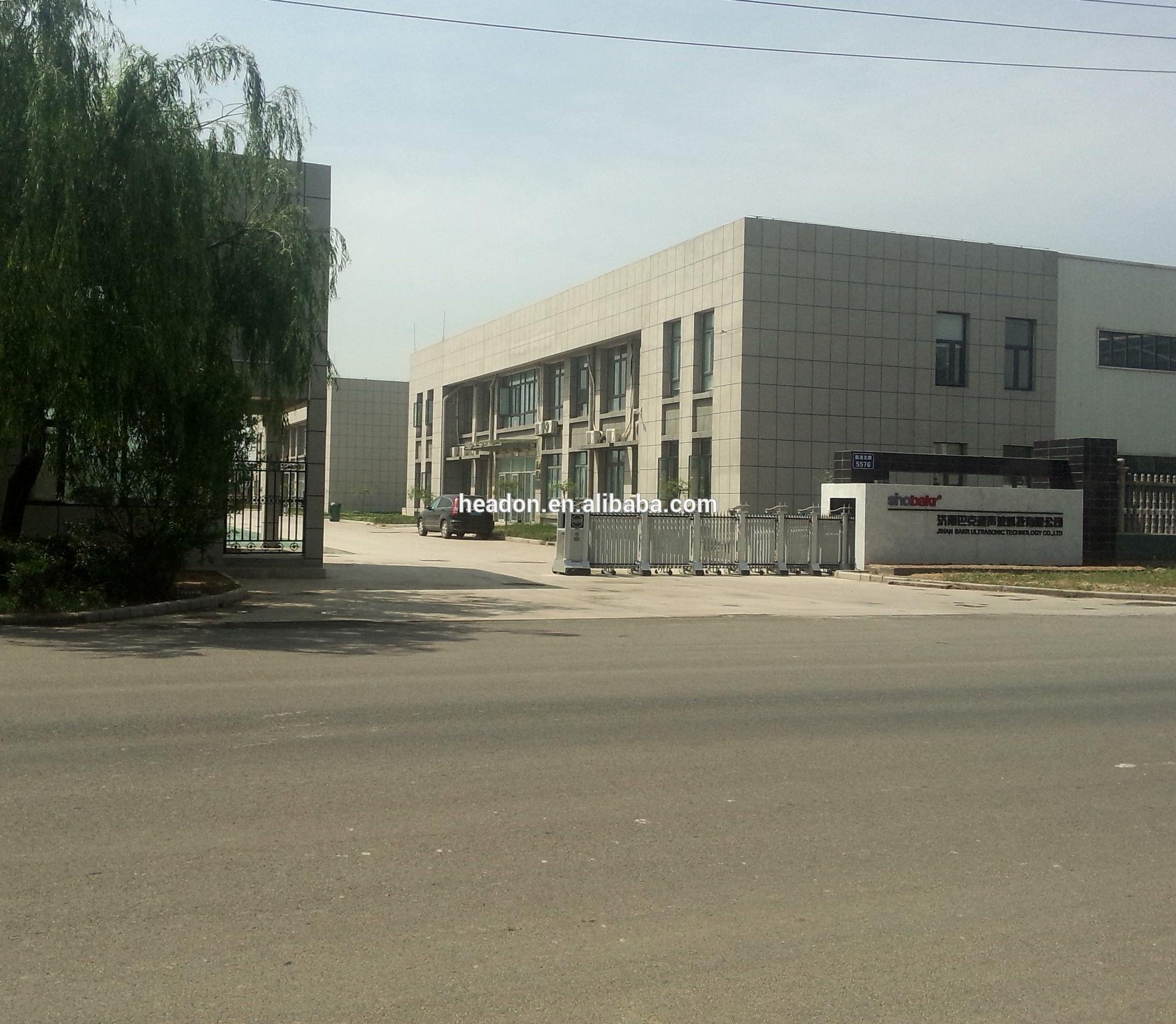

Our company is a trading company, have their own processing plants, has more than 10 years of production experience, products are exported overseas, advanced equipment, high technology, the acceptable product customization service, also can accept OEM, if you choose us, bring you the best service and products.Please contact us if necessary.thank you
Best regards
Q: Are you trading company or manufacturer ?
A: We are trading company,but we cooperate with highly skilled factory .
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
shipping:bysae,by air and so on.
each in bubble bag packing
10pcs per inner box
25pcs per shipper ctn
250pcs/CTN, CTN size: 55*25*33 CM G.W.: 14 KGS N.W.: 12.5 KGS
Any other speical packing like blister will be availble
China
