Product Description

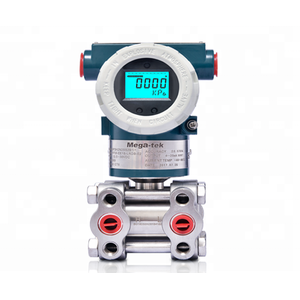

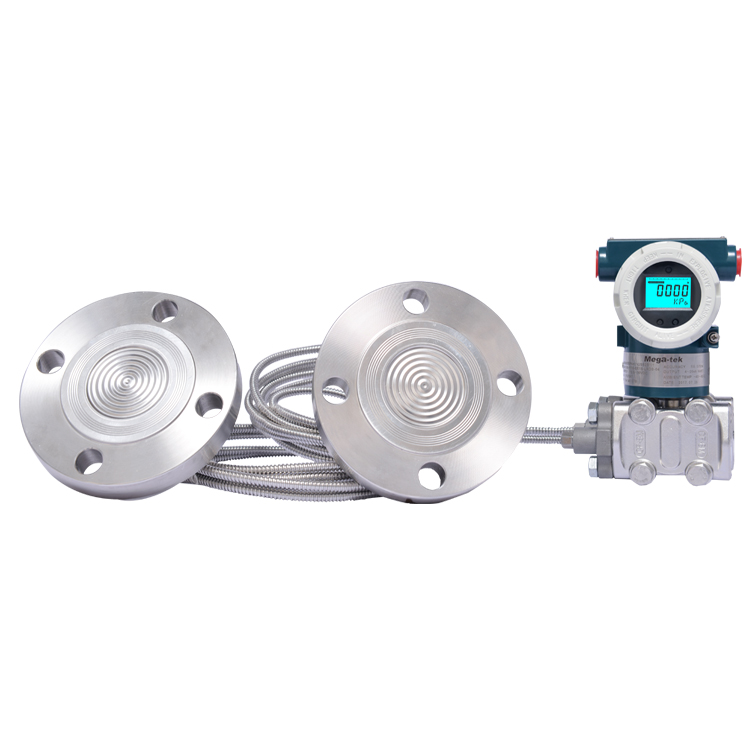

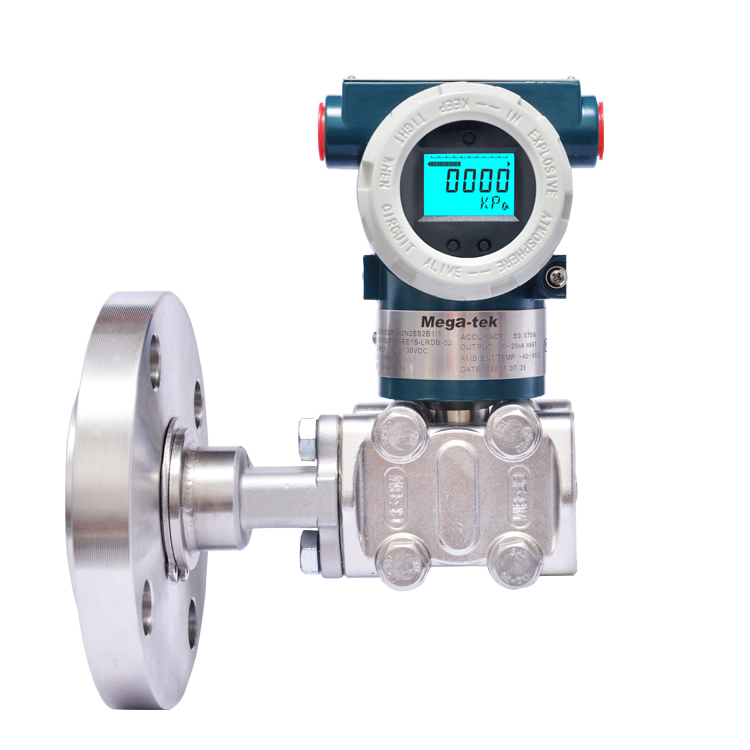

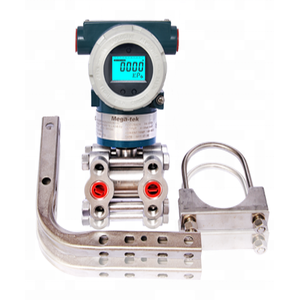

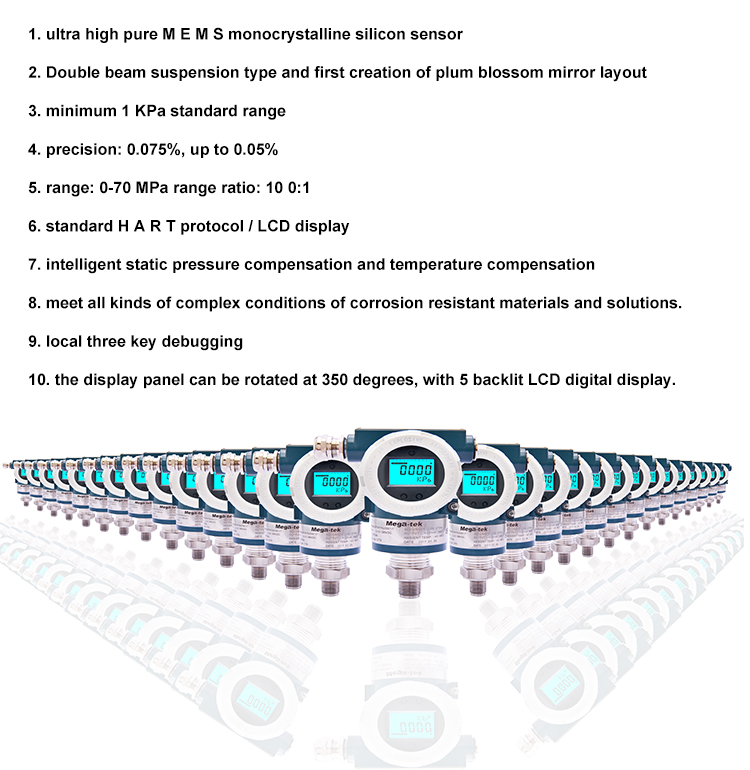

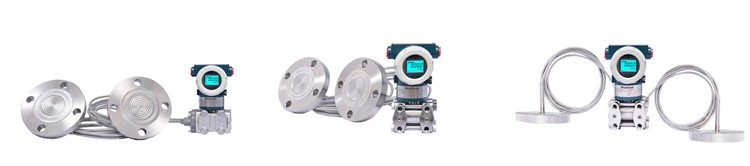

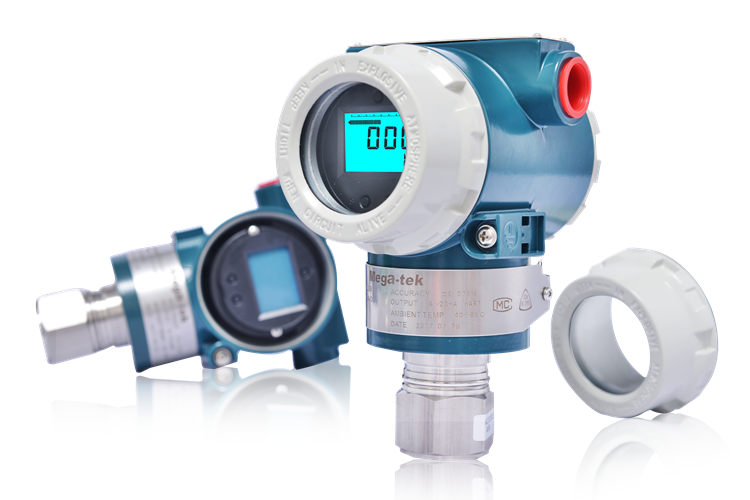

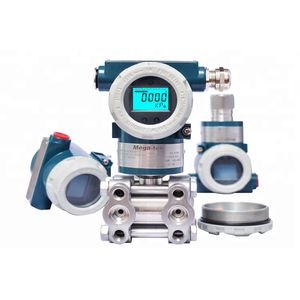

digital pressure gauge differential pressure transmitter

Product Specifications
Model	MG5600
Measurement parameters	Liquid, Gas, Steam
Range ratio	100:1
Shell	high pressure cast aluminum or 304 stainless steel
Output signal	4~20 mADC, H A R T
Input voltage	voltage of 10.5 ~ 45 VDC intrinsic fafety voltage 10.5 ~ 26 VDC
Electrical interface	1 / 2 "N P T (F) or M 20 x 1.5
Load resistance	250~600 Ω (DC 24, including cable resistance)
Temperature	Storage temperature	-40~194 ℉ (- 40~90 ℃)
Ambient temperature	-40~185 ℉ (- 40~85 ℃) -40~140℉ ( - 4 0~6 0 ℃ )filling oil - fluorine
Load capacitance	below 0.55mF
Load inductor	below 3.3 mH
Current	The upper limit of saturation current	Upper limit 20.8 mA, lower limit 3.8 mA
The upper limit of alarm current	Upper limit20.8 mA, the lower limit is 3.8 mA (mode can be set).
Output accuracy	50% ~ descending point, reference accuracy, x 50 / square root output (%).
Power influence	+ 0 5%/ 1 V
measuring range	0~700 bar ( 0~7 0 MPa )
Maximum overvoltage limit	0~1000 bar ( 0~100 MPa )
Process temperature	- 4 0~3 0 2℉( - 40~150 ℃ )
square root	≥5 0 %
Weatherability	DIN40040GPC
Filter constant	0~160 uA
Stable coefficient	0~2%
Influence of ambient temperature	±(0 . 0 8% range + 0 . 0 9% range upper limit)
response time	90 ms
Static pressure influence	±(0 . 0 7% range+ 0 . 0 5 2% range upper limit)/ 3 . 4 M P a
stability	0.125% of the upper limit of the range/5 years
Interval of power line	≥150mm
Adjustment function	Zero and full scale points can be adjusted locally or configured by three buttons.
Zero shift	It can be moved in the range of 20% to 20% of the max range.
Output mode	Linear output, square root output (can be adjusted remotely by configuration software).
Liquid film	316 L, Hastelloy, tantalum, gold-plated, PFA spray, FEP spray
Liquid seal ring	Fluoro rubber, NBR
Liquid material	316 L, Hart alloy, tantalum, and montgmo
Filling liquid	Silicone oil, high temperature silicone oil, vegetable oil, fluorine oil and others (according to customer's application)
Process connection	1/4-18 NPT ,1/2-14 NPT
Protection grade	IP67/IP68
Permissible load resistance	0~600Ω(DC 24V)
Communication line condition	2000mm
electromagnetic compatibility	E N 6 1 3 2 6 - 1 ( 1 9 9 7 )
Product weight	2.6~3.2KG
Damping time	0~99.9s
Matter	The interval between power lines is more than 150mm (avoid parallel wiring). The adjustment function zeros and full scale points can be adjusted locally or configured by three buttons. Zero point migration can move in the range of maximum range from 20% to 20%. The output mode is linear output, and the square root output can be adjusted remotely by configuration software.Explosion proof attestation
Product function	Accurate measurement pressure and convert it to the output signal of 4~20 m A D C. Be operated locally through three buttons, or through manual operators and configuration software. Mobile phone APP remote operation, does not affect the output letter of 4~20 m A D C. At the same time, the display and configuration are carried out.
Certified	* Explosion proof attestation * FM accreditation of the American Industrial Association * CEX flameproof * CEI explosion-proof * IEIIS international Mechatronics Commission * CSA Canadian Standards Association certification * GRGOST authentication
