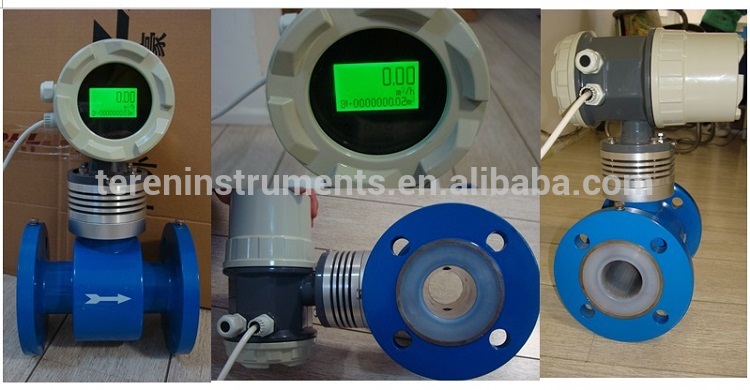

Low price price electromagnetic flow meter, food drink mag flowmeter
Electromagnetic flow meter have more than 100 years’ history, main use to measuring thevolume flow rate of conductive liquid and liquid-solid continuously or interrupt circulate in seal pipe.
Feature
- High accuracy : 0.5% of reading
- No pressure loss. No moving parts.
- Wide size range : DN6mm - 2200mm adapt to different size of pipeline.
- High definition LCD displayer .
- It is not affected by the density, viscosity, temperature, pressure and electroconductibility of fluid
- Multiple choices are available for the liner of converter and the material of electrode;
- Multiple choices of communications : RS485, HART, Modbus, etc
- Compact and remote form; flanged, clamped, threaded, insertion end connection;
- DC/AC, battery power supply.
| Diameter | DN6mm-DN2200mm |
| Nominal pressure | ≤1.6Mpa |
| Accurancy | 0.5% |
| Repeatability | 0.15% |
| Output siganl | 4-20mA/0-10mA/Pulse/OTC |
| Electrodes | 316L,Titanium,Tantalum,HC,Monel,Pt-Ir |
| Protection grade | IP65,IP67,IP68 |
| Power supply | 85-260V/AV,20-30V/DC |
| Conductivity | >0.5μs/cm |
| Communication mode | RS485,RS232,MODBUS,HART |
| Frequency | 45-63HZ |
| Environment Temp | -10°C~60°C |
| Environment humidity | 5%~95% |
| Power consumpution | <20W |
| Lining | FEP,PTFE ETC. |
| Sensor material | Aluminium Carbon |
| How TO Choose The Lining Material | ||
| Lining Material | Main Performance | Applications |
| Teflon | 1.The most steady material in plastics which is resistable to boiling hydrochloric acid,vitriol aqua fortis as well as strong alkali and organic solvent. 2.Not be perfect in abrasion resistance. | Strong corrosive mediums such as strong acid and alkali. |
| PFA | Having the same abrasion resistance with PTFE.Having strong ability of load pressure resistance. | Applicable in state of load pressure. |
| F46 | 1.Have the same abrasion resistance with PTFE.2.Resistable for low abrasion.3.Having strong resistance to load pressure. | 1.The same as PTFE. 2.Applicable in mediums of low abrasion. |
| Neoprene | 1.Be of good elasticity,retractility and abrasion resistance.2.Be resistant to low aicd,alkali and salt but not for oxidation mediums. | 1.The same as PTFE. 2.Applicable in mediums of low abrasion. |
| Polyurethane | 1.Be of good abrasion resistibility.2.Not be perfect in acid/alkali resisitance.3.Can't be used for water mixed with organic solvent. | Applicable in mineral serosity,slurry and coal slurry of high abrasion. |
| How TO Choose The Electrode Material | ||
| Electrode Material | Applications | |
| Stainless steel (SUS316) | Applicable in water,sewage and corrosive mediums.Widely used in industries of petrol,chemistry,carbamide,etc | |
| Stainless steel covered with tungsten carbide | Applicable in mediums of no corrosive and low abrasion. | |
| Hastelloy B(HB) | Having strong resistance to hydrochloric acid of any consistance which is below bioling piont.Also resistable against vitriol,phosphate,hydrofluoric acid,organic acid etc which are oxidable acid,alkali and non-oxidable salt. | |
| Hastelloy C(HC) | Be resistant to oxidable acid such as nitric acid,mixed acid as well as oxidable salt such as Fe+++,Cu++and sea water | |
| Titanium | Applicable in seawater,and kinds of chloride,hypochlorite salt,oxidable acid(including fuming nitric acid),organic acid,alkali etc.Not resistant to a pure reducing acid(such as sulphuric acid,hydrochloric acid)corrosion.But if acid contains antioxidant(such as Fe+++,Cu++)is greatly reduce corrosion. | |
| Tantalum | Having strong resistance to corrosive mediums that is similar with glass.Almost applicable in all chemical mediums.Except for hydrofluoric acid,oleum and alkali. | |
| Platinum-iridium | Almost be applicable in all chemical mediums except for aqua fortis,ammonium salt. |
Teren instruments Established in 2007, located in the beautiful coastal city - Dalian,China. We main focus on running of instruments, main cover ultrasonic flowmeter, ultrasonic level meter, ultrasonic water meter, electromagnetic flowmeter, radar Level meter etc. Our products gain acceptance from users in domestic and aboard for years. Professional team, top quality, best service, reliability, stability, and scientific management, that’s why we success.

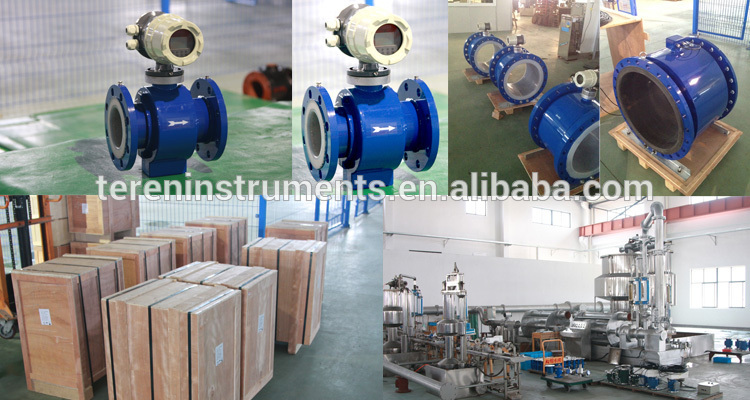

We have established nice relationship with so many expresses,such as DHL,Fedex,TNT etc. We are sure that your products will get the best protection,and we will send to your hand with thefastest speed.For sure that electromagnetic flow meter would not damaged by nature factors,we package it by wooden case .
Pre-sale | After-sale |
Confirm basic informations (DN,pressure,temp,output etc.) | 18months' quality guarantee |
| Choose the best option | All life maintain |
| OEM(Design and print your brand) | Technical support |
| Send you invitation | On time software upgrading |
| View factory with our free accompany | On time US |
| Ship chartering and space booking | 24 Hours online services |
