China Supplier Ultrasonic Water Flow Meter Liquid Sensor
Features

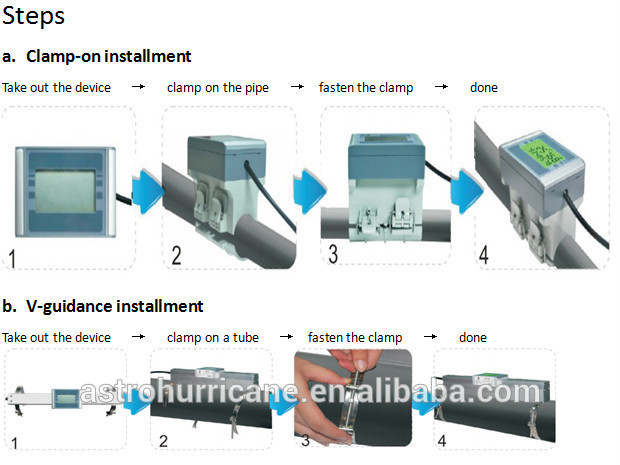

1. It works once the device being clamp on the pipe
2. Easy to install, no need to break the pipe
3. It measures without any adjustments
4. Permanent and resettable accumulated data
5. Multi-output option

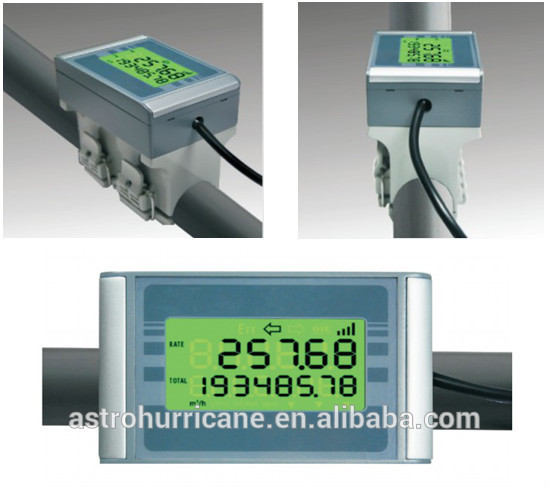

6. LCD display
7. Protection level IP67
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Available liquid
1. Running water
2. Reclaimed water
3. Soften water
4. Cooling water
5. Pure water
6. Circulating water and etc…
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Application fields
1. Replace traditional wheel flow meter
2. Flow measurement control and monitor
3. Calculate flow volume
4. Pump protection
5. Proportion control
6. Water allocation
7. Leakage detection
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Parameters
Item name: clamp-on flow meter
Flow rate: 0-6m/s
Accuracy level: 1.5%(FS)
Measuring caliber: DN15~DN50 DN65~DN300
Keyboard: no
Display: LCD digital
Power: 3~4W
Power supply: input: 220V 1A; output: 12V 1A
Outer casing material: ABS, aluminum alloy
Protection level: IP67
Operating temperature: -10℃~+50℃
Cable length: 3m
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Model No. | Transmitter Description | ||
EUF4315K | l Item name: clamp-on flow meter l Flow rate: 0-6m/s l Accuracy level: 1.5%(FS) l Measuring caliber: DN15~DN50 l Keyboard: no l Display: LCD digital l Power: 3~4W l Power supply: input: 220V 1A; output: 12V 1A l Outer casing material: ABS, aluminum alloy l Protection level: IP67 l Operating temperature: -10℃~+50℃ l Cable length: 3m | ||
A | I/O option (Communication) | ||
1 | RS-485 | ||
2 | RS-485, OCT pulse output | ||
3 | 4-20mA, OCT pulse output,relay output, RS-485 | ||
B | Manipulator | ||
N | None | ||
C | Description of sensor | ||

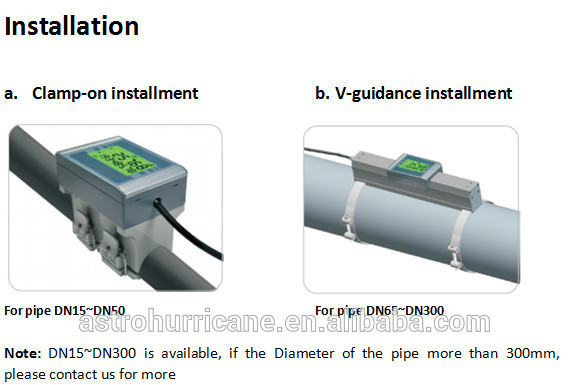

DN15 | Name: Clamp-on sensor Installation: Clamp-on Measure medium temperature: -10~+50℃ Integrated installment | DN65 | Installation: V-guidance, measure medium temperature: -10~+50℃ integrated installment |
DN20 | DN80 | ||
DN25 | DN100 | ||
DN32 | DN150 | ||
DN40 | DN200 | ||
DN50 | DN250 | ||
DN300 | |||
D | anti-explosion level of sensor | ||
N | None | ||
E | Power Converter | ||
1 | None | ||
2 | Yes (input 220V, output 12V, Load Current 1A | ||
For example: EUF4315K-1-N-DN25-N-1 clamp-on ultrasonic liquid flow meter with standard I/O, DN25, no manipulator, no anti-explosion, and cable length 3m, no power converter. |
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
