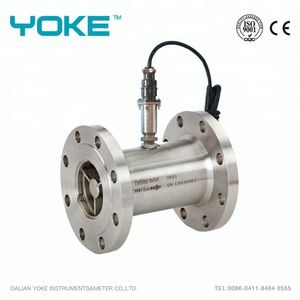

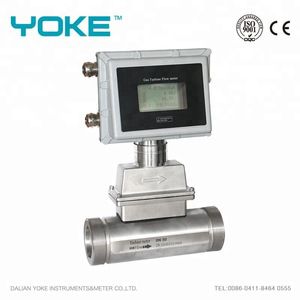

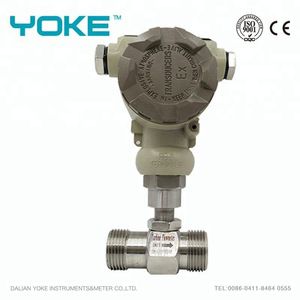

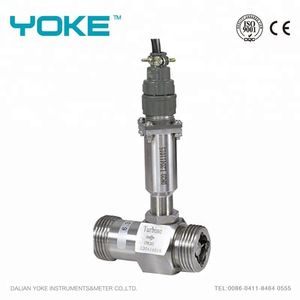

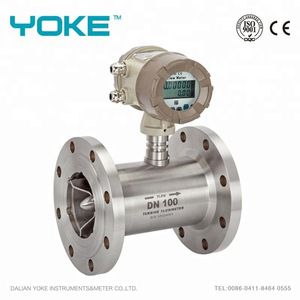

Biogas flow meter price gas turbine flowmeter with ex-proof process
| Main Application | Pure Gas |

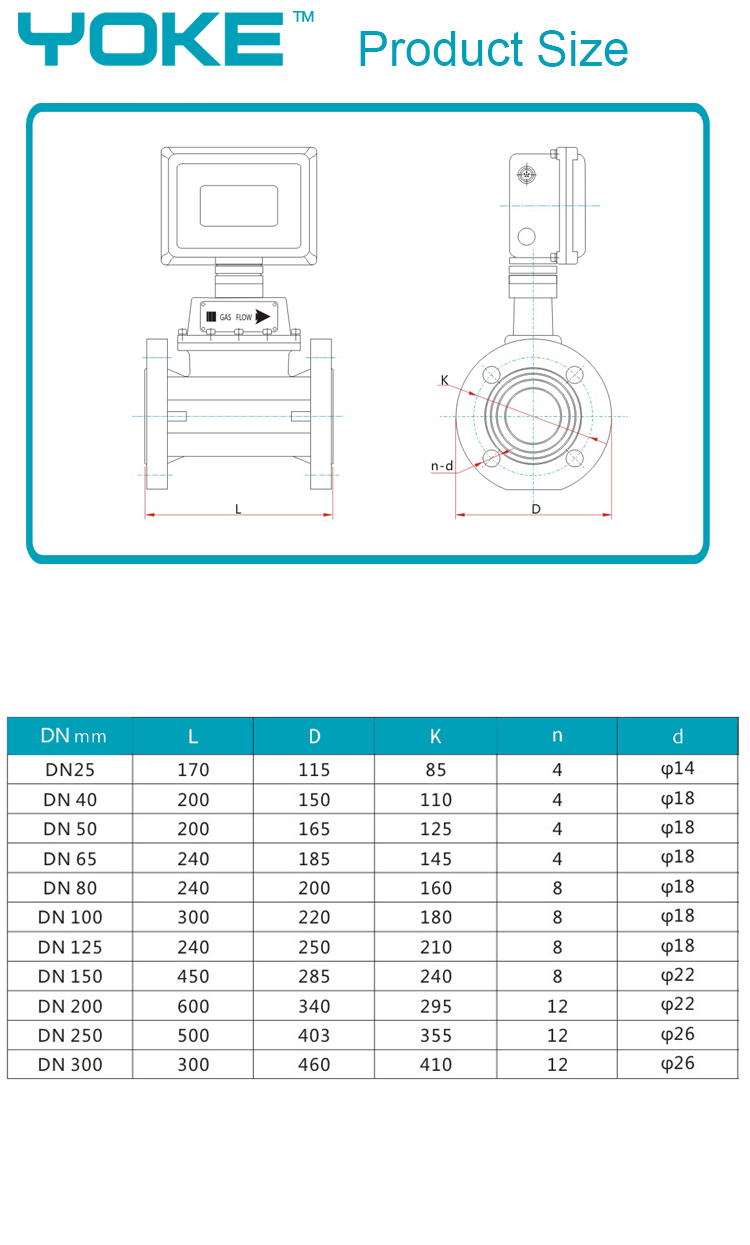

| Nominal Diameter | DN25-DN300 |
| Span | 2.5-6500m³/h |
| Rated Pressure | 1.6MPa~4.0MPa |
| Accuracy Level | ±1.5%R 1.0% Selectable |
| Repeatablility | ±0.1% |
| Range Ration | 1:10, |
| Material | Body/Rotor Support:SS304(SS316L optional) |
| Impeller:Double Phase Steel | |
| Shaft:Stainless Steel | |
| Bearing:Stainless Steel Ball Bearing | |
| Process Connection | Flange/Thread NPT/Wafer |
| Working Condition | Medium Temperature:-20℃~+80℃ (Max Customize to150℃) |
| Ambient Temperature:-20℃~+60℃ | |
| Rated Humidity:5%~90% | |
| Ambient Pressure:86KPa~106KPa | |
| Power | 24VDC |
| 3V 10AH lithium battery. | |
| Consumption | 24VDC power:<1W |
| Battery:≤1W,lifetime>3yrs | |
| Signal Output | Pulse,4-20mA,Switch Signal. |
| DIgital Communication | RS485,MODBUS,HART,PROFIBUS-DP |
| Signal wire joint | Hausman joint/Inner screw M20*1.5 or customized |
| Explosion Proof Grade | ExdIIBT6/ExiaIICT4 |
| Degree of Protection | IP65 or Higher |
