Diesel Pump Testing Equipment flowmeter

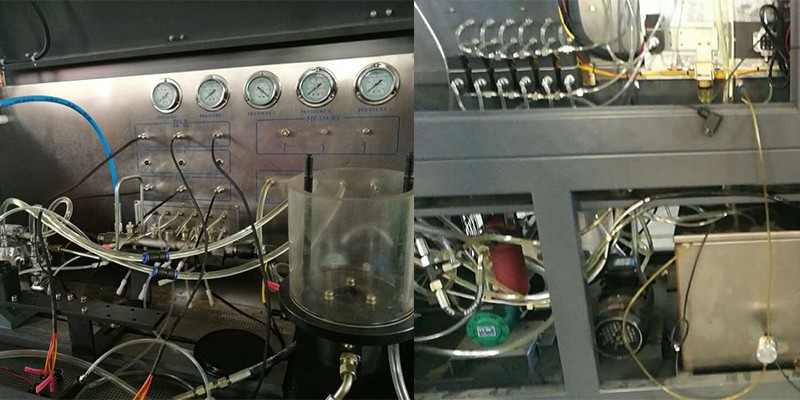

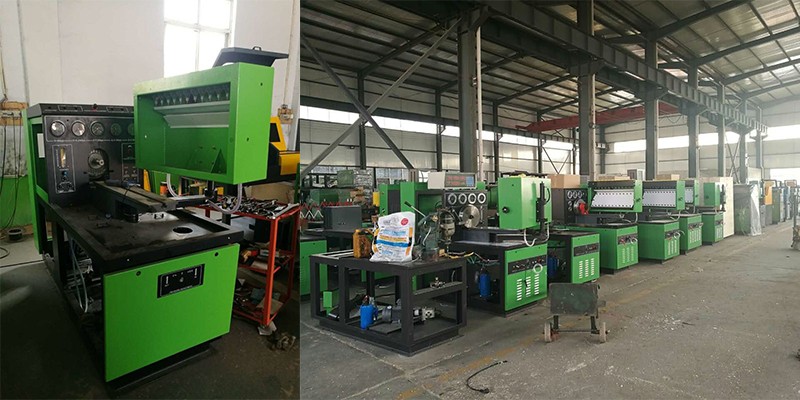

Why need flow meter to measure flow of Common Rail Test Bench ?
Diesel injector is kind of solenoid valve, but it’s the core element for engine. And engine is also the most important for each vechile,so you know the importance of diesel injector here. but you must don’t know what decide the injector quality.

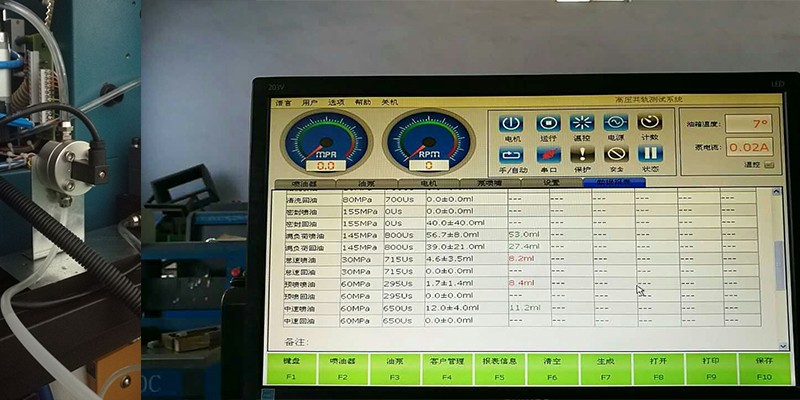

All diesel injector must be through three points tested : pilot injection, idling injection, full load injection. The diesel flow is ultra micro when on pilot injection and idling injection, so it must need very precision measurement ,but just several manufacturers has the technology of ultra micro flow meter , they control the market, this is the mainly reason that make price is always on higher and most manufacturers of test bench can not undertake it. So they only use weight scale or measuring glass, you know it’s very un-precision and low efficiency. You even don’t dare to drive this car if you know this.
Now you have more choice, and more 50% manufacturers of diesel test bench choose JSN Diesel Pump Testing Equipment flowmeter in China. We are proud of this. We hope to try our best to help manufacturers to produce higher quality diesel injector and make the world more safe.
Why choose JSN Diesel Pump Testing Equipment flowmeter ?

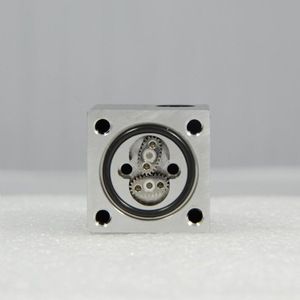

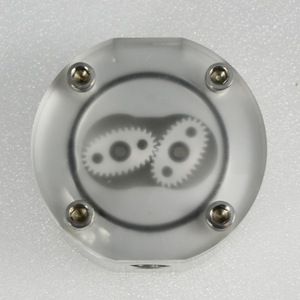

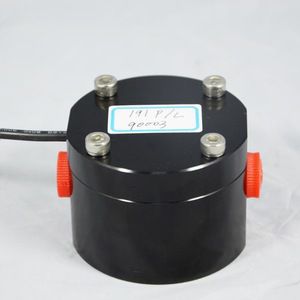

JSN Diesel Pump Testing Equipment flowmeter is a kind of Diesel Pump Testing Equipment flowmeter ,along to positive displacement flow meter. there is thousands of manufacturers who can produce Diesel Pump Testing Equipment flowmeter. but only several manufacturer who have technology to produce micro liquid flow meter.

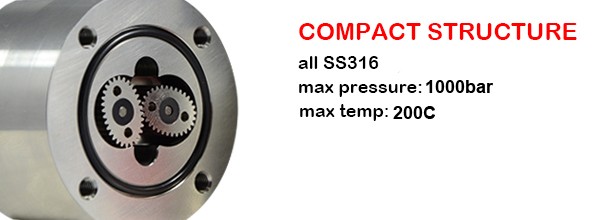

JSN Diesel Pump Testing Equipment flowmeter offer the highest accuracy and measure for various viscosity liquid. special patent technology to measure flow from 0.1ml/min and ensure working life more 5 years.
JSN flow meter is wildly used for various industries for precision measurement. So far it has been serviced for more 100 using condition, such as fuel oil measurement, Adhesive control ,Hydraulic life cycle testing, electrolyte dosing, natural gas odorization.
What's the main features of JSN Diesel Pump Testing Equipment flowmeter ?
1) Anti-dust,anti-vibration,anti-corrosive&explosion-proof.

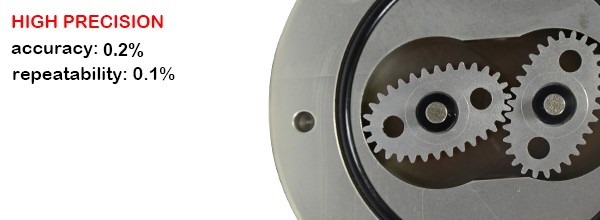

2) Max accuracy up to 0.2%

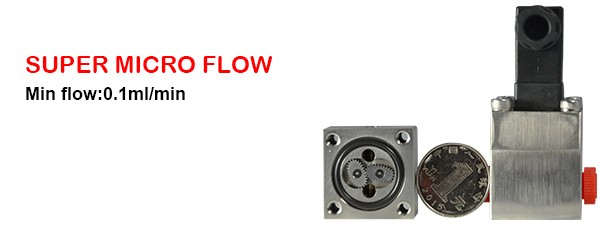

3) Min flow : 0.1ml/min
4) Max temperature: 200C
5) Max pressure: 1000bar
6) Viscosity liquid:0.3~10000cps.
Main Technical Parameters of JSN Diesel Pump Testing Equipment flowmeter?
Model | Flow range | Connection |
CX-M2-SS/AL | 0.5~150 ml/min | G1/8 female thread |
CX-M3-SS/AL | 3-300 ml/min | G1/8 female thread |
CX-M5-SS/AL | 5-1000 ml/min | G1/8 female thread |
CX-M6-SS/AL | 0.5-100 l/H | G1/4 female thread |
CX-M9-SS/AL | 6-600 l/H | G1/4 female thread |
CX-M12-SS/AL | 0.3~30 L/min | G1/2 female thread |
CX-M25-SS/AL | 0.5-100 l/min | G1 female thread |
CX-M40-SS/AL | 10-250L/min | G1 1/2 female thread |
CX-M50-SS/AL | 10-500L/min | G2 female thread |
Accuracy | 0.5% or 0.2%, |
Temperature | -30~80°C(200C) |
Pressure | 32bar(1000bar) |
Output | square-wave pulse(reed switch or hall sensor) |
Supply | 4-26VDC |

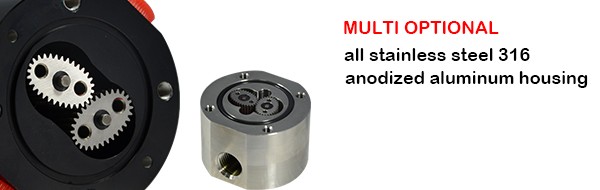

Material | SS316L or anodized aluminum |
More 30 years’ Technology to Focus Details
There is more 80% manufacturer of common rail test bench choose JSN Diesel Pump Testing Equipment flowmeter.
JSN Diesel Pump Testing Equipment flowmeter No Quality Complaints in 3 Consecutive Years
2) We have about 30 years experience in manufacturing.
3) Our products have been exported to more 100 countries and area.
4) 100% QC inspection Before Shippment.
5) ISO,CE,SGS standard and factory price.
6) Patent technology and Working life is more 5 years.

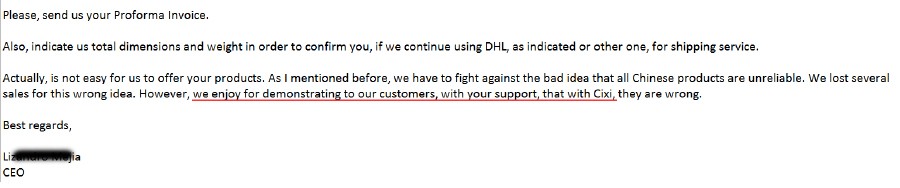

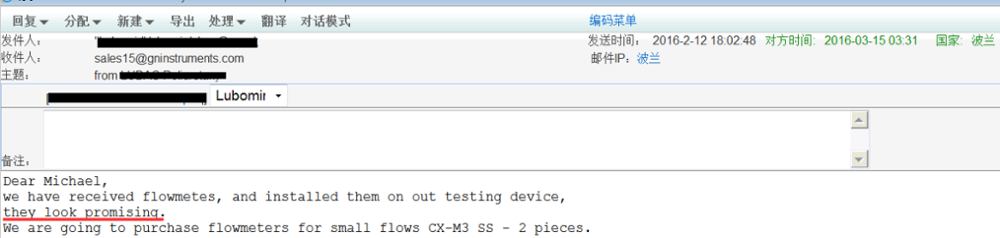

What Our Clients Said ?
Dear Purchasing Mager.
JSN Diesel Pump Testing Equipment flowmeter is a family business since 1987,now we are the Top 10 manufacturer through years of concentrated efforts.all CNC maching is famous brand in world .the cutting accuracy is up to 0.001mm. all parts of JSN flow meter must be passed 100% inspected. it ensure working life of JSN flow meter is more 5 years.
JSN Micro Flow Meter has most excellent and professional engineers who have endless pursuit for excellent performance and high quality. every features of JSN flow meter has reached world level, such min flow:0.1ml/min, pressure up to 1000bar,temperature is up to 200C, etc. So far, 80% of JSN flow meters is mainly for exporting and more 100countries.
You can check parameters with your clients as below table.
| Using condition: | Qty: | ||
| Medium | Corrosive or Non | ||
| Min flow | Viscosity | ||
| Normal flow | Working temperature | ||
| Max flow | Working pressure | ||
| If for flow monitor: Do you need to display total flow or current ? or both ? | |||
| If for dosing: How many litres per batch ? and how long it takes ? |
Now We look forward to have cooperation with you!
Best regards.
Michael Luo
Mob(whatsapp):86-15000087545
Tel:(86)021-57632436-102
Skype:cixi-kitty
Email:michael@microflowmeter.com;sales15@gninstruments.com
China
