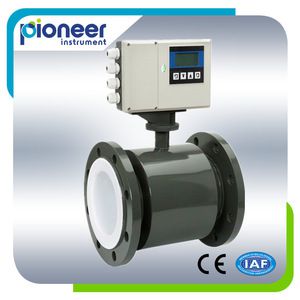

LDG Series Intelligent Electromagnetic Flow Meter China, Price Electromagnetic Flowmeter Suppliers
No moving parts; Virtually no pressure drop;
Minimal maintenance
Wide range of nominal diameters;
Broad selection of lining and electrode materialss.
Applications

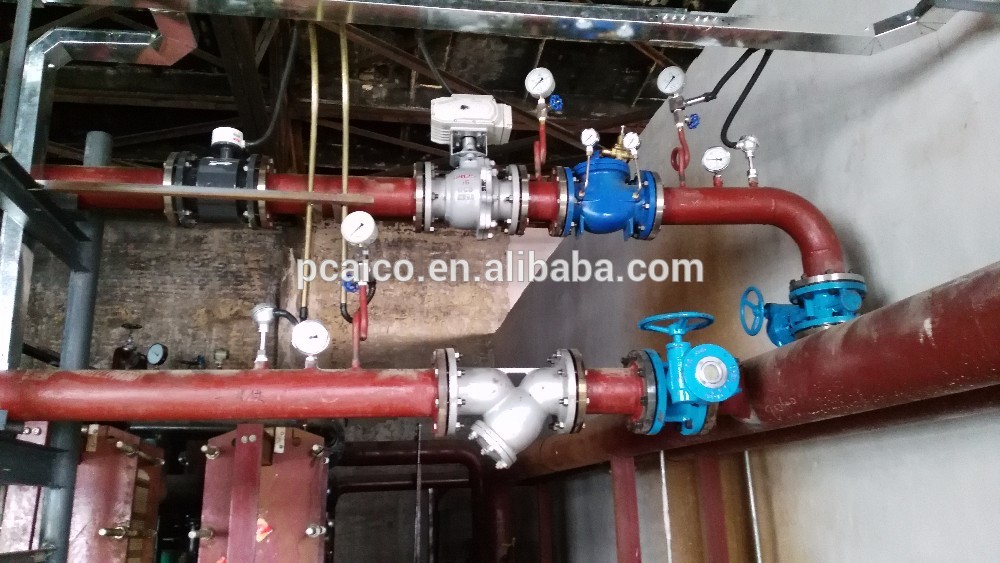

Application for petrochemical, iron and steel, electric power, metallurgy, textile, food, pharmaceutical, paper making industries and municipal environmental protection, water conservancy, ect.
General Specification
Power Supply: 85‐265Vac,8‐36 Vdc,Battery
Power Consumption: 10W
Accuracy:±0.5% accuracy of rate from 0.3‐10 m/s
Repeatability: 0.2%
Minimum Fluid Conductivity: 5.0 micromhos/cm
Flow Direction: Unidirectional or bidirectional, 2 separate totalizers (programmable)
Analog Outputs: 4‐20mA, 500ohms Max Load Output Frequency: Scaled Pulse output, (open collector) Max 5Khz
Noise Damping: Programmable
Pulse Width: Programmable up to 500ms
Zero‐point Stability: Automatic correction
Ambient Temperature: ‐4 to 140° F (‐20 to 60° C)
Electrode Materials:316 Stainless Steel(Three-Electrode)
Optional: HC,Ti,Ta,Pt,Tungsten carbide
Liner Material: PTFE, Hard Rubber,PFA,F46,PU
Fluid Temperature:
PTFE: 100°C Standard (Customized: 180°C)
Rubber: 80°C
Pressure Limits:1.0 ,1.6; 2.5; 4.0 Mpa
Coil Power: Pulsed DC
Pipe Spool Material: 316 Stainless Steel
Meter Housing Material:Carbon Steel welded
Flanges:
Carbon Steel ‐ Standard (ISO 7005‐1)
316 Stainless Steel ‐ Optional
Optional Stainless Steel Grounding Rings

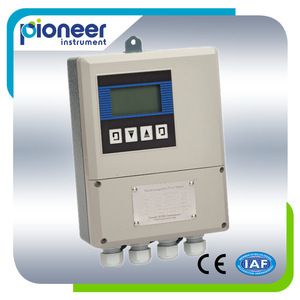

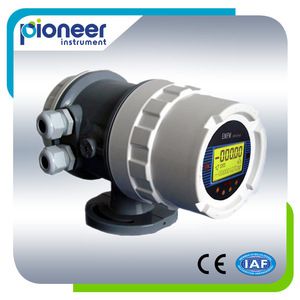

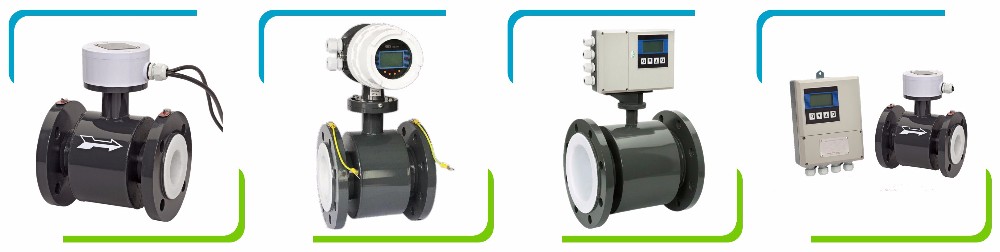

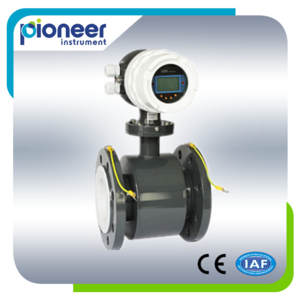

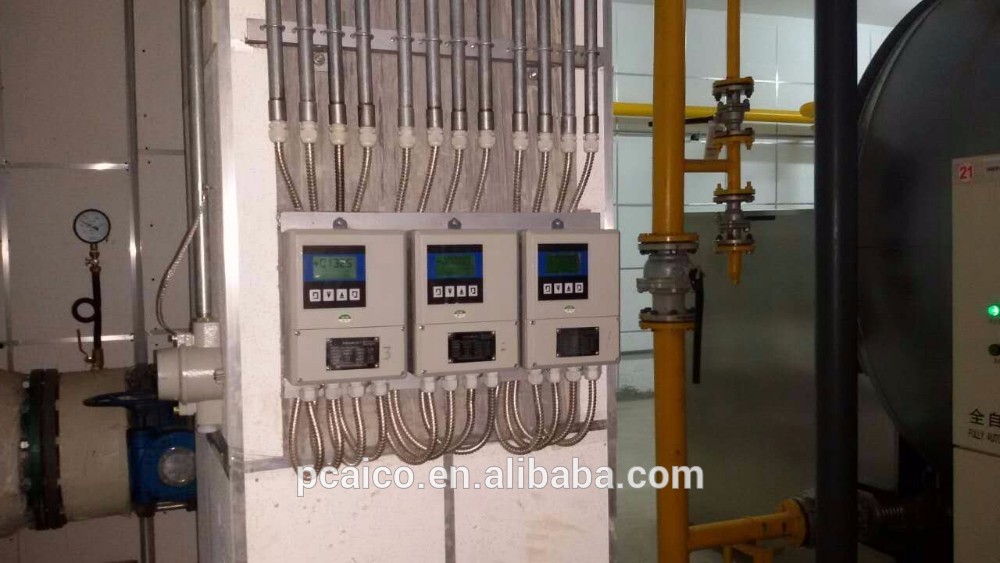

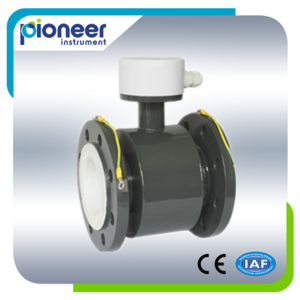

| Remote Type Electromagnetic Flow Meter | Compact Type Electromangnetic Flow Meter | Compact Keypad Type Electromagnetic Flow Meter | Remote Converter Type Electromagnetic Flow Meter |
| Without Local Display Power:180-250V AV 16-24V DC | With Local LCD Display Power:180-250V AV 16-24V DC Battery Power | With Local LCD Display Power:180-250V AV 16-24V DC | With Local LCD Display Power:180-250V AV 16-24V DC |
| 4-20mA Digital Output (0-500Ω，1-5000Hz) Pulse Output (0-100 Pulse/Sec ,Pulse Equivalent:0.001-1m3/CP ,0.001-1Ltr/CP) | 4-20mA Digital Output (0-500Ω，1-5000Hz) Pulse Output (0-100 Pulse/Sec ,Pulse Equivalent:0.001-1m3/CP ,0.001-1Ltr/CP) Communication:RS232, RS485(MODBUS), Profihas-DD | 4-20mA Digital Output (0-500Ω，1-5000Hz) Pulse Output (0-100 Pulse/Sec ,Pulse Equivalent:0.001-1m3/CP ,0.001-1Ltr/CP) Communication:RS232, RS485(MODBUS), Profihas-DD | 4-20mA Output (0-500Ω，1-5000Hz) Pulse Output (0-100 Pulse/Sec ,Pulse Equivalent:0.001-1m3/CP ,0.001-1Ltr/CP) Communication:RS232, RS485(MODBUS), Profihas-DD |
| IP65,IP67,Optional IP68 | IP65,IP67, IP68(Battery type) | IP65,IP67 | IP65,IP67,Optional IP68 |
