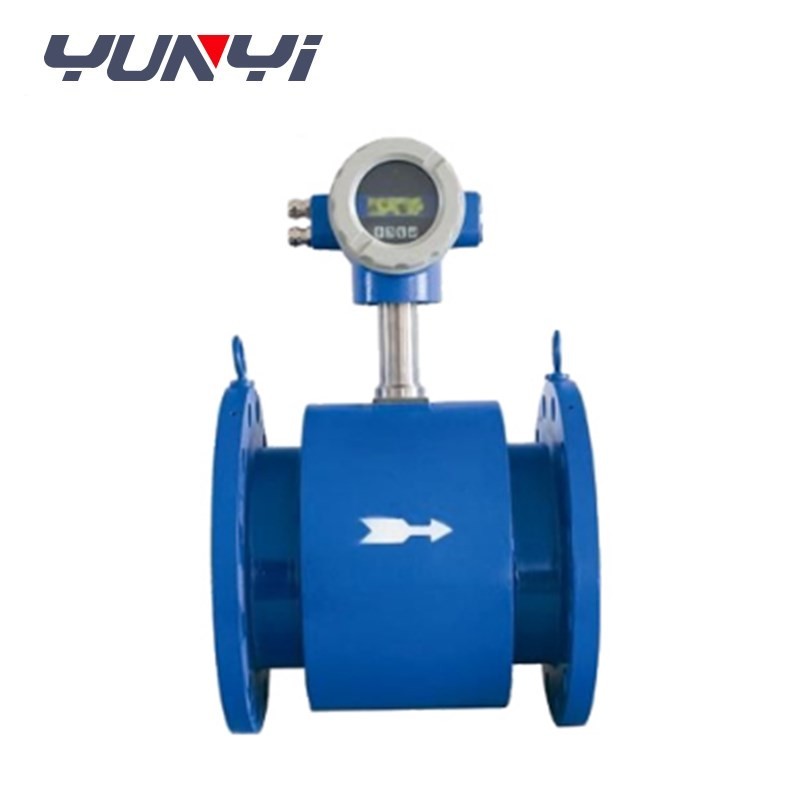

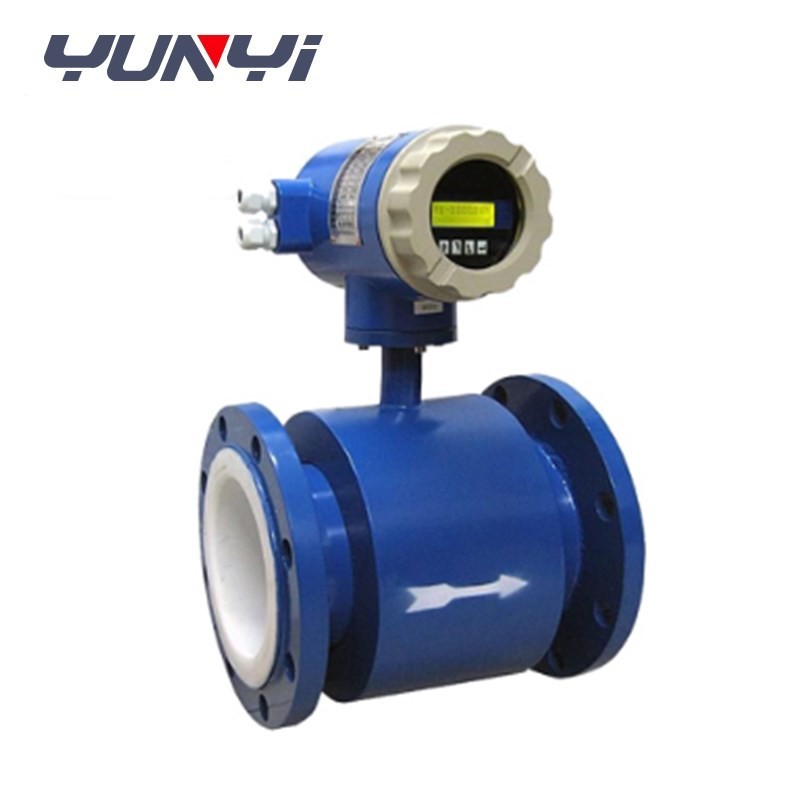

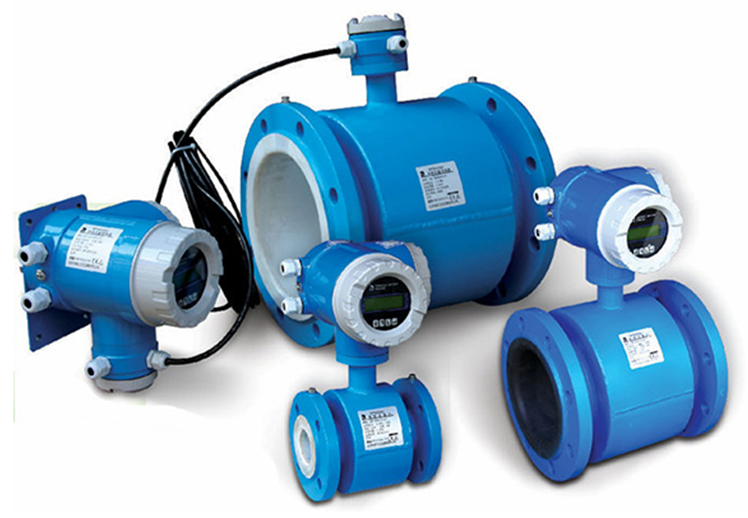

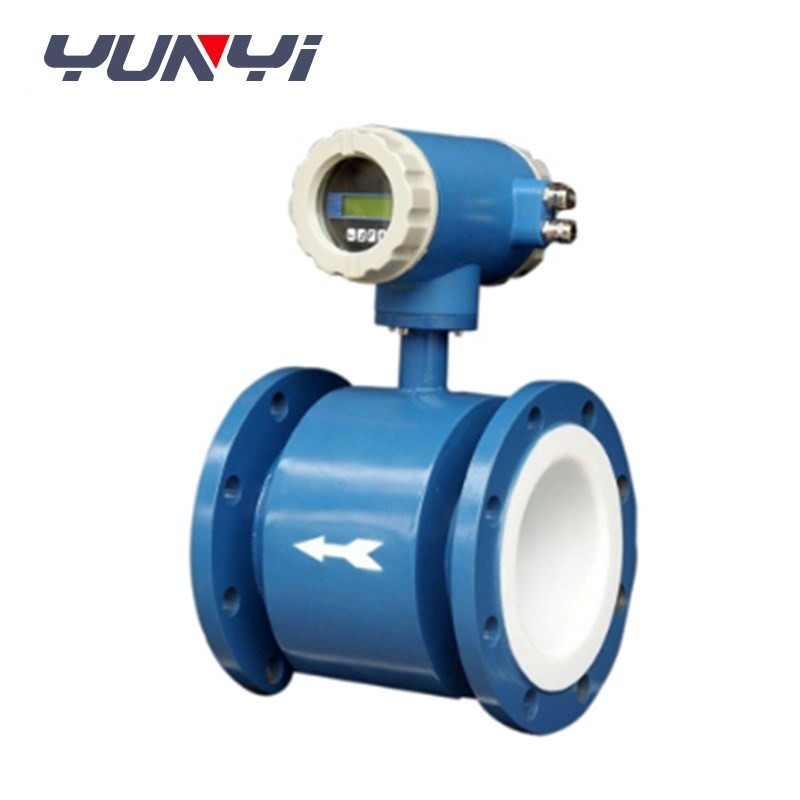

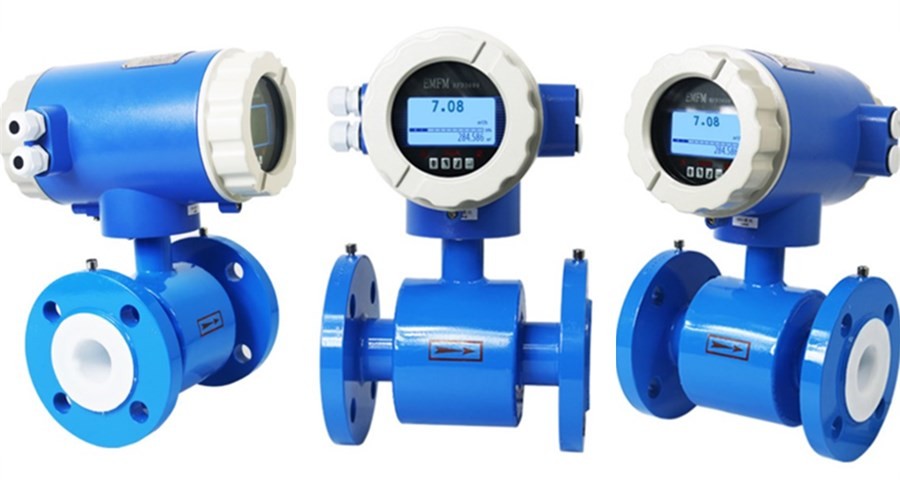

Description of low price digital electromagnetic flowmeter / magnetic flowmeter
The electromagnetic flowmeter is adopt stainless steel watchcase thickening, connecting flange is high pressure flange, can stand the pressure of 42MPa. digital electromagnetic flowmeter consists of two parts, the sensor and converter. The electromagnetic flowmeter is based on the work of Faraday's law of electromagnetic induction, used to measure the conductivity is greater than 5μS / cm conductive liquid volumetric flow rate, is a measure of the volume flow of conductive medium for induction meter. In addition to measure the volume flow of conductive liquid, the flow meter can also be used to measure the volume of a homogeneous liquid solid twophase flow of a liquid suspension of acid and alkali and other strong corrosive liquids and slurries, pulp and paper pulp
| Item | low price digital electromagnetic flowmeter / magnetic flowmeter |
| Item | water electromagnetic flowmeter |
| Size(mm) | DN15mm---DN3200mm |
| Medium | Conductive liquid, slurry |
| Medium Temperature | Chloroprene Rubber:-10-60℃: PTFE:-10-120℃ |
| Installation Type | Flange connection, Insert type, sanitary clamp type, thread connection. |
| Lining | Chloroprene Rubber,PTFE, Polyurethane ,fluororesin-46 |
| Electrode material | 316L,HC,HB,Titanium,Tantalum,Platiniridium |
| Grade of Accuracy | 0.2%, 0.5% |
| Flow Velocity | ≤15m/s |
| Rated pressure | 1.0MPa, 1.6MPa, 2.5MPa, 4MPa |
| Cable Interface | M20*1.5 or G1/2 Female Thread etc. |
| Sealed | IP65, IP68 |
| Output Signal | 4-20mA Current or Pulse |
| Communication | RS485 Protocol Modbus protocol |
| Power Supply | 220VAC, 24VDC |
| The instantaneous flow and cumulative flow |
Feature of digital electromagnetic flowmeter / magnetic flowmeter
1. LCD display of the converter.
2. Automatic alarm functions for selfdiagnosis, empty load test, high and low limit of flow, two-stage flow value, etc.
3. It is applicable not only to general process, but also in tough applications such as mining, papermaking, pastry, etc.
4. High pressure sensor with PFA liner is resistant to high pressure and negative pressure, and available to chemistry and corrosive solution.
Application of digital electromagnetic flowmeter / magnetic flowmeter
1. Drinking water supply, etc.
2. Chemical acid, lye, conductive solution, cooling fluid, additives etc.
3. Drink water, beer, wine, alcohol, milk, yogurt, fruit juice, syrup, blood etc.
4. Refrigeration / air conditioning and refrigeration thermal measurement, or heat energy.
5. Sewage, industrial sewage discharge, sewage etc
6. The textile industry of water, pigments, chemicals, bleaching chemicals etc.

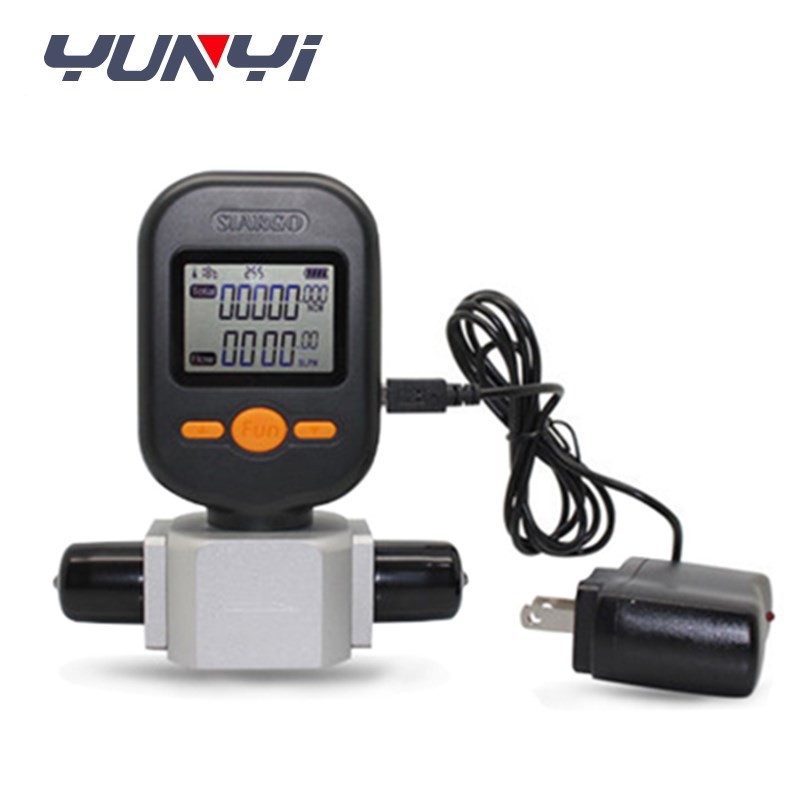

Gas mass flow meter

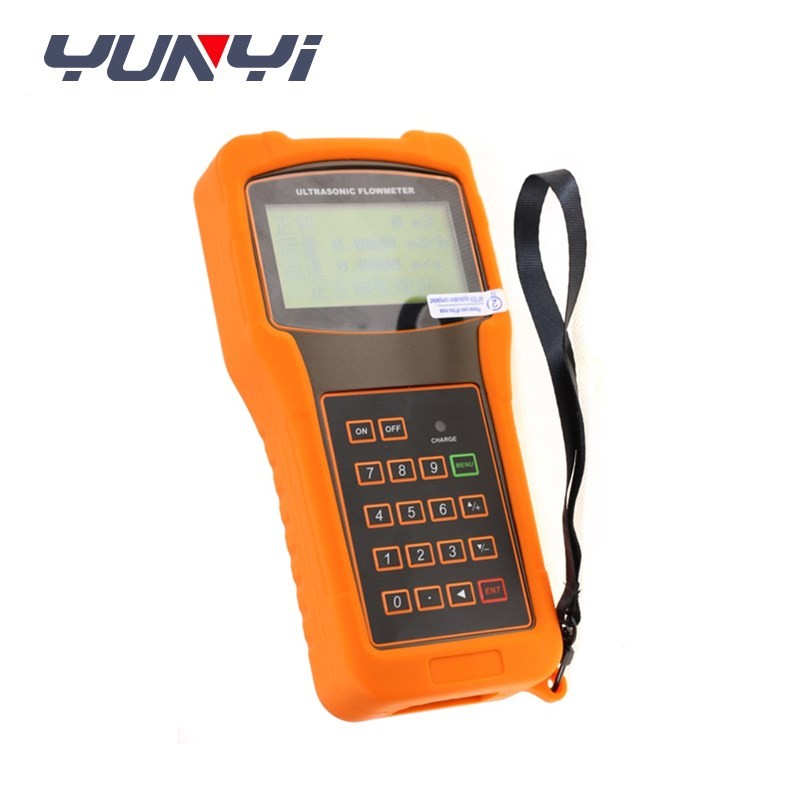

Ultrasonic flow meter

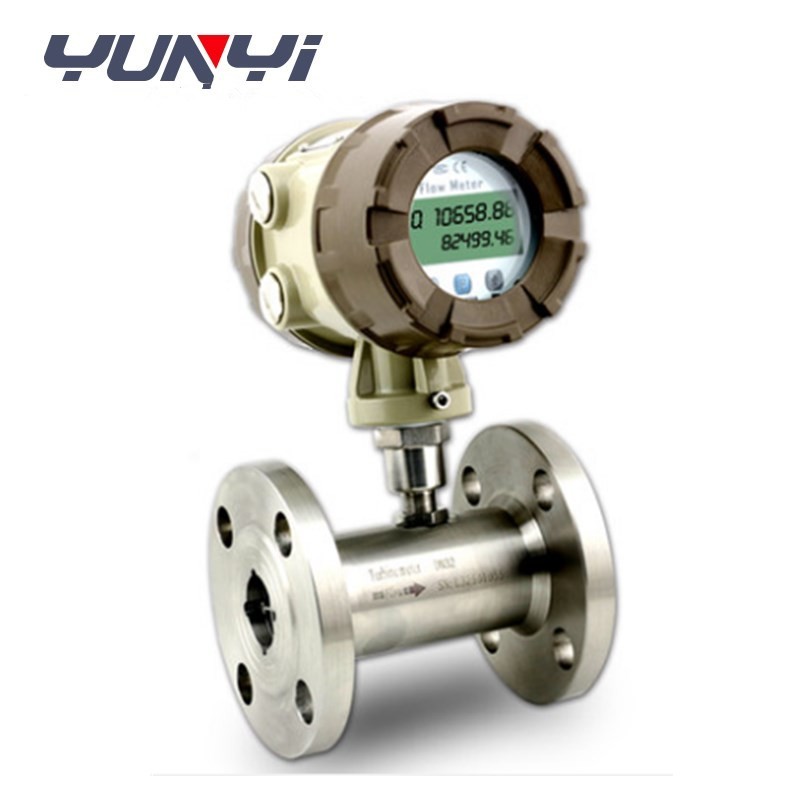

Turbine flow meter

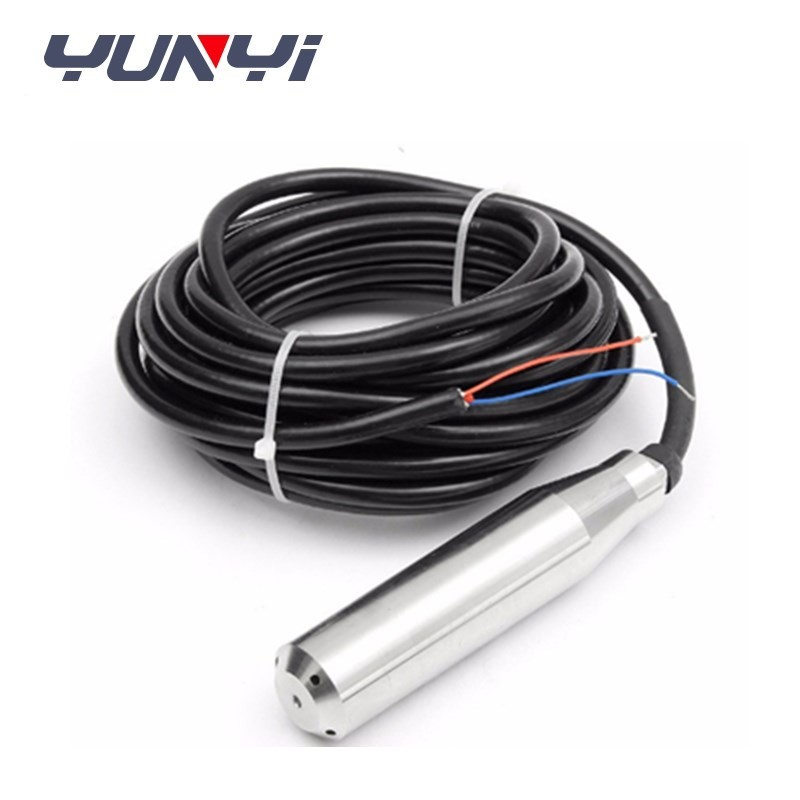

Submersible level transmitter

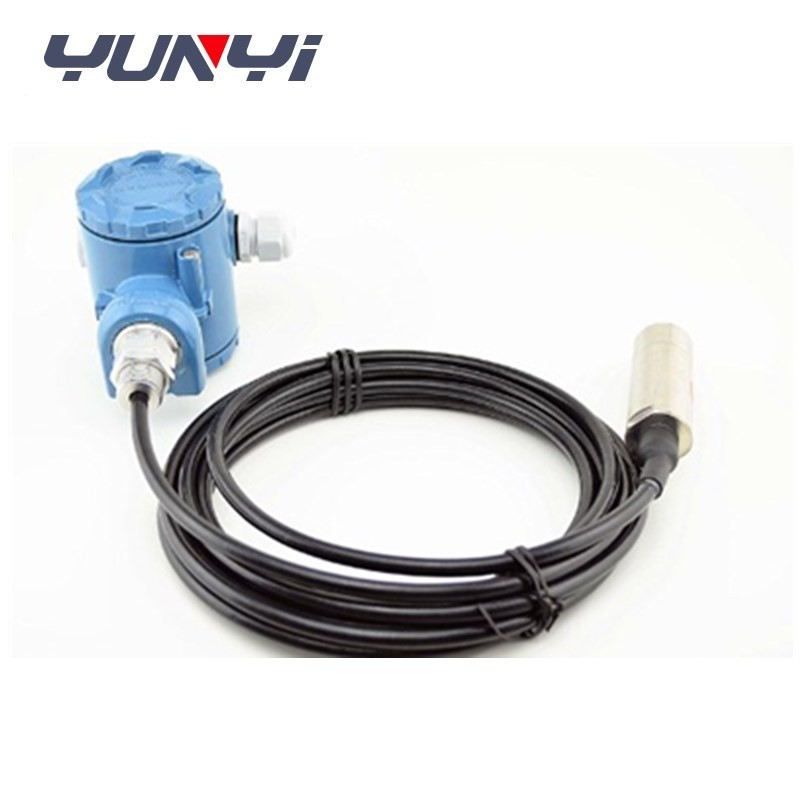

Submersible level sensor
