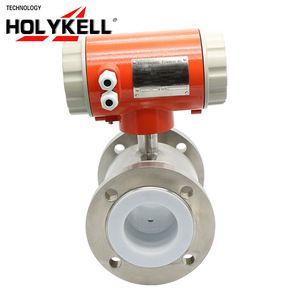

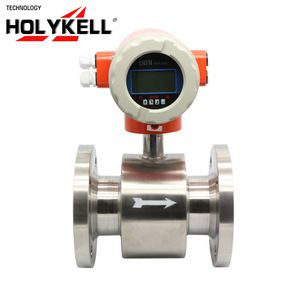

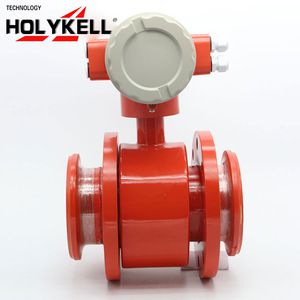

High accuracy milk magnetic flowmeter/electromagnetic flow meter/milk flow meter
Accuracy: 0.2%F.S.
Model : 4800 series
1, Profile of product
4800 series electromagnetic flow meter is fully comprehensive (all intelligence) which is developed in using the advanced technology from domestic and foreign countries and consisted of 4800-type flow sensor and 4800-type smart converter supporting.

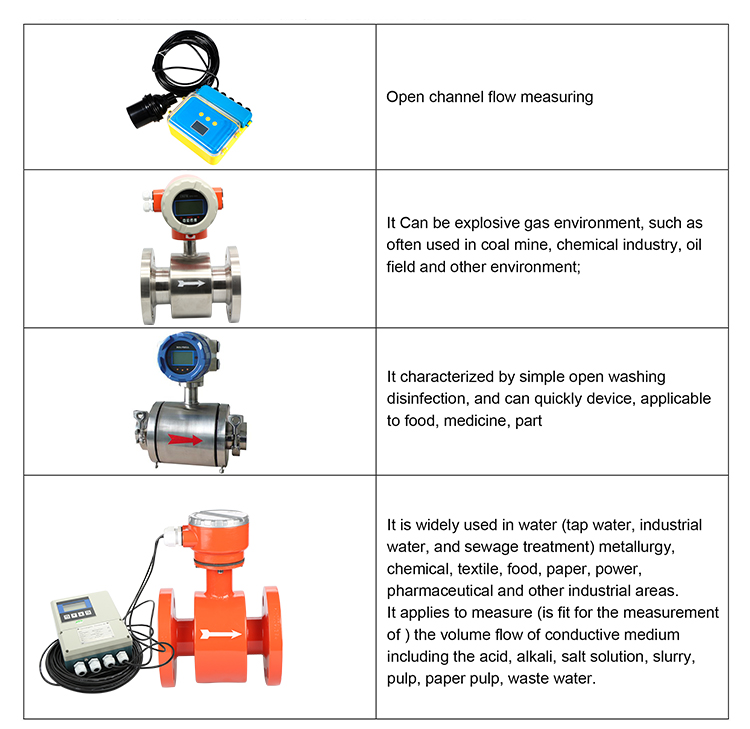

It is widely used in water (tap water, industrial water, and sewage treatment) metallurgy, chemical, textile, food, paper, power, pharmaceutical and other industrial areas. It applies to measure (is fit for the measurement of ) the volume flow of conductive medium including the acid, alkali, salt solution, slurry, pulp, paper pulp, waste water.
2,Specification of milk flow meter
Model Parameter: | 4800 High High stable milk magnetic flowmeter/electromagnetic flow meter |
Caliber | DN10- DN2400 |
Medium temperature | ≤120°C |
Measuring medium | Medium conductivity>5μs/cm ;Water≥20μs/cm |

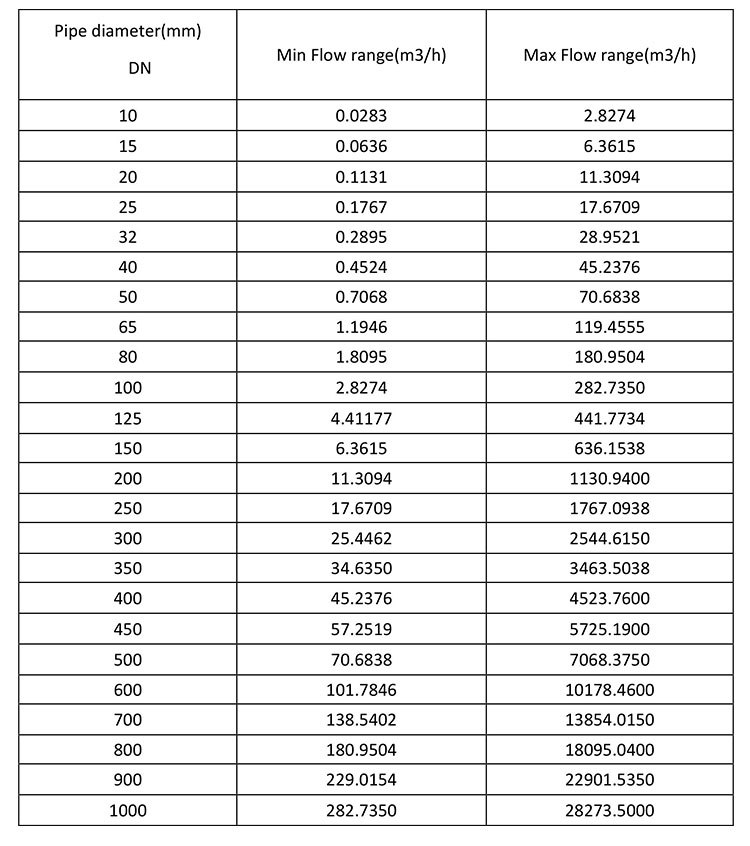

Range | 0.3m/s~15m/s |
Accuracy | ±0.2%,±0.5% |
Working pressure | 1.6MPa (special pressure build) |
Output signal | 4 ~ 20mADC / RS-485 / HART protocol |
Power supply | standard 220VAC, 24VDC |

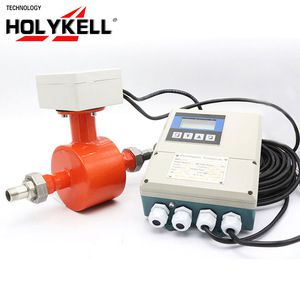

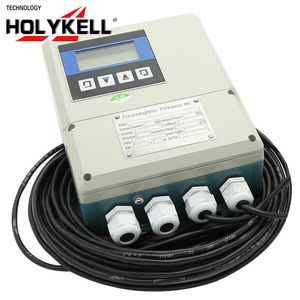

Converter | Integrated Segregate |
Electrode type | standard fixed type |
Connecting flange | in line with international standards of GB9116-88 and DIN2501 (BS4505) |
Selection of materials | flange connection material: stainless steel (1Cr18Ni9Ti) |
Lining material | F46 (FEP) poly perfluoro ethylene allyl |
Explosion-proof | normal ,flameproof(dⅡCT4-CT6),Intrinsically safety(ExiaⅡCT4) |
Protection class | IP65,IP68 |

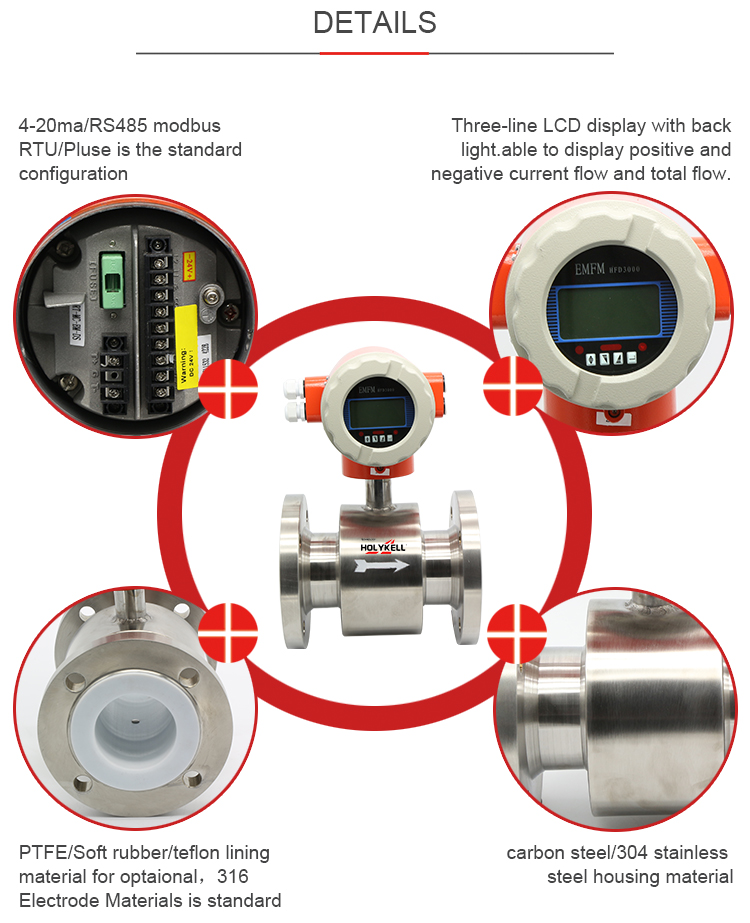

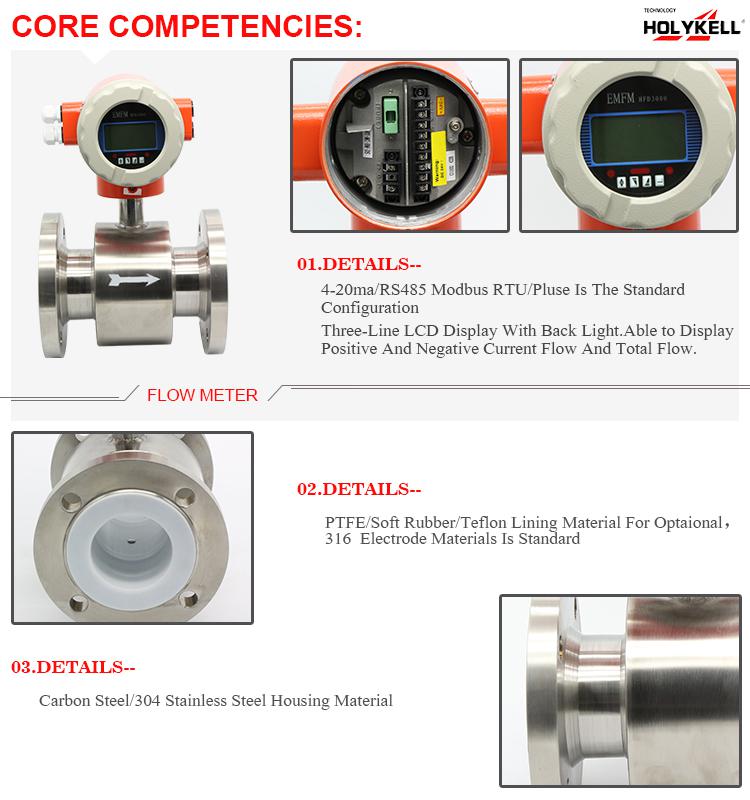

3,Products details:

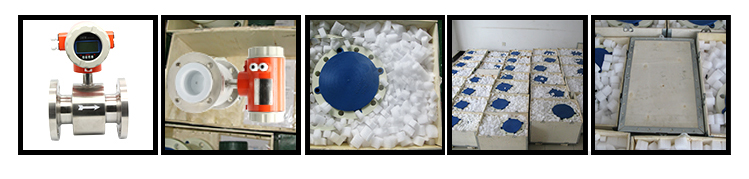

Packaging details:
How to order us?
In order to recommend you the most suitable pressure transmitter and make an accurate quotation, please provide the following information and send it to our sales when you are going to make an inquiry, thanks !
How do you ensure the quality of the products?
Company information
HOLYKELL always devotes ourselves in specialty manufacturing pressure sensors,pressure transducer,pressure transmitters,level sensors,level transmitters, ultrasonic sensors and now we can apply nearly all kinds of sensor techniques in the field of electric pressure measurement. Owing to the devotion to electric pressure measurement techniques, our enterprise holds inimitable core competition in the industry.
HOLYKELL pressure and level Instruments has been certified with ISO 9001 (2008) Enterprise Quality Management System by the United Kingdom Accreditation Service and our products are approved by many international authority institutions for the certificates of CE and RoHS, intrinsic safety explosion-proof and isolated safety explosion-proof. Our employees with the professional and high quality will make sure to provide you with high-quality products and superior services at any time and at any place. Our products are widely applied in the fields of chemical industry, petroleum, pharmacy, electricity, municipal works, environmental protection, food and paper-making.
Q:How long will you give me the reply?
A: we will contact you in 12 hours as soon as we can.
Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q:How about the quality of the magnets?
A:We have the certification of ISO,CE and ROSH,we could send the certification test of our company to you.
Q:How is the price?
A:As we believe the quality is the most important,we will provide the best quality pressure sensor we can with reasonable price.
Q:Could you provide me the shortest lead time?
A:We have materials in our stock,if you really need,you can tell us and we will try our best to satisfy you.
Q:Could I visit your factory?
A:Of course,if you need we will help you to visit our factory.
Q:If I have paid,when will you help me to produce?
A:When we have received the money in our account,we will give you the receipt and arrange to produce immediately.
