E8000 Series Electromagetic Flowmeter
One-piece Intelligent electromagnetic circuit board
1, Various output interfaces are available: 4-20mA / 0-10mA / Pulse or Frequency output / RS232 or RS485-MODUSBUS interfaces.
2, Dot matrix LCD 128*64, Chinese / English support.
3, High-brightness(emerald) backlight for dark environment.
4, Modular design, ensuring high reliability, consistency, and longer stability.
5, Product model series:
E8000AR: 220VAC, RS485-MODBUS RTU,
4-20mA , 0-10 mA , Pulse/Frequency
E8000DR: 24VDC, RS485-MODBUS RTU, 4-20mA , 0-10 mA , Pulse/Frequency
One-piece Intelligent electromagnetic circuit board
1, Various output interfaces are available: 4-20mA / Pulse Equipment or Frequency output ,HART.
2, Dot matrix LCD 128*64, Chinese / English support.
3, High-brightness(emerald) backlight for dark environment.
4, Modular design, ensuring high reliability, consistency, and longer stability.
5, Product model series:
E8000AH: 220VAC , HART, 4-20mA
Pulse Equipment Output /Frequency Output
E8000DH: 24VDC, HART, 4-20mA ,
Pulse Equipment Output /Frequency Output
Split type Intelligent electromagnetic circuit board
1, Various output interfaces are available: 4-20mA / 0-10mA / Pulse or Frequency output , RS232 or RS485-MODUSBUS interfaces.
2, Dot matrix LCD 128*64, Chinese / English support.
3, High-brightness(emerald) backlight for dark environment.
4, Modular design, ensuring high reliability, consistency, and longer stability.
5, Product model series:
E8000F-AR: 220VAC, RS485-MODBUS RTU,
4-20mA , 0-10 mA , Pulse/Frequency
E8000F-DR: 24VDC, RS485-MODBUS RTU,
4-20mA , 0-10 mA , Pulse/Frequency

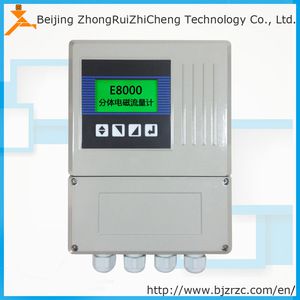

Split type Intelligent electromagnetic circuit board
1, Various output interfaces are available: 4-20mA / Pulse Equipment / Frequency output , HART.
2, Dot matrix LCD 128*64, Chinese / English support.
3, High-brightness(emerald) backlight for dark environment.
4, Modular design, ensuring high reliability, consistency, and longer stability.
5, Product model series:
E8000F-AH: 220VAC , HART, 4-20mA
Pulse Equipment Output /Frequency Output
E8000F-DH: 24VDC, HART, 4-20mA ,
Pulse Equipment Output /Frequency Output

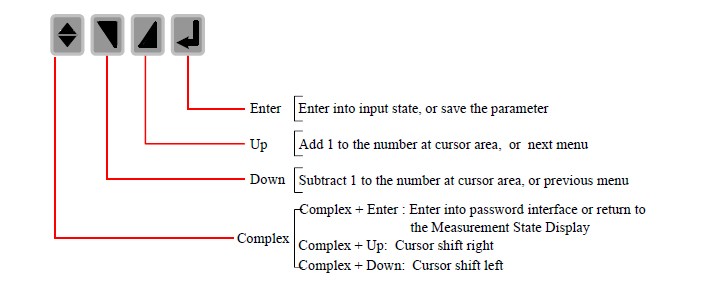

The basic function of keys as follow:

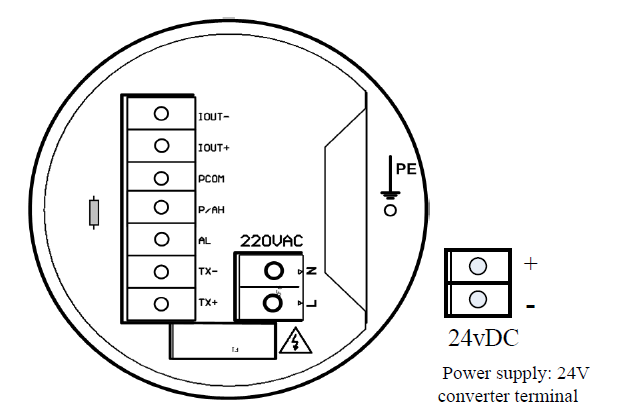

E8000 Wiring Terminal
| IOUT-: | 4~20mA/0~10mA Output Current Ground |
| IOUT+: | 4~20mA/0~10mA Output Current Positive |
| PCOM: | Frequency (Pulse) Output Ground/Upper And Lower Alarm Ground |
| P/AH: | Frequency (Pulse) Output Ground /Upper Alarm Output |
| AL: | Alarm Output for Low Limit / Flow Direction Output |
| TX-: | Communication Input Signal, RS485 B |
| TX+: | Communication Input Signal, RS485 A |
| L:(+) | 220V Power Supply L.(24V Power Supply +) |
| N:(-) | 220V Power Supply N.(24V Power Supply -) |
FEATURES
1, Intelligent Excitation: Sensor resistance ranges from 30 to 110 ohms. The excitation voltage can be automatically adjusted according to the impedance, which can reduce heat of the circuit board and the temperature drift.
2, Real-time drift control technology: Eliminate automatically the potential drift of measuring electrode and the amplifier circuit drift.
3, Turndown ratio 150:1

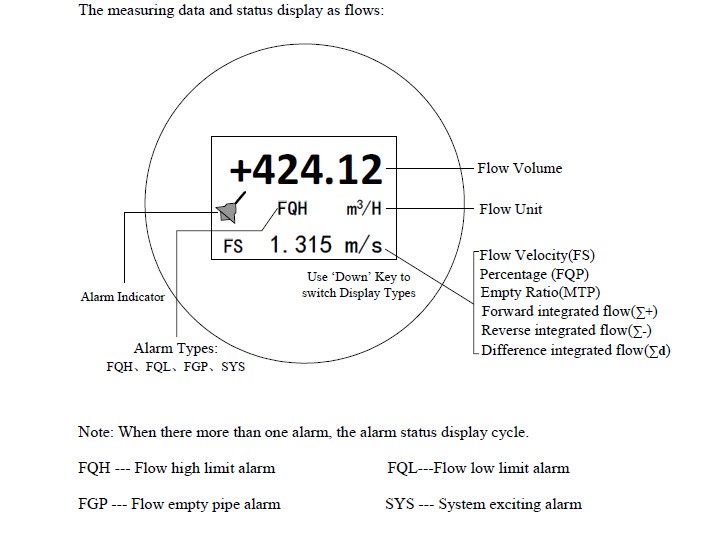

4, Multiple variables can be displayed simultaneously: instantaneous flow, total flow, flow rate, positive flow, negative flow, and the alarm state.
5, Chinese / English support.
6, Data backup and restore.
7, Various alarm functions: support excitation, pipes empty, upper and lower alarm.
8, Small flow linear correction functions: Support small flow four-point linear correction.
9, Converters and sensors coefficients can be set independently. Converter interchangeable.
10, Various output interfaces are available:
Analog output: 4 ~ 20mA or 0 ~ 10mA current loop output
Pulse or frequency output
Switch alarm output
11, RS485 communication, or HART communication option
12, Modular design, ensuring high reliability, consistency, and long-term stability.
Measure precision for assembly:
Diameter(mm) | Range(m/s) | Accuracy |
3 ~ 20 | < 0.3 | ±0.25%FS |
0.3~1 | ±1.0R | |
1~15 | ±0.5%R | |
25 ~600 | 0.1~0.3 | ±0.25%FS |
0.3~1 | ±0.5%R | |
1~15 | ±0.3%R | |
700~3000 | < 0.3 | ±0.25%FS |
0.3~1 | ±1.0%R | |
1~15 | ±0.5%R | |
%FS:for relative ranges; %R:for relative value of measurement |
1,Customer: i want buy the samples to test, it is ok?
Helen: of course, not free sample, but when the next order, we will return the samples money to your.
2,Customer: when will you do the shippment after my payment ?
Helen: we have the in stock, when we received the payment, i will ASAP send toyour,(through DHL/ UPS/ TNT/FEDEX,etc)
3,Customer: How to pay?
Helen: the Western union, Paypal, person account, TT ,and so on.
Samples small quantity are avaliable at any time Welcome to contact us!
