Fair price compressed air driven bottle filling machine
Feature
1. All machine body is made of SUS 304. It is easier to clean and more hygeian.
2. High accuracy by using quality components such as cylinder.
3. Long working life with high quality o rings.
4. Filling range is wide and adjustable.
5. This filling machine can run automatically or operated by a pedal.
6. Only compressed air needed. It is safe to run the machine without electricity.
Introduction
This filling machine is one kind of piston filling machines.It is driven by cylinder and only compressed air is needed to run the machine. This series of filling machines are designed specially for filling good fluidity products such as water, shampoo, oil etc. There are several models of this kind filling machine basing on different volume. Different model has different filling range.Please select the best model below according to the volume of your bottles, jar or other containers.
| Model | GSLF-100H | GSLF-300H | GSLF-500H | GSLF-1000H | GSLF-2000H | GSLF-3000H | GSLF-5000H |
| Filling Range | 30-100ml | 30-300ml | 50-500ml | 100-1000ml | 200-2000ml | 300-3000ml | 500-5000ml |
| Filling Speed | 10-20 Bottles/Min | ||||||
| Dimension(cm) | 86*23*24 | 86*23*24 | 89*23*25 | 94*27*29 | 104*27*30 | 109*27*35 | 120*27*35 |
| Net Weight | 15KG | 17KG | 20KG | 25KG | 30KG | 35KG | 37KG |

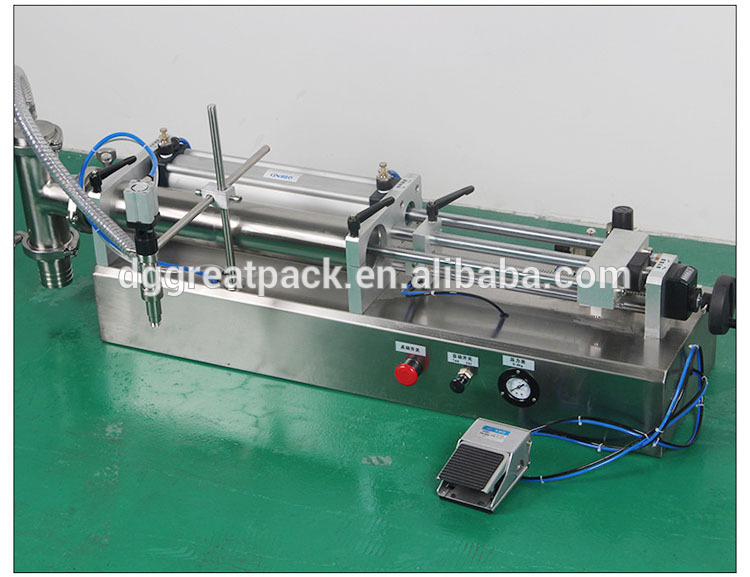

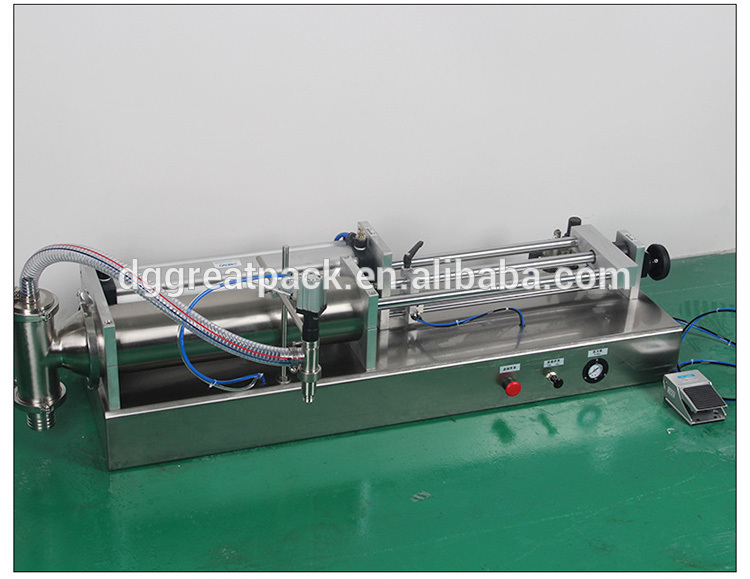

Pictures
1. We will send you English user manual of the machine after you get our machine
2. There will be video show you how to operate the machine
3. We can send technician abroad to help you install and adjust the large machine if needed
4. Your contact will be replied within 24 hours if there is any question
5. Warranty: 1 year (we will replace the main part for you freely within 1 year, such as motor)
Please feel free to contact with us for more details now!
