Applied for: pure water, mineral water, etc.
Suitable for: PET bottles with all volumes and shapes.
Filling system: gravity filling.
Production capacity: 2000BPH-30000BPH.

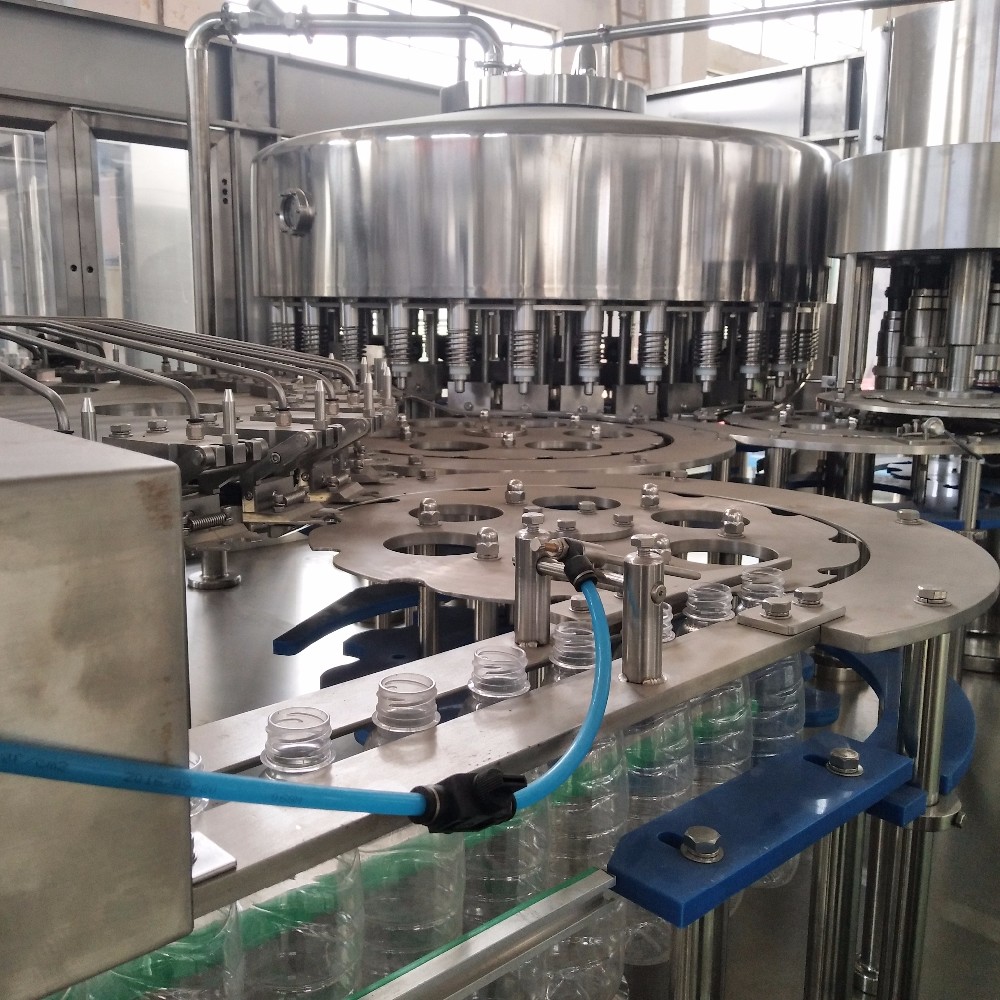

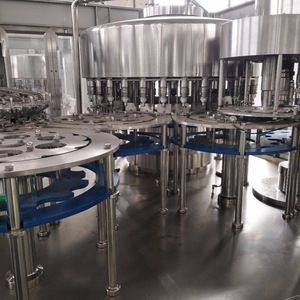

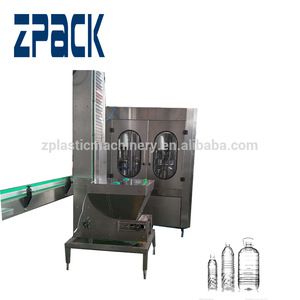

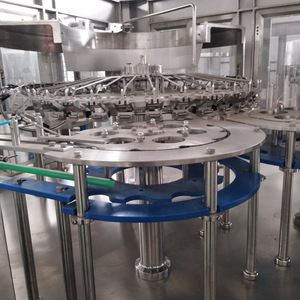

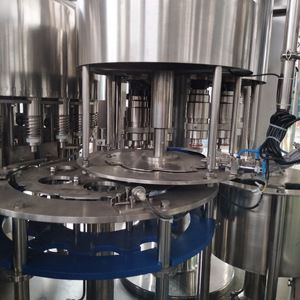

The new type CGF series drinking water filling machine integrates bottle washing , water fillling machine and capping into one monobloc, and the three processes are carried out full automatically. For electrical elements, we use Siemens, Mitsubishi, Omron, Schneider, Airtac, etc. Which are famous brand and with assured quality. Each machine element that contacts with the liquid is made of high quality stainless steel. The critical componnets are made by numerically-controlled machine tool, and the whole machine condition is under detection by phonelectric sensor. It is with advantages of high automation, easy operation, good abrasive resistance, high stability, low failure rate, etc.
| Model | CGF8-8-3 | CGF16-16-6 | CGF18-18-6 | CGF24-24-8 | CGF32-32-12 | CGF40-40-12 |
| Capacity(500ml)(bph) | 2000-3000 | 5000-6000 | 6000-7000 | 10000-12000 | 12000-14000 | 15000-17000 |
| Bottle shape | roud or square | |||||
| PET bottle (mm) | (Bottle Diameter):φ50-.φ110mm (Height):150-340mm | |||||
| Filling precision | ≤±5mm | |||||
| Total Power(kw) | 2.5 | 3.1 | 3.1 | 3.8 | 5.6 | 7.2 |
| Overall size(mm) | 2000*1500*2200 | 2400*1800*2400 | 2400*1830*2400 | 3100*2200*2400 | 3600*2500*2400 | 4000*2800*2400 |
| Weight(kg) | 2000 | 3000 | 3500 | 4000 | 5000 | 7000 |
Product Overviews
Main Features
1). High speed filling line is of clamp transferring technology, bottle shapes are more varied, and the working table inside the machine is more laconic.
2). Specially designed stainless steel bottle clamp dose not contact the thread parts of the bottle neck, avoiding the second contamination.
3). High speed and large flow filling valve assures the high filling speed and determined fluid level.
4). Spares contact with the liquid are all of excellent stainless steel or edible safety plastic. The electric system is of internation brand and achieves the national food sanitary standard.
5). The bottle-outlet starwheel adopts screwdown type, it is not needed to adjust the height of bottle-outlet conveying chain when changing bottle shape.
click website view more prodcucts https://zplasticmachinery.en.alibaba.com/

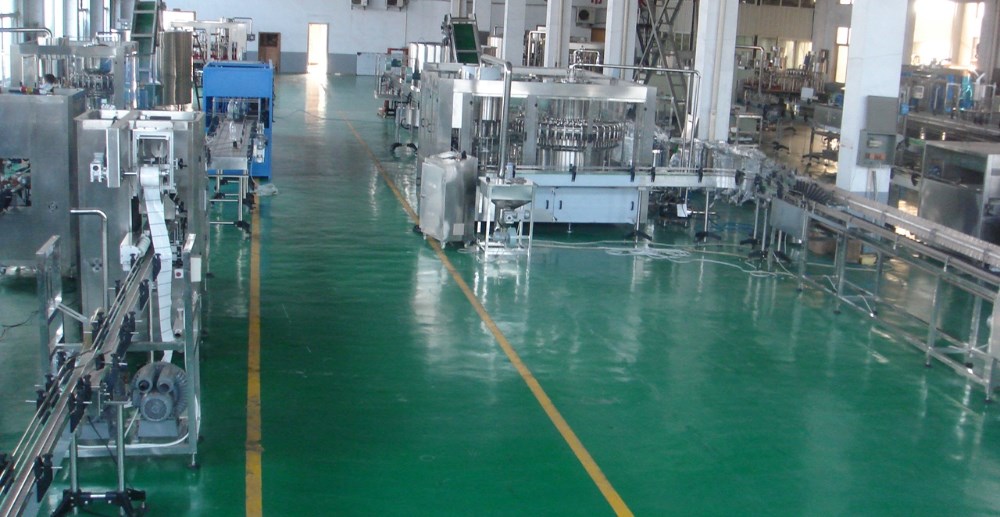

Zhangjiagang ZPACK Machinery Co., Ltd. is a professional engaged in beverage packaging machinery and all kinds of water treatment equipment manufacturers, the company set production practice experience for many years, and absorb advanced technology at home and abroad, improve their own products.The current production is: 0.5t-100T/H complete water treatment equipment, 2000-25000 bottle/hour mineral water, pure water, gas and beverage sets, packaging molding production line;100-2000 barrels of five-gallon barrel assembly line;2000-25000 bottle/hour vinegar, soy sauce, alcohol filling production line;Production line of juice, fruit tea, vegetable protein beverage.
At present, we have install our production in more than 30 countries and regions in the world. ZPACK would like to move forward together with you and will spare no efforts. Welcome to our company!
Pre-Sales Service
1). We can send you the video of mechanical operation.
2). Welcome to our company, we can show you the equipment in our factory. If you come to China and don't know the location of our company, you can contact us to pick you up.
3). We can design the machines according your requirements.(material ,power,filling type,the kinds of the bottles,and so on)
After-Sales Service
1). When you finish the preparation conditions ,our engineer will go to your factory to install the machine ,and give you the operating manual ,and train your employee until they can operate the machine well.
2). We provide one year warranty with spare parts free.
