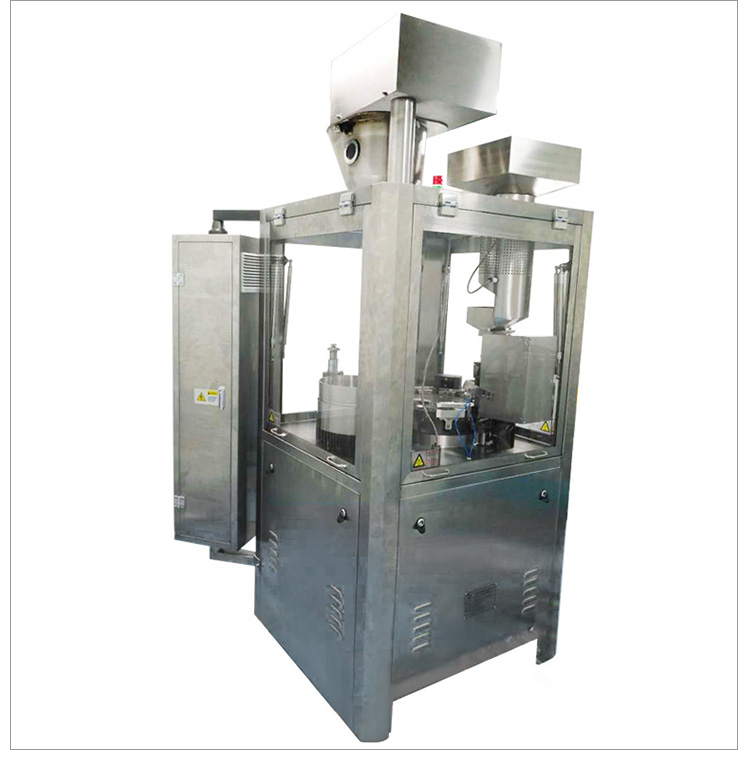

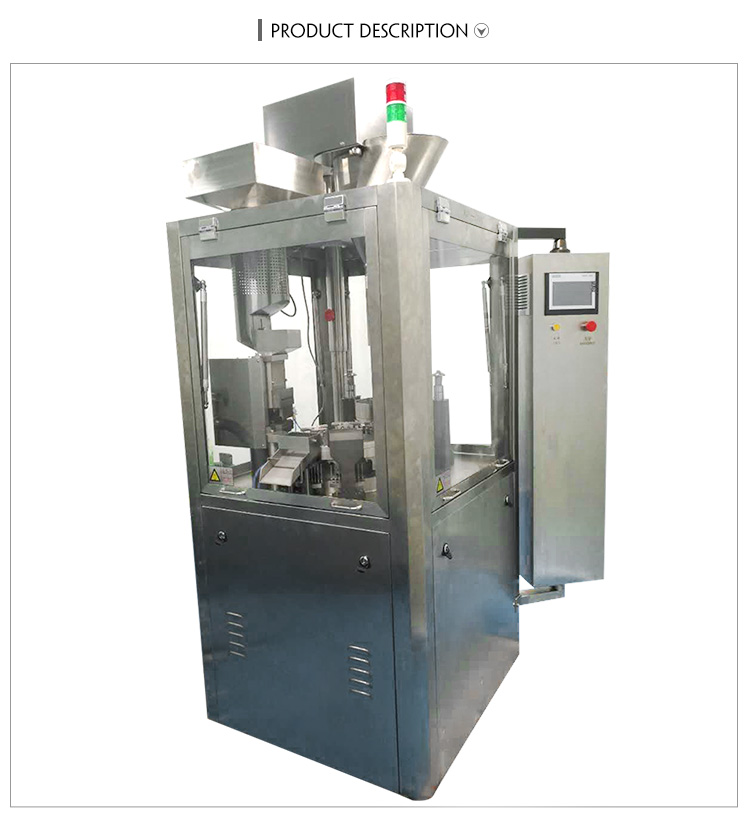

Njp 800 Mini Capsule Filling Machine,#4 Hard Capsule Maker Equipment
| Model | NJP-800C |
| Patent | The filling mechanism obtains the national new patent, Rotary design obtains a patent for utility model. |
| Capacity | 48000 pcs/h |
| Applicable capsule | 000,00,0,1,2,3,4,5# |
| Applicable material | Powder,granule,pellet,tablet |
| Filling precision | Western medicine:±3% Chinese medicine:±4% |
| Main material | Main parts of machine are made of SS304, the mold is SS316L and seven lines of aviation aluminium materials. |
| Power | 380/220V 50Hz |
| Noise | <75DB(A) |
| Weight | 900Kg |
| Outline dim. | 865×855×1900(mm) |
| Packing/size | Standard export wooden case/ 1470×1220×2100mm |
| Warranty | 1 year |
| Method of Warranty | Remote telephone and video guidance or home service according to customer requirements |
| Time of delivery | Shipped in 25 days after payment |
| Payment term | L/C,T/T,Western Union |
| Port of loading | Guangzhou or Shanghai |
 | |

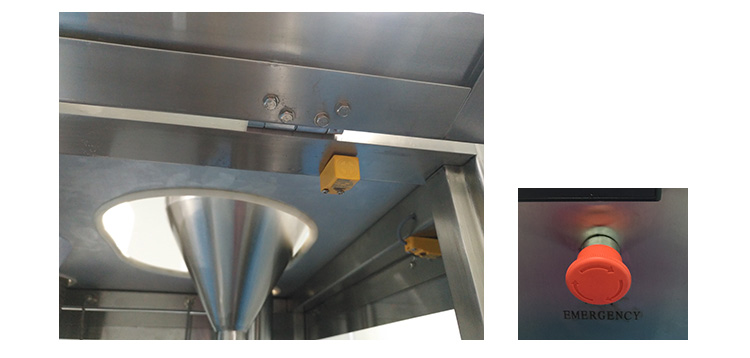

1.Door control system In the process of work, if any door is opened, the equipment will be stopped by alarm. Emergency stop button When a sudden situation occurs, the machine can be stopped immediately. | |
 | |

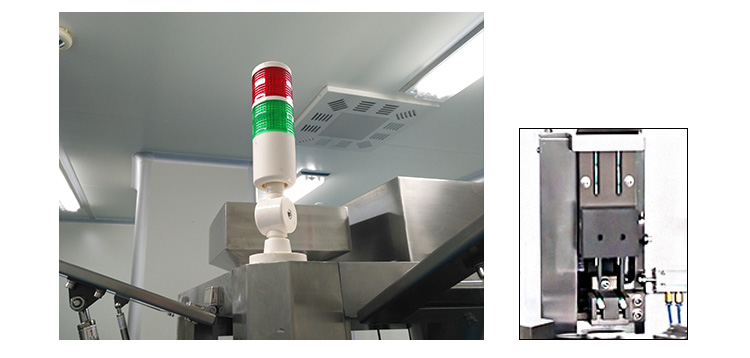

2.Warning light The lack of material, capsule and mechanical failure will automatically alarm. Sowing and safety control switch Sowing automatic control ,when the machine is running, the personnel are completely isolated. | |
 | |

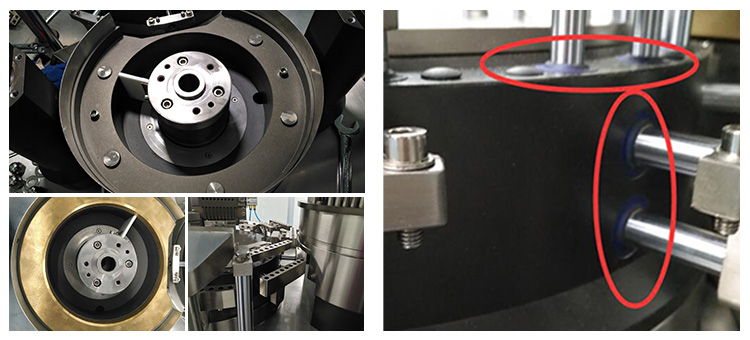

3.New patent filling mechanism The filling mechanism obtains the national new patent, adopts three-dimensional adjustment. the adjustment volume is precise and quick, add the powder recovery device, the recycling rate is 100%. | 4.double sealing device Capsule suction, capsule outlet, locking and waste rejection adopt double sealing device--NBR sealing rubber and SIL silicone rubber sealing ring, which effectively solves the problem of inoperation. |
 | |

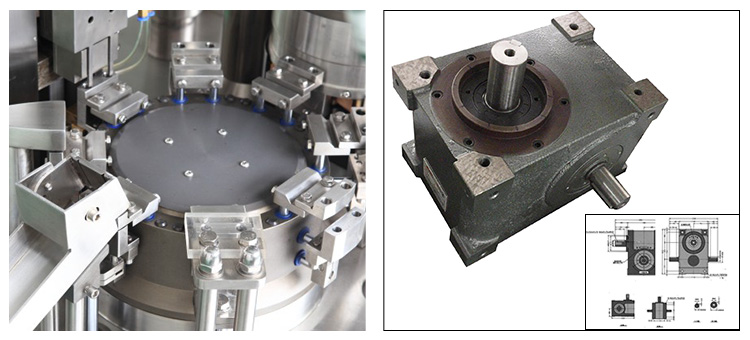

5.Rotary design Rotary design obtains a patent for utility model, the sealing ring using imported SIL silicone rubber,good sealing performance. Transverse biaxial adopt PTFE oilless bearing, no refueling and maintenance. Replacement of mold only 15 minutes. | 6.The cam(segmentation) The segmentation adopt German Cai Si 3 seconds(Zeiss) optical dividing head indexing, high loading precision, the error is less than or equal to 3%. |
Guangdong Rich Packing Machinery Co., Ltd. located in Haizhu district, Guangzhou City with convenient transportation and rich resources, is a combination of design, development, production, sales, which not only manufactures pharmaceutical machinery, packing machinery, but also provides whole set of technical and business solution, registered capital is 10 million RMB. And main products are including automatic capsule filling machine, tablet press machine, electronic counting machine, blister packing machine, coating machine, cartoning machine, etc.
Our factory has a history of 25 years experience in manufacturing. And the total area of our factory is 7996m2 with 12 R&D personnel, 52 units/ set of facilities like laser cutting machine and CNC machining center. With high production efficiency, can produce 3000 units/set of machines. We have obtained SGS, CE and ISO certificates, and won respect and trust from our customers for high quality, quick and efficient services and honesty, like UCB, GSK and Guangzhou Phar. Holdings.
Product Quality
All products are guaranteeded for one year, if any problems happen in guarantee period.our company will maintain for free.
Spare Part Replacement
First mold for free,mor than 50%,discount if more order.
Technical Service
We can provide design, installation and debugging services or remote maintanance teaching.
Delivery The Cargo To Nearest Port
We will arrange the shipment and delivery the cargo to your nearest port,save time and cost.
Detail Product Information
Provide picture,video,instruction and product brochure.
Reply Timely
24 hours hot line ,we will reply email within 12 hours.
