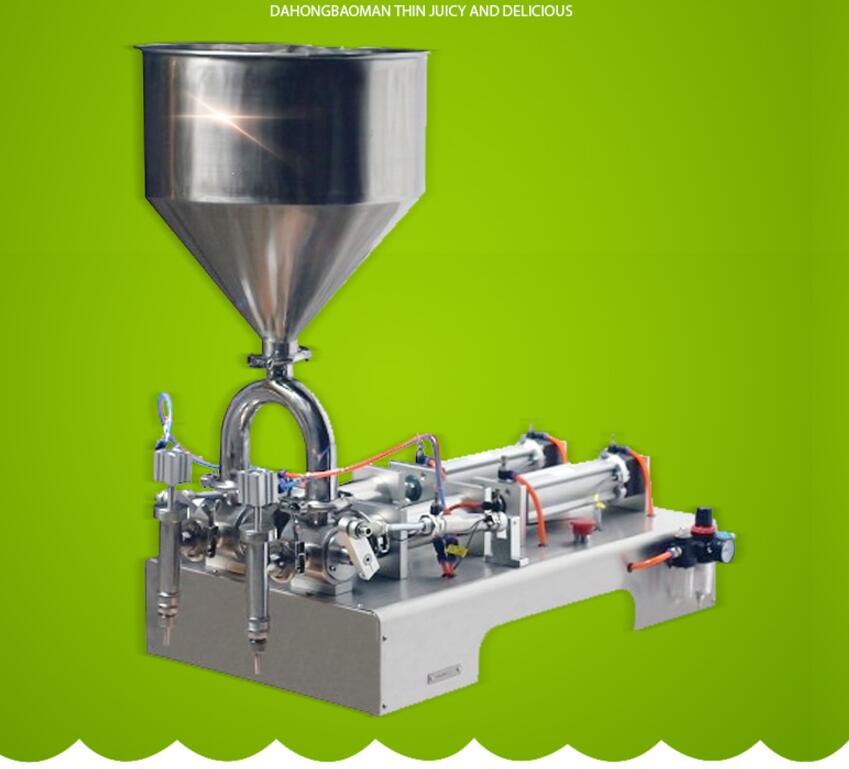

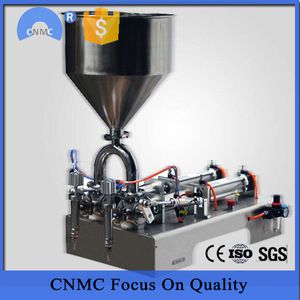

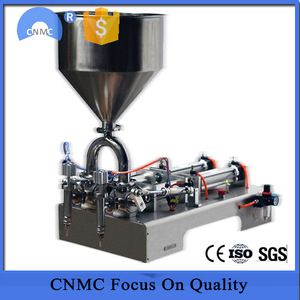

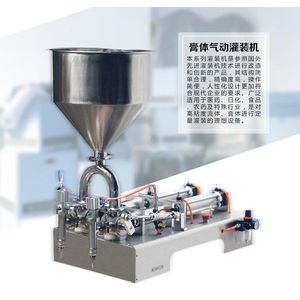

Semi-Automatic pneumatic liquid /paste cosmetic/food filling machine,essential oil filling machine

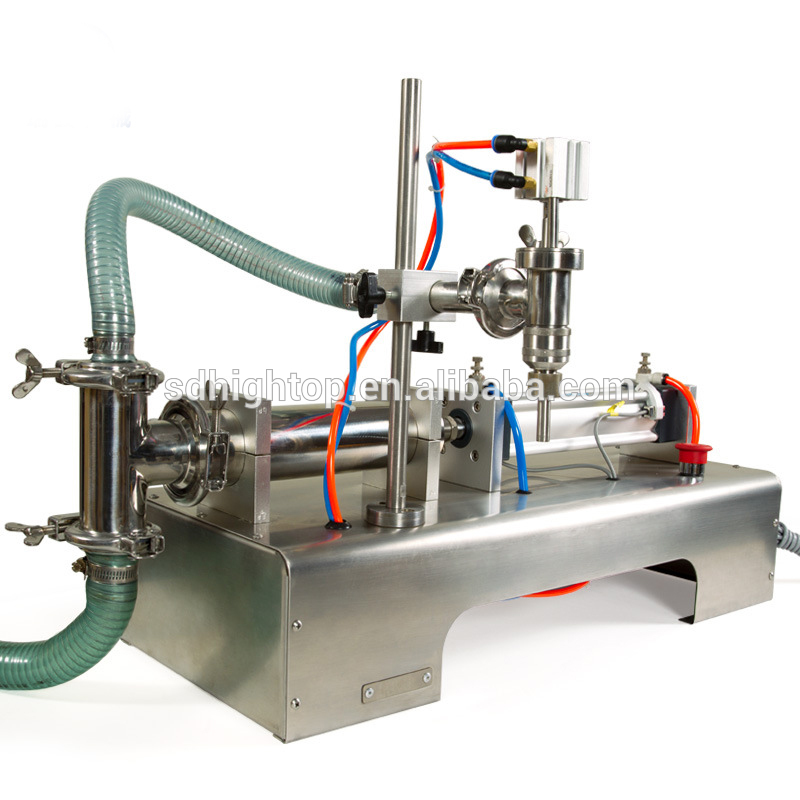

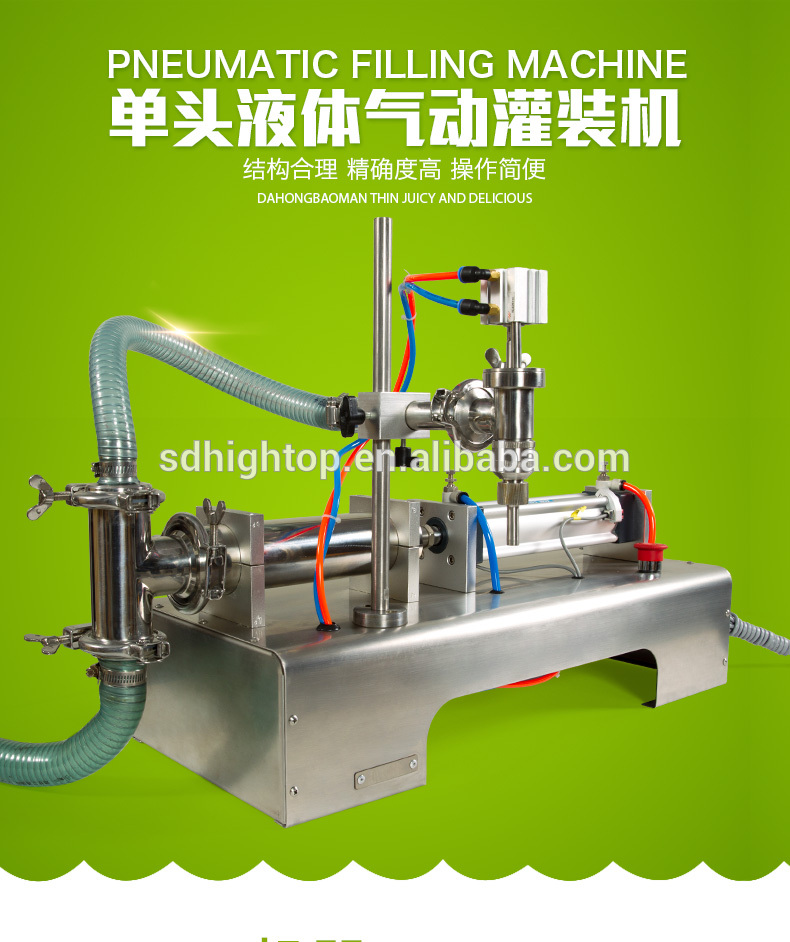

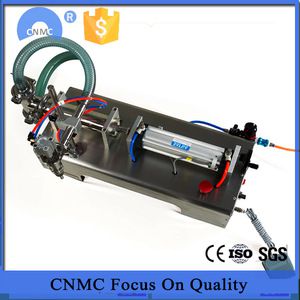

Liquid or Soft drink Pneumatic filling machine
Application:soft drink or other liquids .
Filling Range:5-100ml,10-300ml,50-500ml,100-1000ml,500-2500ml,1000-5000ml
Equipment specification
1.The equipment is mainly used in food, daily chemical, pesticide, medicine and special industry.
2.This machine have two filling method: foot control and semi auto filling , two filling ways can be arbitrarily switched.
3.this machine adopts rotary valve for wear resistance, acid resistance, high temperature resistant PTFE material, can not beat, collision when cleaning it.
4.Actual operation of removable barometer, easy to clean and repair the machine ,Easy for machine normal operate
5.This equipment is simple and reasonable, easy to operate and understand, high precision
Material | Stainless steel |
Fillable range | 1000-5000ml |
Filling speed | 20-40 pcs/min |
Air pressure | 0.4MPa |
Automatic Grade | Semi-Automatic |
Filling accuracy | ±1% |
Air pressure range | 4-6kg/cm2 |
Power | pneumatic |
Filling head | Single head or Double Heads |
Shipping package size | 920×340×320mm |
Package Weight | 60kg |
China
