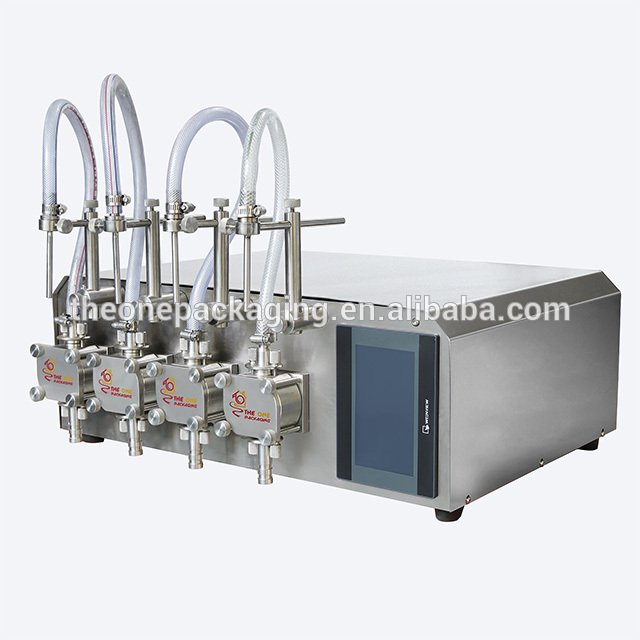

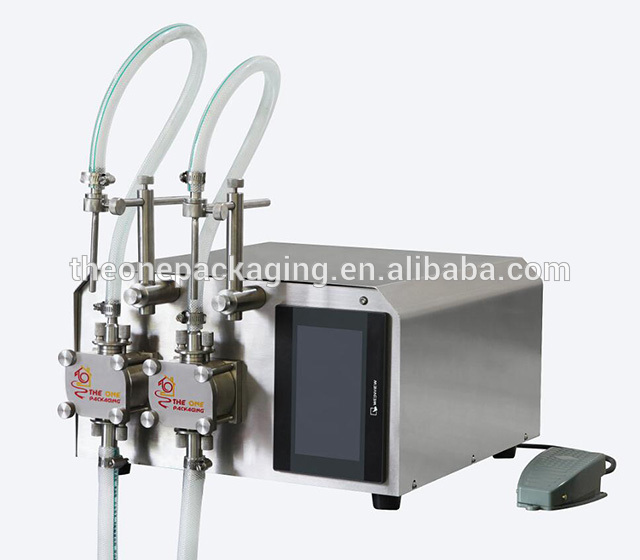

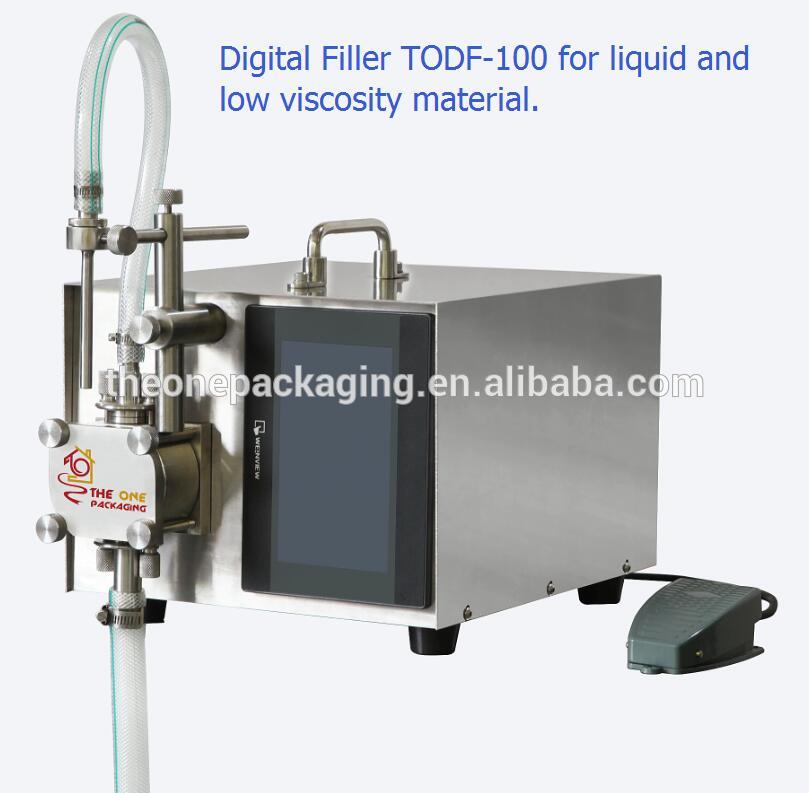

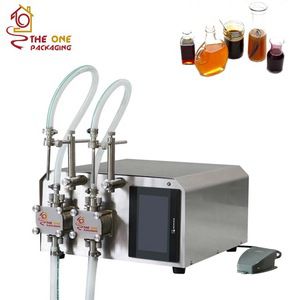

Stainless Steel Semi-Auto Honey Digital filling Machine with CE TODF-100
1.This machine adopts servo motor drive, PLC and touch screen control, 316L high precision gear pump filling principle, suitable for daily chemical, food, grease and other kinds of fluid and semi fluid material filling
2.filling volume through the touch screen adjustment, filling volume is infinite, easy to dismantle the pump head & easy to clean, very suitable for the user who has many kinds of products, need to regulate the filling scope all the time.
3.High filling accuracy can achieve less than 0.5ml accuracy.
4.can set two-speed filling(first faster and last slower), effectively prevent the bubble.
5.Through the touch screen one key to realize the gear pump operation direction Switching, can choose the pneumatic drip filling nozzle and hopper, ensuring high and low viscosity materials filling.
6.Humanized Dynamic interface, the user at a glance at the machine running state.
Specification:

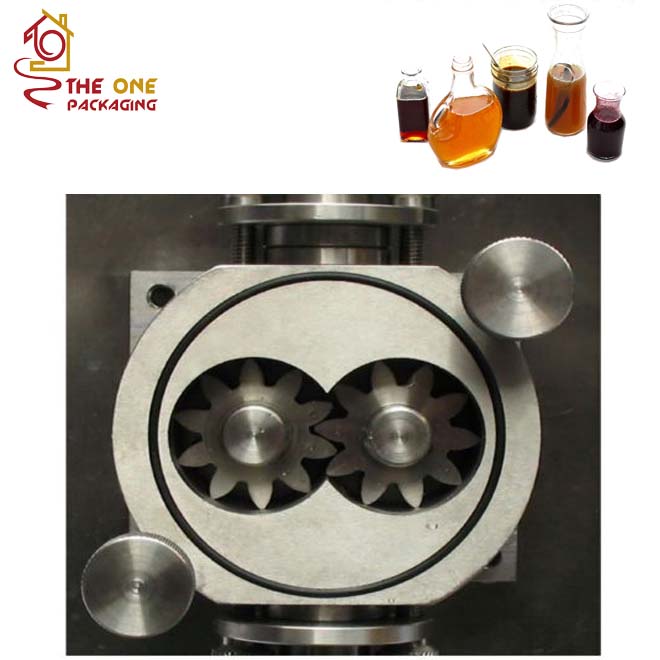

The Digital Filling Machine uses a gear pump concept as a metering device to fill correct amounts of gels or liquids into containers.
The volume, speed the time between of filling can be designed.
Each filling can be fast first and slow later, bubble cam be eliminated.
Human interface is achieved using a combined keypad and LCD display configuration.
20 sizes data can be stored.
Pump unit easily dismantled for cleaning.
Can be extend to use in conveyor on line.
Main Technical Specification:
Volume | 2ml-11000ml |
Accuracy | 0.5-1% |
Filling Speed | 100ml 24b/min 300ml 16b/min 1000ml 10b/min |
Supply Power | 1P 220V 50-60Hz 400W |
Size | 310×480×310mm |
Net Weight | 18Kg |
1, warranty time: one year, from the date which the product is qualified commissioning. Any damage except the wrong operation during warranty period is repaired freely. But the travel and hotel expenses should be count on buyer.
2, commissioning services: the product`s installation and commissioning at the demand side, our engineers will not leave there untill get your agreement.
3, training services: our engineers will train your staff to operate it during the period of installation and commissioning, and they will not leave there until your staff can operate it properly and normally.
4, maintenance services: any malfunction happened, once you enquiry us, we will reply you within 48 hours except the special reasons.
5, lifelong services: we provide lifelong services for all the products we sold out, and supply the spare parts with discount price.
6, certificate services: we can provide related certificates to customers freely according to the request of customers.
7,inspection services: you can ask the third part inspection company or your inspector to inspect the products before shipment.
8, the file: the Manual Specification, report of the material which used to the equipment and others documents related to the GMP authentication information will be provided by us.
