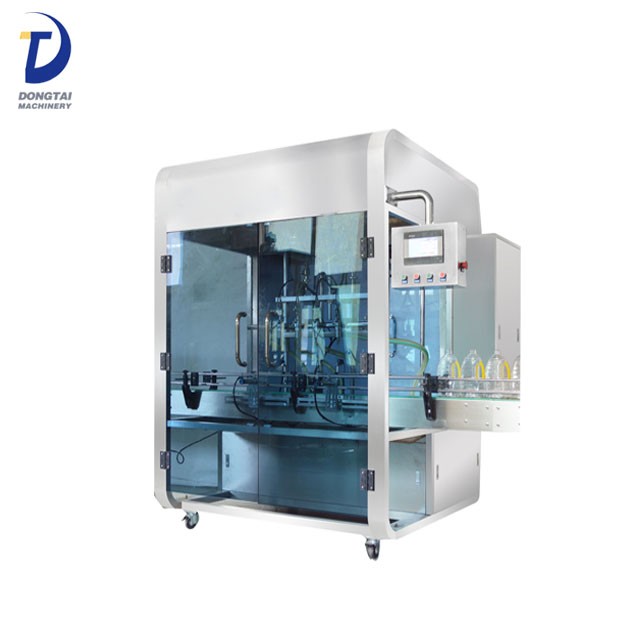

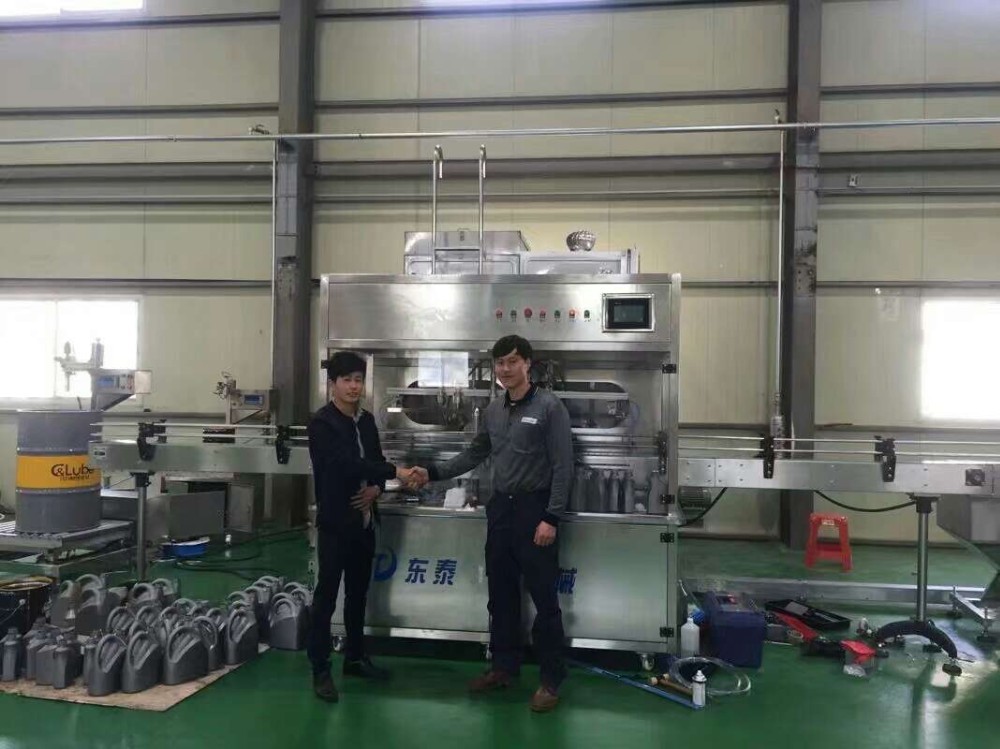

Product Name:High Quality Automatic Linear Type Castor Oil Filling Machine
Chinese Gold Supplier Filling Machinery Equipment
ZLDG (CE/ISO/GMP) - Jinan Dongtai
Brief Introduction

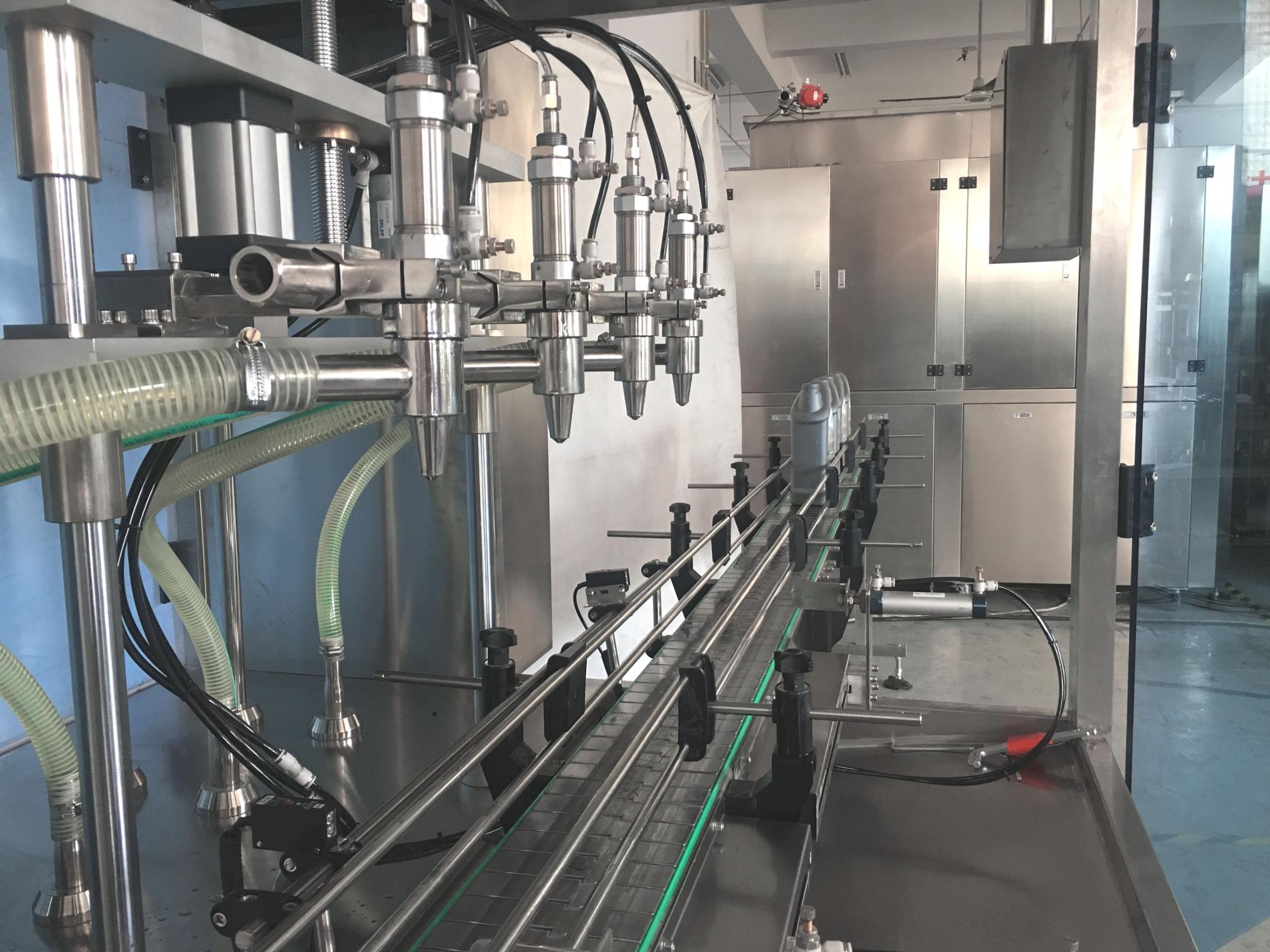

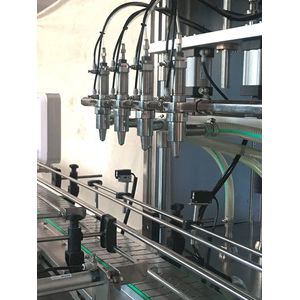

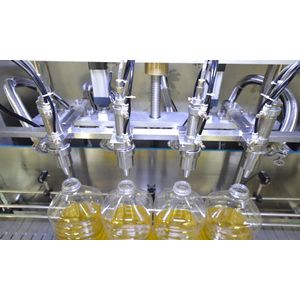

This machine is a flow meter filling machine, which controls the filling volume by using the principle of flow meters. The filling is controlled by a programmable controller PLC. When the filling valve is opened, the material flows into the container to be transported by itself.

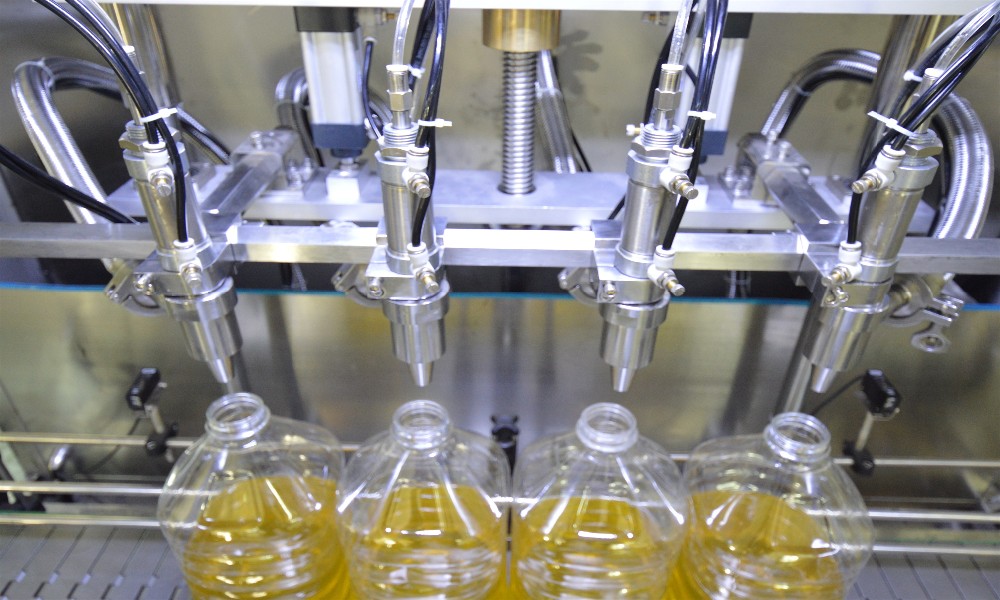

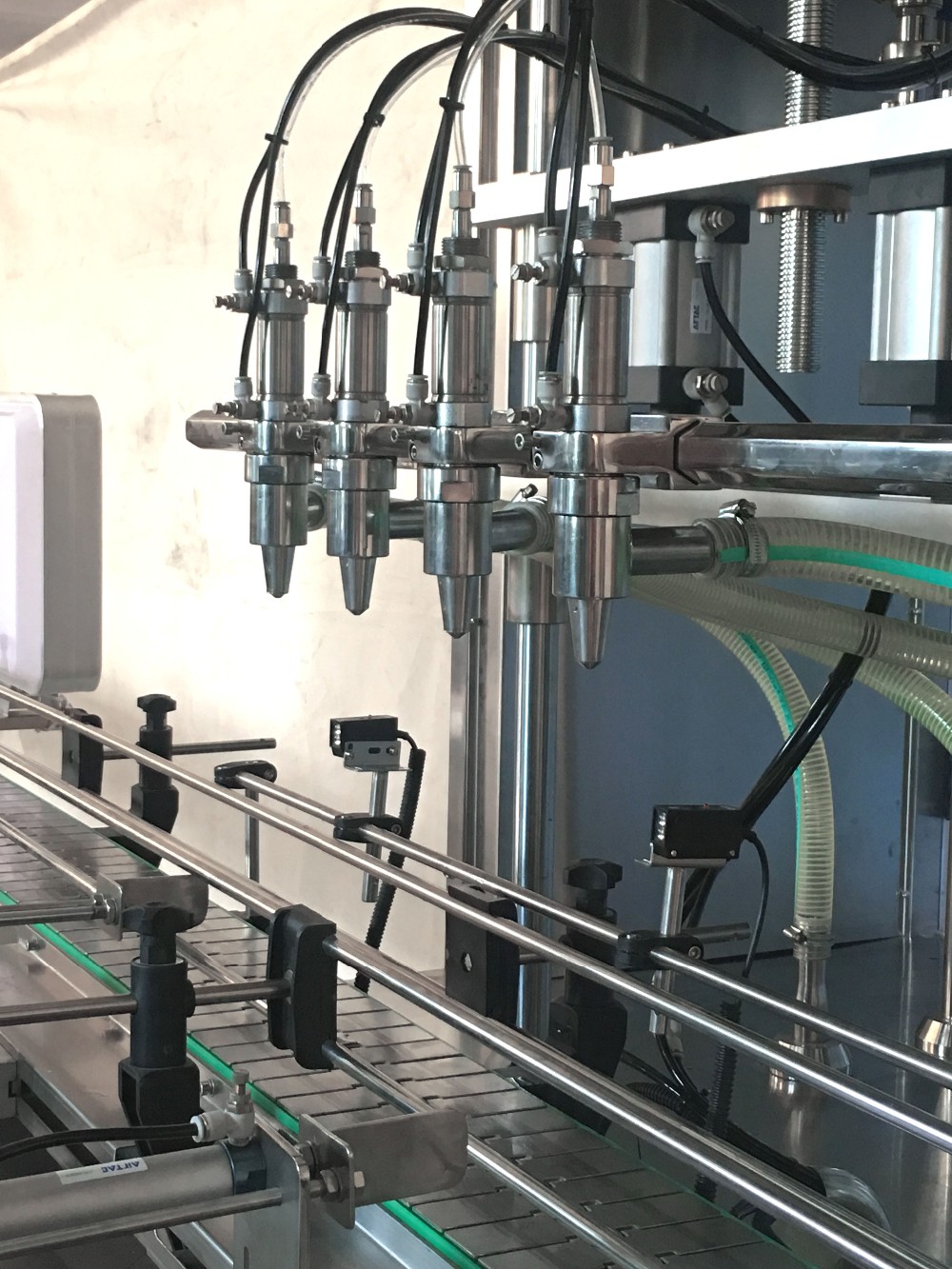

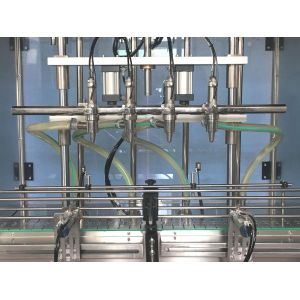

The filling part of the machine realizes fast filling and slow filling through double cylinder. After the initial filling of the cylinder, the double cylinder is converted to the stroke 1 and quickly converted to the stroke 2 for quick filling. After filling to the fast filling set, the submergence cylinder rises to the barrel, and the double cylinder is converted to the stroke 1 to continue the slow filling until the overall filling amount is set.
Parameters
| Material | Stainless Steel |
| Fiiling head | 2/4/6/8/10/12 |
| Filling capacity | 1-20L |
| Filling type | Flow meter |
| Filling speed | 400-500/700-1000/1100-1400/1200-1700b/h |
| Filling accuracy | ± ≤ 0.1% FS |
| Size | 1600*1200*1780(mm)-6 heads |
| Power Supply | 220v/380v |
Principle Features
1. the advantage of flow meter way: The adjustment in dosage is convenience and quick, the volume only need to be set on the touch screen directly, considered that the vegetable oil is different in density in the different temperature, resulting in the volume setting different, we have added an automatic temperature-compensated system.
2. the accuracy of filling: instead of the traditional computing type of flow meter -- through pulse generator, now promoted by our company, adopting rotary encoder is more accurate.
3.the speed of filling: instead of the traditional power delivery -- pressure artesian flow, our machine adopting frequency converter to adjust the speed of filling, the efficiency highly raised. The speed can be arbitrarily adjusted on panel. the adjustment of filling accuracy, promoted by our company, the weight of filling can be set on the touch screen.
Iorder to ensure product quality, all suppliers of raw materials, electrical components, and industrial automation that strictly control all aspects of circulation are from well-known brands at home and abroad. They must be strictly inspected by quality inspectors before entering the warehouse. Use, product production is completed, from the assembly plant into the commissioning workshop, after a number of rounds of precision and speed test, after commissioning can be allowed to leave the factory.
1. Technical support online service provided.
2. Technical files service provided.
3. On-site training service provided.
4. Spare parts replacement and repair service provided.
1. Cover by PVC film + fumigated wooden case;
2. Wooden case suitable for long distance ocean shipping.
