Product Application

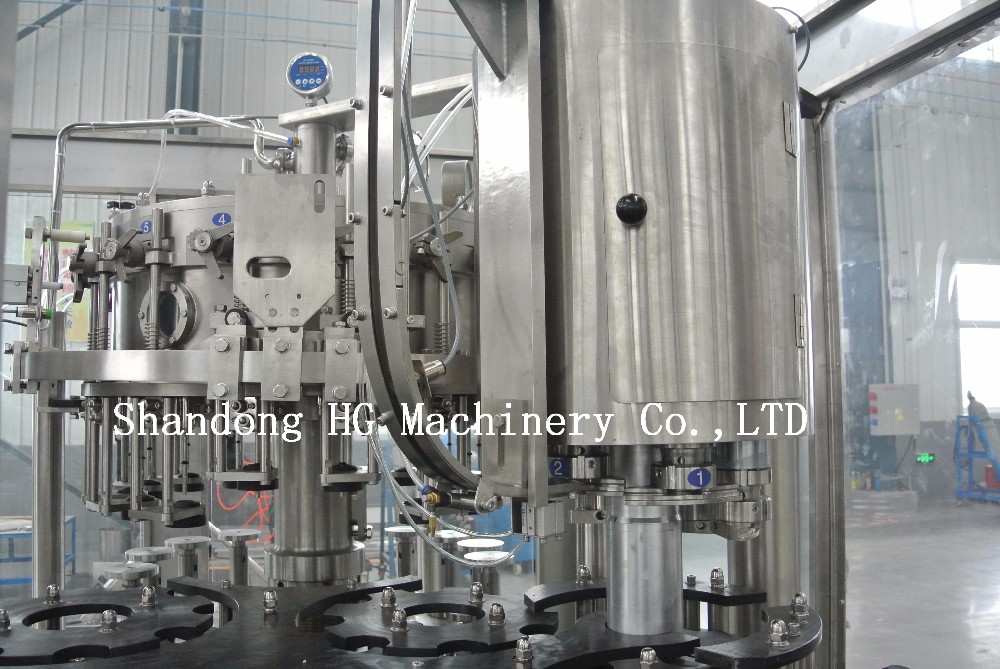

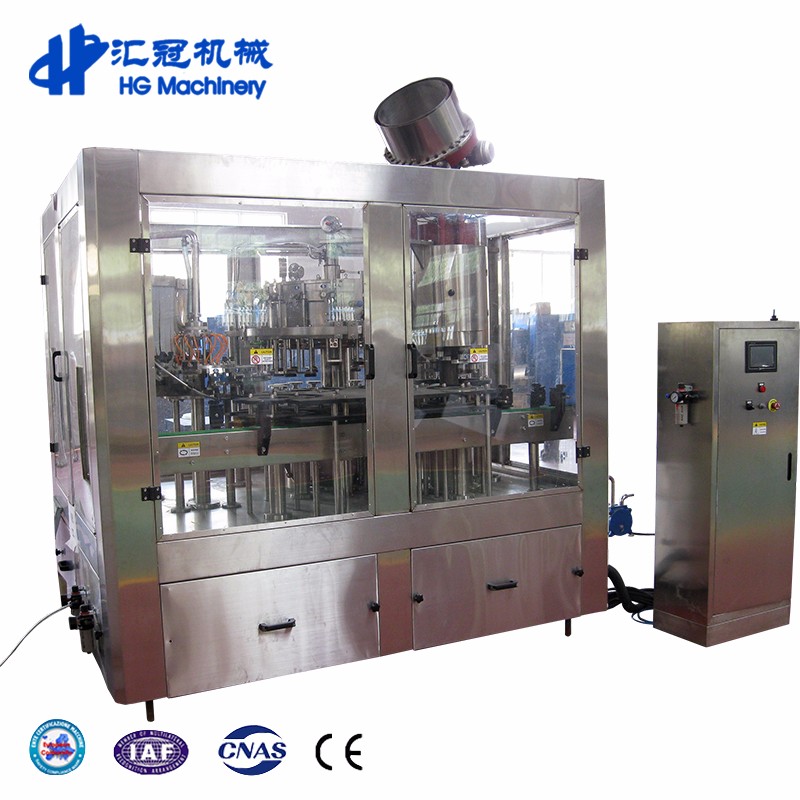

HG-GZ18/18/6 unit bottle filling and capping machine adopts isobaric filling principle and filling valve adopts high precision mechanical valve. It has advantages of fast filling speed, high precision in liquid level. Adopt MITSUBISHI automatic controlling system, realizing trinity of the machines, and control the washing, filling and capping process.

Main Features

1. No bottle, no filling: the machine only starts to fill when there is bottle, because there is sensor to check the bottle. It will avoid the waste of the bottle and beer. The rate of the broken bottle is less than 0.7% and the waste of the beer is less than 0.8%.
2. Twice evacuation, long shelf life. The filling process is cleaner and pure due to its twice evacuation of bottles, and more stable because of isobaric filling operation. Using vacuum pump and CO2 injection to realize the second evacuation ensure no O2 and bacteria in the bottle, guarantee the filling quality and the shelf life. The vacuum rate will be more than 90% after the twice evacuation and the dissolved oxygen will be less than 0.02～0.04mg/L.

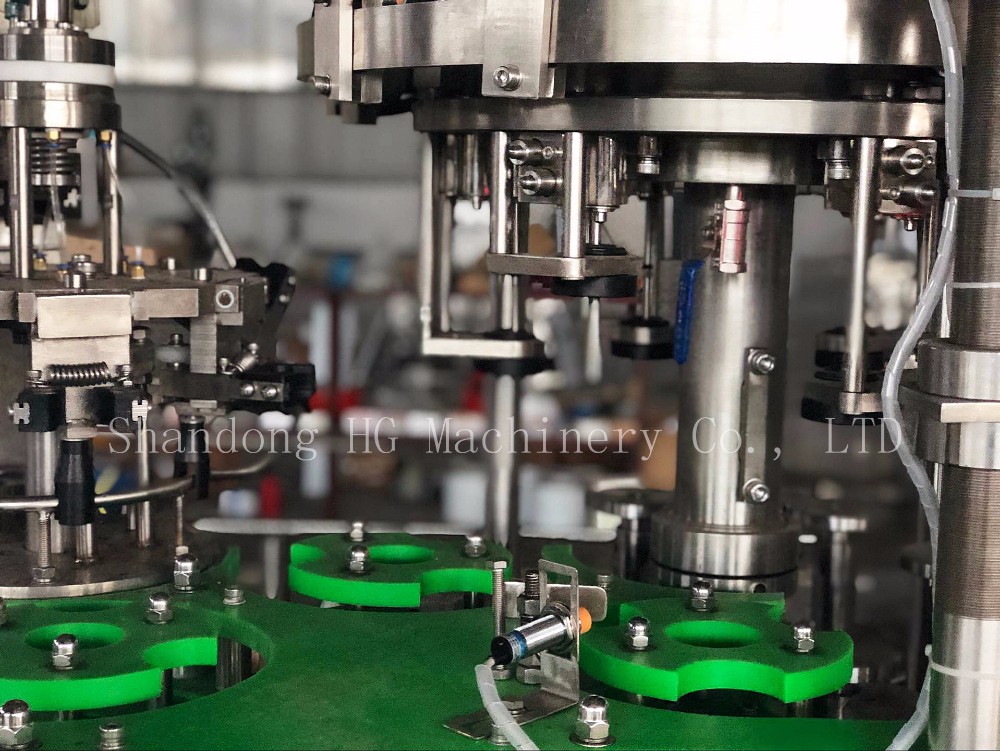

3. Easy change, save time. It can be suitable for different bottle height by the up and down device. Nylon board is easy to change. It takes less than half an hour to change the changeable parts. Therefore, this machine is the best ideal choice for beer factories.

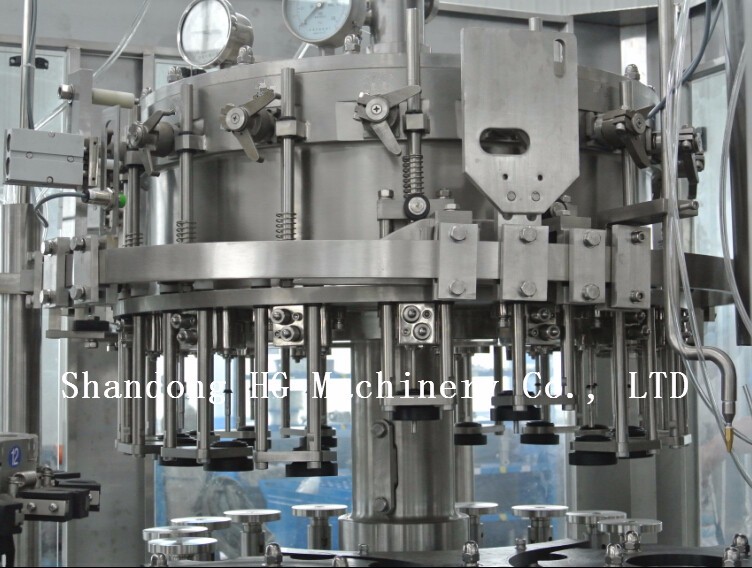

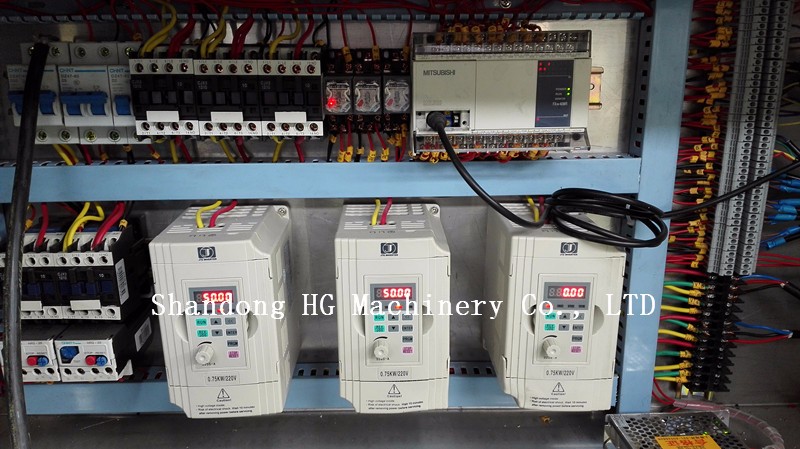

The PLC controlling system

The left gauge controls the air pressure.
The middle controls the beer tank pressure.
We can control the beer tank pressure to about 0.18mpa. The beer will be stable in this pressure stably. As you know the stability of beer is the condition of beer filling. If there is any change for beer tank, the right gauge will take part in this work. The right one is high pressure gauge, 0.20 to 0.25mpa. It will complement the pressure to beer tank. In this way, the pressure of beer tank is controlled.

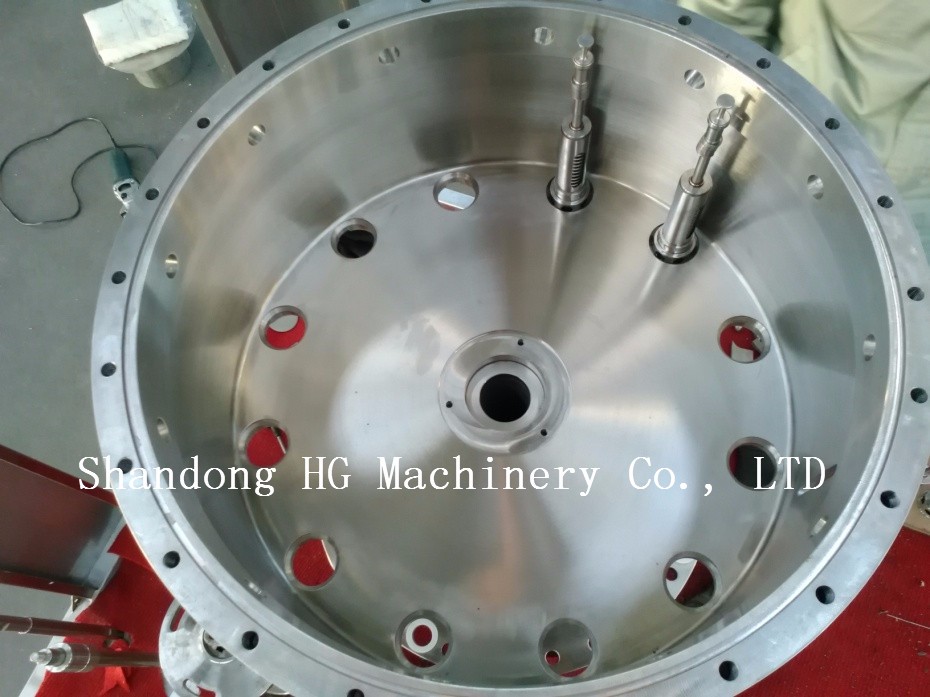

The beer jar polishing

The polishing precision can up to 0.2-0.4um, no dead corn easy to clean for keep the perfect beer quality.

Shandong HG Machinery Co., Ltd specializes in designing, researching and manufacturing beer brewery equipment, beer bottling and canning line and the subsidiary equipment. Introducing European advanced technology and innovating on the technology, HG company becomes the leader in domestic beer industry and the most professional supplier for liquid production and package turnkey project.

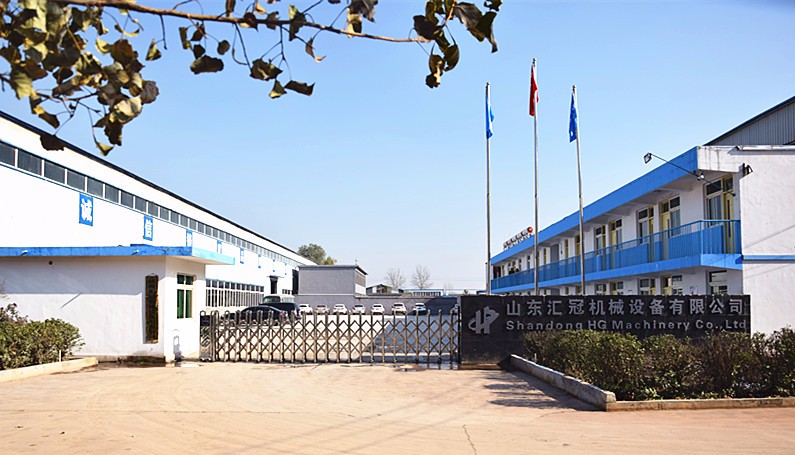

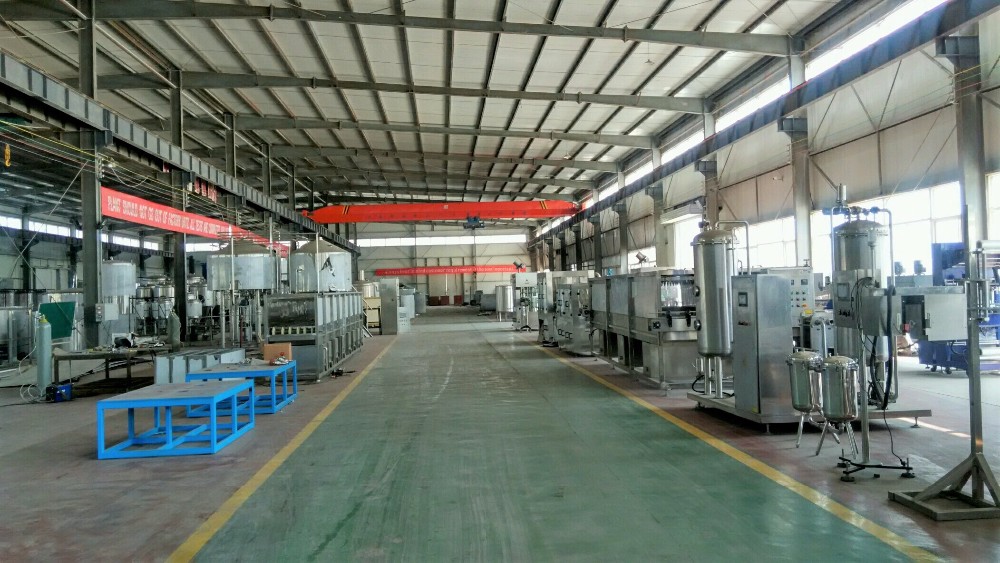

HG company is located in Hi-tech Development Zone, Jinan, Shandong province, near Jinan international airport and Qingdao port, so it is convenient for land and sea transport. There are 80 employees, including 20engineers and after sales engineers, the strongest after sales team in China, who are professional in mechanic, craft, and electric control.
