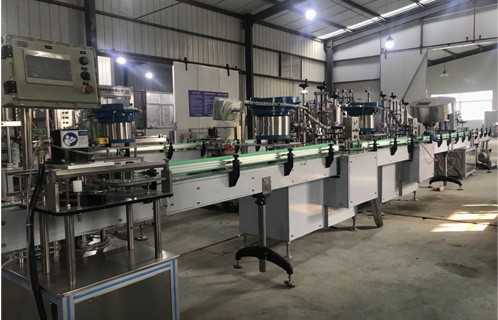

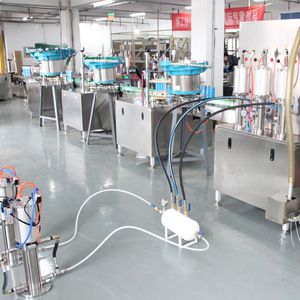

.FULLY-AUTOMATIC ROTARY TYPE AEROSOL FILLING LINE
consist of cans arranging machine, rotary liquid filling machine, valve inserting machine, rotary sealing and gas filling , automatic weight checker, water bath, nozzle presser, cap presser, ink jet printer, packing table, etc. Propellants could be LPG, DME, CO2, N2, compressed air, etc, widely applied in spray paint, air freshener, insecticide, body spray, cosmetics, food aerosols.WORKING PROCESS:

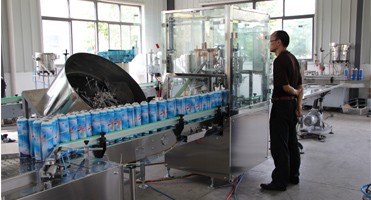

Cans loading table ----Liquid filling machine---- Valve inserting machine ---- Valve fixing& sealing& propellant gas filling machine ---- Weight checking machine ----Water bath tank---- Actuator pressing machine ----Cap pressing---- Ink jet printer ---- other packing systems

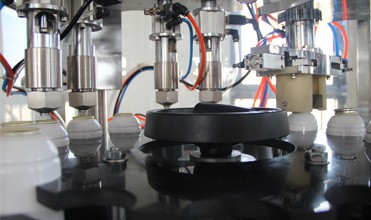

Automatic liquid filling machine has 2-4 filling liquid fillers. Each station is equipped with an entry control damper. It will not fill materials without empty cans. Liquid filler can fill water, solvents and medium viscosity material by self-suction.

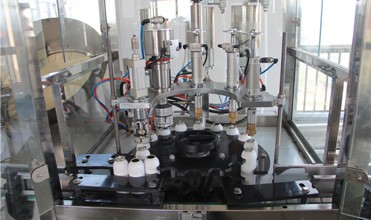

Valve feeder, valve correcting device, crimping head and gas fillers.

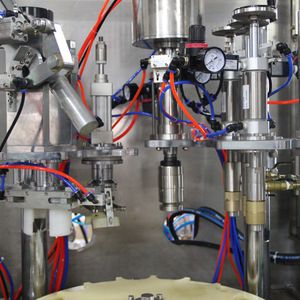

Crimping machine is used to seal the valve with internal expanding mode. Gas fillers is applicable to fill Propane, Butane, Freon, DME, Carbon Dioxide, Nitrogen, Oxygen, compressed air and 134a, etc. No can no filling.

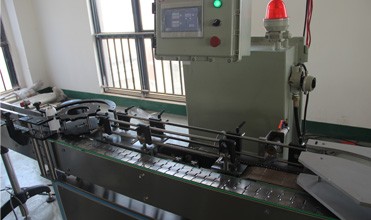

Automatic weight checking machine adopts stable and highly sensitive weighing sensor and signal acquisition instrument, carries out high-speed operation processing by applying a PLC, equipped with a visual and humanized man-machine interface and a well-designed transmission conveying mechanism, has the advantages of simple operation, good stability, high response speed, high accuracy.

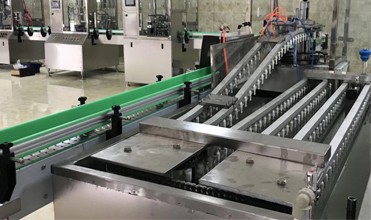

Automatic water bath system is used to test aerosols’ leakage. putting aerosol products into water tanks automatically and control the temperature in tanks at 55 ℃ (by electrical heating or steam heating) checking the inner pressure and leakages of valve or cans.

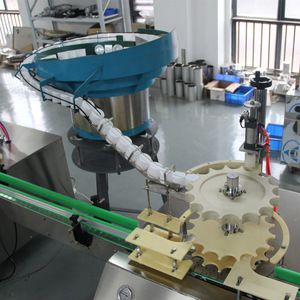

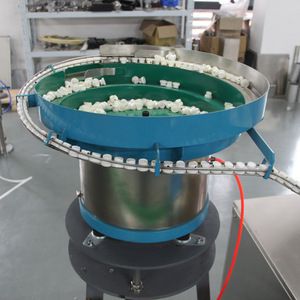

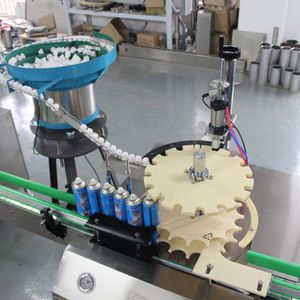

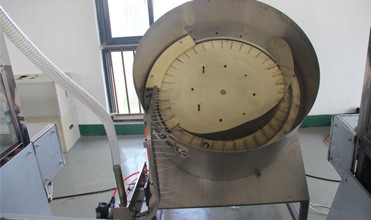

Automatic actuator pressing machine consists of a vibration hopper and an indexing table, it can automatically arrange and convey caps, and automatically press caps onto aerosol cans.

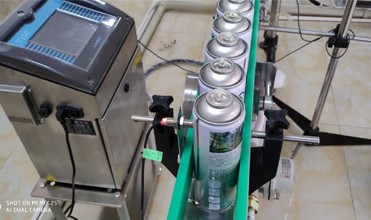

Automatic ink jet printer is used to print the logo, lot number, guarantee period, production date, etc, on bottom or body of aerosol cans
Warranty time: All machines are guaranteed for one year free that we provide spare components except the wrong operation or damaged by people on purpose.
Teaching services: Our engineers will teach your staff to operate the machine during the period of installation and commissioning, and they will not leave until your staff can operate it properly and normally when it necessary.
Quality guarantee: We promise that our goods are all new and not used. They’re made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.
Training: Our company offer technology training to customer. The content of training is structure and maintenance of equipments, control and operation of equipments. Training is in the workshop of customer. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
