High Quality full stainless Bagel Bread hot sealing packing machine factory
Product Description
Technique specification | |
Brand Name | BOGA |
Film width | Max.450mm |
Film roll diameter | Max. 320mm |
Bag length | 120-450mm |
Bag width | 50-180mm |
Product Height | Max.80mm |
Weight | About 700kg |
Packing Speed | 30-150 bag/min |
Voltage | 220V,50/60HZ (380V acceptable ),2.4Kw |
Dimension( L*W*H) | 4020*800*1450MM |
Driven Type | Electric |
Packaging Material | Paper, Plastic, OPP,PE,PVC,PT/PE,OPP/CPP, other special sealable packing film. |
Material quality | Carbon steel,201/304 Stainless steel |
Control | PLC , PID control for temperature |
Main performance and structure features:
1. Double motor, double Panasonic transducer and PLC controller,flexible bag length setting and cutting,saving time and film.
2. human-machine interface, convenient and quick parameter settings.
3. Self diagnosis failure function, failure displayed clearly.
4. High sensitive optical electric color mark tracking system and digital input cut position, which make the sealing and cutting more accurate.
5. Separated PID control system for temperature, suitable for various packing materials.
6. Stopping the machine in selected position, no sticking on the knife and no waste of the film.
7. Simple driving system, reliable working, convenient maintenance.
8. All controlled by program, convenient for function adjusting and upgrading.
Application :
Food | cake, bread, meat , pastry, biscuits, green bean cake, several sausage in a bag, noodles, beef jerky, etc. |
Hardwares | hinge, stainless steel pipe, bearings , screw, nuts and washer, etc. |
Hotel supplies | Soap, disposable comb, tooth paste and brush in one set. |
Stationary | pencil, eraser, notebook, paper card, adhensive tape. |
Electric products | battery, usb cable, earphone, user manual and accessories in one set. |
Medical products | mask, glove, gauze, capsule. |
Daily use products | knife, fork, plate, sponge, scourer, wipes, several straws in a bag, cups, bottles, napkin etc. |
Contact Us Visit Home Start Order

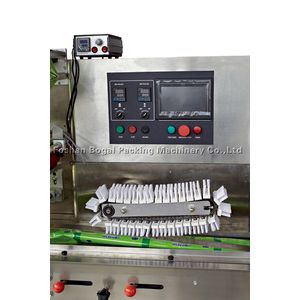

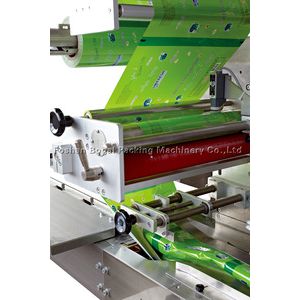

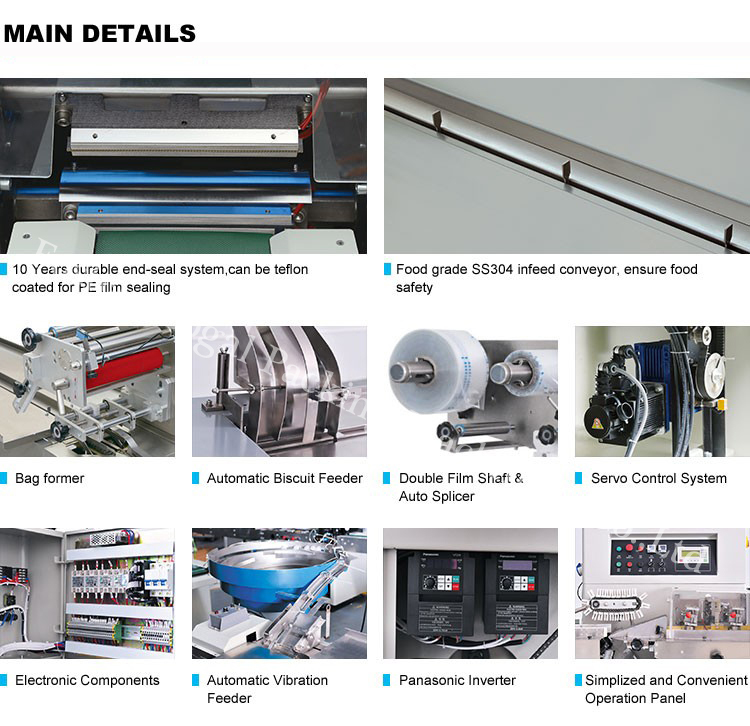

Product Details
Main Electrical configuration | |
1.PLC | Panasonic from Japan |
2.Inverter | Panasonic from Japan |
3.Counting Sensor | Omron from Japan |
4.Switch Button | Schneider from German |
5.Terminals | Wade Miller from German |
6.Display Screen | WeiLun from TaiWan |
7.Motor | Jiangcheng from Guangdong |
8.Photocell | Yetai from Taiyan |
9.Temperature Control List | Omron from Japan |
10.Pushbutton Switch | Schneider from German |
11.Power | Ming Wei from Taiwan |
12.Solid State Relay | Schneider from German |
13.Intermediate Relay | Omron from Japan |
14.Two Wire Switch | Schneider from German |
Packing
General | 1.Packaging Details:Export and Sea-worthy standard wooden case |
2. After inspection our machines are wrapped by plastic film and then carefully packed in wooden cases. | |
3.Dedusting & Cleaning >> lubricate Drive Parts >> Divide Machine Into Modules >> Wrap Modules With Plastic Film >> Packing Modules into Plywood Cases >> Mark Shipping Mark In The Cases | |
Special | If any special requirements, we will pack it as requested. |

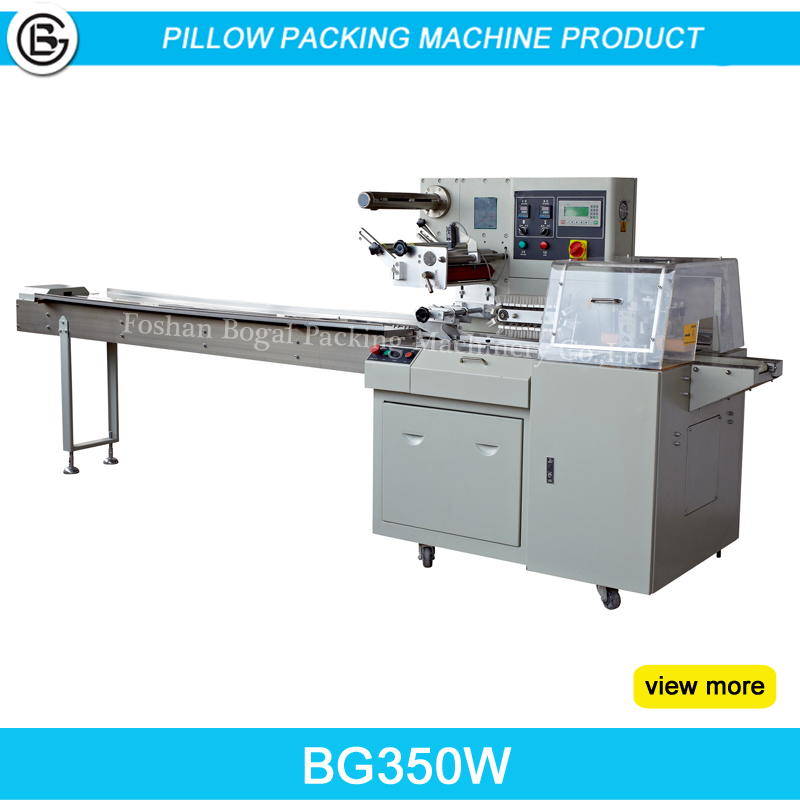

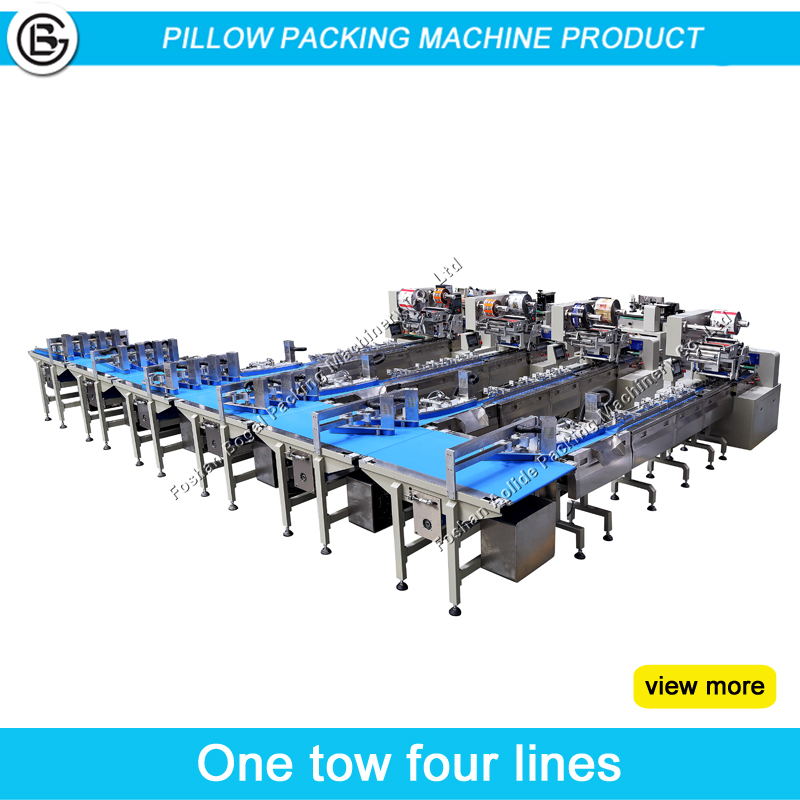

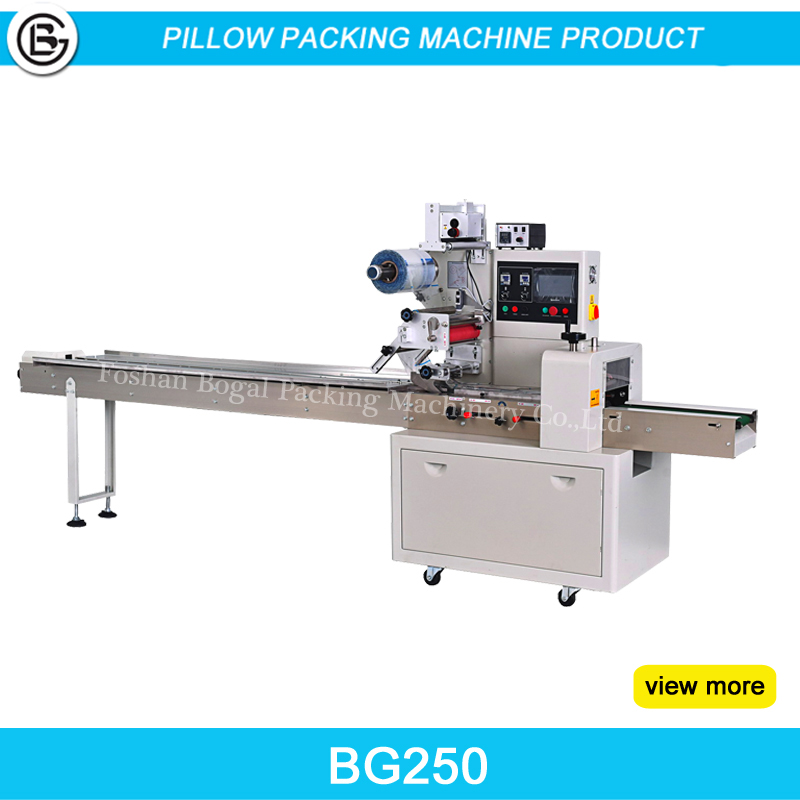

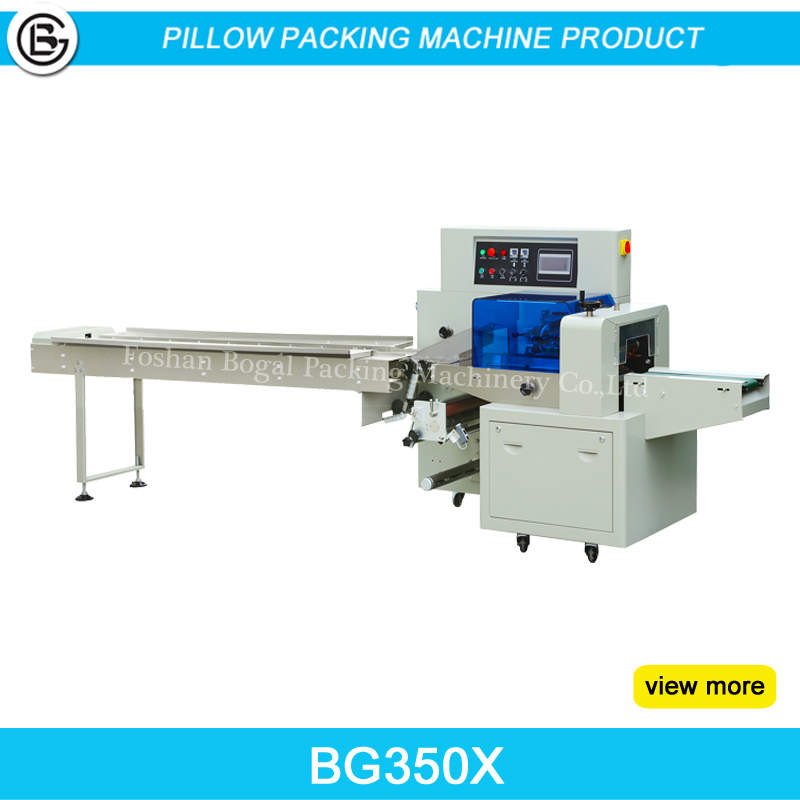

Relate Product
Contact Us Visit Home Start Order
Our Company
Our Services
After-sales service | 1. Each machine with the relevant English operating instructions. |
2. Our engineers can operate through a video demonstration. | |
3. Professional engineers will answer the technical questions at 24h by phonecall or WhatsApp or other tools. | |
4. We have 3 engineers with passport holding in the hand, whom can be sent to any country for installation and commission. |
